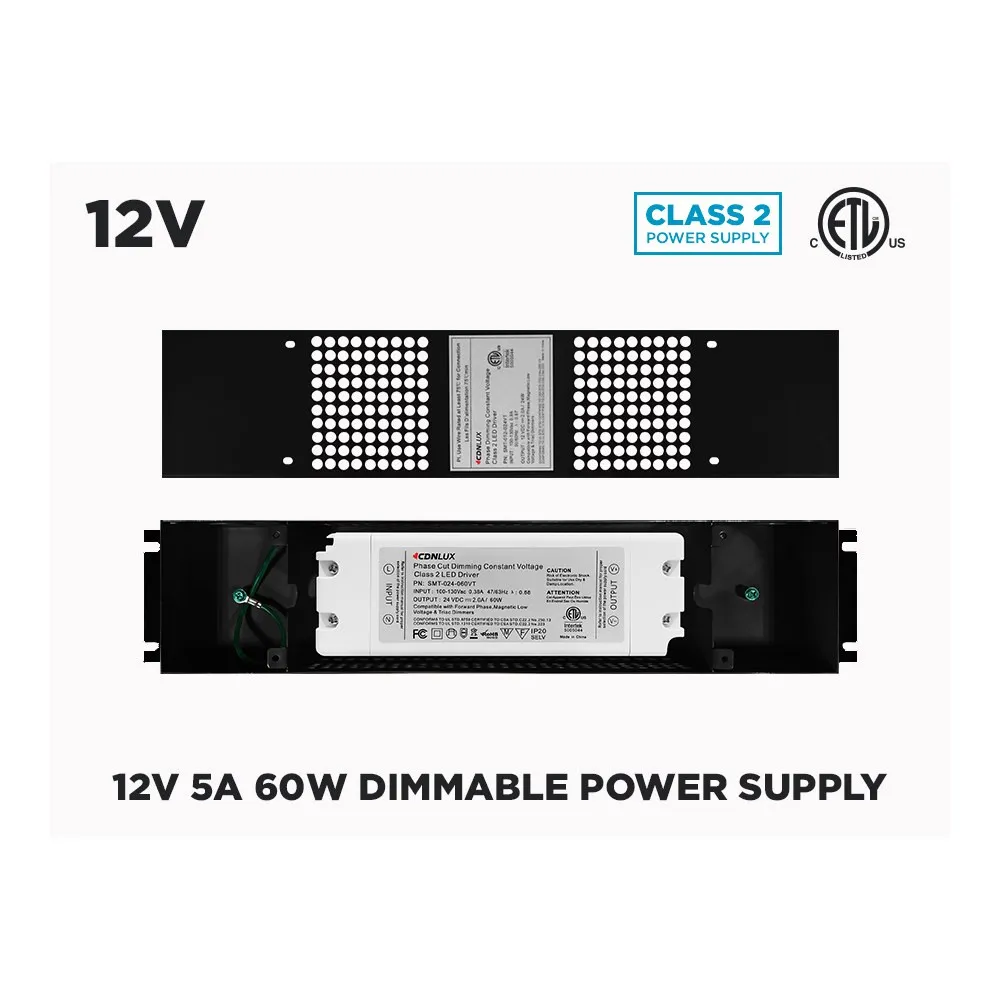

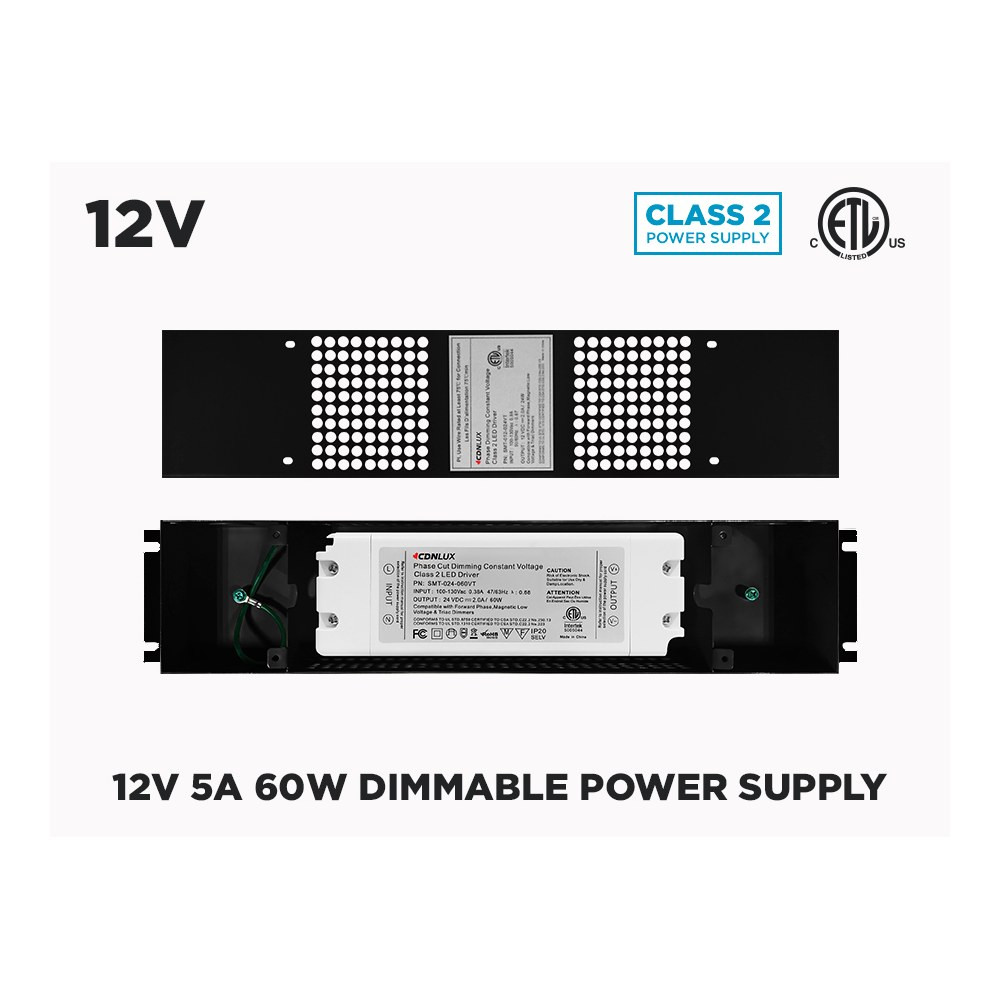

12V UNIVERSAL DIMMABLE LED DRIVER 60W (CLASS 2)

Name: 12V UNIVERSAL DIMMABLE LED DRIVER 60W (CLASS 2)
Brand: LED MONTREAL
SKU: 12DIMPC2-60W
Price: 104.97 CAD
Availability: InStock

SKU: 12DIMPC2-60W

Brand: LED MONTREAL

Dim your LED strips with the wall dimmer you already have. The 12V Universal Dimmable LED Driver 60W (Class 2) — also called a dimmable LED power supply, LED transformer or simply a lighting driver — turns a standard 110V wall dimmer into a smooth, silent control for single colour LED tape. It is one of the rare constant voltage drivers that plays nicely with recent residential dimmers, which makes it the go-to piece when you want under-cabinet lighting, cove lighting, stair strips or display shelving to fade up and down like a real luminaire instead of switching harshly on and off. SKU 12DIMPC2-60W.

This driver accepts a 100 – 120V AC input and delivers a steady 12V, 5A, 60W output, enough headroom to power a generous run of 12V single colour LED strip light. It dims smoothly from 100% down to 20% with no noise and no flickering, and — this is the clever part — it needs no minimum load, so short runs behave as well as long ones. The compact housing measures 15.3 cm x 5.2 cm x 2 cm, slim enough to hide inside a cabinet, a valance or an electrical box. It is a Class 2 unit and carries cETLus certification for Canada and the USA, so it fits comfortably into inspected residential and commercial work. Brand: CDNLUX.

Important: this dimmable driver is strictly for single colour LED strips controlled by a 120V AC wall dimmer. If you are running RGB, RGBW or CCT-variable tape, dimming must be handled by the LED controller with a non-dimmable driver instead — the same is true if you choose to run single colour tape through a controller. It shines in kitchens and bathrooms, home theatres, bedroom headboards, retail display cases, restaurant bars, reception desks and office millwork across Canada. Need less power for a smaller run? See the 12V Universal Dimmable LED Driver 24W or the 12V Universal Dimmable LED Driver 48W. Add this one to your project and get the dimming you actually wanted.

Compatible with
Works with:
LED strip: 12RGB150, 12RGB15067, 12RGB150IP20, 12RGB300, 12RGB30067, 12RGB300IP20, 283512-3000, 301412120-3000

Built for real dimming, not compromise
Most 12V power supplies force you to dim at the low-voltage side with a separate controller and remote. This universal dimmable LED driver flips that around: it sits between your 120V circuit and your LED tape, and it takes its cue from the standard wall dimmer already installed in the room. The result is the experience homeowners expect — one switch on the wall, one smooth fade, no buzzing transformer and no strobing at the bottom of the range. Because it requires no minimum load, you are not stuck adding dummy loads or extra strip just to keep the dimmer happy on a short under-cabinet run.

Technical specifications
Model: 12DIMPC2-60W
Brand: CDNLUX
Input: 100 - 120V AC
Output: 12V 5A 60W
Dimmable: Yes, with a 120V AC dimmer
Dimming range: 100% to 20%, no noise, no flickering
Minimum load: not required
Dimensions: 15.3 cm x 5.2 cm x 2 cm
Class: Class 2
Certification: cETLus for Canada and USA

Electrical and installation notes
As a constant voltage driver, it maintains a fixed 12V while the current varies with the length of tape connected — always keep your total strip wattage under the 60W output, and leave a little margin for comfort. The Class 2 rating and cETLus listing simplify inspections on both residential and commercial jobs in Canada. The 15.3 cm x 5.2 cm x 2 cm body tucks behind a toe-kick, above a cabinet, inside a bulkhead or in an accessible junction box; keep it reachable for service and let air circulate around it. Feed it from the dimmed leg of your 120V circuit, then run your 12V output to the strip, watching polarity at the connection point.

Compatibility — read this before ordering
This driver is designed strictly for single colour LED strip light: warm white, neutral white, cool white or a single colour such as red, green or blue. If your project uses RGB, RGBW or CCT-variable LED strips, dimming has to be managed by the LED controller, paired with a non-dimmable driver — this dimmable model is not the right choice there. The same rule applies if you want to drive single colour tape through a controller: use a non-dimmable driver in that case. Pair it with any recent standard 120V wall dimmer. For smaller installations, the 12V Universal Dimmable LED Driver 24W and the 12V Universal Dimmable LED Driver 48W share the same behaviour in a lower output.

Where it earns its keep, and documentation
Think kitchen under-cabinet lighting that fades down for late-night snacks, a cove in a basement home theatre, bathroom mirror and vanity accents, stair nosings, a jewellery or bakery display case, a restaurant bar front, or reception millwork in a small office. Contractors like it because the client controls everything from a familiar wall plate — no lost remote, no app. The technical PDF spec sheet for the 24W, 48W and 60W versions is available in the Documentation tab of this page, with input, output, dimensions and certification details to file with your submittals.

Technical Files
