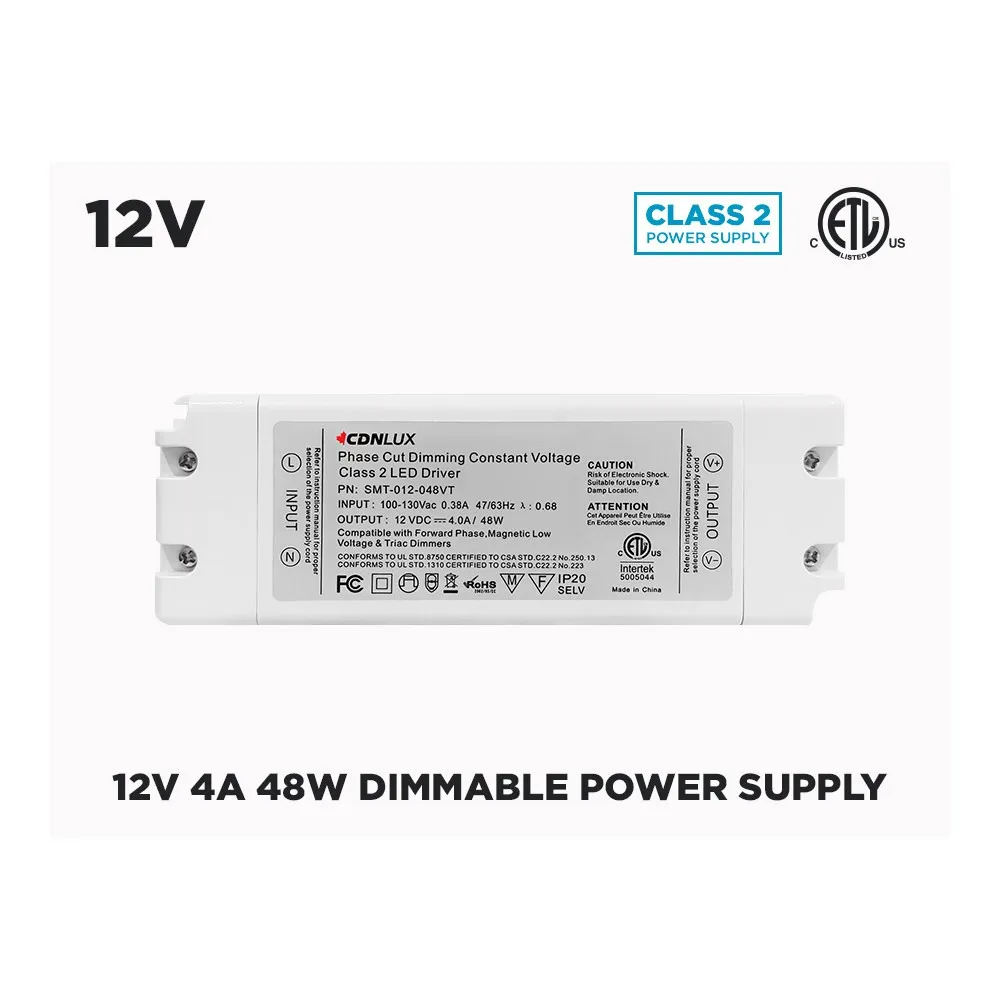

12V UNIVERSAL DIMMABLE LED DRIVER 48W (CLASS 2)

Built for real-world strip lighting
A 12V LED driver is the heart of any low-voltage tape light installation, and this one is designed to disappear into the job. Measuring 15.3 cm x 5.2 cm x 2 cm, the compact enclosure slides behind a valance, above a cabinet, inside a soffit or next to a junction box without forcing you to rebuild the millwork. It is a Class 2 power supply, carries cETLus certification for Canada and the USA, and is built by CDNLUX for LED Montreal — the kind of paperwork an inspector likes to see on a residential or commercial project.

Dimming that actually behaves
What sets this universal dimmable LED driver apart is how it handles your existing wall control. It is engineered to work with any recent standard 120V AC dimmer and takes your single colour LED strips smoothly from 100% to 20% — no audible buzz, no strobing at the low end, no hunting for a "compatible" dimmer model. Even better, it needs no minimum load, which is the usual culprit when a short two or three foot run of tape refuses to dim or flickers at the bottom of the slider. Wire it, dim it, done.

Technical specifications
SKU: 12DIMPC2-48W
Brand: CDNLUX
Certification: cETLus for Canada and USA
Input: 100 – 120V AC
Output: 12V 4A 48W
Dimensions: 15.3 cm x 5.2 cm x 2 cm
Dimmable: Yes, with a 120V AC dimmer
Class: Class 2

Compatibility and wiring notes
Use this driver only with single colour 12V LED strips — warm white, neutral white, cool white or a single colour tape. If your project calls for RGB, RGBW or CCT-variable strip, dimming must be managed through the LED controller and you need a non-dimmable driver instead; the same applies if you choose to run single colour tape through a controller. On the line side, the driver is fed from your 120V circuit through the wall dimmer; on the load side, respect the 48W output when you total up your runs, and remember that a longer tape run or a higher watt-per-metre tape eats that budget faster. If your layout grows, step up to the 12V Universal Dimmable LED Driver 60W; for a single small shelf or a bathroom vanity accent, the 12V Universal Dimmable LED Driver 24W is often all you need.

Where it earns its keep — and the paperwork
Think kitchen under-cabinet lighting on the same dimmer as the pot lights, a basement media wall with cove lighting, a walk-in closet with shelf lighting, a retail counter with illuminated displays, a café bar front, a clinic reception desk or a home office floating shelf. Anywhere a client says "I just want to dim it from the wall," this is the answer — and in Canadian homes where the dimmer is already installed and nobody wants another remote on the counter, it saves a service call. The technical PDF (12V Universal Dimmable LED Driver 24W 48W 60W (Class 2)) is available in the Documentation tab, with the full input, output and dimension data to hand to your electrician or attach to your permit file.
