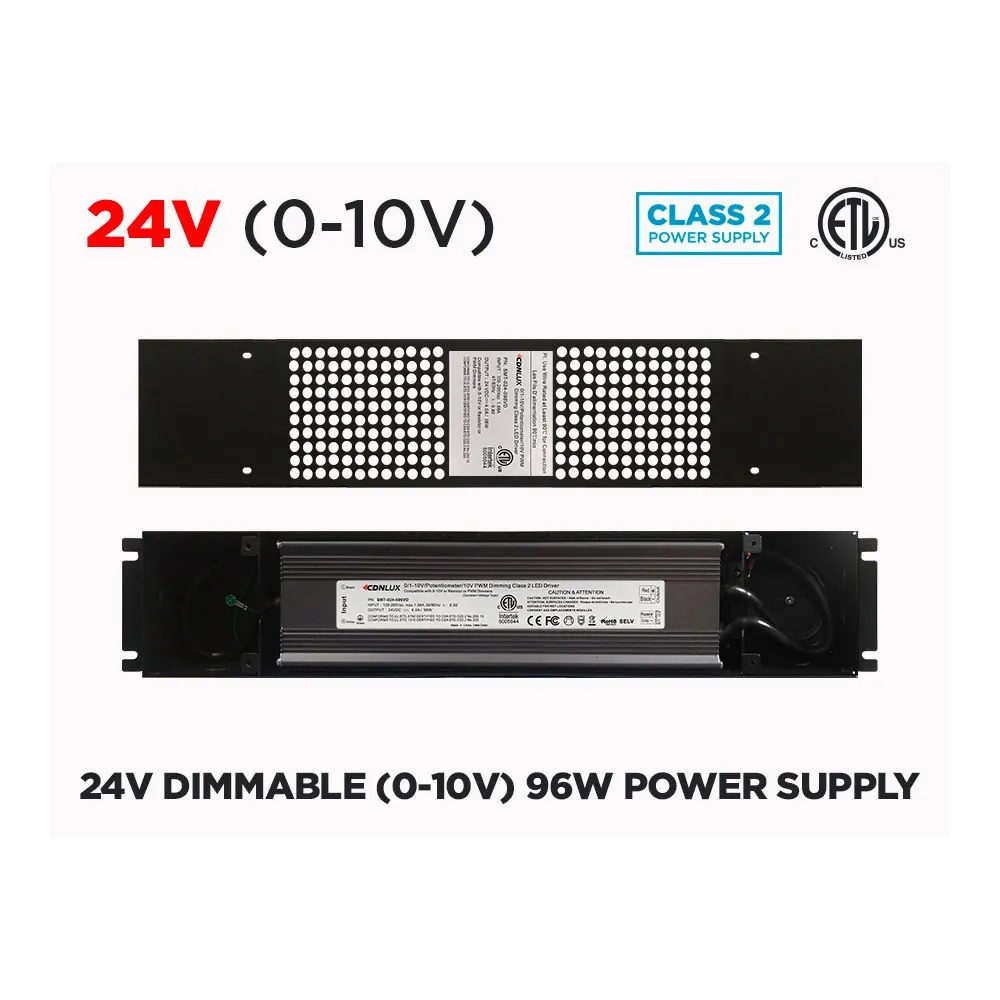

24V DIMMABLE (0-10V) CLASS 2 LED DRIVER 96W

Name: 24V DIMMABLE (0-10V) CLASS 2 LED DRIVER 96W
Brand: LED MONTREAL
SKU: 010DIMP96
Price: 129.97 CAD
Availability: InStock

SKU: 010DIMP96

Brand: LED MONTREAL

Dim your LED strips right down to zero, with no flicker and no buzz — that's exactly what the 24V Dimmable (0-10V) Class 2 LED Driver 96W from LED MONTREAL was built to do. Also called a 0-10V LED driver, a constant voltage LED power supply, a 24V transformer or simply one of those lighting drivers people search for when a strip light project needs real dimming control, this unit (SKU 010DIMP96) takes your household power and turns it into clean, steady 24V DC for single colour LED tape. One important heads-up before you add it to your project: this is a 0-10V driver, so it works with specialized 0-10V wall dimmers and control systems — it is NOT compatible with standard dimmers. Check your control system first, and you'll be rewarded with the smoothest dimming curve you've ever run under a cabinet or a cove.

Here are the real numbers. The input is 100-120V AC, the output is 24V DC, 4A max (96W), and the unit carries cETLus certification, so it's ready for Canadian residential and commercial work. The power supply itself measures 23 cm x 7 cm x 4.5 cm and comes with a junction box measuring 37.7 cm x 7.5 cm x 5.3 cm, which keeps your connections tidy and code-friendly instead of dangling above a ceiling tile. Paired with a 0-10V wall dimmer, it takes your 24V single colour LED strips from 100% all the way down to 0% — silently, with no flickering — and, unlike many drivers on the market, it does not require a minimum load to dim properly. That means short runs of tape behave just as beautifully as long ones.

This Class 2 LED driver is right at home in kitchen under-cabinet lighting, cove and ceiling coffers, staircases, home theatres, basement renovations, and in commercial jobs like retail display shelving, restaurants, offices and reception desks where the lighting mood has to change through the day. Contractors already running 0-10V controls for other fixtures can put strip lighting on the same dimming language, which makes commissioning far simpler. It powers 24V single colour LED tape up to 96W total — plan your run length accordingly, and use a second driver for longer installs. Ready to give your LED strips the smooth, noise-free dimming they deserve? Add the 0-10V driver that makes it happen.

Compatible with
Works with:
LED strip: 2216A-3000, 24BND2835SO-3000, 24RGB150, 24RGB15067, 24RGB150IP20, 24RGB300, 24RGB30067, 24RGB300IP20

Built for clean, controlled low-voltage power
The 010DIMP96 is a constant voltage LED driver: it holds a steady 24V DC output while the current varies with the load, which is exactly what LED tape needs. It is supplied with its own junction box, so line-voltage wiring stays enclosed and the low-voltage side comes out neatly toward your strips. The driver body measures 23 cm x 7 cm x 4.5 cm and the junction box measures 37.7 cm x 7.5 cm x 5.3 cm — dimensions worth checking against your cabinet soffit, millwork cavity or ceiling access panel before you frame anything in. As a Class 2 LED driver, its low-voltage output is the friendly, easy-to-run side of the installation.

Dimming that actually goes to zero
Not all dimming is equal. With a 0-10V control signal, brightness is managed by a separate low-voltage pair rather than by chopping the AC waveform, so the result is a smooth, continuous fade from 100% to 0% with no audible buzz and no flicker on camera. Just as important, this driver does not require a minimum load, a common frustration with other dimmable LED drivers where short strip runs refuse to dim or drop out at the bottom of the curve. Please note again: this unit responds only to 0-10V dimmers and 0-10V control systems. Standard TRIAC or ELV wall dimmers will not work with it, so confirm your controls before wiring.

Technical specifications
SKU: 010DIMP96
Brand: LED MONTREAL
Input: 100-120V AC
Output: 24V DC, 4A max (96W)
Dimming: 0-10V, 100% to 0%, no minimum load required
Certification: cETLus
Power supply dimensions: 23 cm x 7 cm x 4.5 cm
Junction box dimensions: 37.7 cm x 7.5 cm x 5.3 cm

Compatibility and installation tips
Use this driver with 24V single colour LED strips and keep the total connected load at or below 96W; on bigger projects, split the installation across several drivers and feed each section separately rather than pushing one unit to its limit. Run the 0-10V control pair from your wall dimmer or control system to the driver's dimming leads, keeping polarity in mind, and keep low-voltage output runs reasonably short to avoid voltage drop at the far end of the tape. Mount the driver where it can breathe — inside a vented cabinet, above a removable ceiling panel or in a service cavity — and always leave it accessible for future service. Wiring should follow the Canadian Electrical Code and, where required, be completed by a licensed electrician.

Where it earns its keep, and the documentation
In homes, this 0-10V LED driver is the quiet hero behind under-cabinet kitchen lighting, island and toe-kick accents, cove lighting in living rooms, stairwell strips, bathroom vanity glow and home theatre rooms where the light has to drop to nothing on cue. In commercial spaces, it belongs in retail display cases and shelving, hotel corridors, restaurant banquettes, clinics, offices and reception millwork — anywhere a building already speaks 0-10V and the strip lighting has to follow the same scenes. The full technical PDF, 0-10V UNIVERSAL DIMMABLE LED DRIVER 96W, is available in the Documentation tab of this page for exact input, output, certification and dimension details before you order.
