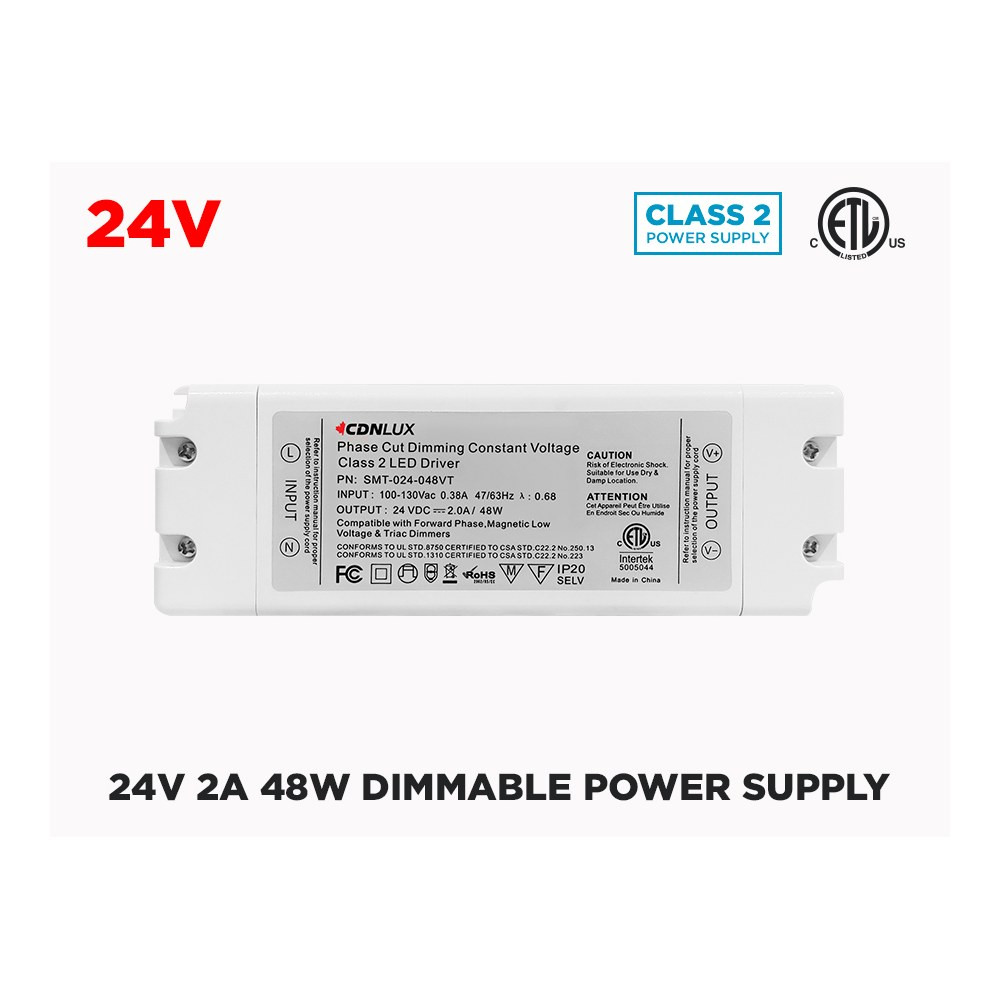

24V UNIVERSAL DIMMABLE LED DRIVER 48W (CLASS 2)

Name: 24V UNIVERSAL DIMMABLE LED DRIVER 48W (CLASS 2)
Brand: LED MONTREAL
SKU: 24DIMPC2-48W
Price: 82.97 CAD
Availability: InStock

SKU: 24DIMPC2-48W

Brand: LED MONTREAL

Dim your LED strips the easy way — with the wall switch you already have. The 24V Universal Dimmable LED Driver 48W (Class 2) from LED MONTREAL, SKU 24DIMPC2-48W, is the little box that turns a plain LED strip light installation into a real, controllable lighting scene. Shoppers look for it under many names: LED driver, dimmable LED power supply, LED transformer, constant voltage driver, low voltage LED power pack. Whatever you call it, its job is the same: take your 120V household power, convert it to clean low voltage, and let a standard wall dimmer take care of the rest. It was built for single colour LED strips — under cabinets, in coves, along stairs, inside display cases, behind bathroom mirrors, in garages and workshops — anywhere you want light you can actually tune down instead of just switching on and off.

Here is what makes it a favourite with electricians and DIY renovators alike. It accepts an input of 100 - 120V AC and delivers a steady output of 24V 2A 48W, so you can size your strip run confidently. It dims with a 120V AC dimmer, smoothly from 100% to 20%, with no buzzing and no flickering — and unlike many drivers, it needs no minimum load to dim properly, which means short runs behave just as nicely as long ones. It is cETLus certified for Canada and the USA, and it is a Class 2 unit, the safe low voltage category installers like to see. The housing is thin and compact so it hides easily above a cabinet or inside a ceiling cavity, and the integrated junction box with two mounting brackets lets you screw it down solidly instead of leaving it dangling behind the millwork.

It shines in kitchens with under-cabinet lighting, basements and family rooms with cove lighting, bathrooms with mirror and vanity strips, retail counters, restaurant bars, reception desks and office millwork. For Canadian homes and businesses, the cETLus listing keeps inspectors happy on both residential and commercial projects. Need a different capacity for your strip run? The same family offers the 24V Universal Dimmable LED Driver 24W for short accent runs and the 24V Universal Dimmable LED Driver 60W for longer ones. Pair this 48W model with your 24V single colour strip, add the wall dimmer you like, and enjoy light that finally listens to you.

Compatible with
Works with:
LED strip: 2216A-3000, 24BND2835SO-3000, 24RGB150, 24RGB15067, 24RGB150IP20, 24RGB300, 24RGB30067, 24RGB300IP20

Built to disappear into the millwork
The 24DIMPC2-48W is a constant voltage LED driver designed around a simple idea: a power supply should be invisible and silent. The enclosure is thin and compact, so it slips above upper cabinets, inside a soffit, behind a vanity or into a ceiling cavity without a fight. It ships as a junction box style driver with two integrated mounting brackets, so instead of zip-tying a brick to a joist, you screw the unit down where you want it and make your connections in a proper enclosure. That matters on inspected jobs and it matters years later, when someone opens the cabinet and finds a tidy, secured installation rather than a nest of wire.

Dimming that actually behaves
This is a universal dimmable LED driver: it is made to work with any recent standard 120V AC wall dimmer, so you control your strips from the same switch plate as the rest of the room — no separate remote, no proprietary controller. It dims smoothly from 100% down to 20% without noise and without flickering, and it does not require a minimum load to perform. That last point is the one installers appreciate most, because short accent runs and single-cabinet jobs are exactly where cheaper drivers start to stutter, drop out or hum. Here, a small run dims as cleanly as a full kitchen perimeter.

Technical specifications
SKU: 24DIMPC2-48W
Brand: LED MONTREAL
Manufacturer: CDNLUX
Input: 100 - 120V AC
Output: 24V 2A 48W
Type: Constant voltage, Class 2
Dimmable: Yes, with a 120V AC dimmer
Certification: cETLus for Canada and USA

Wiring, sizing and compatibility
On the line side you feed the driver from a 100 - 120V AC circuit, with the dimmer upstream on the same line. On the load side you get 24V DC at up to 2A, for a total of 48W available to your single colour 24V LED strip. Add up the wattage per metre or per foot of the strip you plan to install, multiply by the length of your run, and keep the total under the driver's capacity so it runs cool and lasts. If your calculation comes in lower, the 24V Universal Dimmable LED Driver 24W is the compact answer; if you need more headroom, step up to the 24V Universal Dimmable LED Driver 60W. Because it is a Class 2 low voltage supply, keep the secondary runs reasonably short and use an appropriate wire gauge to avoid voltage drop at the far end of a long strip.

Where it earns its keep, and what's in the Documentation tab
Think of the everyday scenes: under-cabinet task lighting in a kitchen, a cove that washes the ceiling of a basement family room, a soft glow behind a bathroom mirror you can dim down at night, stair nosing lighting, closet and pantry strips, display cases in a boutique, a backlit bar in a restaurant, a reception desk logo wall, or shelving in a small office. In every one of those cases the value is the same: a dimmable 24V power supply that hides, stays quiet and answers to a normal wall dimmer. The technical PDF for the 24W / 48W / 60W family is available in the Documentation tab — download it for wiring details and to confirm enclosure and mounting information before you cut your openings.

Technical Files
