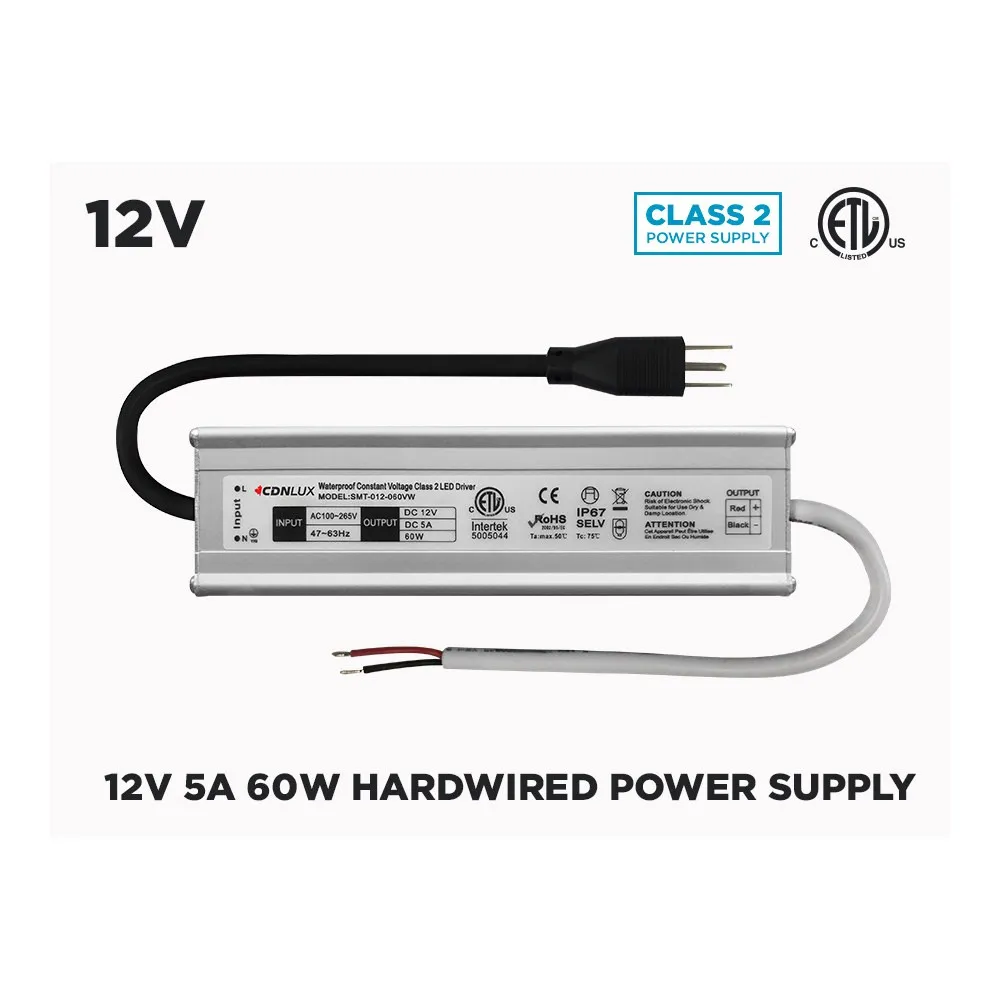

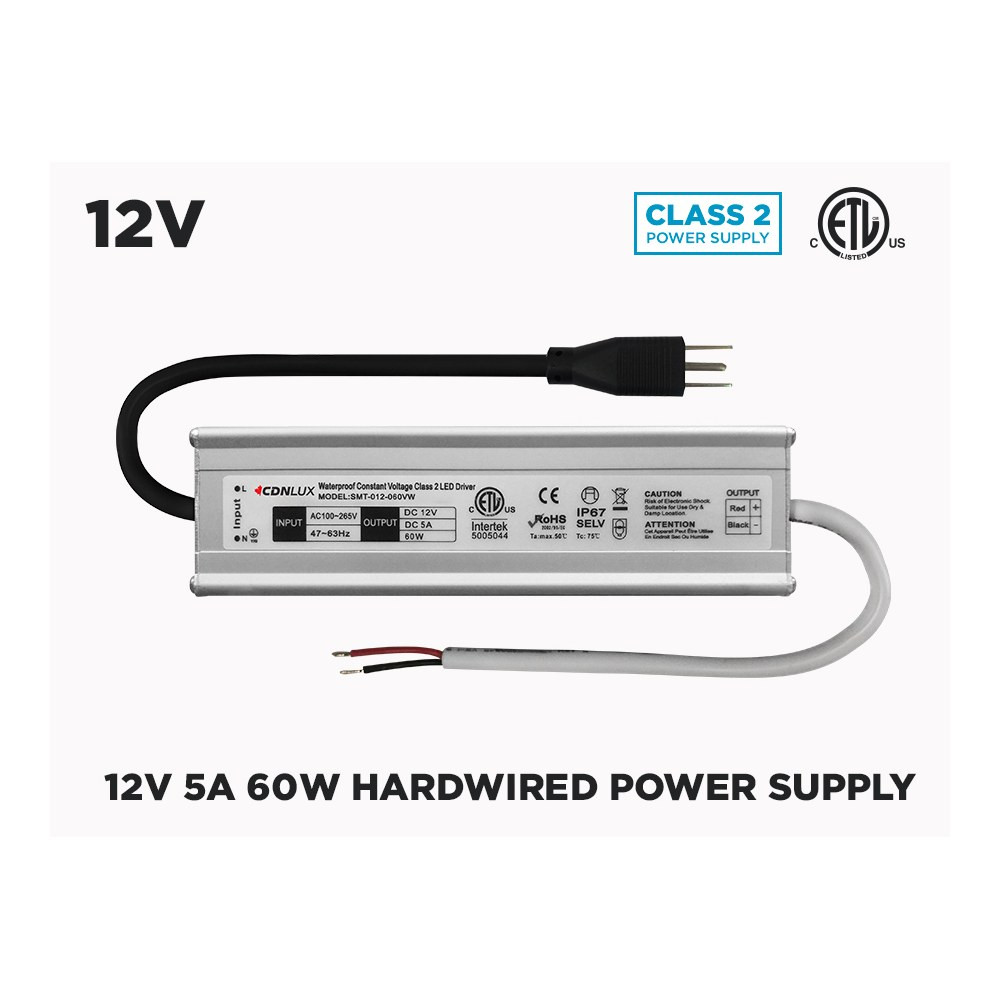

12V DC IP67 INDOOR / OUTDOOR LED DRIVER 5A (60W)

Name: 12V DC IP67 INDOOR / OUTDOOR LED DRIVER 5A (60W)
Brand: LED MONTREAL
SKU: 12V5AETLPSU
Price: 56.97 CAD
Availability: InStock

SKU: 12V5AETLPSU

Brand: LED MONTREAL

Power your LED projects outside without losing sleep over rain, snow or humidity. The 12V DC IP67 Indoor / Outdoor LED Driver 5A (60W) from LED MONTREAL — also searched as a 12 volt LED power supply, hardwire LED driver, waterproof LED transformer or simply a 12V power supply for LED strip — is the sealed little workhorse that turns your building's line voltage into clean, steady 12V DC. It's the piece most people forget when they plan outdoor deck lighting, a garden path, a sign or under-cabinet strips, and it's the piece that decides whether the whole install lasts one season or many.

This driver delivers a constant 12V DC output at 5A, for a total of 60W, and accepts a wide input of 100 – 265V AC, so it works on standard Canadian 120V circuits. It carries a cETLus certification for Canada and the USA, which matters when an inspector or a client asks for paperwork on a residential or commercial job. The housing is rated IP67, with a robust cover plus waterproof connections and cables, and an installation bracket on each side lets you screw it solidly to a wall, a joist or inside a cabinet instead of leaving it dangling. Input and output are on two distinct leads: line voltage in, and a 12V DC output with one positive (red) and one negative (black) connection — straightforward wiring for anyone comfortable with low-voltage work. Note that this model is not dimmable, so pair it with switched circuits or in-line 12V controllers rather than a wall dimmer.

Where does it shine? Patios, gazebos, decks, pergolas, cottages, RVs and trailers, garden and landscape accents, backlit signage, soffits, stair nosings, garages and workshops — anywhere a 12V LED strip kit, LED puck lights, cabinet bars or small 12V fixtures need a reliable source. Canadian winters are hard on cheap transformers; a sealed IP67 unit mounted under an eave or in a protected enclosure is the honest way to do it right. Size it simply: add up the wattage of every 12V fixture on the run and stay within the 60W total for comfortable headroom. SKU 12V5AETLPSU — add it to your next low-voltage project and let the lights do the talking.

Compatible with
Works with:
LED strip: 12RGB150, 12RGB15067, 12RGB150IP20, 12RGB300, 12RGB30067, 12RGB300IP20, 283512-3000, 301412120-3000

Built for the weather, not just the workbench
The 12V5AETLPSU is a sealed, hardwired constant-voltage driver designed to live where ordinary plug-in transformers fail. Its IP67-rated enclosure and waterproof cable entries keep moisture, dust and wind-driven rain out of the electronics, while the integrated mounting brackets on each side let you anchor it with two screws to a wall, a deck joist, a post or the back of a cabinet. That fixed mounting is more than tidiness: a driver that can't swing, vibrate or sit in a puddle is a driver that keeps its connections tight for years. It's equally at home indoors, tucked into a millwork void or a mechanical room, which is why it shows up in both indoor LED lighting and outdoor LED lighting system installs.

Clean, steady 12V for LED strip and low-voltage fixtures
LEDs are fussy about their supply — voltage ripple shows up as flicker on camera and shortens diode life. This unit provides a regulated 12V DC constant voltage up to 5 amps, which means a 60W budget to share among your fixtures. A practical rule: total the watts per metre or per fixture across your run, then stay under that 60W ceiling so the driver runs cool and relaxed. If your layout needs more than 60W, split the load across two drivers rather than overloading one — with low-voltage runs, shorter feeds and balanced loads also protect you from voltage drop at the far end of a long strip.

Technical specifications
SKU: 12V5AETLPSU
Input: 100 – 265V AC
Output: 12V 5A 60W
Dimmable: No
Ingress protection: IP67, indoor / outdoor
Certification: cETLus for Canada and USA
Mounting: installation bracket on each side
Connections: separate input and output leads; DC output with one positive (red) and one negative (black)

Wiring and installation notes
The wide 100 – 265V AC input means the same unit is comfortable on a standard Canadian 120V circuit, indoors or out. On the secondary side, respect polarity: red to the positive pad or wire of your LED strip, black to negative — reversed polarity simply means no light, and on some strips it can damage the first diodes. Use proper waterproof connectors or gel-filled splices for any outdoor junction, keep the driver out of standing water even though it is sealed, and leave it accessible for service. Because this model is not dimmable, control it with a switch, a timer, a smart relay, or an in-line 12V DC controller or RGB controller placed on the output side. Outdoor line-voltage connections must be made in a suitable weatherproof enclosure and, in most Canadian jurisdictions, by a licensed electrician — always follow the Canadian Electrical Code and your local authority.

Real-world applications and documentation
Homeowners use it for deck and stair lighting, gazebos, pergolas, under-railing strips, garden and pathway accents, and cottage or RV and trailer projects. Contractors reach for it on soffit lighting, backlit and channel outdoor sign lights, cove details, display cases and retail shelving where a compact, certified 12V supply is required. Small businesses like it for signage and window displays that run every evening. The technical PDF spec sheet for this driver is available in the Documentation tab of this page — download it for your submittal package, your permit file or simply to confirm input and output values before you order. SKU 12V5AETLPSU: a small box that quietly makes the rest of your lighting look good.

Technical Files
