Built for real 24V installations

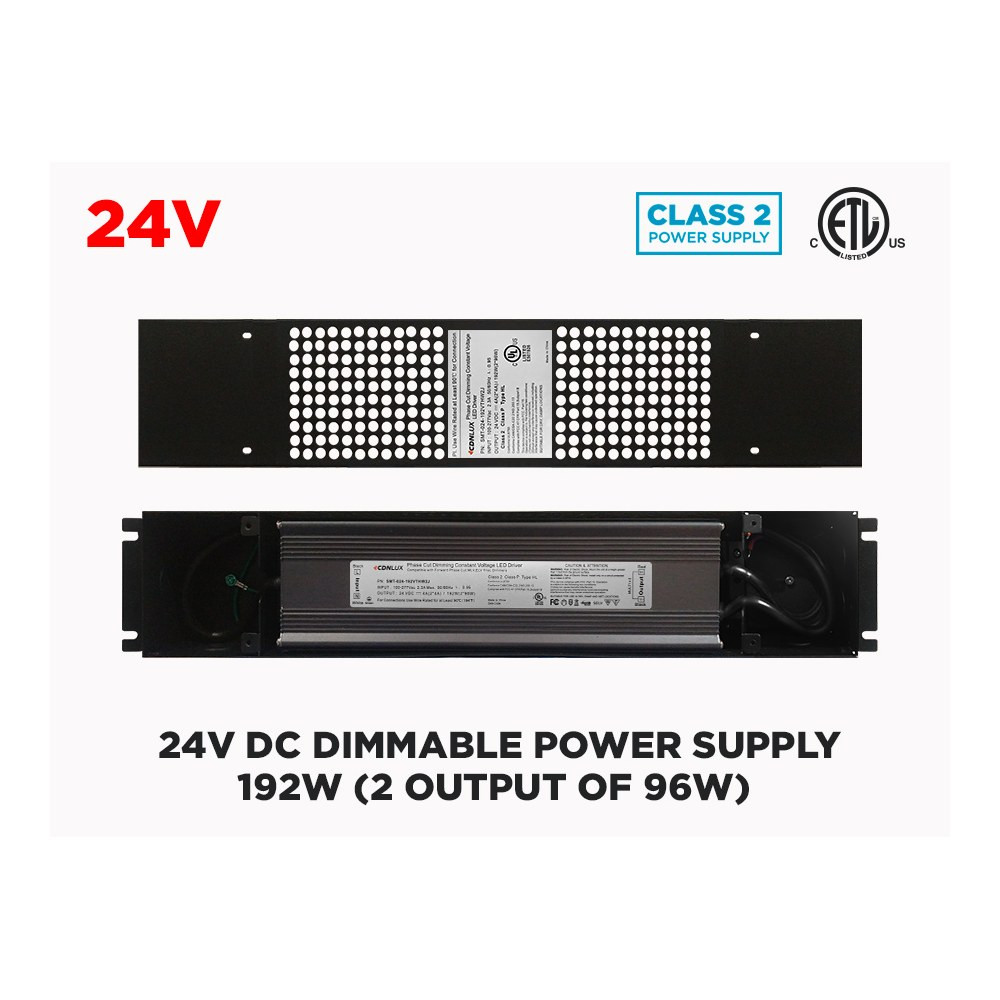

The 24DIMP192 is a constant voltage LED driver designed around one simple idea: your LED strips should dim like any other light in the house. It ships with its own junction box, so the driver can be mounted and wired neatly above a ceiling, inside a cabinet bulkhead, in a mechanical room or behind a millwork panel instead of dangling from a plug. The power supply body measures 23cm x 7cm x 4.5cm and the junction box measures 37.7cm x 7.5cm x 5.3cm, dimensions worth checking before you frame your chase or cut your access panel.
Smooth dimming, no flicker, no minimum load
This driver reads the signal from any recent standard 120V wall dimmer, Triac or low-voltage magnetic, and translates it into a smooth fade from 100% down to 10% with no buzzing and no flickering. Because it does not require a minimum load, it behaves properly even on small accent installations where many drivers stutter or refuse to strike. That makes it a reliable choice for short under-cabinet runs, a single shelf detail or a narrow cove where the connected wattage stays low.
Technical specifications
SKU: 24DIMP192
Brand: CDNLUX
Certification: cETLus for Canada and USA
Input: 100 - 120V AC
Output: 2 outputs at 24V DC 4A max (96W) — 192W total
Dimensions, power supply: 23cm x 7cm x 4.5cm
Dimensions, junction box: 37.7cm x 7.5cm x 5.3cm
Dimmable: Yes, with a 120V AC dimmer
Class: Class 2
Compatibility and wiring notes
Use this driver with single-colour 24V LED strips only. If your project uses RGB, RGBW or variable CCT (tunable white) tape, dimming has to be managed by the LED controller and you must pair that controller with a non-dimmable driver; the same applies to single-colour strips driven through a controller. Plan your load per output: each of the two outputs delivers up to 24V DC at 4A max, meaning 96W per output, and the two together total 192W. Splitting a long installation across the two outputs, rather than daisy-chaining everything on one, keeps voltage drop and colour consistency in check along the run. Feed the driver from a dedicated 120V circuit controlled by the wall dimmer, and always leave service access to the junction box.
Where it earns its keep, and documentation
Contractors reach for this dimmable LED power supply on kitchen renovations with under-cabinet and toe-kick lighting, on basement ceiling coves, staircases, walk-in closets, home theatres and bathroom mirrors; small businesses use it for retail shelf lighting, display cases, bar fronts, reception counters and salon stations where staff want to lower the ambiance in the evening from a switch everyone already knows how to use. Its cETLus certification for Canada and the USA makes specification straightforward for both residential and commercial projects. The full technical PDF for the 192W – (2 X 96W) 24V Universal Dimmable LED Driver (Class 2) is available in the Documentation tab for your submittals and inspections.
