24V UNIVERSAL DIMMABLE LED DRIVER 60W (CLASS 2)

Name: 24V UNIVERSAL DIMMABLE LED DRIVER 60W (CLASS 2)
Brand: LED MONTREAL
SKU: 24DIMPC2-60W
Price: 104.97 CAD
Availability: InStock

SKU: 24DIMPC2-60W

Brand: LED MONTREAL

Finally, a way to dim your LED strips with the wall dimmer you already have. The 24V Universal Dimmable LED Driver 60W (Class 2) from LED Montreal — also searched as a dimmable LED driver, LED strip power supply, constant voltage transformer or simply one of those lighting drivers every low-voltage project needs — turns your 120V house current into clean, steady 24V power for single colour LED tape. No separate low-voltage controller, no proprietary remote, no wiring puzzle: you wire the driver in line, you turn the knob on the wall, and the light follows.

This constant voltage driver takes a 100 – 120V AC input and delivers a 24V 2.5A 60W output, so it powers a healthy run of single colour 24V LED strip while keeping everything inside Class 2 limits. It is dimmable with a 120V AC dimmer and is designed to work with any recent standard wall dimmer, sliding smoothly from 100% down to 20% with no buzzing and no flicker. Better still, it needs no minimum load, which is exactly what defeats most drivers when you only have a short run of tape under a cabinet. It is cETLus certified for Canada and the USA, and the slim, compact housing includes a junction box with two integrated mounting brackets so you can screw it down solidly and tuck it out of sight. SKU: 24DIMPC2-60W.

This is the driver for kitchen under-cabinet lighting, cove and crown moulding runs, staircases, bookcases, closets, bathroom vanities, basement renos, plus retail displays, reception desks, restaurant bars and office millwork. Canadian homeowners and contractors love that the dimming lives on the wall switch, exactly where clients expect it. Need a different capacity for the same job? Match your tape length with the 24V Universal Dimmable LED Driver 24W or the 24V Universal Dimmable LED Driver 48W from the same family. Add it to your project and give your LED strips the smooth, silent dimming they deserve.

Compatible with
Works with:
LED strip: 2216A-3000, 24BND2835SO-3000, 24RGB150, 24RGB15067, 24RGB150IP20, 24RGB300, 24RGB30067, 24RGB300IP20

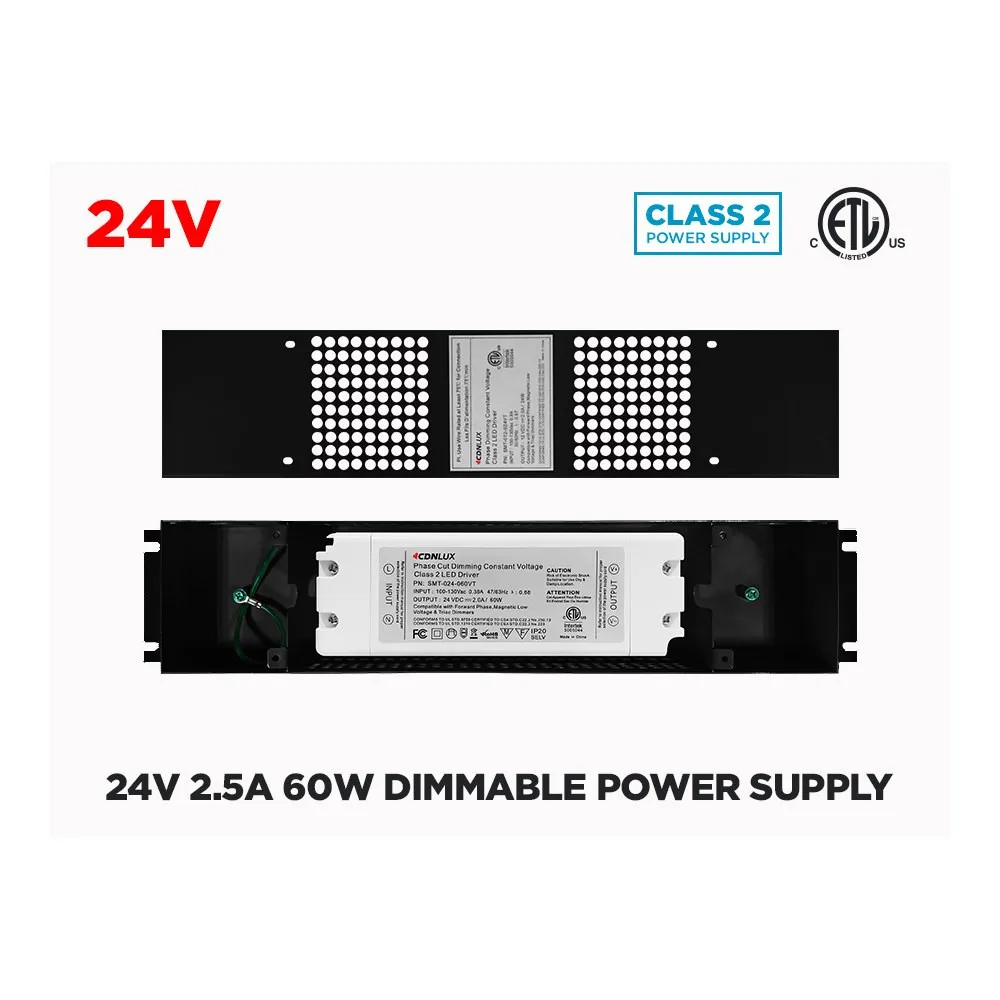

Built to disappear into the millwork
The beauty of this LED strip driver is how little of it you see once the job is done. The housing is thin and compact, which makes hiding your LED power supply inside a cabinet toe-kick, above a valance, behind a crown moulding or in a soffit far easier than with a bulky brick. It ships as a junction box with two integrated mounting brackets, so instead of letting the driver dangle on its wires, you screw it flat against a joist, a stud or the back of a cabinet where it stays put and stays accessible for service later.

Dimming that actually behaves
Most complaints about dimmed LED tape come down to the driver, not the tape. This unit is a constant voltage dimmable LED driver engineered to work with any recent standard 120V AC wall dimmer, and it takes the light smoothly from 100% down to 20% without noise or flickering. Just as important, it does not require a minimum load. That means a single short run of strip over a bar top or inside a display case will still dim properly instead of dropping out, flashing or humming — the classic failure that forces installers to add dummy loads.

Technical specifications
SKU: 24DIMPC2-60W
Brand: LED MONTREAL
Input: 100 - 120V AC
Output: 24V 2.5A 60W
Class: Class 2
Dimmable: Yes, with a 120V AC dimmer
Certification: cETLus for Canada and USA

Wiring and compatibility
On the line side, the driver is fed by standard 120V AC house power through the wall dimmer; on the load side, it feeds 24V single colour LED strip. Respect polarity at the strip connection and keep your total tape wattage within the 60W output — sizing a little conservatively leaves headroom and keeps the driver running cool. Because dimming happens on the 120V side, you do not need an in-line low-voltage dimmer or a receiver, which simplifies both the wiring and the client's daily use: one familiar wall control, one predictable result. This driver is for single colour strips; colour changing, tunable white and RGB tape use their own controllers. For larger or smaller installations in the same series, see the 24V Universal Dimmable LED Driver 24W and the 24V Universal Dimmable LED Driver 48W, and plan one driver per run rather than overloading a single unit.

Where it earns its keep, and what to read
In homes, think kitchen under-cabinet lighting, pantry and closet shelving, bathroom vanity accents, stair nosings, basement coves and home theatre soffits. In business, think retail shelving, jewellery and bakery display cases, restaurant bars, hotel headboards, reception logos and office millwork — anywhere a client wants to set a mood at the switch. The cETLus certification for Canada and the USA is what inspectors and property managers want to see on a Class 2 low-voltage installation. The full technical PDF for the 24W, 48W and 60W versions of this universal dimmable LED driver is available in the Documentation tab — download it before you rough in, so your junction box location and your dimmer choice are settled before the drywall goes up.

Technical Files
