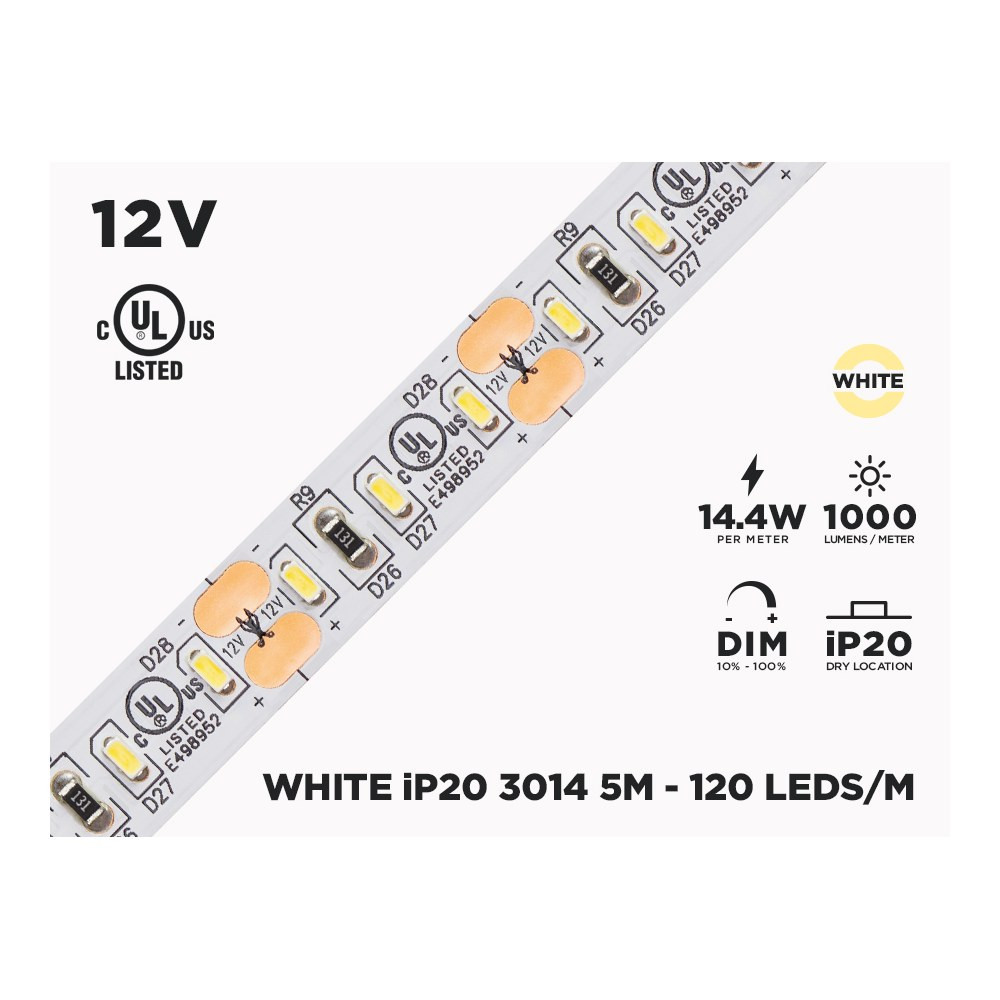

12V 5M IP20 3014 WHITE LED STRIP - 120 LEDS/M (STRIP ONLY)

Name: 12V 5M IP20 3014 WHITE LED STRIP - 120 LEDS/M (STRIP ONLY)
Brand: LED MONTREAL
SKU: 301412120-3000
Price: 62.97 CAD
Availability: InStock

SKU: 301412120-3000

Brand: LED MONTREAL

Brighten every shadowy corner of your home with a LED strip that does the work of a full fixture without stealing an inch of space. This 12V 5M IP20 3014 White LED Strip – 120 LEDs/m (Strip Only) from LED MONTREAL is the flexible LED strip lighting people search for when they want clean, even light under cabinets, over a bookcase, along a cove or behind a headboard. Often called LED light strips, LED tape, ribbon light or simply strip lights, it comes as a 5-metre roll you cut to length, stick down and power up. Kitchens, closets, laundry rooms, display cases, retail shelving, reception desks, basement stairs, home offices, garage workbenches — anywhere you need practical indoor LED lighting that hides out of sight and lets the light do the talking.

Every metre packs 120 LEDs per meter using Epistar 3014 SMD chips on a 2-ounce circuit board, for a total of 600 LEDs over the 5-metre roll. Expect a typical luminous flux of 1000 lumens per meter in a comfortable 3000K warm white, with a CRI of 80+ so wood grain, countertops and merchandise keep their true colours. It runs on 12V DC, draws 12W/m (plan a power supply rated 14.4W/m), spreads light over a 120° beam angle and is rated for 50 000+ hours. The strip measures 10 mm wide by 2 mm high, carries a 3M self-adhesive backing, and can be cut every 3 LEDs (25 mm) to fit your run exactly. It is cULus certified for Canada and the USA (E498952), IP20 for indoor use, and fully dimmable with a low voltage dimmer/remote combo or a dimmable power supply paired with a 120V AC dimmer.

From a Montreal condo kitchen to a boutique display wall in Calgary, this strip is a favourite of homeowners mid-renovation and contractors who need certified low voltage lighting that passes inspection on both sides of the border. It ships as strip only — SKU 301412120-3000 — with a female DC plug (17 cm) on one end and two wires (17 cm) on the other, so pair it with a 12V DC power supply, and mount it on a heat-dissipating surface or in an aluminum channel for the longest life. Ready to add that warm glow where your ceiling fixtures can't reach? Grab your 5-metre roll and start planning your runs.

Sold separately
To complete the installation, add:
Power supply: 12V12AETLPSU, 12V16AETLPSU, 12V4AETLPSU, 12V5AETLPSU, 12V8AETLPSU, HANPSU, HW12V-12W, HW12V-24W

Built for clean, continuous light
This LED MONTREAL LED tape light (model MTL-FP10AFHDJ-120AXX, brand CDNLUX) uses Epistar 3014 SMD chips at a density of 120 LEDs per meter on a 2-ounce copper circuit board. The heavier copper matters: it moves heat away from the diodes and helps keep brightness and colour consistent over the length of the run. At 10 mm wide and only 2 mm high, the flexible board slips into slim reveals, cabinet valances and shallow coves, and the 3M self-adhesive backing holds it in place while you work. The tight 120 LEDs/m spacing is what gives you that smooth line of light instead of a row of visible dots — exactly what you want on a straight-on view like an under-cabinet or shelf application.

Light quality you can live with
Rated at a typical 1000 lumens per meter, this strip is bright enough to serve as real task lighting, not just accent. The 3000K warm white colour temperature keeps the atmosphere cozy and flatters wood, brass, warm paint and skin tones, while the 80+ CRI keeps food, fabric and finishes looking honest. A 120° beam angle spreads the output widely, so you get even coverage on the counter or shelf below rather than a narrow stripe. Rated life is 50 000+ hours, which is a long time to go without climbing back up a ladder.

Technical specifications
SKU: 301412120-3000
Brand: CDNLUX
Model: MTL-FP10AFHDJ-120AXX
Certification: cULus for Canada and USA E498952
Chip: Epistar 3014 SMD
Circuit board: 2 ounces
Chip density: 120 LEDs per meter
Cut points: every 3 LEDs (25 mm)
Length: 5 meters
Width: 10 mm
Height: 2 mm
Voltage: 12V DC
Power consumption: 12W/m
Recommended power supply: 14.4W/m
Luminous flux: 1000 lumens/m
Colour temperature: 3000K warm white
CRI: 80+
Beam angle: 120°
Lifespan: 50 000+ hours
IP rating: iP20, indoor use only
Operating temperature: 40C to -10C
Connections included: female DC plug (17 cm) on one end, 2 wires (17 cm) on the other

Wiring, dimming and installation
This is a 12V DC low voltage strip, so it needs a 12V DC power supply sized for your run: at 12W per metre, size the driver using the recommended 14.4W/m to leave headroom. The included female DC plug on one end makes connecting to a plug-in supply quick, and the two bare wires on the opposite end let you hard-wire or extend. Cut only on the marked points every 3 LEDs (25 mm) and respect polarity when you solder or use connectors. Dimming is supported two ways: a low voltage dimmer/remote combo on the DC side, or a dimmable power supply controlled by a 120V AC dimmer. One rule not to skip — the strip must be installed on a heat-dissipating surface or inside an appropriate aluminum channel; mounting it on bare wood or inside a sealed plastic cove traps heat and shortens its life.

Where it works and what's in the box
With an iP20 rating, this roll is made for dry indoor spaces: under kitchen cabinets, above crown moulding, inside a pantry or walk-in closet, along a staircase stringer, in retail display cases, jewellery counters, bar backs, restaurant banquettes and office reception walls. Because it is cULus certified for Canada and the USA, it is a safe specification for contractors working on inspected residential and commercial projects on either side of the border. You receive the strip only — plan your power supply, connectors and channel separately. The full technical PDF for this strip is available in the Documentation tab of this page, with the complete spec table for wiring, cut points and driver sizing.
