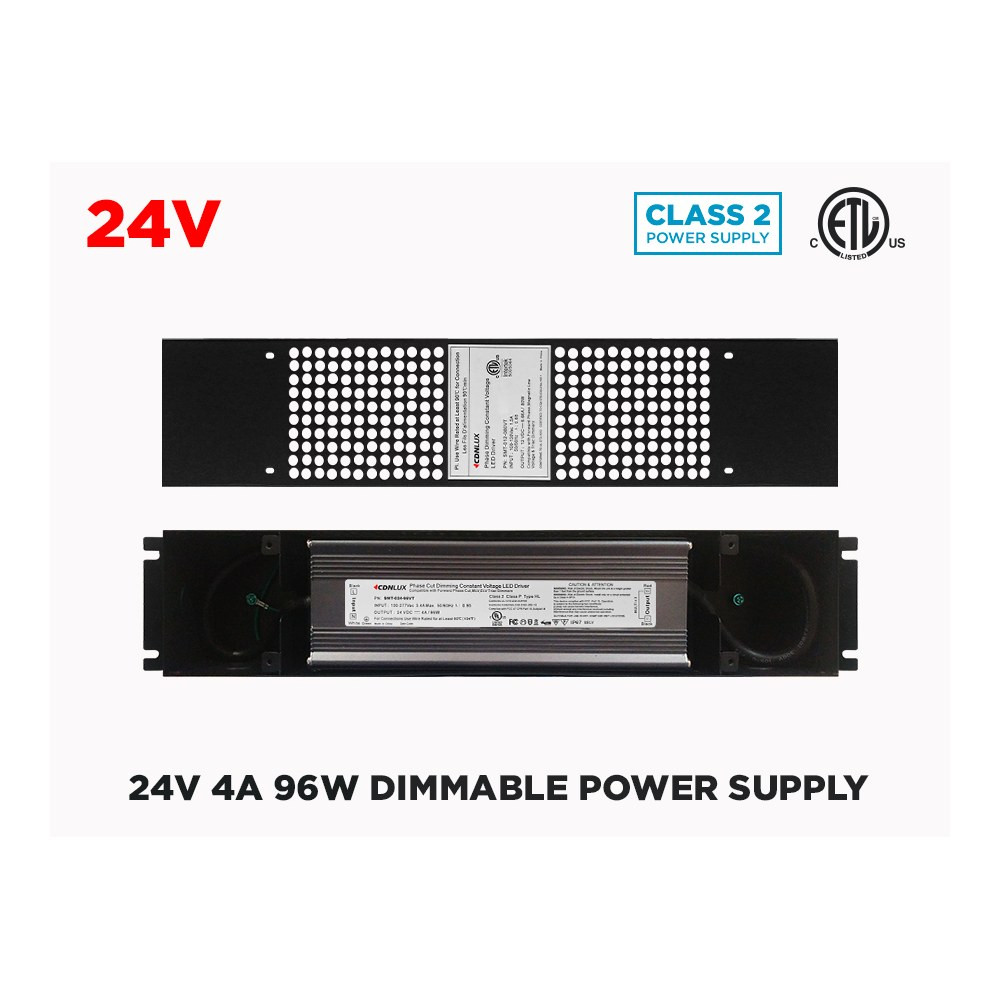

24V UNIVERSAL DIMMABLE LED DRIVER 96W (CLASS 2)

Name: 24V UNIVERSAL DIMMABLE LED DRIVER 96W (CLASS 2)
Brand: LED MONTREAL
SKU: 24DIMP96-B
Price: 134.97 CAD
Availability: InStock

SKU: 24DIMP96-B

Brand: LED MONTREAL

Finally, a way to dim your LED strips with the wall switch you already know. The 24V Universal Dimmable LED Driver 96W (Class 2) from LED MONTREAL, SKU 24DIMP96-B, is the constant voltage power supply — also called an LED transformer, low voltage LED power supply or simply one of those lighting drivers people search for — that turns your 120V house circuit into clean, steady 24V power for single-colour LED tape. It comes mounted in a black junction box, so it looks finished and stays protected wherever you tuck it: above a cabinet, in a soffit, inside a ceiling chase or in a service closet.

Here is what makes it different. It accepts an input of 100 - 120V AC and delivers an output of 24V 4A 96W, giving you real headroom to run a generous run of dimmable LED strip light. It is dimmable with a standard 120V AC dimmer — any recent standard wall dimmer, Triac or low voltage magnetic — and it dims smoothly from 100% to 20% without noise or flickering. Even better, it does not require a minimum load, so short runs behave as well as long ones. The power supply itself measures 23cm x 7cm x 4.5cm and the junction box measures 37.7cm x 7.5cm x 5.3cm, the junction box is black, and the unit is cETLus certified for Canada and USA as a Class 2 driver.

This driver is made for kitchens with under-cabinet tape, bedroom cove lighting, basement stairs, bathroom vanities, retail display cases, restaurant bars, office reception desks and showroom shelving — anywhere a Canadian homeowner, contractor or small business wants the warmth of hidden LED light on a familiar dimmer. Important: it is strictly for single-colour LED strips. If you are running RGB, RGBW or CCT-variable tape, the dimming has to be handled by the LED controller with a non-dimmable driver instead; the same is true if you choose to run single-colour strips through a controller. Match this driver to the total wattage of your run, keep it accessible for service, and give your project that smooth, no-flicker dim you have been after.

Compatible with
Works with:
LED strip: 2216A-3000, 24BND2835SO-3000, 24RGB150, 24RGB15067, 24RGB150IP20, 24RGB300, 24RGB30067, 24RGB300IP20

Built to be installed and forgotten
This is a constant voltage LED driver supplied in a black junction box, which is exactly what most installers want: the wiring compartment and the power supply arrive as one tidy unit instead of a bare brick hanging off a cable. The black finish blends into unfinished ceilings, cabinet toe-kicks and equipment rooms, and the enclosure keeps the electronics protected from dust and bumps during the rest of the build. The power supply measures 23cm x 7cm x 4.5cm and the junction box measures 37.7cm x 7.5cm x 5.3cm, so plan a service pocket a little larger than that and keep the unit reachable — a driver that can be replaced in five minutes is worth its weight in gold three years down the road.

Dimming that actually behaves
The whole point of this dimmable LED driver is compatibility with the dimmer already on the wall. It is designed to work with any recent standard wall dimmer, Triac or low voltage magnetic, on a 120V AC circuit, and it takes your single-colour LED tape smoothly from 100% down to 20% with no noise and no flickering. Because it does not require a minimum load, you are not forced to add extra tape just to make the dimmer stable — a short accent run under a floating shelf dims just as calmly as a full kitchen perimeter. Do keep in mind the one limit: this is a dimming solution for single-colour LED strips only. RGB, RGBW and CCT-variable tape must be dimmed through their own LED controller, paired with a non-dimmable driver.

Technical specifications
SKU: 24DIMP96-B
Brand: CDNLUX
Input: 100 - 120V AC
Output: 24V 4A 96W
Dimmable: Yes, with a 120V AC Dimmer
Junction box color: Black
Dimensions power supply: 23cm x 7cm x 4.5cm
Dimensions junction box: 37.7cm x 7.5cm x 5.3cm
Certification: cETLus for Canada and USA

Sizing and wiring
Add up the wattage per foot or per metre of your 24V LED strip multiplied by the total length you are installing, then compare it to the 96W output — leaving a comfortable margin is always smarter than running a driver at its absolute ceiling. On the secondary side you have 24V 4A available; feed long runs from both ends or split them into several home runs to avoid voltage drop and the faded look at the far end of a tape. On the primary side, the 100 - 120V AC input connects to a standard Canadian branch circuit through the junction box, and the dimmer is installed upstream on that line voltage feed, exactly like a dimmer on any incandescent or halogen fixture. Its cETLus certification for Canada and USA and Class 2 output make it a straightforward choice for inspected residential and commercial work.

Where it earns its keep, and what to read
Think under-cabinet and toe-kick lighting in kitchens, cove and tray ceiling lighting in living rooms and primary bedrooms, mirror and vanity accents in bathrooms, stair and handrail lighting in basements, plus commercial jobs: jewellery and bakery display cases, back-bar shelving, salon stations, reception desks, and boutique window displays where a dimmer lets staff set daytime and evening levels. The full technical PDF for the 24V Universal Dimmable LED Driver 96W is in the Documentation tab — download it before you rough in, so your electrician can confirm box placement and conductor routing on the first visit.
