Built for real installations

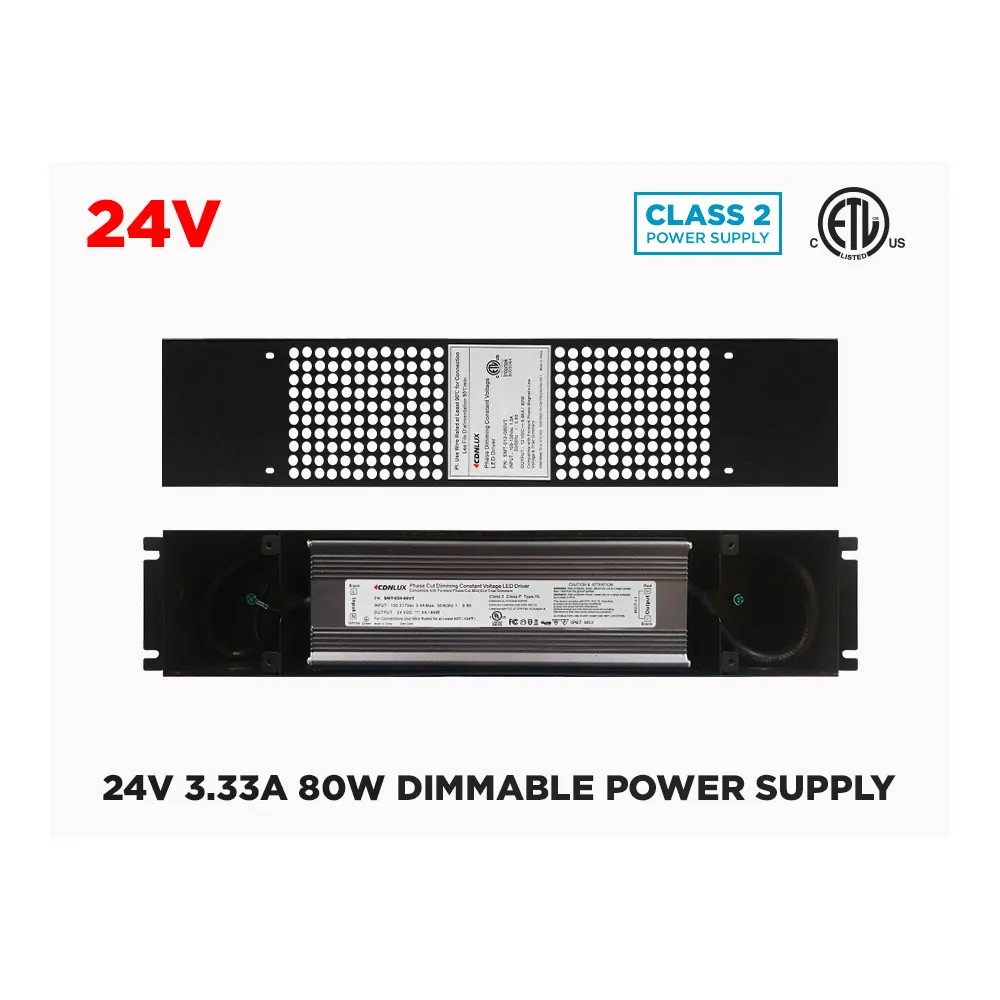

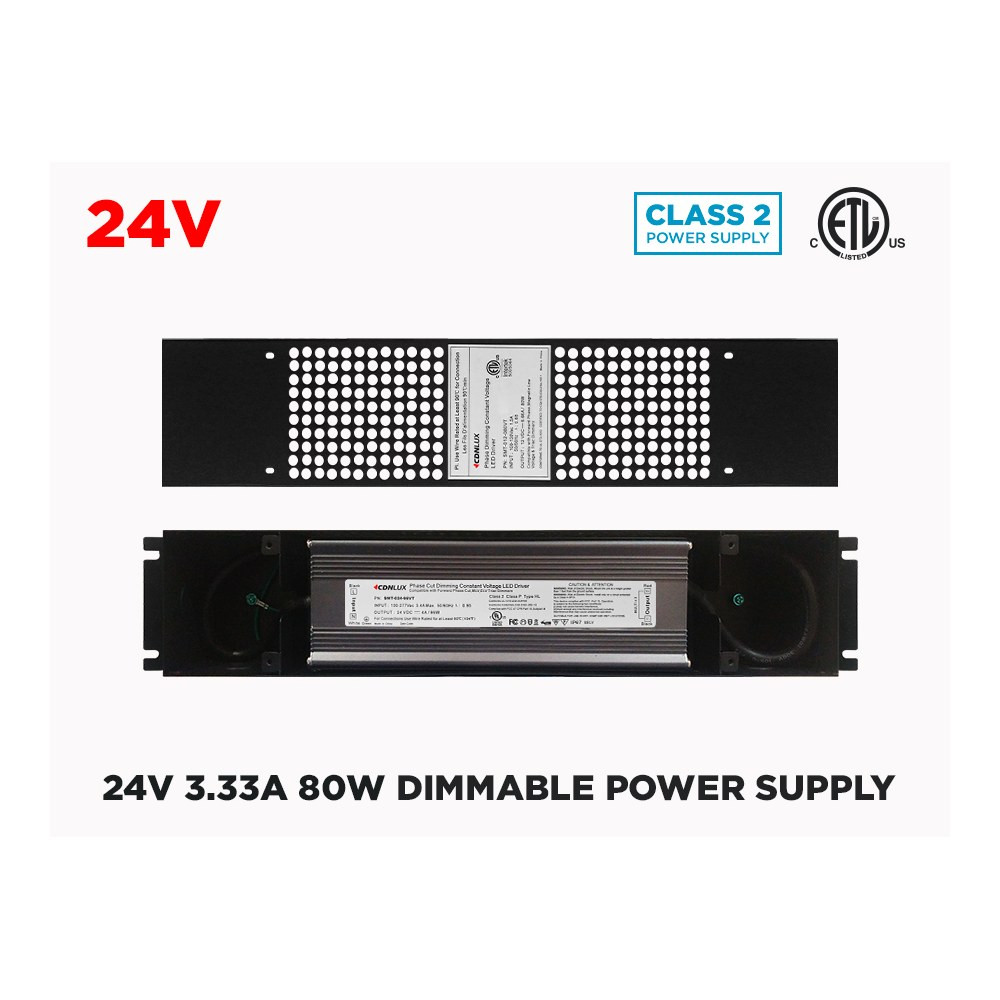

The 24V Universal Dimmable LED Driver 80W is a constant voltage LED driver supplied with its own junction box, which is exactly what electricians and serious DIYers want to see. The power supply itself measures 23 cm x 7 cm x 4.5 cm and slips into the junction box measuring 37.7 cm x 7.5 cm x 5.3 cm, so line-voltage connections stay enclosed and organized instead of dangling behind a cabinet. That format makes it easy to mount above a ceiling, inside a cabinet soffit, in a mechanical room or in a millwork chase, close to the strip run it feeds.
Dimming that actually behaves
Most complaints about dimmable LED drivers come down to noise, flicker and dead zones at the bottom of the dial. This unit was engineered around a simple promise: work with any recent standard 120V wall dimmer, Triac or low-voltage magnetic, and glide from 100% to 20% smoothly and silently. It also requires no minimum load, which is the detail that saves small projects — a two-metre run under a vanity or a single shelf of display lighting will dim properly instead of stuttering or refusing to turn on. You keep the wall control your client already understands, and your LED strip lighting finally feels like architectural lighting.
Technical specifications
SKU: 24DIMP80
Brand: CDNLUX
Certification: cETLus for Canada and USA
Input: 100 - 120V AC
Output: 24V 3.33A 80W
Class: Class 2
Dimensions, power supply: 23cm x 7cm x 4.5cm
Dimensions, junction box: 37.7cm x 7.5cm x 5.3cm
Dimmable: Yes, with a 120V AC dimmer
Compatibility — read this first
This driver is strictly for single-colour 24V LED strips. If your project calls for RGB, RGBW or CCT-variable tape, the dimming must be handled by the LED controller and you will need a non-dimmable driver instead. The same rule applies if you choose to run single-colour strips through a controller: controller first, non-dimmable driver behind it. Sizing is just as simple — add up the wattage of the strip you plan to connect and keep it within the 80W output, leaving yourself a little headroom. For longer runs, several drivers can be distributed along the project, each with its own wall dimmer circuit, which also keeps voltage drop under control.
Where it gets used and what comes with it
Kitchen under-cabinet and toe-kick lighting, cove lighting in living rooms and condo ceilings, stair and hallway accents, walk-in closets, bathroom mirror and niche lighting, retail shelving, bar fronts, reception desks and display cases — anywhere a single-colour 24V tape needs quiet, dimmable low voltage power. Because it is a Class 2 unit with cETLus certification for Canada and the USA, it fits residential and commercial jobs alike. The complete technical spec sheet (PDF) for the 24V Universal Dimmable LED Driver 80W is available in the Documentation tab of this page, with the input, output and dimension details you will want on hand for your electrician or your permit file.
