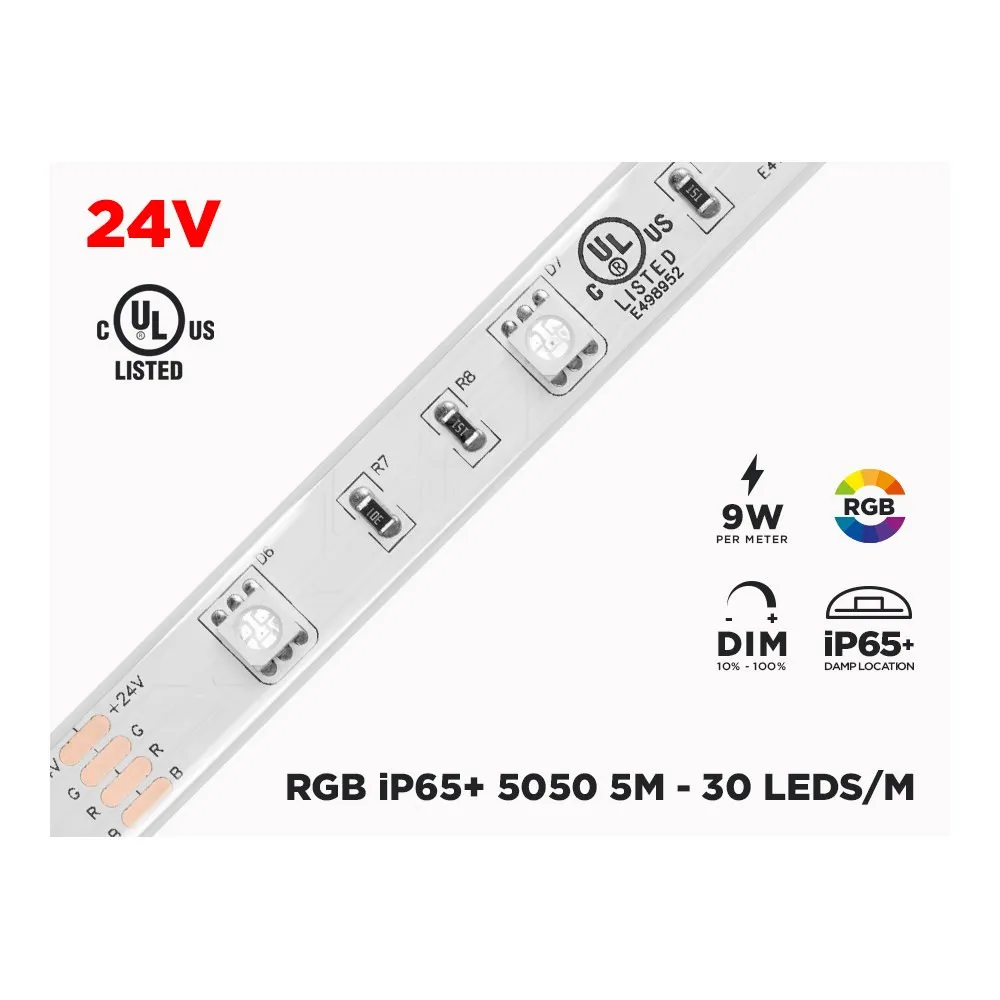

24V 5M IP65+ RGB 5050 HIGH OUTPUT LED STRIP - 30 LEDS/M (STRIP ONLY)

Name: 24V 5M IP65+ RGB 5050 HIGH OUTPUT LED STRIP - 30 LEDS/M (STRIP ONLY)
Brand: LED MONTREAL
SKU: 24RGB150
Price: 44.97 CAD
Availability: InStock

SKU: 24RGB150

Brand: LED MONTREAL

Turn a plain room into a colour show with the 24V 5M IP65+ RGB 5050 High Output LED Strip - 30 LEDs/m (Strip Only), SKU 24RGB150. Whether you call it an LED strip light, LED tape light, RGB strip lighting or simply led light strips, this 5 metre roll is the easy way to add red, green, blue and every shade in between to the spaces you live and work in. People grab it for kitchen toe-kicks and upper-cabinet coves, bedroom headboards, home bars and theatre rooms, basement stairs, display cases, gaming setups, and for dressing up the inside of a boat or an RV before the party starts.

Built on a 2-ounce copper circuit board with Epistar 5050 RGB SMD chips at a density of 30 LEDs per meter, this high output strip runs on 24V DC and draws 7.2W per meter, with a recommended power supply of 9W per meter. The 120° beam angle spreads colour smoothly instead of leaving hot spots, and each chip mixes red, green and blue so you can dial in a huge range of hues (the exact palette depends on the RGB controller you pair with it). It is dimmable with a low voltage controller/remote combo, rated IP65+ for dry and humid environments — indoor and protected outdoor use — and carries a cULus certification for Canada and the USA (E498952). The roll measures 5 meters long, 12mm wide and 4.25mm high, comes with 3M self-adhesive backing, can be cut every 6 LEDs (165.5mm), and is rated for 50 000+ hours of life. Operating range: 40C to -10C.

This is a strip-only roll, so plan on a 24V DC power supply, an RGB controller and the connectors or extensions your layout needs — the strip ships with a 4 pin male connector (17cm) on one end and a 4 pin female connector (17cm) on the other, which makes joining runs straightforward. It suits Canadian homes, restaurants, salons, retail displays and finished basements, and since it handles humid rooms and protected outdoor spots, it works under a covered porch soffit or a sheltered deck rail. Note that RGB chips do not produce a true white, so pair it with a white strip if you also need task light. Ready to add colour? Add SKU 24RGB150 to your project today.

Sold separately
To complete the installation, add:
Power supply: 24V10AETLPSU, 24V1AETLPSU, 24V2AETLPSU, 24V3AETLPSU, 24V4AETLPSU, 24V6AETLPSU, 24V8AETLPSU, 3X96W

Construction and light quality
This RGB LED strip is built for real installations, not just décor accents. The flexible circuit board uses 2 ounces of copper, which helps carry current cleanly along the full 5 meter run, and the LEDs themselves are Epistar 5050 RGB SMD chips spaced at 30 LEDs per meter. Each 5050 chip holds a red, a green and a blue emitter in one package, so colour mixing happens right at the source instead of looking like three separate rows of light. The 120° lighting angle is wide enough to wash a cove, a soffit or the underside of a cabinet evenly. Keep in mind that an RGB chip does not create a true white — it can approximate one by combining all three colours, but if you want crisp task lighting you should run a dedicated white strip alongside it.

Technical specifications
SKU: 24RGB150
Brand: LED MONTREAL
Chip: Epistar 5050 RGB SMD
Circuit board: 2 Ounces
Chip density: 30 LEDs per meter
Length: 5 meters
Width: 12mm
Height: 4.25mm
Voltage: 24V DC
Power consumption: 7.2W/m
Recommended power supply: 9W/m
Colour: RGB (Red, Green, Blue)
Lighting angle: 120°
Cut points: every 6 LEDs (165.5mm)
IP rating: iP65+
Lifespan: 50 000+ Hours
Operating temperature: 40C to -10C
Certification: cULus for Canada and USA E498952

Electrical and installation details
Running at 24V DC rather than 12V means less voltage drop over a long run, which is exactly what you want on a full 5 metre roll. Size your driver from the recommended 9W per meter figure, not from the 7.2W/m draw, so the power supply always has headroom. The strip arrives with a 4 pin male connector (17cm) at one end and a 4 pin female connector (17cm) at the other, so linking it to a controller or to a second run is quick. You can shorten it at the marked cut points every 6 LEDs (165.5mm) and use the 3M self-adhesive backing on a clean, dry, degreased surface — aluminum profiles or channels make the bond last longer and give the strip a finished, built-in look. Heat dissipation is not necessary unless the strip is used in a commercial environment, where a profile or heat sink is the smart move.

Control, dimming and compatibility
The strip is dimmable with a low voltage controller/remote combo, which is also what unlocks the colour changing. The number of colours and effects you get depends entirely on the RGB controller you choose, so pick one that matches how you want to run the lights — wall remote, app, or an inline controller hidden in a cabinet. This is a strip only product: the 24V DC power supply, the RGB controller and any extension wire or connectors are separate items, and everything you add must be rated for 24V DC to match.

Applications and documentation
With its iP65+ rating, the strip is suitable for dry and humid environments, indoor and protected outdoor use — think kitchen and bathroom coves, basement bars, restaurant and salon feature walls, retail display shelving, home theatres, stair nosings, and sheltered porch or covered deck details. It is a favourite for boat and RV interiors too, though it is not recommended for the exterior of a boat or vehicle. In a Canadian basement or garage, remember the operating range of 40C to -10C when choosing where it lives. The full technical PDF (24V 150 LED CUL SUPER BRIGHT RGB LED STRIP (STRIP ONLY)) is available in the Documentation tab for dimensions, cut points and electrical data before you order.
