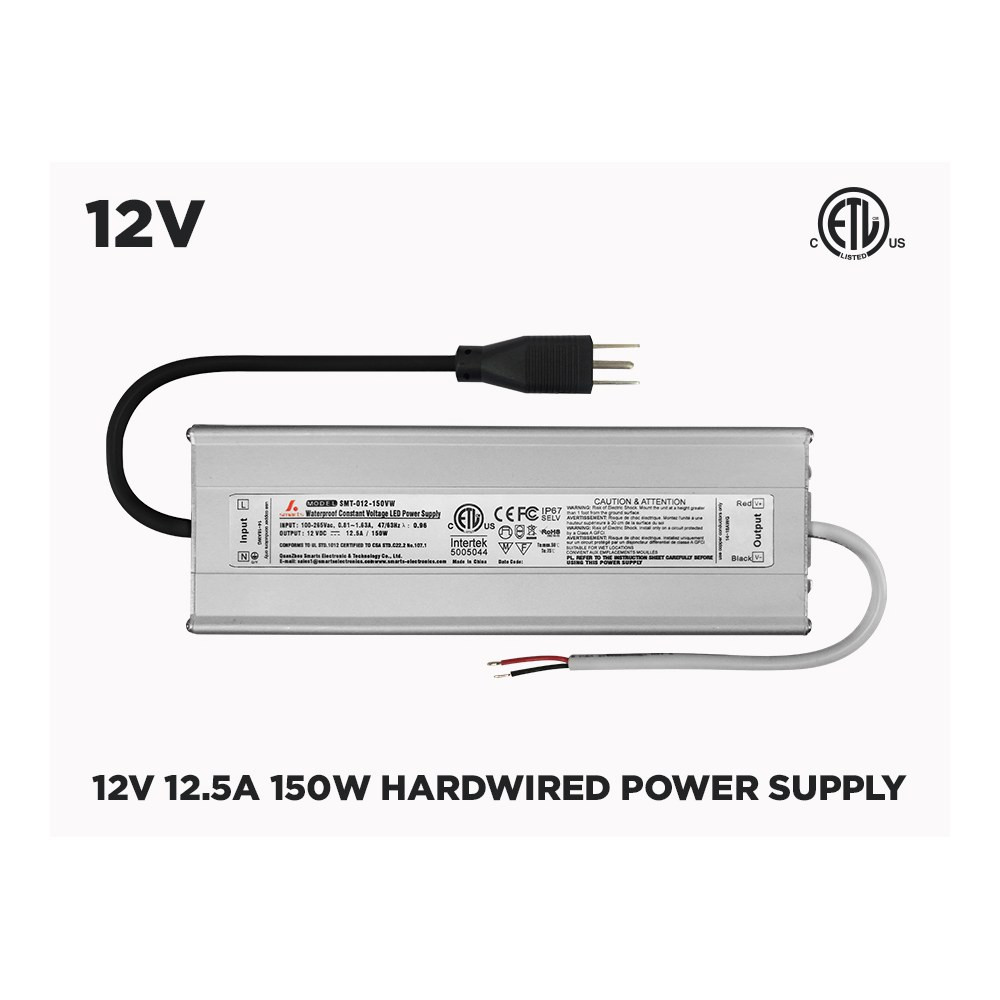

12V 12.5A (150W) CLASS 1 IP67 POWER SUPPLY

Name: 12V 12.5A (150W) CLASS 1 IP67 POWER SUPPLY
Brand: LED MONTREAL
SKU: 12V12AETLPSU
Price: 94.97 CAD
Availability: InStock

SKU: 12V12AETLPSU

Brand: LED MONTREAL

Some jobs need real power, and that's exactly where this 12V 12.5A (150W) Class 1 IP67 power supply earns its place on the truck. Known on job sites as an LED driver, LED transformer, LED power supply or simply a "12 volt power pack", this sealed unit converts line voltage into a steady 12V DC feed for professional low-voltage LED loads, indoors or outdoors. It carries the SKU 12V12AETLPSU and comes from LED MONTREAL. Important: this is a Class 1 transformer, not the type used for standard low-voltage LED strip installations. Class 1 units are reserved for professional LED applications where the load is divided through recognized fuses and where the installation is inspected and recertified by an accredited body (UL, Intertek, QPS or similar) — an approval your electrician is not authorized to issue on their own.

The specs are straightforward and built for demanding loads: a 12V DC output rated 12.5A for a maximum output of 150W, housed in a compact body measuring 22 cm long (24.2 cm including the mounting brackets) by 6.9 cm wide and 4.2 cm high. The integrated brackets make surface mounting quick, and the IP67 rating means the driver is sealed for indoor and outdoor use — a real advantage in Canada, where drivers often end up in unheated garages, soffits, mechanical rooms or exterior enclosures exposed to rain, snow and dust. Because it is slim and low-profile, it tucks neatly into a ceiling cavity, a channel or a service chase instead of eating up panel space.

This driver belongs on professional projects: commercial façades, signage, architectural low-voltage lighting, warehouses, restaurants, retail build-outs and multi-unit residential work where a certified installer plans the circuit, splits the load through fuses and sends the job for inspection. If you are simply powering low-voltage LED strip lights at home, choose a Class 2 driver of 60W maximum at 12V instead, so your installation meets certification standards and the electrical code without inspection — using an oversized transformer voids product warranties. Download the technical PDF from the Documentation tab, confirm your load calculation, and order the 12V 150W IP67 LED driver that fits your project.

Compatible with
Works with:
LED strip: 12RGB150, 12RGB15067, 12RGB150IP20, 12RGB300, 12RGB30067, 12RGB300IP20, 283512-3000, 301412120-3000

Built for wet and demanding locations
This 150W unit is a sealed 12V DC LED driver designed for indoor and outdoor service. The IP67 enclosure keeps moisture and dust out of the electronics, which is why installers reach for it when the power supply has to live outside the conditioned envelope: behind a sign cabinet, in a soffit, under a deck structure, in a parking garage or inside an exterior junction enclosure. Mounting brackets are part of the body, so the driver can be screwed flat to a wall, a joist, a steel channel or the inside of an equipment box without extra hardware.

Output and sizing
The driver delivers a constant 12V DC output at 12.5A, for a maximum output wattage of 150W. As with any LED power supply, size the load below the maximum rather than right at it, and plan the run lengths so voltage drop does not starve the far end of the circuit. On larger layouts, professionals typically split the total load across several protected branches rather than running one long, heavily loaded pair of conductors from a single output — which is exactly the kind of engineering this Class 1 product is meant for.

Class 1: what that really means
A Class 1 transformer is not interchangeable with the small drivers sold for residential LED tape. Powerful Class 1 units are reserved for professional LED applications involving load division through recognized fuses, plus inspection and recertification of the installation by an accredited body such as UL, Intertek or QPS. Your electrician does not have the authority to complete that inspection. For standard low-voltage LED strip projects, the correct choice is a Class 2 driver with a maximum of 60W at 12V, which creates an installation compliant with certification standards and the electrical code with no inspection required. Using a transformer beyond the permitted maximum voids product warranties.

Technical specifications
SKU: 12V12AETLPSU
Brand: LED MONTREAL
Output: 12Vdc 12.5A
Maximum output wattage: 150W
Class: Class 1
Ingress protection: IP67, indoor / outdoor
Dimensions: 22 cm long (24.2 cm including brackets) x 6.9 cm wide x 4.2 cm high

Applications and documentation
Think commercial and specified work: illuminated signage and channel letters, architectural accent lighting on a façade, low-voltage 12V lighting in a restaurant or boutique, landscape and site lighting, and industrial or institutional retrofits where the engineer has designed the low-voltage distribution. In each case the 150W LED power supply should be installed by a qualified electrician, wired to a dedicated protected circuit, kept accessible for service, and never buried where heat cannot escape. The Documentation tab holds the technical PDF for this driver, with the output, wattage and dimensional data you need for shop drawings, panel schedules and inspection submittals — download it before you finalize the layout so the enclosure, brackets and conductor routing are all confirmed on paper first.
