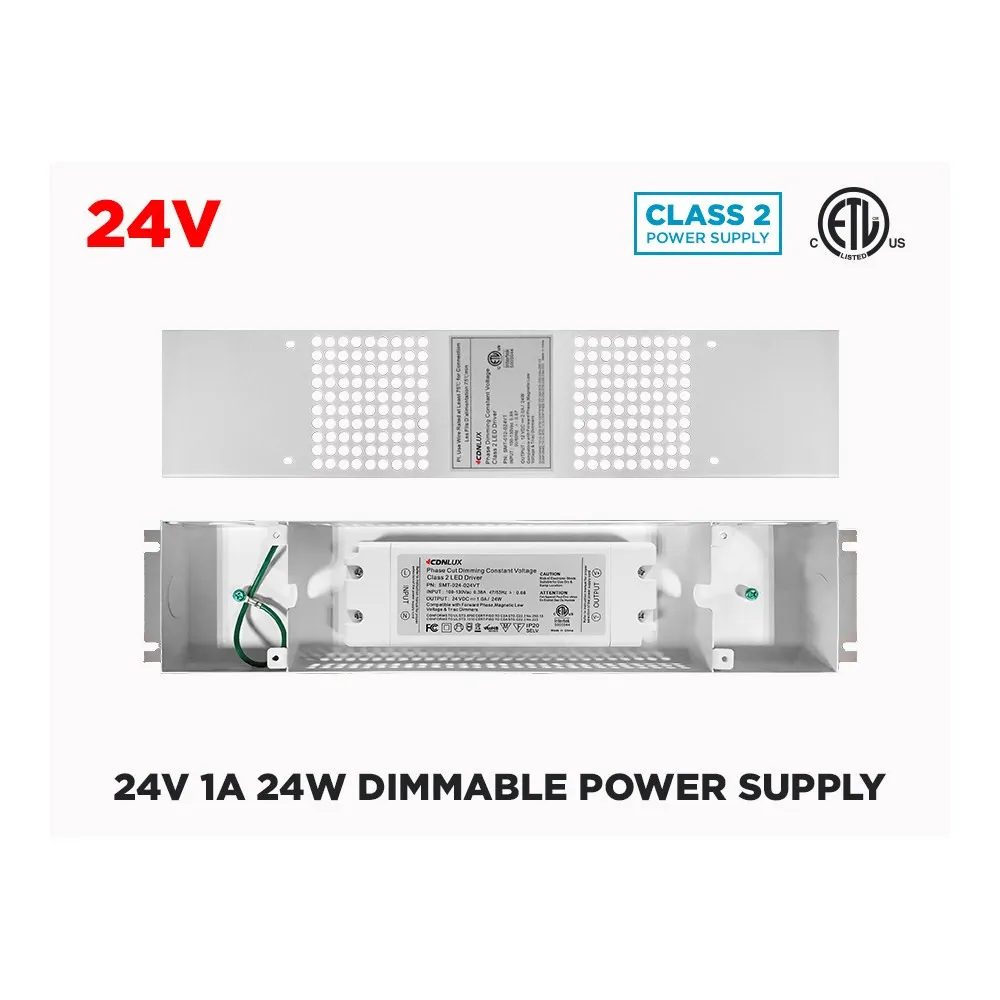

24V UNIVERSAL DIMMABLE LED DRIVER 24W (CLASS 2)

Name: 24V UNIVERSAL DIMMABLE LED DRIVER 24W (CLASS 2)
Brand: LED MONTREAL
SKU: 24DIMPC2-24W
Price: 52.97 CAD
Availability: InStock

SKU: 24DIMPC2-24W

Brand: LED MONTREAL

Finally, a simple way to dim your LED strip lights with the wall switch you already have. The 24V Universal Dimmable LED Driver 24W (Class 2) from LED MONTREAL is the compact power supply — also called an LED transformer, constant voltage LED driver or low-voltage power supply — that converts your household power into clean 24V for single-colour LED tape. Whether you are searching for a dimmable LED strip power supply, lighting drivers for under-cabinet runs, or a discreet box to hide inside a cove or a vanity, this is the little workhorse that makes the whole installation behave.

Built as a constant voltage dimmable LED driver, it takes an input of 100 - 120V AC and delivers an output of 24V 1A 24W, so it is sized for shorter single-colour LED strip runs. It works with any recent standard 120V AC wall dimmer, taking your strips smoothly from 100% down to 20% with no buzzing and no flicker, and — unlike most drivers — it does not require a minimum load to dim properly. The housing is thin and compact, which makes it far easier to tuck out of sight, and it comes with a junction box featuring two integrated mounting brackets so you can screw it solidly in place. It is cETLus certified for Canada and the USA, for both residential and commercial projects. SKU: 24DIMPC2-24W.

This driver shines behind kitchen cabinets, in bathroom vanities and mirror niches, along staircases, inside display cases, bookshelves, reception desks, retail counters and home theatre coves — anywhere a dimmable LED tape needs to be controlled from an ordinary wall dimmer instead of a remote. Canadian renovators love that it plays nicely with existing switch boxes, and contractors appreciate the Class 2 rating for safe low-voltage wiring. Need more power for a longer run or several zones? Step up to the 24V Universal Dimmable LED Driver 48W or the 24V Universal Dimmable LED Driver 60W. Add this one to your project and enjoy dimming that finally feels effortless.

Compatible with
Works with:
LED strip: 2216A-3000, 24BND2835SO-3000, 24RGB150, 24RGB15067, 24RGB150IP20, 24RGB300, 24RGB30067, 24RGB300IP20

A driver made for real-world dimming
Most dimming headaches on LED strip lights come from the power supply, not the tape. This LED MONTREAL universal dimmable LED driver was designed to solve exactly that: it is a constant voltage unit that accepts a standard 120V AC wall dimmer on the line side and delivers smooth, quiet dimming from 100% to 20% on the output side. There is no audible buzz, no flicker, no stepping — and no minimum load requirement, which is what usually ruins dimming performance when you only have a short run of tape to power.

Technical specifications
SKU: 24DIMPC2-24W
Brand: LED MONTREAL
Input: 100 - 120V AC
Output: 24V 1A 24W
Type: Constant voltage, Class 2
Dimmable: Yes, with a 120V AC dimmer
Dimming range: 100% to 20%
Minimum load: Not required
Certification: cETLus for Canada and USA
Included: Junction box with two integrated mounting brackets

Construction and installation
The housing is thin and compact, which is a real advantage when your only hiding spot is a shallow cabinet valance, a drop ceiling plenum edge, a vanity cavity or the back of a millwork panel. The included junction box with its two integrated mounting brackets lets you fasten the driver securely to a stud, a cabinet side or a backer board instead of leaving it dangling behind the casework. As always with low-voltage work, keep the driver accessible for service, respect polarity on the 24V output, and connect the line side through the wall dimmer that will control the circuit. Wiring should be done by a qualified electrician in accordance with the Canadian Electrical Code and your local requirements.

Compatibility and sizing
This driver is made for 24V single-colour LED strips and other 24V constant voltage loads. With a 24W output, you simply add up the wattage of the tape you plan to connect and stay within that budget — leaving a little headroom is always a good habit for long-term reliability. For longer runs, a full kitchen perimeter or several zones on one supply, the same family offers the 24V Universal Dimmable LED Driver 48W and the 24V Universal Dimmable LED Driver 60W, which share the same dimming behaviour and the same Class 2 approach. On the control side, use a recent standard 120V AC wall dimmer; multiple drivers can be grouped on the same dimmer as long as the dimmer's own capacity is respected.

Where it earns its keep, and documentation
Think under-cabinet and toe-kick lighting in kitchens, backlit bathroom mirrors, closet and pantry shelving, staircase nosing, headboard coves, basement bars and home theatres. On the commercial side, it suits retail display cases, jewellery counters, reception desks, restaurant banquettes and office millwork — anywhere a client wants to turn the ambience down with a familiar wall dimmer rather than a remote or an app. The technical PDF for the 24W, 48W and 60W versions is available in the Documentation tab of this page, with the input, output and certification details for the 24DIMPC2-24W model.
