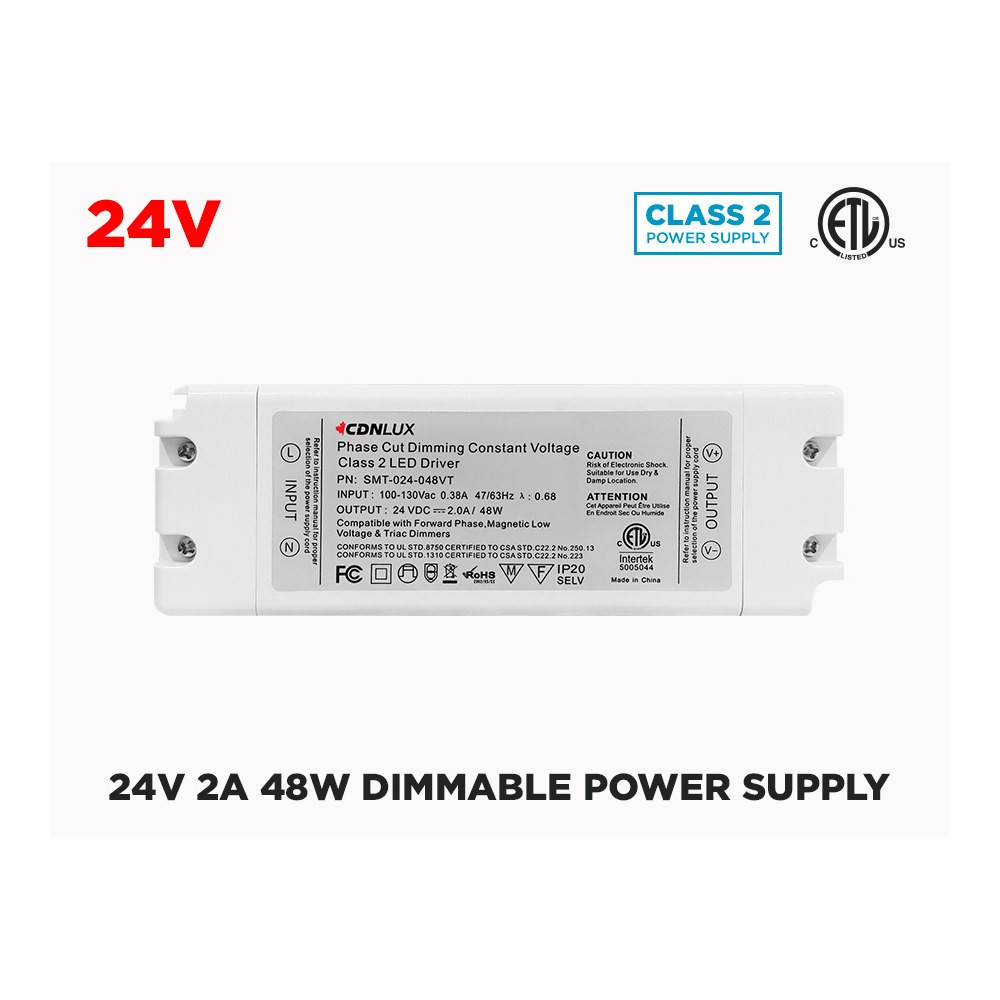

24V UNIVERSAL DIMMABLE LED DRIVER 48W (CLASS 2) - WHITE JUNCTION BOX

Name: 24V UNIVERSAL DIMMABLE LED DRIVER 48W (CLASS 2) - WHITE JUNCTION BOX
Brand: LED MONTREAL
SKU: 24DIMP48-W
Price: 94.97 CAD
Availability: InStock

SKU: 24DIMP48-W

Brand: LED MONTREAL

Finally, a way to dim your LED strips with the wall switch you already have. The 24V Universal Dimmable LED Driver 48W (Class 2) from LED MONTREAL — also called a dimmable LED power supply, LED transformer or simply one of those lighting drivers people search for — takes your 120V house current and turns it into clean, steady 24V power for single-colour LED tape. It comes pre-wired into a white junction box, so the whole assembly looks finished and tidy wherever you mount it: inside a cabinet, above a ceiling, in a closet or behind a valance.

Here is what makes it so easy to live with. Input is 100 - 120V AC, output is 24V 2A 48W, and it is a Class 2 driver, cETLus certified for Canada and the USA, so your electrician and your inspector are both happy. It is dimmable with a standard 120V AC dimmer — any recent standard wall dimmer — and it brings your single-colour LED strips smoothly from 100% down to 20% with no buzzing and no flickering. Better still, it needs no minimum load, so short runs of tape dim just as nicely as long ones. The power supply itself measures 18cm x 5.6cm x 2.3cm and the white junction box measures 35cm x 7.5cm x 3.6cm, compact enough to tuck out of sight. Brand: CDNLUX. SKU: 24DIMP48-W.

Kitchens with under-cabinet tape, bathroom vanities, cove and crown-moulding lighting, staircases, home offices, retail display cases, reception desks and restaurant bars — anywhere you want mood control without adding a remote or an app. Important: this driver is made for single-colour LED strips only. If you are running RGB, RGBW or CCT-adjustable tape, dimming has to be handled by the LED controller with a non-dimmable driver instead — and the same applies if you choose to run single-colour tape through a controller. Match it to your 24V single-colour run, wire it to a standard wall dimmer, and enjoy light you can actually tune to the moment. Add it to your project today.

Compatible with
Works with:
LED strip: 2216A-3000, 24BND2835SO-3000, 24RGB150, 24RGB15067, 24RGB150IP20, 24RGB300, 24RGB30067, 24RGB300IP20

Built to disappear into the installation
This driver ships already installed in a white junction box, which is the detail installers appreciate most. Instead of a bare power supply dangling behind a cabinet with exposed leads, you get a clean, enclosed assembly you can screw to a joist, a cabinet gable, a soffit or a ceiling plenum and forget about. The dimmable LED power supply itself measures 18cm x 5.6cm x 2.3cm, and the junction box measures 35cm x 7.5cm x 3.6cm — slim enough to hide above a drop ceiling, inside a millwork chase or behind a cove detail, while keeping connections tidy and serviceable.

Dimming that actually behaves
The magic here is triac-free frustration: this is a constant voltage 24V LED driver designed to work with any recent standard wall dimmer, taking your single-colour LED tape smoothly from 100% down to 20% without noise or flickering. And because it requires no minimum load, you are not forced to add extra tape just to make the dimmer behave — a short vanity run or a single shelf of display lighting dims as gracefully as a full kitchen perimeter. That means no pops, no strobing at low levels, and no hunting for an obscure dimmer model to make the system cooperate.

Technical specifications
SKU: 24DIMP48-W
Brand: CDNLUX
Junction box colour: White
Input: 100 - 120V AC
Output: 24V 2A 48W
Class: Class 2
Dimmable: Yes, with a 120V AC dimmer
Dimensions, power supply: 18cm x 5.6cm x 2.3cm
Dimensions, junction box: 35cm x 7.5cm x 3.6cm
Certification: cETLus for Canada and USA

Wiring and compatibility
On the line side, connect the driver to a 100 - 120V AC supply controlled by a standard wall dimmer; on the load side, feed your 24V single-colour LED strip. Sizing is straightforward: add up the wattage of the tape you intend to run and keep it within the 48W output of this driver, leaving yourself a little headroom for a long, comfortable service life. Because it is a Class 2 driver and cETLus certified for Canada and the USA, it fits neatly into residential and commercial work across the country, from a Montréal condo renovation to a small-business storefront. One firm limit worth repeating: dimming through the wall dimmer applies to single-colour tape only. RGB, RGBW and CCT-adjustable strips must be dimmed through their own LED controller paired with a non-dimmable driver, and single-colour tape run through a controller likewise calls for a non-dimmable driver.

Where it earns its keep — and what's in the Documentation tab
Think under-cabinet kitchen lighting on a dimmer so the room can go from meal prep to quiet evening, a bathroom vanity that softens at night, cove lighting in a living room, stair and hallway accents, display cases and shelving in a boutique, or a warm glow behind a reception desk. Contractors like it for spec work because the enclosed junction box keeps the installation neat and inspection-friendly. For full details, the technical PDF for the 24V UNIVERSAL DIMMABLE LED DRIVER - 48W (CLASS 2) is available in the Documentation tab of this page — download it for the complete input, output and dimensional data before you finalize your layout.
