24V DC 2A (48W) IP67 CLASS 2 LED DRIVER

Name: 24V DC 2A (48W) IP67 CLASS 2 LED DRIVER
Brand: LED MONTREAL
SKU: 24V2AETLPSU
Price: 40.97 CAD
Availability: InStock

SKU: 24V2AETLPSU

Brand: LED MONTREAL

Powering LED strips outside shouldn't feel like a gamble. The 24V DC 2A (48W) IP67 Class 2 LED driver from LED MONTREAL is the hard-wired 24V power supply you reach for when the lights are going somewhere wet, dusty or exposed — a patio, a gazebo, a dock, a trailer or a cottage deck. People search for it as an outdoor LED driver, a waterproof LED transformer, a low-voltage power supply, a Class 2 power supply in Canada or simply a 24V LED strip power brick. Whatever you call it, the job is the same: take standard household power and turn it into clean, constant 24V DC for your LED tape, cove lighting, under-cabinet runs, sign lighting or accent strips — indoors or outdoors.

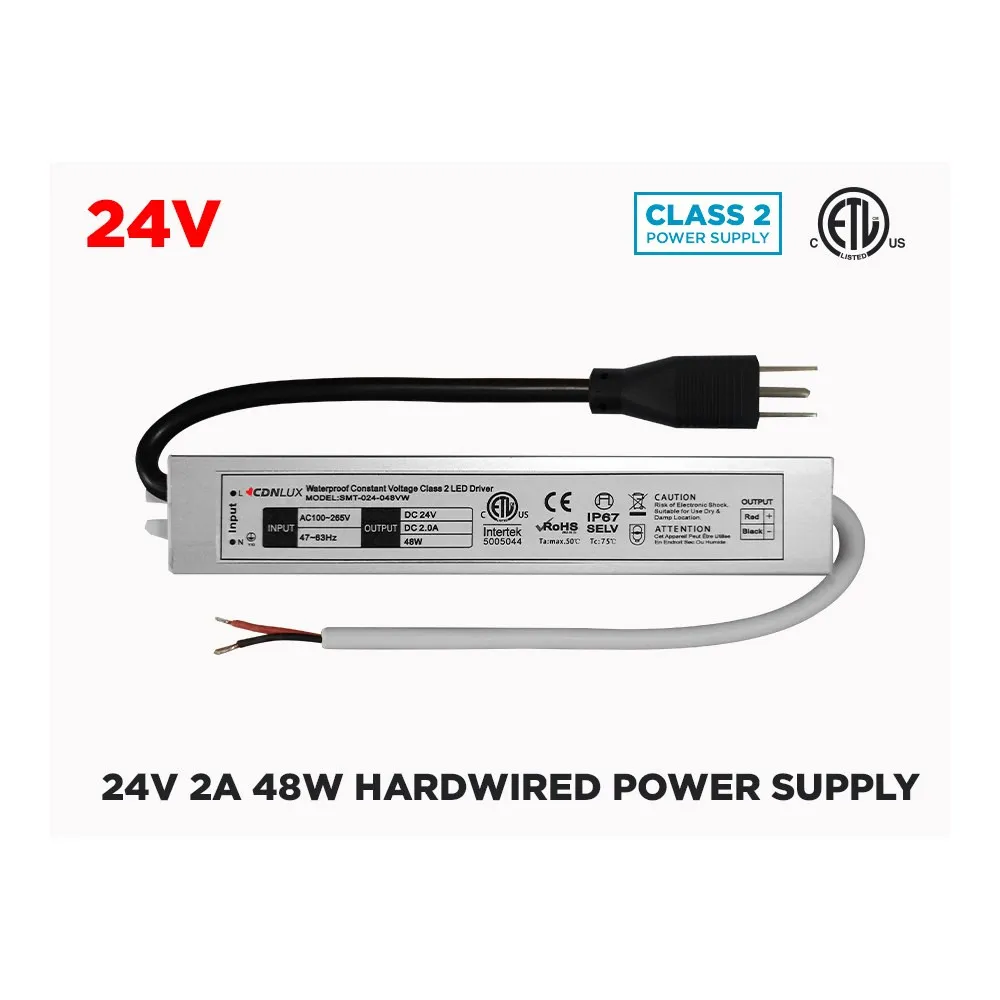

This is a constant voltage 24V DC driver rated at 2A for a total of 48W, with a 120V AC power cable on the input side and a two-wire output (positive in red, negative in black) so the polarity is impossible to mix up. The sealed IP67 housing, rugged cover and waterproof cables and connections let it live outside without a second thought, and the mounting brackets on each end mean you can screw it straight to a wall, a joist or a post instead of leaving it dangling. The unit measures 20 cm long (22,2 cm including the brackets) x 3,9 cm x 2,2 cm, slim enough to tuck behind a fascia board, inside a cabinet or along a beam. It is cETLus listed for Canada and the USA and it is a non-dimmable driver — straightforward on/off power, exactly what most strip installations need. SKU 24V2AETLPSU.

Homeowners use it for deck and stair strips, pergola and gazebo lighting, garage shelving and RV or trailer interiors; contractors and small businesses reach for it for sign and display lighting, storefront accents, cabinetry and cove details. In our Canadian climate — freeze, thaw, humidity, spring rain on the patio — a sealed IP67 waterproof driver is the difference between lights that come back every season and a service call. Just keep your total strip load under the 48W the unit delivers, and if you need more, add a second driver. Ready to light up the outside of your home or your shop? Add the 24V 48W outdoor LED driver to your project and get your strips running safely.

Compatible with
Works with:
LED strip: 2216A-3000, 24BND2835SO-3000, 24RGB150, 24RGB15067, 24RGB150IP20, 24RGB300, 24RGB30067, 24RGB300IP20

Built to sit outside
The strength of this IP67 LED driver is its sealed construction. The body is closed with a robust cover, and the input and output cables come out through waterproof connections, so rain, snowmelt, garden irrigation and washdown spray stay where they belong. Two integrated mounting brackets — one on each side — let you screw the driver flat to a wall, a post, a rafter or the underside of a deck for a solid, permanent install rather than a unit floating on its wires. At 20 cm long (22,2 cm with the brackets) x 3,9 cm x 2,2 cm, it is a genuinely slim 24V power supply that hides behind trim, inside a soffit, in a cabinet toe-kick or along a beam.

Clean, constant 24V power
This is a constant voltage driver: it holds a steady 24V DC output so the brightness and colour of your LED tape stay even from the first inch to the last. It delivers 2A, for a maximum of 48W. Sizing is simple — add up the wattage per metre or per foot of every strip on the circuit and keep the total under 48W. Running a driver near its limit all day is never a good idea, so leaving yourself a little headroom is the trick seasoned installers use for a long, cool, trouble-free life. Note that this model is non-dimmable; for on/off control, switch the 120V side or add a low-voltage switch on the DC output.

Wiring and installation
The input side is a 120V AC power cable, so you connect to standard household power. The output side gives you two clearly identified conductors: red for positive (+) and black for negative (-). Match them to the + and - pads or wires of your LED strip — reverse polarity simply means no light, so double-check before you close everything up. For outdoor runs, keep splices sealed, mount the driver where water cannot pool on it, and leave a drip loop in the cable. All electrical work should follow the Canadian Electrical Code and your local requirements; when in doubt, have a licensed electrician make the final connection.

Technical specifications
SKU: 24V2AETLPSU
Brand: LED MONTREAL
Input: 120V AC power cable
Output: 24V 2A 48W
Output type: constant voltage 24V DC
Protection rating: IP67, indoor / outdoor
Class: Class 2
Dimensions: 20 cm (22,2 cm including brackets) x 3,9 cm x 2,2 cm
Dimmable: No
Certification: cETLus for Canada and USA

Where it works and what's documented
Typical projects: patio, gazebo and pergola strip lighting, deck and stair accents, landscape and fence lighting, cottage and boathouse installs, RV and trailer interiors, garage and workshop shelving, plus commercial uses like sign lighting, display cases, storefront window accents and cove details in a restaurant or boutique. Because it is Class 2 and cETLus listed for Canada and the USA, it fits residential and commercial projects that need recognized safety compliance. The full technical spec sheet (24V 48W CETLUS LISTED IP67 CLASS 2 LED DRIVERS) is available in the Documentation tab of this page — handy to print for an inspector, a client or your installation file.
