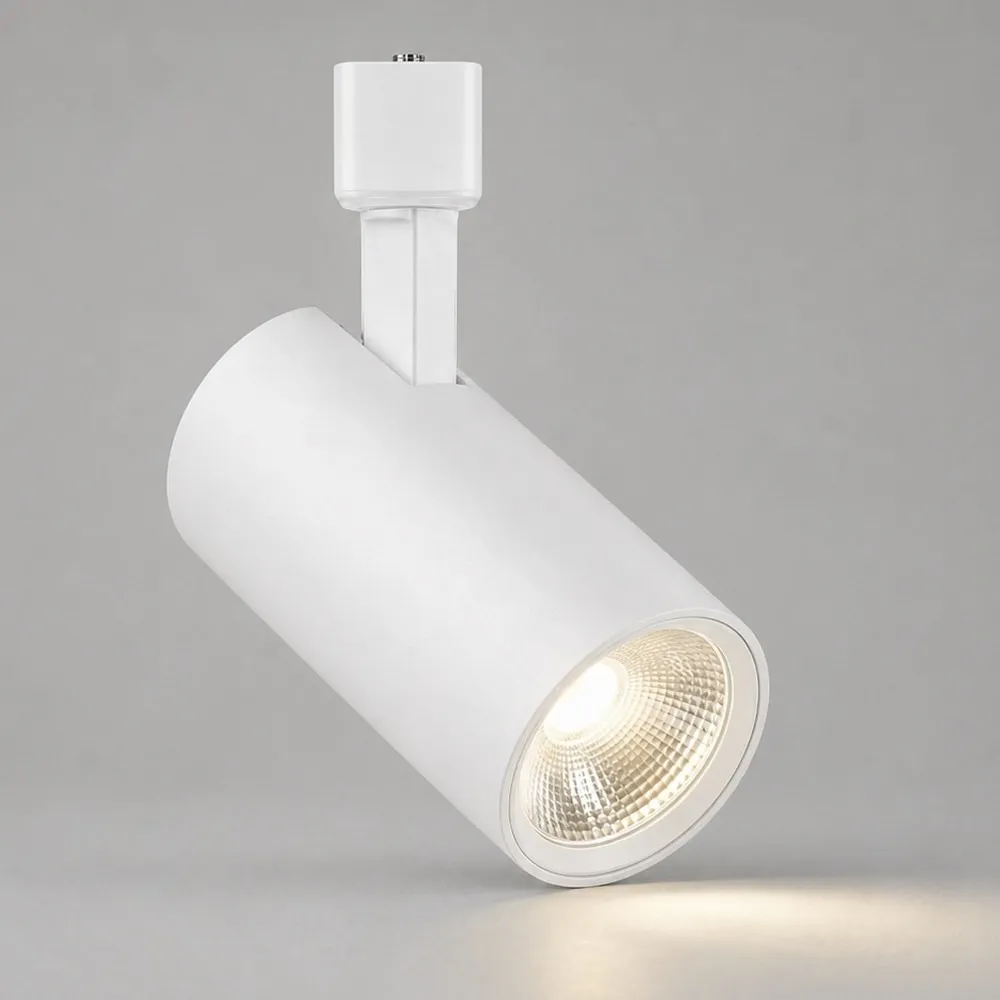

AST TRACK LIGHT HEAD - 10W - H TYPE - 5CCT - MF36 - 120~277V - CRI90+ - TRAIC - WHITE - DLC

Name: AST TRACK LIGHT HEAD - 10W - H TYPE - 5CCT - MF36 - 120~277V - CRI90+ - TRAIC - WHITE - DLC
Brand: TUROLIGHT
SKU: AST-TRH-H-10W-MK5-120-D-MF-WH
Price: 61.97 CAD
Availability: InStock

SKU: AST-TRH-H-10W-MK5-120-D-MF-WH

Brand: TUROLIGHT

Give a room the gallery treatment with the AST track light head from TUROLIGHT's ASTELLA series — the kind of aimable track lighting head people search for when they want art, merchandise or a kitchen island to actually pop. Call it a track head, a track spot, a track light fixture or simply a spotlight on rail: this H-type, single-circuit head slides into a standard H track, locks with a quarter turn, and pivots wherever the light needs to go. It's the small, tidy 10W size in the family, perfect for accent rows over shelving, display cases, reception desks, hallways, stairwells and open-concept living rooms where you want punchy, controllable beams instead of flat, boring ceiling light.

Under the hood, this is a 10W LED track head running on 120V with a compact 2.17 x 5.51 inch body (Ø55 mm head, 140 mm arm height in the dimension drawing) in a clean white finish that disappears against a white ceiling. The big one is the 5CCT colour-selectable switch on the back of the head: pick 2700K, 3000K, 3500K, 4000K or 5000K on site, no re-ordering, no guessing at the counter. Warm 2700K for a boutique or dining area, crisp 5000K for a workshop wall or product display — one SKU covers the whole building. The head is TRIAC dimmable, so it pairs with the forward-phase wall dimmers most homes already have, and CRI 90+ rendering keeps skin tones, wood grain, fabric and packaging looking true instead of washed out. Model code: AST-TRH-H-10W-MK5-120-D-MF-WH.

This head is made for ceiling-mounted track only and for dry indoor spaces — think retail floors, cafés, salons, galleries, showrooms, clinics, offices, condo kitchens and finished basements across Canada, where a single rail can replace a half-dozen separate junction boxes. It mounts on any of the matching H-type single-circuit rails: AST track 2 ft white, AST track 4 ft white, AST track 6 ft white or the long AST track 12 ft white. Need more punch further down the run? Mix in the 20W AST track head. Build your run, pick your white, and aim the light exactly where it earns its keep.

Sold separately
To complete the installation, add:
Channel / profile: AST-TRK-H-02-WH, AST-TRK-H-04-WH, AST-TRK-H-06-WH, AST-TRK-H-08-WH, AST-TRK-H-12-WH

61.97$

Supplier availability: In stock (+500)

Learn more
Documentation

Built for real track systems
The ASTELLA AST-TRH is an H-type, single-circuit track head — the most common track standard in North American homes and small commercial spaces. The adaptor drops into the channel, you pull down the connector lock, insert the adaptor contact in the slot, then rotate 90° to lock. The grounded two-pin side of the adaptor must face the track's two-line polarity side; get that right and the head is locked, powered and ready to aim. Moving a head later takes seconds: depress the connector lock, turn 90°, lift it out and reposition it anywhere along the rail. That re-aimability is exactly why retailers and homeowners keep choosing track lighting heads over fixed pot lights when displays, furniture layouts or artwork change.

Light quality and colour selection
CRI 90+ is the headline for anyone lighting things people look at closely — clothing, food, paint chips, hair colour, jewellery, a feature wall. Colours stay saturated and neutral whites stay neutral. The 5CCT selectable switch sits on the back of the head and lets you set 2700K, 3000K, 3500K, 4000K or 5000K after installation, so a single stocked head serves a warm residential dining room and a cool commercial stockroom. On a multi-head run, set every head to the same kelvin for a seamless wash, or deliberately keep the accent heads warmer than the ambient lighting for depth.

Technical specifications
SKU: AST-TRH-H-10W-MK5-120-D-MF-WH
Ordering code: 5220001
Brand / series: TUROLIGHT — ASTELLA
Type: H-type track head, single circuit
Wattage: 10W
Input voltage: 120V
CCT: 2700K / 3000K / 3500K / 4000K / 5000K selectable (5CCT)
CRI: 90+
Dimming: TRIAC
Dimensions: 2.17 x 5.51 inch (Ø55 mm, 140 mm)
Finish: White
Mounting: Ceiling-mounted track only

Installation and safety
Cut power at the breaker or pull the fuse before touching any wiring — a wall switch alone is not enough. The track itself starts at the mounting plate: wire black to hot, white to neutral and green to ground at the outlet box, tuck the wires in, set the track, mark and drill for the toggle bolts, then secure the channel and slide the canopy cover over the J-box. Keep the track out of damp and wet locations, never install any part of the system less than 5 feet above the floor, and keep luminaires at least 6 inches from curtains or other combustible material. Only lighting track luminaires belong on the rail — no power tools, cords or appliances. Don't connect a track to more than one branch circuit unless it is built for it; ask a qualified electrician. The head runs hot in use, so wait at least 5 minutes after cutting power before handling it.

Applications, compatibility and documents
Picture a 12 ft rail over a boutique's feature wall, four heads on a AST track 8 ft white above a kitchen island, or a short AST track 4 ft white washing a stairwell gallery. Matching white rails come in 2, 4, 6, 8 and 12 ft; black rails such as the AST track 6 ft black pair with the 10W AST track head in black when you want the hardware to vanish against a dark ceiling. Step up to the 20W or 35W heads on the same rail for higher ceilings or longer throws. Full dimensions, the model table and the complete installation sequence are in the AST-TRH-H-10W-MK5-120-D-MF-WH spec sheet available in the Documentation tab of this page.
