AST TRACK - 4 FT - H TYPE - 1 CIRCUIT - 120V - WHITE

Name: AST TRACK - 4 FT - H TYPE - 1 CIRCUIT - 120V - WHITE
Brand: TUROLIGHT
SKU: AST-TRK-H-04-WH
Price: 46.97 CAD
Availability: InStock

SKU: AST-TRK-H-04-WH

Brand: TUROLIGHT

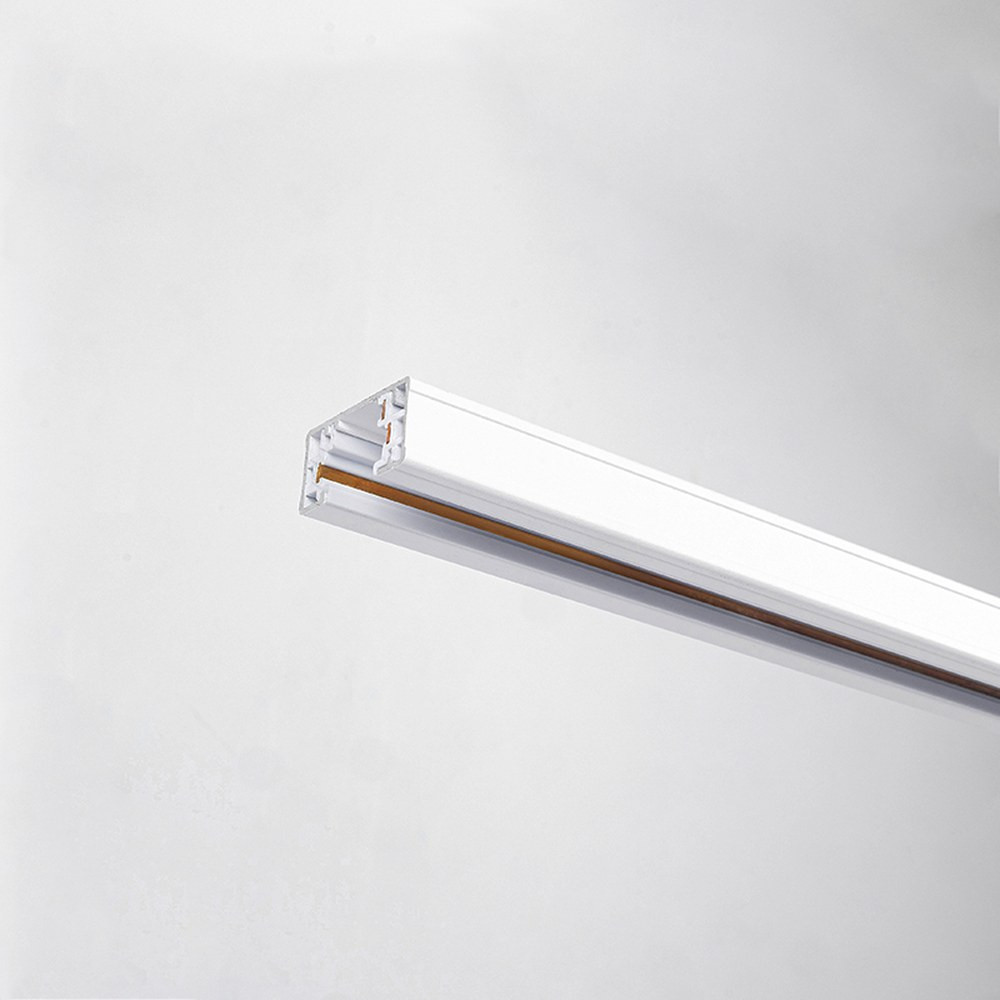

Build your lighting layout one section at a time with the Astella Track System from TUROLIGHT — a 4 ft H-type track rail in a clean white finish. Whether you call it a track lighting rail, a track bar, a lighting rail or simply a track for track light heads, this is the backbone that carries power along the ceiling so you can place, aim and move your fixtures wherever the room needs light. The single-circuit H-type profile accepts H-type heads and pendant adaptors, which makes it a favourite for kitchens, retail displays, art walls, showrooms, offices and open-concept living areas where the furniture (and the mood) changes over time. Model AST-TRK-H-04-WH is the 4 ft length, the most versatile size for a short run over an island, a counter or a single display wall.

This is a serious extrusion, not a flimsy channel: 6063 aluminum with a consistent 1/32" wall thickness for real dimensional precision and strength, kept deliberately low-profile at 1 3/8" W × 11/16" H so the rail reads as a thin line instead of a bulky box. Inside, 12-gauge flat copper conductor wiring keeps conductivity consistent from one end of the run to the other, so brightness stays even across the whole layout without dimming down or flickering at the far end. Electrically it's an H-type single circuit, 20A, 120V, 60Hz system. The high-performance PC housing is fire-safe, heat-stable and halogen-free, and holds its geometry through years of thermal cycling without yellowing or becoming brittle. The rail is UL certified and backed by a 5 years warranty. Length is 4 ft (48", 1219 mm), and it ships in paper tube packaging that protects the full length from bending, warping and scratches.

Use it over a kitchen island, in a basement renovation, a boutique, a café, a gallery, a hair salon, a dental clinic or a home office — anywhere on a standard Canadian 120 V circuit. Because Astella is a modular framework, this 4 ft section pairs with the other lengths to hit your exact ceiling dimension: AST track 2 ft H type white, AST track 6 ft H type white, AST track 8 ft H type white and AST track 12 ft H type white, or switch to the matching black finish for a darker ceiling. Plan your run, add your connectors and heads, and get the light exactly where you want it.

Sold separately
To complete the installation, add:
Connector: AST-TRK-H-LEC-WH
End cap: AST-TRK-H-EC-WH

46.97$

Supplier availability: In stock (+100)

Learn more
Documentation

Built to hold a straight line
The Astella (AST) track rail is extruded from 6063 aluminum alloy with a consistent 1/32" wall thickness — that uniformity is what keeps a 4 ft section perfectly straight and lets joints close up cleanly instead of showing a step or a gap. The profile is intentionally slim, 1 3/8" wide by 11/16" high, so on a white ceiling the rail almost disappears and the eye goes to the fixtures and to what they're lighting. The internal housing is a high-performance PC that is fire-safe, heat-stable and halogen-free; it holds its geometry through years of thermal cycling without yellowing or becoming brittle, which matters in rooms where heads run long hours. Each full-length rail is shipped in paper tube packaging to prevent bending, warping and scratching in transit and in storage — so what you unbox is what you install.

Even light from end to end
Inside the extrusion, 12-gauge flat copper conductor wiring carries current with consistent conductivity across any run length. In practice, that's the difference between a layout where the last head looks as bright as the first and one where the far end dims or flickers. This is an H-type single circuit rail at 20A, 120V, 60Hz: all heads on the run are fed and switched together, which is ideal for a straightforward kitchen, retail or display circuit. Dimming behaviour is determined by the heads and the driver you install on the track, not by the rail itself.

Technical specifications
SKU: AST-TRK-H-04-WH
Brand: TUROLIGHT
System: Astella Track System, H-type single circuit
Electrical: 20A, 120V, 60Hz
Length: 4 ft — 48" (1219 mm)
Width: 1 3/8" (34.4 mm)
Height: 11/16" (17.5 mm)
Body: 6063 aluminum extrusion, 1/32" wall thickness
Conductors: 12-gauge flat copper wire
Housing: high-performance PC, halogen-free
Finish: white (also available in black)
Certification: UL certified
Warranty: 5 years

Installation and compatibility
The rail mounts to the ceiling and is fed on a standard 120 V branch circuit; a licensed electrician should make the supply connection in accordance with the Canadian Electrical Code and local requirements. Astella is a connector-based framework, and the family includes a Live End Connector (LEC), Flexible Connector (FC), Straight Connector (SC), L Connector (LC), T Connector (TC), X Connector (XC), Mini Joiner (MJ), Floating Canopy (FCNP), End Cup (EC) and a pendant adaptor — so a single 4 ft section can become an L over a counter, a T down a corridor or a continuous straight run. Any H-type track head or H-type pendant adaptor will engage the rail; the AST rails are offered in 4 ft, 6 ft, 8 ft and 12 ft, with 2 ft made to order, in white or black.

Where it earns its keep
Think of the projects you see every week in Canada: a 4 ft run of white track over a kitchen island with three adjustable heads, a condo hallway lighting a row of framed prints, a boutique fitting room wall, a café counter, a salon station, an office reception, a gallery or a basement workshop. Because heads slide and pivot anywhere along the rail, a store can re-merchandise a display and a homeowner can re-aim light after a renovation without touching the ceiling again. Mix lengths to match the wall: combine this 4 ft piece with AST track 2 ft H type white or extend with AST track 8 ft H type white, or go with AST track 4 ft H type black when the ceiling is dark.

Documentation
The full technical spec sheet for AST-TRK-H-04-WH is available in the Documentation tab, including the dimensional table for all lengths, the specifications and features list, the ordering guide and the accessory drawings with their sizes — handy when you're drawing a track layout or building a submittal package for a project.
