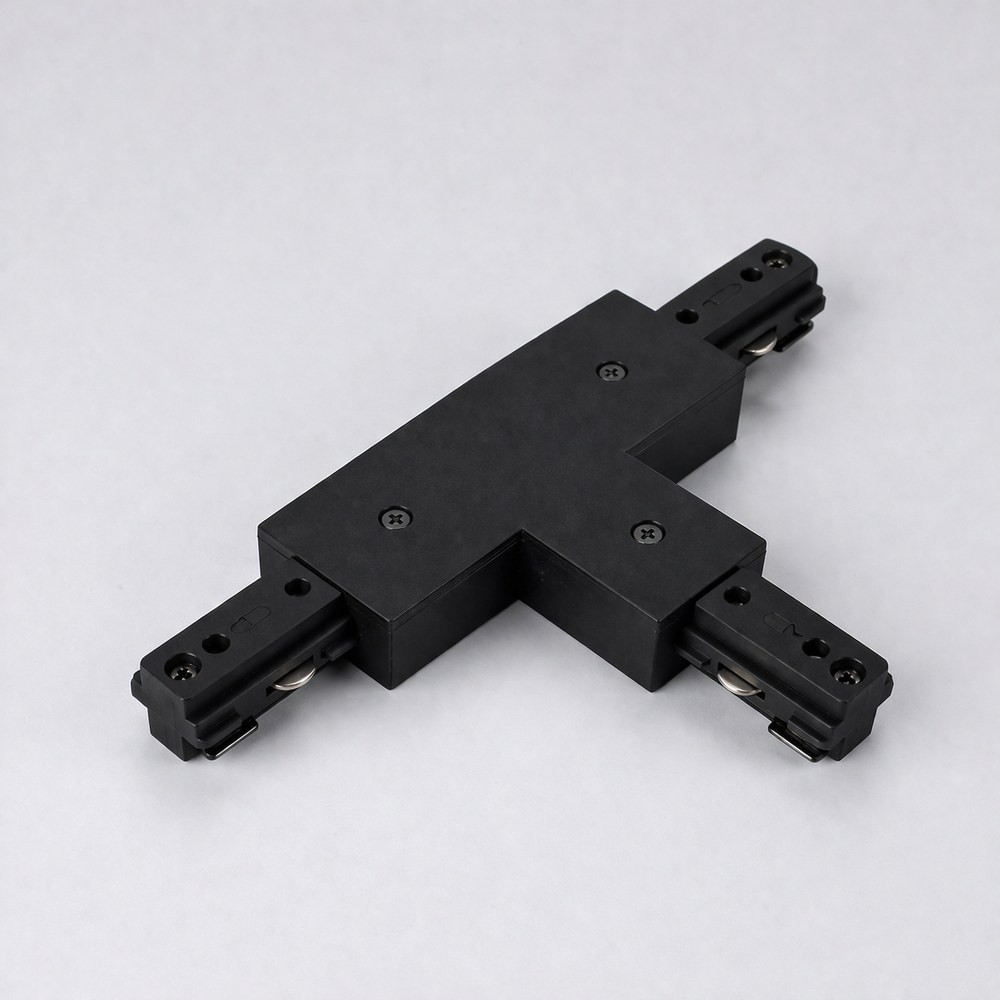

AST TRACK - T CONNECTOR - H TYPE - 1 CIRCUIT - BLACK

Name: AST TRACK - T CONNECTOR - H TYPE - 1 CIRCUIT - BLACK
Brand: TUROLIGHT
SKU: AST-TRK-H-TC-BK
Price: 41.97 CAD
Availability: InStock

SKU: AST-TRK-H-TC-BK

Brand: TUROLIGHT

Need to turn a straight run of track into a proper three-way layout? The AST TRACK - T CONNECTOR - H TYPE - 1 CIRCUIT - BLACK from TUROLIGHT is the little part that makes a big lighting plan possible. Also called a T connector, tee joiner or three-way track lighting coupler, it links three sections of ASTELLA H-type single-circuit track into a clean "T" shape so power and polarity carry straight through the junction. If you have been searching for an l shape connector, a tee, a track joiner or track end caps to finish a run, this is the matching piece for the ASTELLA family — the same system that carries your track light heads over a kitchen island, a retail wall or a gallery display.

This connector belongs to the ASTELLA Track System, H-type, single circuit, rated 120V, 60HZ, 20A, Class I and IP20 for dry indoor use, on a 1-way (P + N + PE) track. Its matte black finish disappears against dark track, black ceilings and exposed structures, and matches the black ASTELLA sections perfectly. Installation is mechanical and straightforward: loosen the set screws, prepare the correct polarity tab so the ground is maintained, slide the connector into the open end of each track section, then tighten the set screws before energizing. The polarity line printed on the track keeps every head facing the right way, and the model code is AST-TRK-H-TC (SKU AST-TRK-H-TC-BK).

It shines wherever a single straight run is not enough: a boutique that needs light on two perpendicular walls, a café with an L-shaped counter, an open-concept living room in a Canadian home where the track has to follow the kitchen and then the dining area, a photography studio, an office lobby or a small showroom. Because H-type track is a system, the T connector works hand in hand with the ASTELLA track lengths — add it to your AST Track 4 ft H type 1 circuit 120V black, AST Track 2 ft H type 1 circuit 120V black or AST Track 6 ft H type 1 circuit 120V black to branch your layout in three directions. Plan your run, count your corners, and add this T connector to your order.

Compatible with
Works with:
Channel / profile: AST-TRK-H-02-BK, AST-TRK-H-04-BK, AST-TRK-H-06-BK, AST-TRK-H-08-BK, AST-TRK-H-12-BK

41.97$

Supplier availability: In stock (+50)

Learn more
Documentation

Built as part of a complete track system
The AST-TRK-H-TC-BK is a three-way junction for the TUROLIGHT ASTELLA Track System in H-type, single-circuit configuration. Rather than forcing you to run separate circuits or awkward straight lines, it joins three track sections at a right-angled tee while carrying the conductors and the ground through the junction. The black finish is made to blend with black ASTELLA track, dark drywall ceilings, exposed joists and industrial-style interiors, so the hardware reads as part of the architecture instead of an afterthought. Like every part of the family, it uses set screws and a slide-in engagement into the open end of the track — no special tooling, no soldering, no proprietary gadgets.

Technical specifications
SKU: AST-TRK-H-TC-BK
Model: AST-TRK-H-TC
Brand: TUROLIGHT
System: ASTELLA Track System, H-type, single circuit
Voltage: 120V, 60HZ
Current rating: 20A
Track configuration: 1-way (P + N + PE)
Class: Class I
Ingress protection: IP20
Finish: Black

Electrical and installation details
Always switch off the power at the main source (the panel) before installing track or accessories, and respect local installation requirements — in Canada that means following your provincial electrical code and, where required, using a licensed electrician. Track is secured to the ceiling or wall through its mounting holes: on drywall or plaster, drill 5/8 holes and use the toggle bolts supplied; on wood surfaces, standard #10 wood screws are used (not supplied). For the connector itself, select the correct polarity tab before sliding it on: the ground tabs must be prepared before the connector slides onto the NON-GROUND conductor-side tab of the section you are joining. If the wrong tab has been removed, do not use the connector, because grounding will not be maintained. Loosen the set screws on all connector types before sliding into the open end of the track, then tighten them once everything is aligned. Wire connections at live feeds use the screw terminals, with conductors stripped 3/8 — no need to wrap the wire around the screw. Finally, to reduce the risk of fire, make sure dead-end caps are slid into ALL open ends of the track and the set screws are tightened before turning the power back on.

Compatibility and fixture safety
This tee is designed for the AST-TRK family and sits alongside the other ASTELLA connectors and feeds — live end feed, end connector, X connector, L connector, mini joiner, straight connector and floating connector. To reduce the risk of fire and electric shock, use only fixture assemblies marked for use with TUROLIGHT track. Lampholders mount by aligning the polarity line on the track with the one on the lampholder, pushing the top of the mounting adapter (with the contact tabs) into the track slot and turning 90°; if the adapter does not turn easily, do not force it — turn the other way. To remove a head, press the release lever with your index finger and turn 90°. Build your run with the black ASTELLA lengths: AST Track 2 ft H type 1 circuit 120V black, AST Track 4 ft H type 1 circuit 120V black and AST Track 6 ft H type 1 circuit 120V black, or switch to white sections such as the AST Track 8 ft H type 1 circuit 120V white when the ceiling calls for it.

Applications and documentation
Think of a retail boutique where the track hugs two perpendicular display walls and branches toward the cash counter; a home kitchen where the run follows the island then turns toward the dining table; a gallery or studio where track light heads must be repositioned constantly; a salon, a clinic waiting room or a small office where lighting zones change as the layout evolves. A T connector gives you that third direction without a second feed, keeping everything on one 120V circuit. The technical PDF (AST-TRK-H-TC-BK Spec Sheet) is available in the Documentation tab and includes the bilingual installation instructions, the connector insertion diagrams and the lampholder mounting steps — worth printing before you climb the ladder.
