AST TRACK LIGHT HEAD - 20W - J TYPE - 5CCT - MF36 - 120~277V - CRI90+ - TRAIC - WHITE - DLC

Name: AST TRACK LIGHT HEAD - 20W - J TYPE - 5CCT - MF36 - 120~277V - CRI90+ - TRAIC - WHITE - DLC
Brand: TUROLIGHT
SKU: AST-TRH-J-20W-MK5-120-D-MF-WH
Price: 99.97 CAD
Availability: InStock

SKU: AST-TRH-J-20W-MK5-120-D-MF-WH

Brand: TUROLIGHT

Give your track lighting the punch it deserves with the TUROLIGHT ASTELLA track light head, a 20W J-type LED spotlight that clips straight onto your existing single-circuit rail. Whether you call them track light heads, track lighting heads, track spots or rail-mounted accent lights, these are the little workhorses that turn a plain ceiling into a properly lit room: art walls, retail displays, kitchen islands, reception desks and shelving all come alive when you can aim the light exactly where it belongs. The J-type adapter with its spring-loaded locking tab twists into the track in a quarter turn, so a full row of heads can be repositioned in minutes without tools, without rewiring and without patching drywall.

This is the white finish version, SKU AST-TRH-J-20W-MK5-120-D-MF-WH (ordering code 5220008), rated at 20W on 120V with a 5CCT selectable colour switch located on the back of the head — five colour temperature settings you choose on site, so the same head can read warm and cosy in a boutique or crisp and clean in a gallery. The MF36 medium flood optic spreads a comfortable beam for general accenting, CRI90+ rendering keeps fabrics, wood tones, food and skin tones looking true, and TRIAC dimming lets you ride the mood down on a standard wall dimmer. The head measures 2.91 x 6.24 inches (Ø74 mm), it is DLC listed, and the adjustable yoke lets you tilt and rotate each fixture after installation.

From a Montréal café counter to a Toronto showroom, a home gallery hallway or a small office boardroom, this head earns its keep anywhere a fixed downlight would be too rigid. It is designed for ceiling-mounted, single-circuit J-type track only and for dry, indoor locations — keep it at least 5 feet above the floor and 6 inches away from curtains, as the installation sheet requires. Mix it with the AST track light head 10W J type white for softer fill and the AST track light head 35W J type white for high ceilings, or switch to the black 20W version when you want the fixture to disappear. Build your lighting scene today.

99.97$

Supplier availability: In stock (+100)

Learn more
Documentation

Built for real track systems

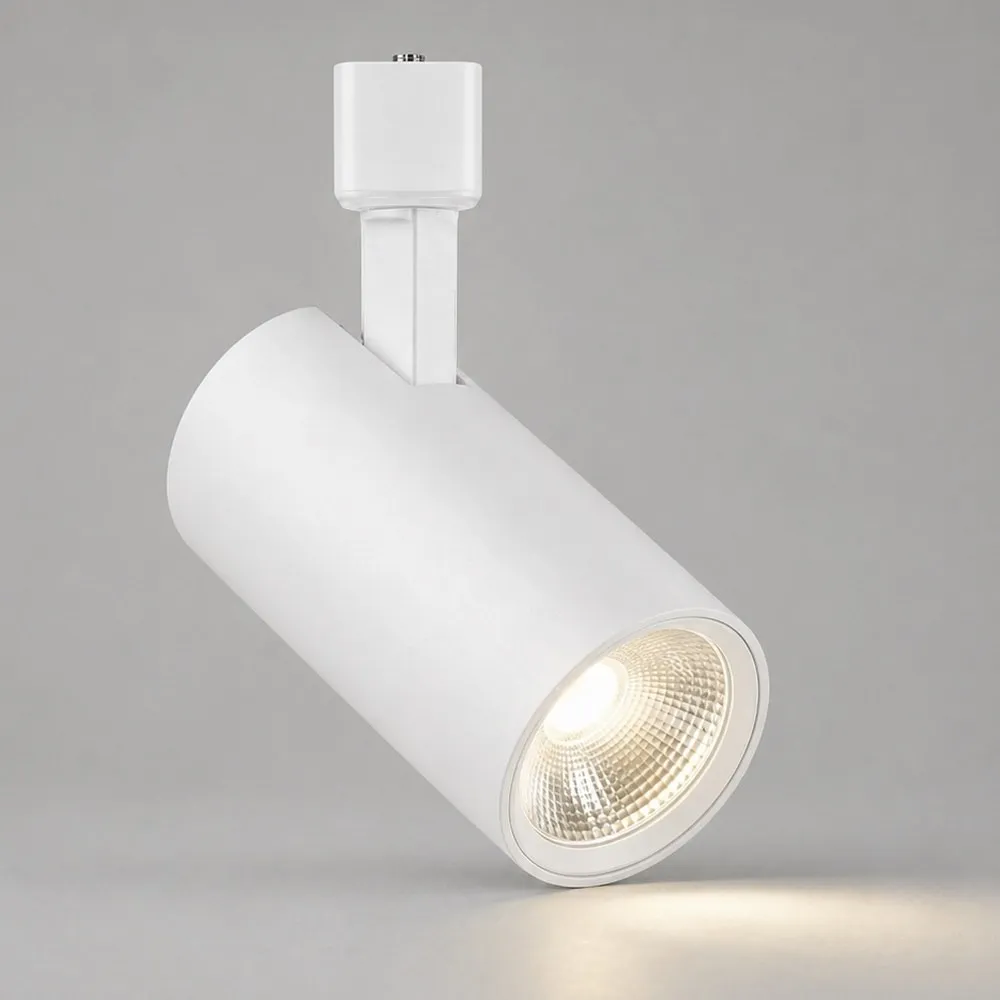

The ASTELLA series track head is a compact cylinder on an adjustable arm, designed exclusively for ceiling-mounted track in a single-circuit J-type configuration. The adapter uses a spring-loaded locking tab: you hold the tab with your thumb, line it up directly opposite the polarity line (the indentation in the channel), push the adapter into the rail and rotate it a quarter turn, 90° counter-clockwise. The arrows on the locking tab point to the polarity line when the head is correctly seated. Once locked, the head still tilts and rotates so you can re-aim the beam whenever a display moves or a painting changes wall.

Light quality you can actually see
With CRI90+ colour rendering, this LED track spot shows merchandise, artwork, wood grain and skin tones the way they really look — a big deal in clothing boutiques, salons, bakeries and galleries, where washed-out colour costs you sales. The 5CCT switch on the back of the track head gives you five selectable colour temperatures, set by hand before you snap the head into the rail, so one box covers a warm residential living room and a neutral commercial showroom. The MF36 medium flood distribution is the versatile middle ground: wide enough to wash a shelf unit or a counter, tight enough to keep the accent effect rather than flooding the whole room.

Technical specifications
SKU: AST-TRH-J-20W-MK5-120-D-MF-WH
Ordering code: 5220008
Brand: TUROLIGHT, ASTELLA Series
Wattage: 20W
Input voltage: 120V
Colour temperature: 5CCT selectable (switch on the back of the head)
Colour rendering: CRI90+
Optic: MF36 medium flood
Dimming: TRIAC
Track type: J-type, single circuit
Dimension: 2.91 x 6.24 inch (Ø74 mm)
Finish: White
Certification: DLC

Installation and safety
Cut power at the breaker or remove the fuse before you work — flipping the wall switch is not enough. The rail itself mounts to the J-box with a mount plate: connect black to hot, white to neutral and green to ground, tuck the wires back into the box, mark and drill for the toggle bolts, set the track channel on the plate, tighten the toggle bolts and the two mount plate screws, install the connection terminal respecting the double-pin and single-pin direction, then cover the J-box with the canopy. Do not install the track in damp or wet locations, never less than 5 feet above the floor, and never closer than 6 inches to curtains or other combustible material. Only lighting track luminaires may be energized on the rail — no power tools, no extension cords, no appliances. The head runs hot when powered, so wait at least 5 minutes after shutting it off before touching it.

Applications, compatibility and documents
Think retail aisles and cash counters, restaurant banquettes, condo kitchens with an island, a home office over a work surface, a clinic waiting room, or a small gallery in a converted Montréal loft. Because the heads are interchangeable on the same rail, you can mix outputs along a run: the 10W J-type head in white for close-range accents, this 20W for general display work, and the 35W J-type head in white where ceilings are higher. Prefer a darker look? The 10W black head and the 35W black head belong to the same family. The spec sheet with the installation instructions and the dimensional drawing is in the Documentation tab — worth printing before your electrician arrives.
