AST TRACK LIGHT HEAD - 20W - H TYPE - 5CCT - MF36 - 120~277V - CRI90+ - TRAIC - WHITE - DLC

Name: AST TRACK LIGHT HEAD - 20W - H TYPE - 5CCT - MF36 - 120~277V - CRI90+ - TRAIC - WHITE - DLC
Brand: TUROLIGHT
SKU: AST-TRH-H-20W-MK5-120-D-MF-WH
Price: 88.97 CAD
Availability: InStock

SKU: AST-TRH-H-20W-MK5-120-D-MF-WH

Brand: TUROLIGHT

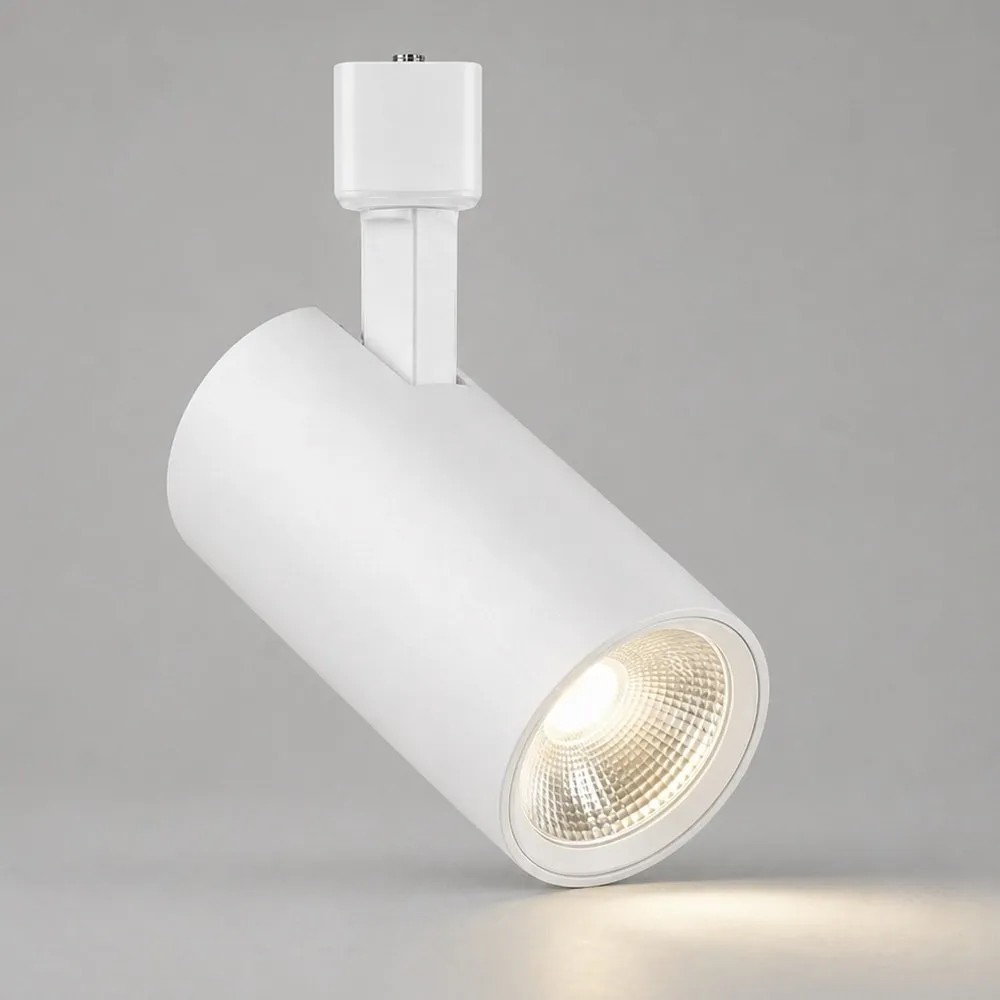

Point the light exactly where you want it, then change your mind next season — that's the beauty of a good track light head. The TUROLIGHT ASTELLA AST TRACK LIGHT HEAD, SKU AST-TRH-H-20W-MK5-120-D-MF-WH, is a 20W H-type track head (also called a track spot, track lighting head or rail spotlight) built for single-circuit H-type track systems. Its clean white cylinder body rotates and tilts on the track, so you can wash a feature wall, spotlight a display counter, or line up a row of beams over a kitchen island. If you've been searching for track lighting heads that look sharp and adapt to a room that keeps evolving, this is the adjustable workhorse you want.

This head draws 20W and runs on 120V, with a colour select switch on the back that gives you 5 selectable colour temperatures: 2700K, 3000K, 3500K, 4000K and 5000K. That means one head can go warm and cozy in a living room or crisp and neutral in a retail bay — decided on site, with a flick of the switch, no re-ordering. The body measures 2.91 x 6.24 inches (Ø74 mm), a nicely balanced size that reads as intentional without visually crowding a ceiling. It's designed for use with ceiling-mounted H-type single-circuit track only, and it locks in with a simple quarter-turn: pull down the connector lock, insert the adaptor contact into the track slot, rotate 90°, done. Need to move it three feet down the rail next month? Depress the lock, turn 90°, relocate.

Retail boutiques, galleries, cafés, showrooms, home offices, basement renos, hallways with artwork — anywhere you want aimable, layered light instead of one flat ceiling glow. Because you can add, remove and slide heads along the rail, it's a favourite for Canadian contractors finishing spaces where the layout isn't final. Pair it with the matching AST track 4 ft H type white, AST track 8 ft H type white or AST track 12 ft H type white, and mix in the 35W AST track head in white where you need a punchier beam. Build your run and aim it your way.

Sold separately
To complete the installation, add:
Channel / profile: AST-TRK-H-02-WH, AST-TRK-H-04-WH, AST-TRK-H-06-WH, AST-TRK-H-08-WH, AST-TRK-H-12-WH

88.97$

Supplier availability: In stock (+500)

Learn more
Documentation

Built for H-type track, built to be moved
The ASTELLA series AST-TRH track head is a cylinder-style luminaire made specifically for H-type, single-circuit track that is ceiling mounted. The adaptor uses a connector lock that slides up and down: pull it down, insert the adaptor contact into the slot in the track, then rotate the adaptor a quarter turn (90°) to lock. The adaptor contact with the grounding pin is the two-pin side and must be turned toward the track's two-line polarity side — get that orientation right and the head seats securely and grounds properly. Relocating is just as quick: depress the connector lock, turn 90°, and slide the head to its new spot along the rail. That's what makes track lighting so forgiving in rooms where merchandising, artwork or furniture layouts change.

Light quality you choose on site
The colour select switch sits on the back side of the head and offers 5 selectable colour temperatures — 2700K, 3000K, 3500K, 4000K and 5000K. Warm 2700K for a residential living space or a restaurant, 3000K for a hospitality feel, 3500K as an easy in-between, 4000K for neutral commercial white, 5000K where you want maximum crispness on merchandise and task surfaces. One SKU covers all five, so a contractor can carry fewer boxes to the jobsite and still deliver exactly the ambiance the client pictures. After setting the colour, simply adjust the angle of the head as needed to aim the beam.

Technical specifications
SKU / model: AST-TRH-H-20W-MK5-120-D-MF-WH
Ordering code: 5220002
Series: ASTELLA, AST-TRH track head
Type: H-type, single circuit
Wattage: 20W
Input voltage: 120V
CCT: 5 selectable — 2700K / 3000K / 3500K / 4000K / 5000K
Dimensions: 2.91 x 6.24 inch (Ø74 mm)
Finish: White
Mounting: Ceiling-mounted track only
Compliance: Complies with Part 15 of the FCC Rules

Installation and safety essentials
Always shut off power at the source before installing or repositioning any track head — removing the fuse or switching off the breaker, since turning off the wall switch is not enough to prevent electric shock. The track system itself starts at the junction box: the mount plate is attached to the J-box and wired (black to hot, white to neutral, green to ground), the track is placed on the ceiling and secured with toggle bolts, the connection terminal is rotated to the proper double-pin and single-pin direction, then the canopy cover goes over the J-box. Do not install the track system in damp or wet locations, never less than 5 feet above the floor, and keep any luminaire assembly at least 6 inches from curtains or similar combustible materials. Disconnect power before adding to or changing the configuration of the track, don't connect a track to more than one branch circuit unless it's built for it, and never energize anything other than lighting track luminaires. The head gets hot in operation — wait at least 5 minutes after cutting power before touching it.

Where it works and what it pairs with
Think boutique shelving and jewellery cases, gallery walls, café counters, salon stations, showroom vignettes, condo kitchens with an island, home offices and finished basements — anywhere a fixed downlight would miss the mark. Because heads slide anywhere along the rail, one circuit can light several zones at once. Complete the system with the matching white AST track 2 ft H type or AST track 6 ft H type, step down to the 10W AST track head in white for accent work, or switch finishes with the 20W AST track head in black for a contrasting ceiling. The technical PDF (AST-TRH-H-20W-MK5-120-D-MF-WH Spec Sheet), with the full dimension drawings and step-by-step installation diagram, is in the Documentation tab.
