AST TRACK LIGHT HEAD - 35W - H TYPE - 5CCT - MF36 - 120~277V - CRI90+ - TRAIC - WHITE - DLC

Name: AST TRACK LIGHT HEAD - 35W - H TYPE - 5CCT - MF36 - 120~277V - CRI90+ - TRAIC - WHITE - DLC
Brand: TUROLIGHT
SKU: AST-TRH-H-35W-MK5-120-D-MF-WH
Price: 137.97 CAD
Availability: InStock

SKU: AST-TRH-H-35W-MK5-120-D-MF-WH

Brand: TUROLIGHT

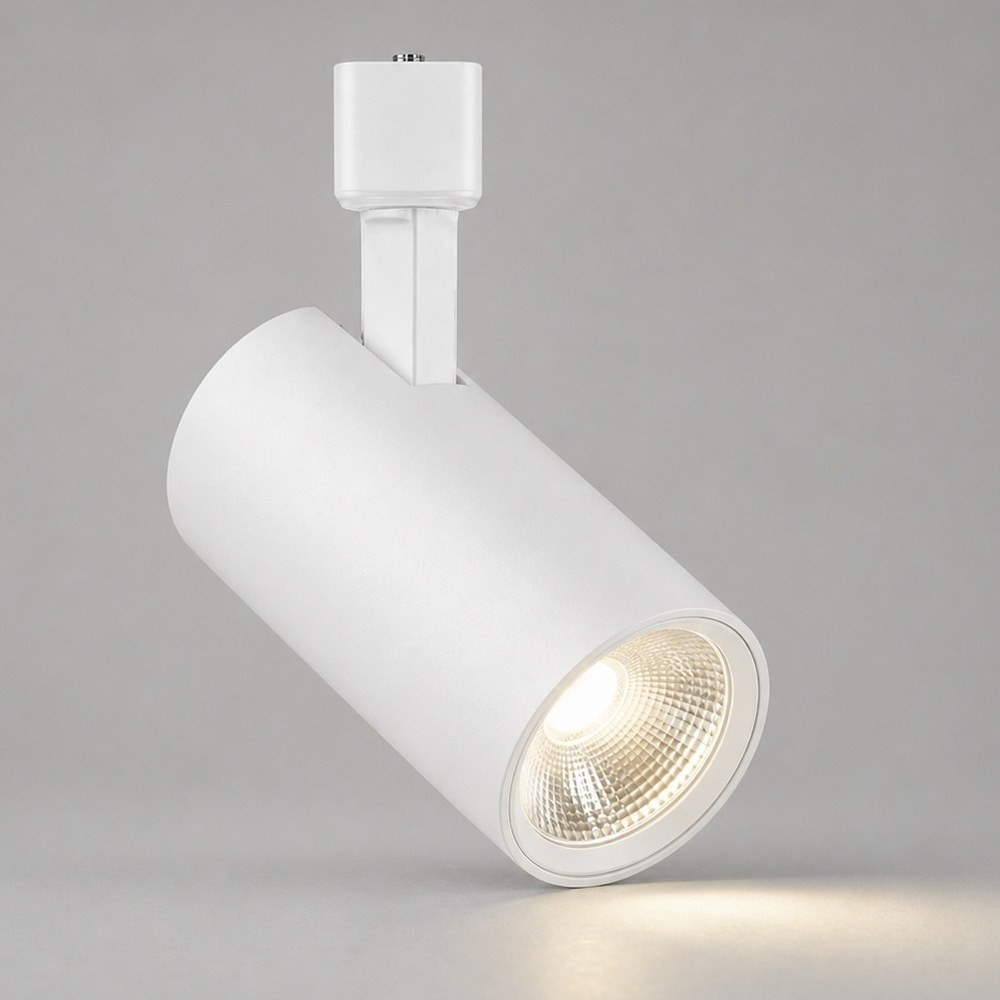

Point the light exactly where your project needs it. The AST TRACK LIGHT HEAD from TUROLIGHT is a 35 W adjustable track light head — also called a track spot, track fixture or track lighting head — built for H-type single-circuit track systems. It slides onto the rail, locks with a quarter turn, then pivots and rotates so you can aim a clean beam at a feature wall, a display shelf, a kitchen island or a row of merchandise. Because heads can be moved along the track at any time, one rail can be re-aimed season after season without touching the ceiling again. It belongs to the ASTELLA series (model AST-TRH), and it is the largest of the three sizes in the family, ideal when you need real punch on higher ceilings or wider displays.

This is the 35 W version in a crisp white finish, running on 120 V input, with 5 selectable colour temperatures chosen right on the fixture: 2700K, 3000K, 3500K, 4000K and 5000K. Flip the colour select switch on the back of the head and you go from a warm, cozy glow to a bright, crisp white — no need to re-order a different SKU because the client changed their mind. It also offers CRI 90+ for colours, skin tones, wood grain and fabrics that look true instead of washed out, plus TRIAC dimming to set the mood, an MF36 beam for a focused spread, and DLC listing. Body size is 3.54 x 8.51 inch (Ø90 mm head, 216 mm length), compact enough to stay discreet on the rail. SKU: AST-TRH-H-35W-MK5-120-D-MF-WH.

Retail boutiques, galleries, showrooms, cafés, hair salons, offices, condo lofts and renovated Canadian basements all benefit from aimable rail lighting instead of fixed ceiling fixtures. This head is made for ceiling-mounted H-type track only, and it mates directly with the matching rails: pick your length from the AST Track 2 ft H type white, AST Track 4 ft H type white, AST Track 8 ft H type white or AST Track 12 ft H type white. Mix in the smaller 20W AST track light head in white for accents. Build your track run and order your heads today.

Sold separately
To complete the installation, add:
Channel / profile: AST-TRK-H-02-WH, AST-TRK-H-04-WH, AST-TRK-H-06-WH, AST-TRK-H-08-WH, AST-TRK-H-12-WH

137.97$

Supplier availability: In stock (+500)

Learn more
Documentation

Built for H-type track, built to be moved
The AST-TRH track head is part of the TUROLIGHT ASTELLA series and is designed for H-type, single-circuit ceiling-mounted track. Installation of the head itself is tool-free: pull down the connector lock, insert the adaptor contact into the slot in the track, then rotate the adaptor a quarter turn (90°) to lock. The adaptor contact with the grounding pin is the two-pin side and must be turned toward the track's two-line polarity side — a small detail that guarantees correct polarity and grounding. Need to re-space your track lighting heads later? Depress the connector lock, turn 90°, and relocate the head anywhere along the rail. That flexibility is why track stays the go-to solution for spaces where displays, furniture and art move around.

Light quality and colour selection
Five colour temperatures live inside one fixture. The 5CCT colour select switch sits on the back side of the head and lets you choose 2700K, 3000K, 3500K, 4000K or 5000K, so you can warm up a boutique fitting room and cool down a work area using the same SKU. With CRI 90+, reds stay red and whites stay white: paint samples, produce, artwork, clothing and wood finishes are rendered faithfully. The MF36 optic delivers a controlled beam for accenting rather than flooding, and TRIAC dimming lets you tune levels through a compatible wall dimmer for evening ambience or daytime punch.

Technical specifications
Model: AST-TRH-H-35W-MK5-120-D-MF-WH
Ordering code: 5220003
Series: ASTELLA (AST-TRH)
Wattage: 35W
Input voltage: 120V
CCT: 2700K / 3000K / 3500K / 4000K / 5000K selectable
CRI: 90+
Beam: MF36
Dimming: TRIAC
Dimensions: 3.54 x 8.51 inch (Ø90 mm, 216 mm)
Track type: H-type, single circuit
Finish: white
Listing: DLC

Safety and installation notes
Always cut power at the breaker or remove the fuse before working — a wall switch alone is not enough protection. Do not install the head if any part is missing or damaged, and use it with ceiling-mounted track only. The track system must not be installed in damp or wet locations, never less than 5 feet above the floor, and no luminaire assembly should sit closer than 6 inches from curtains or similar combustible material. Disconnect power before adding to or changing the track configuration, and never energize anything other than lighting track luminaires on the rail — no power tools, extension cords or appliances. Do not connect a track to more than one branch circuit unless it is built for it; check with a qualified electrician. The head gets hot in use: wait at least 5 minutes after power off before touching it. This device complies with Part 15 of the FCC Rules.

Applications, compatibility and documentation
Think retail displays, jewellery and eyewear counters, bakery cases, gallery walls, restaurant banquettes, salon stations, office feature walls, and open-concept homes where a single rail replaces several fixed fixtures. Pair the 35 W head with the matching single-circuit rails in the same finish — AST Track 4 ft H type white or AST Track 6 ft H type white — and mix wattages on the same run: the 10W AST track light head in white for small accents, the 35 W for long throws. Prefer a darker look? The 35W AST track light head in black is the same head in black. The full spec sheet with the ordering table, dimensioned drawings and step-by-step installation diagram is available in the Documentation tab.
