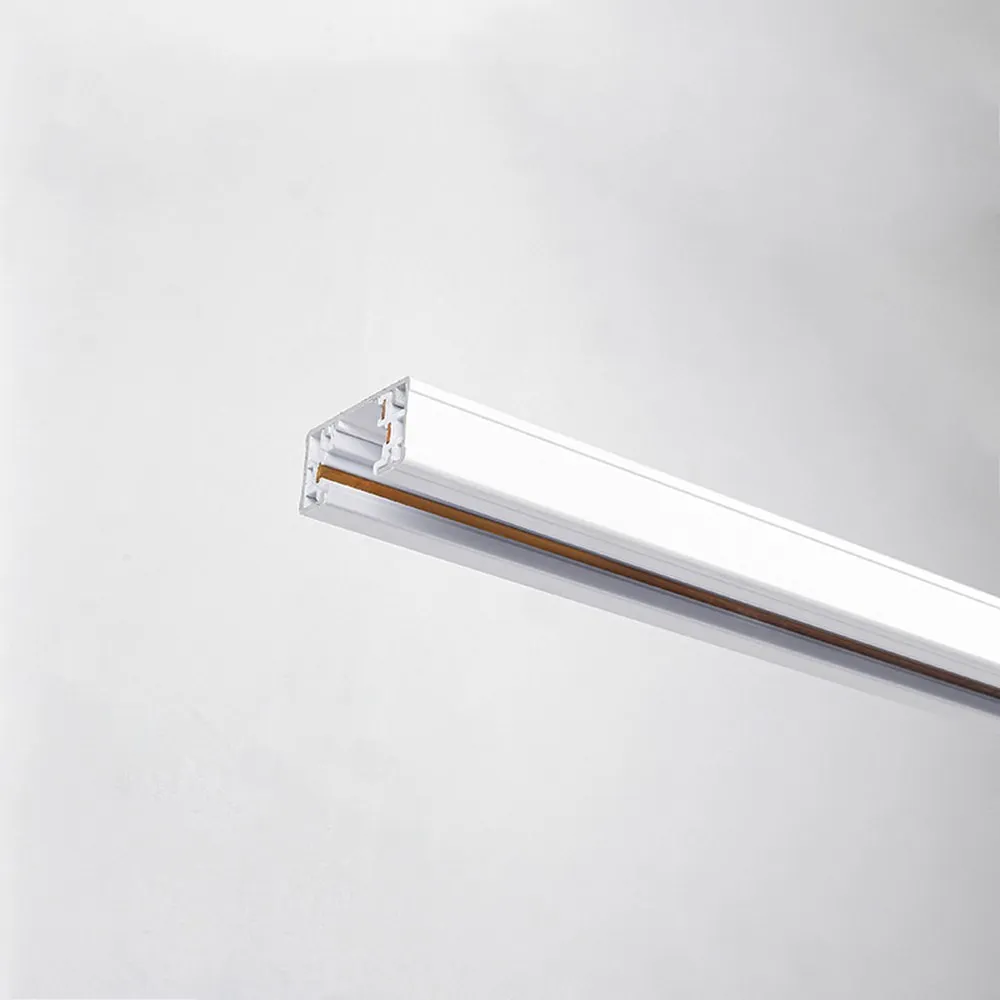

AST TRACK - 6 FT - H TYPE - 1 CIRCUIT - 120V - WHITE

Name: AST TRACK - 6 FT - H TYPE - 1 CIRCUIT - 120V - WHITE
Brand: TUROLIGHT
SKU: AST-TRK-H-06-WH
Price: 69.97 CAD
Availability: InStock

SKU: AST-TRK-H-06-WH

Brand: TUROLIGHT

Give your lighting a track to run on. The AST TRACK - 6 FT - H TYPE - 1 CIRCUIT - 120V - WHITE is a 6-foot section of the TUROLIGHT ASTELLA track system, the white lighting track rail that lets you clip on, slide and re-aim your track lighting heads exactly where the light is needed. People call it a track bar, a track rail, a lighting rail or simply H-type track — it is the standard H (single-circuit) profile, so any lampholder, adapter or pendant adapter marked for use with TUROLIGHT track drops right in and locks with a quarter turn. Use it to light a kitchen island, a hallway of artwork, a retail display wall, a salon station or a home office, and add, move or remove fixtures later without touching the ceiling again.

This section runs on 120V, 60HZ, 20A and is built as a 1-way circuit (P + N + PE), Class I, rated IP20 for dry indoor use. The single-circuit H-type design means every head on the run switches together — simple wiring, simple dimming at the wall with the driver or lamp you choose. The clean white finish blends into white ceilings and drywall so the fixtures, not the rail, get the attention, and the flat underside of the track sits flush to the ceiling or wall. Mounting hardware is straightforward: toggle bolts are supplied for drywall or plaster (5/8 mounting holes), and standard #10 wood screws (not supplied) handle wood surfaces. Polarity lines on the rail and on the lampholder keep every adapter oriented correctly, and set screws lock connectors and dead ends in place.

Contractors across Canada reach for H-type track because it is the most common track lighting standard on the market and because one run can be extended, shortened or turned into an L or T with the matching connectors, live ends and dead ends from the ASTELLA family. Pair this 6 ft white section with other lengths to build the exact run you need — AST Track 2 ft H type white, AST Track 4 ft H type white, AST Track 8 ft H type white or AST Track 12 ft H type white — or switch to black where the ceiling is dark. SKU AST-TRK-H-06-WH: order the length your layout calls for and start aiming light where it matters.

Sold separately
To complete the installation, add:
Connector: AST-TRK-H-LEC-WH
End cap: AST-TRK-H-EC-WH

69.97$

Supplier availability: In stock (+100)

Learn more
Documentation

Built on the H-type standard
The ASTELLA track system from TUROLIGHT uses the H-type, single-circuit profile — the most widely used track rail format in North American residential and commercial lighting. The extrusion carries a 1-way circuit (P + N + PE) with copper conductors inside the channel and a polarity line printed on the rail so every adapter goes in the right way. The underside is flat and uninterrupted, which lets the section sit tight against a ceiling or wall, while the open slot runs the full 6 ft of the rail so heads can be positioned anywhere along it and re-spaced whenever the room changes.

Electrical and installation details
This is a 120V system, 60HZ, rated 20A, Class I, IP20 — indoor dry locations. Installation follows three steps in the supplied instructions: cut the power at the panel, position the rail over the outlet box and mark the mounting holes, then drill and fasten. On drywall or plaster, drill 5/8 mounting holes and use the toggle bolts provided; on wood surfaces, use standard #10 wood screws (not supplied). Strip 3/8 of wire and land the conductors on the screw terminals inside the live end or connector — no need to wrap the wire around the screw. Before energizing, loosen the set screws on every connector before sliding it into the open end of the rail, then tighten them, and make sure a dead end is slid into ALL open ends of the run. Local installation requirements must be respected.

Adding heads and accessories
To mount a lampholder, align the polarity line on the track with the one on the lampholder, push the top of the mounting adapter (the side with the contact tabs) into the track slot and turn 90°. If the adapter does not turn easily, do not force it — turn the other way. To remove a head, press the release lever with your index finger and turn 90°. To reduce the risk of fire and electric shock, use only fixture assemblies marked for use with TUROLIGHT track. The system also includes connectors and feeds identified in the instructions — AST-TRK-H-LEC, AST-TRK-H-EC, AST-TRK-H-XC, AST-TRK-H-LC, AST-TRK-H-TC, AST-TRK-H-SC, AST-TRK-H-FC and AST-TRK-H-MJ — so straight runs, corners and crosses can all be assembled from the same family. When joining sections, select the correct ground tab: the ground tabs on the connectors must be prepared before sliding onto the NON-GROUND conductor-side tab of the section being joined, and if the wrong tab was removed, do not use that connector, because grounding will not be maintained.

Technical specifications
SKU: AST-TRK-H-06-WH
Brand: TUROLIGHT
System: ASTELLA Track System, H-type, single circuit
Length: 6 ft
Voltage: 120V, 60HZ
Current rating: 20A
Circuit: 1 way (P + N + PE)
Class: Class I
Ingress protection: IP20
Finish: White
Mounting holes (drywall/plaster): 5/8
Hardware: toggle bolts supplied; standard #10 wood screws not supplied
Wire strip length: 3/8

Where it works and what comes with the page
A 6 ft run is a sweet spot for a kitchen island, a dining area, a hallway gallery, a boutique display wall, a café counter, a barber or esthetics station, or a basement office where recessed cans would mean cutting the ceiling. Because the heads slide and pivot, a retail owner can re-merchandise a wall on a Sunday morning and re-aim the beams in minutes. Build longer or shorter layouts by combining this section with the AST Track 4 ft H type white or the AST Track 8 ft H type white, or match a dark ceiling with the AST Track 6 ft H type black. The full installation instruction sheet for the AST-TRK models is available in the Documentation tab of this page as a technical PDF — worth printing before you climb the ladder.
