AST TRACK LIGHT HEAD - 10W - J TYPE - 5CCT - MF36 - 120~277V - CRI90+ - TRAIC - WHITE - DLC

Name: AST TRACK LIGHT HEAD - 10W - J TYPE - 5CCT - MF36 - 120~277V - CRI90+ - TRAIC - WHITE - DLC
Brand: TUROLIGHT
SKU: AST-TRH-J-10W-MK5-120-D-MF-WH
Price: 69.97 CAD
Availability: InStock

SKU: AST-TRH-J-10W-MK5-120-D-MF-WH

Brand: TUROLIGHT

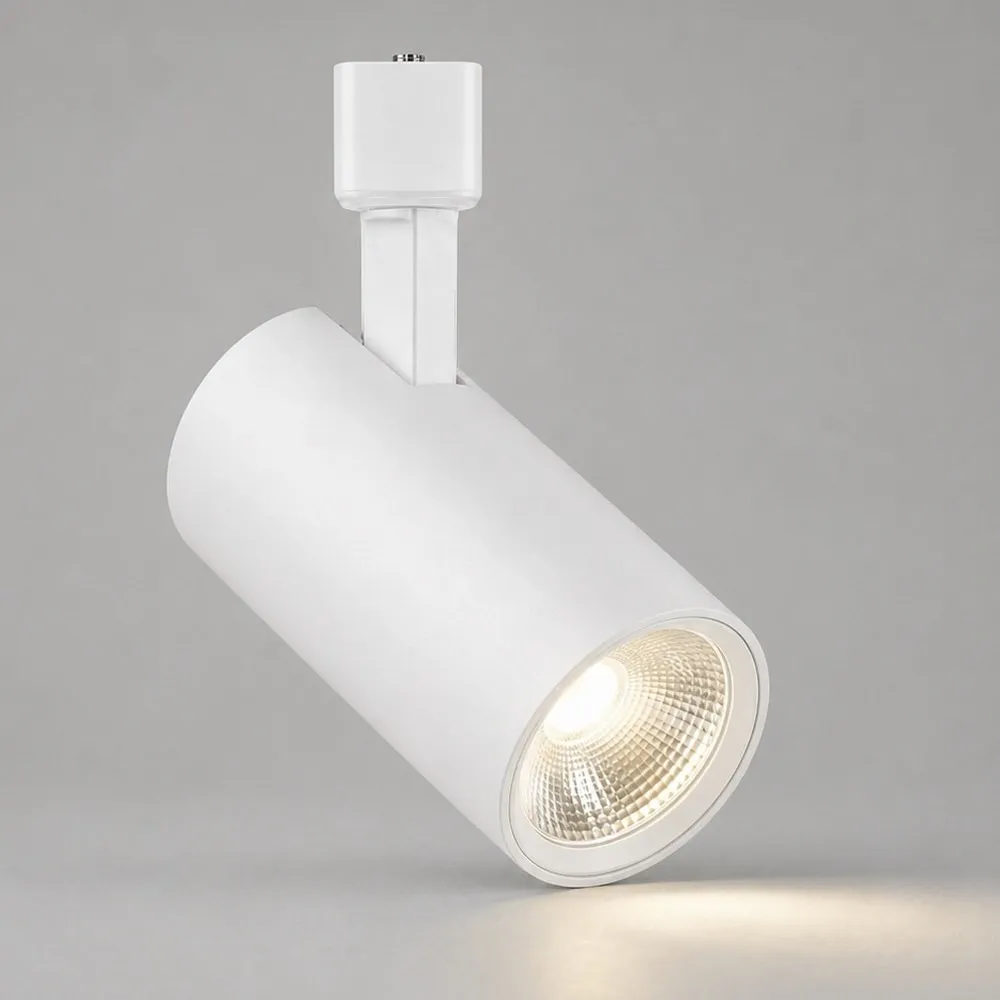

Give your track a serious upgrade with the AST TRACK LIGHT HEAD from TUROLIGHT, a 10W J-type track head built for single-circuit rails. If you have been searching for track light heads, track lighting heads, spot heads or adjustable track spots, this is the compact, fully aimable fixture that lets you point light exactly where it belongs — on a feature wall, a display case, a kitchen island, a merchandising run or a gallery piece. Its ASTELLA-series body rotates and tilts on the track adapter, so a whole row of heads can be re-aimed in seconds when the layout of a store, showroom or living room changes. Sold as a single head (SKU AST-TRH-J-10W-MK5-120-D-MF-WH) in a clean white finish that disappears into white ceilings and white rails.

The specs are made for real projects. It draws only 10W on 120V input, and the 5CCT colour-selectable switch on the back of the head lets you choose between five colour temperatures — warm and cozy, neutral, or crisp and bright — right at installation, with no need to stock five different SKUs. The colour switch is reachable on the rear of the head, so a change of mood or a change of tenant does not mean a change of fixture. Compact at 2.17 x 5.51 inch, it stays visually discreet while still delivering a controlled, directional beam. It is a J-type, single circuit head, designed for use with ceiling mounted track only, and it must be installed in dry locations, at least 5 feet above the floor.

This head is right at home in boutiques, cafés, salons, dental and medical clinics, offices, art walls, condo lofts and renovated Canadian basements where recessed cans are not an option. Because it is a J-type single-circuit track head, plan your rails accordingly and match it with the companion ASTELLA tracks such as the AST Track 4 ft white, AST Track 8 ft white or AST Track 12 ft white for longer runs. Need more punch on higher ceilings? Step up to the 20W AST track head in white, or switch to the 10W AST track head in black for a darker ceiling. Build your lighting scene one head at a time.

69.97$

Supplier availability: In stock (+100)

Learn more
Documentation

Built to be aimed, built to last
The ASTELLA Series track head is a directional LED track spot with a rotating, tilting head on a spring-loaded track adapter. Installation is refreshingly simple: hold the adapter with your thumb on the locking tab, make sure the locking tab is positioned directly opposite the polarity line on the rail, push the adapter into the track and rotate it a quarter turn (90°) counter-clockwise. Then adjust the angle of the head to hit the target. That quarter-turn action means a contractor can hang a full run of heads quickly, and a homeowner can re-aim or relocate a head later without tools or rewiring.

Light quality and colour selection
The big advantage of this 5CCT track head is the colour-selectable switch found on the back side of the fixture: five selectable colour temperatures in one product, chosen on site. Warm settings flatter wood, brick and retail textiles; cooler settings sharpen task areas, work surfaces and white merchandise. One head can therefore serve a warm residential living room today and a crisp commercial display tomorrow. Because each head is aimed individually, you get layered light — accent on the artwork, punch on the counter, gentle wash on the shelving — rather than the flat, uniform look of a single ceiling fixture.

Technical specifications
Model number: AST-TRH-J-10W-MK5-120-D-MF-WH
Ordering code: 5220007
Series: ASTELLA Series Track Head
Type: J-Type, single circuit
Wattage: 10W
Input voltage: 120V
CCT: 5 selectable colour temperatures, switch on the back of the head
Dimension: 2.17*5.51 inch
Finish: White
Mounting: Ceiling mounted track only

Electrical and safety notes
Always shut off power at the fuse or breaker before working — turning off the light switch is not enough to prevent electric shock. The track system itself mounts to a J-box: attach the mount plate, connect black (hot), white (neutral) and green (ground), tuck the wires in, secure the track channel with toggle bolts, install the connection terminal in the proper double-pin and single-pin direction, then cover the J-box with the canopy. Do not install the track in damp or wet locations, never less than 5 feet above the floor, and keep any luminaire assembly at least 6 inches from curtains or similar combustible material. Disconnect power before adding or moving heads, never energize anything other than track luminaires on the rail, and do not connect a track to more than one branch circuit unless it is built for it — ask a qualified electrician. The head gets hot in use: wait at least 5 minutes after power off before touching it.

Applications, compatibility and documentation
Think retail displays, bakery and café counters, hair salons, showrooms, offices, reception desks, staircases, art walls and open-concept condos where you want accent lighting without cutting the ceiling. Pair this head with the matching single-circuit ASTELLA rails — AST Track 2 ft white for a short accent run, AST Track 6 ft white over a counter, or AST Track 12 ft white for a long merchandising wall — and mix wattages on the same run by adding the 35W AST track head in white where you need a stronger accent. The technical PDF (AST-TRH-J-10W-MK5-120-D-MF-WH Spec Sheet), with the ordering table, dimensions and the full installation diagram, is available in the Documentation tab.

Technical Files
