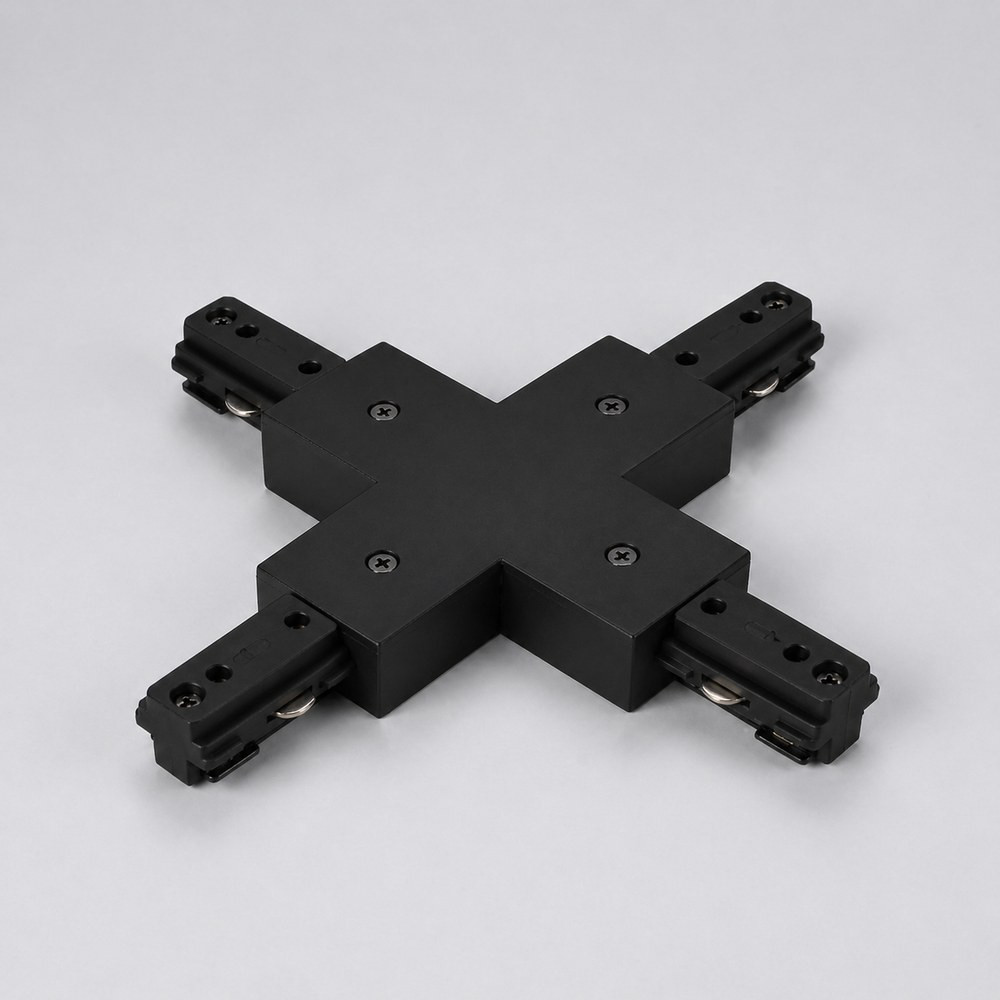

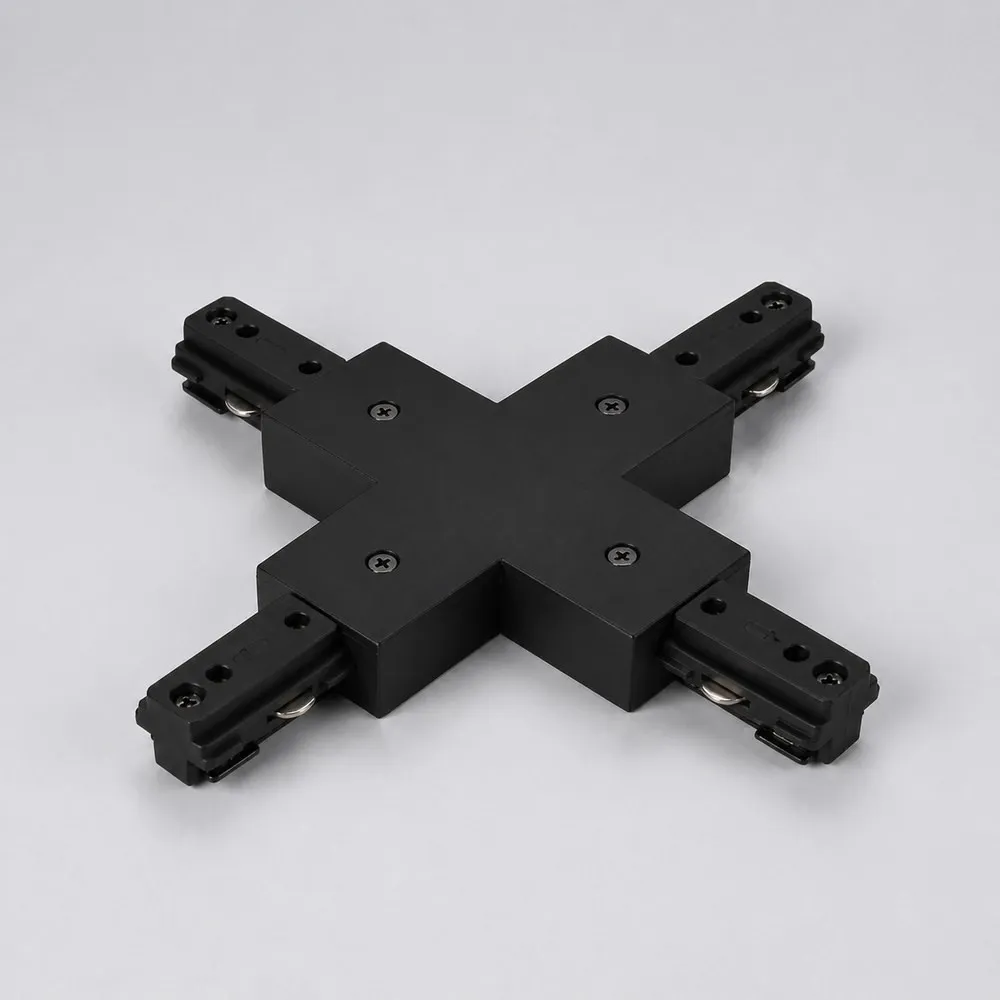

AST TRACK - X CONNECTOR - H TYPE - 1 CIRCUIT - BLACK

Name: AST TRACK - X CONNECTOR - H TYPE - 1 CIRCUIT - BLACK
Brand: TUROLIGHT
SKU: AST-TRK-H-XC-BK
Price: 48.97 CAD
Availability: InStock

SKU: AST-TRK-H-XC-BK

Brand: TUROLIGHT

Four directions, one clean junction: the AST TRACK X connector is the little part that turns a straight run of track into a full lighting grid. Also called a cross connector, four-way track connector or X-shaped track joiner, this piece belongs to the TUROLIGHT ASTELLA Track System in H type, single circuit, finished in black to disappear against dark ceilings or to stand out as a deliberate design line on white drywall. It is what you reach for when you want a plus-sign layout over a kitchen island and a dining area, a cross-shaped run over a retail floor, or two intersecting rows of track light heads in a gallery or showroom. Simply put: the track carries the power, the X connector sends it left, right and straight ahead at the same time.

Built for the H-type single circuit track platform, this connector works on a 120V, 60HZ, 20A system, one circuit (P + N + PE), rated Class I, IP20 for dry indoor use. Its job is to keep polarity and grounding continuous from one track section to the next: the ground tabs on the connector are prepared before it slides onto the non-ground conductor side of the section you are joining, and setscrews lock the assembly tight. The installation instructions are clear that only fixture assemblies marked for use with TUROLIGHT track should be installed on the system, and that every open track end must be closed with a dead-end fitting before power is restored. That is real, code-minded hardware — no adapters, no improvising, no exposed copper. Local installation requirements must be respected.

Use it in condo kitchens, basement renovations, boutiques, cafés, hair salons, offices, art studios and small commercial spaces anywhere in Canada, wherever an electrician needs a crossing layout instead of a single straight line. This connector joins AST-TRK-H track sections, so pair it with matching black lengths such as the AST Track 2 ft H type black, AST Track 4 ft H type black or AST Track 6 ft H type black, or mix with the white versions like the AST Track 8 ft H type white when the ceiling calls for it. Order SKU AST-TRK-H-XC-BK with your track and heads, and lay out your lighting exactly the way the room wants it.

Compatible with
Works with:
Channel / profile: AST-TRK-H-02-BK, AST-TRK-H-04-BK, AST-TRK-H-06-BK, AST-TRK-H-08-BK, AST-TRK-H-12-BK

48.97$

Supplier availability: In stock (+50)

Learn more
Documentation

What this connector does
The X connector, or cross connector, is a four-way junction for the TUROLIGHT ASTELLA Track System. It sits at the intersection of four track sections and carries power and polarity through all of them, so a single feed can supply a cross, a plus-sign or a grid layout. Because it is part of the H type single circuit family, it only mates with H-type track of the same system — it is not a universal adapter. The black finish matches black track sections and black track lighting heads, keeping the ceiling visually quiet so the light, not the hardware, gets noticed.

Technical specifications
SKU: AST-TRK-H-XC-BK
Brand: TUROLIGHT
System: ASTELLA Track System, H-type, single circuit
Voltage: 120V, 60HZ, 20A
Circuit: 1 circuit (P + N + PE)
Class: Class I
Ingress protection: IP20
Finish: Black
Applicable models: AST-TRK

Installation and electrical details
Turn off power at the main panel before installing any track or accessory. The track itself mounts over the outlet box: mark the mounting holes on the ceiling or wall, drill 5/8 holes in drywall or plaster and secure with the toggle bolts provided, or use standard #10 wood screws (not supplied) on wood surfaces, with the flat underside of the track facing the mounting surface. Before sliding the X connector into the open end of a track section, loosen the setscrews — this applies to all connector types in the family. Select the correct ground tab: to maintain circuit polarity, the ground tabs of the connectors must be prepared before sliding onto the non-ground conductor side of the section being joined, and if the wrong tab has been removed, the connector must not be used because grounding will no longer be maintained. Wire connections are made by cutting and stripping the box wires 3/8" and securing them to the screw terminals in the live end feed or connector; there is no need to wrap the wire around the screw. Finish by sliding dead-end fittings into ALL open track ends and tightening the setscrews before restoring power — this step is specifically called out to reduce the risk of fire.

Compatibility and fixtures
To reduce the risk of fire and electric shock, use only fixture assemblies marked for use with TUROLIGHT track. Lampholders install by aligning the polarity lines of the track with those of the lampholder, pushing the top of the mounting adapter (with the contact tabs) into the track slot and rotating 90°; if the adapter does not turn easily, do not force it — rotate the other way. To remove a head, press the release lever with your index finger and rotate 90°. The X connector is designed to be combined with the other H-type accessories of the system, including the live end connector, end connector, L connector, T connector, straight connector, flexible connector and mini joiner, so a designer can draw almost any ceiling geometry with the same parts.

Real projects and documentation
Think of a boutique where one run of track follows the front window and a second crosses toward the cash desk, a loft kitchen where track spans both the island and the dining table, a photo studio that needs light from four directions, or an office lobby where a cross layout balances the ceiling. Combine this connector with AST Track 4 ft H type black and AST Track 12 ft H type white sections to build long crossing runs, or keep everything in black with the AST Track 6 ft H type black. The technical PDF spec sheet with the full bilingual installation instructions is available in the Documentation tab of this page — worth printing before the electrician climbs the ladder.
