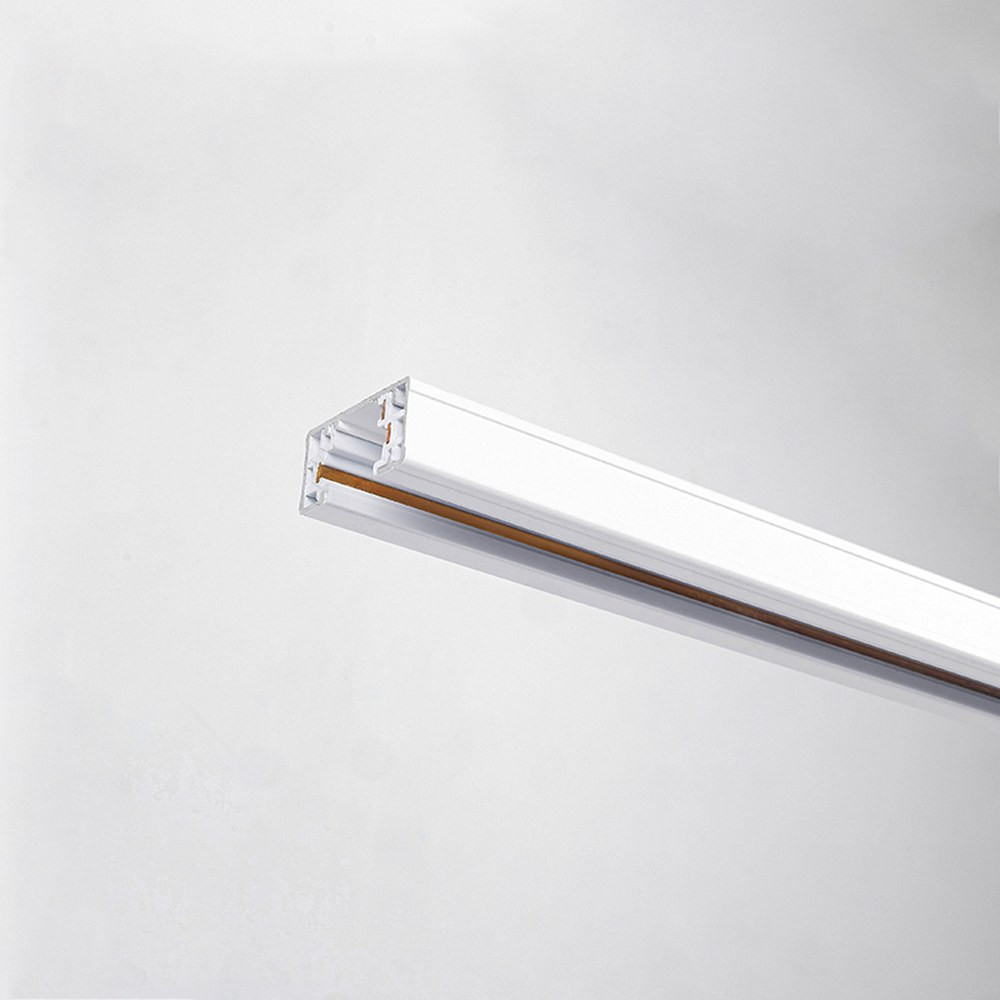

AST TRACK - 12 FT - H TYPE - 1 CIRCUIT - 120V - WHITE

Name: AST TRACK - 12 FT - H TYPE - 1 CIRCUIT - 120V - WHITE
Brand: TUROLIGHT
SKU: AST-TRK-H-12-WH
Price: 135.97 CAD
Availability: InStock

SKU: AST-TRK-H-12-WH

Brand: TUROLIGHT

Give your lighting the freedom to move exactly where you need it. The AST TRACK - 12 FT - H TYPE - 1 CIRCUIT - 120V - WHITE is a 12-foot section of ASTELLA track lighting rail from TUROLIGHT, the backbone of any system built around adjustable track light heads and linear pendants. Shoppers know it by many names — track rail, lighting track, H-type track, single-circuit track, rail system — and it all comes down to the same idea: one continuous channel that carries power along the ceiling or wall so you can clip, slide and aim your fixtures wherever the room needs light today, and move them again tomorrow.

This is an H-type, single circuit track (1 way, P + N + PE) rated 120V, 60Hz, 20A, built as a Class I, IP20 indoor system in a clean white finish that blends into most ceilings. The single-circuit design means every head on the run switches together — simple wiring, simple control, no guesswork for the electrician. Track heads and power feeds slide into the open end of the rail and lock with set screws, and polarity lines moulded into the track make it easy to keep everything oriented correctly. Only fixture assemblies marked for use with TUROLIGHT track should be installed on it, which keeps the connection safe and mechanically solid. At 12 ft, this is the long run: fewer joints, fewer connectors, one uninterrupted line of light. SKU AST-TRK-H-12-WH.

A 12-foot run is made for long spaces — a gallery wall, a retail display aisle, a boutique, a café counter, a long kitchen island, a basement studio or a home office in a Montréal condo. Contractors love it because one length covers a whole room without splicing, and homeowners love that the aim can change when the furniture does. Need a shorter leg, a return along a side wall, or a matching black run elsewhere in the project? Pair it with the AST Track 8 ft H type white, the AST Track 4 ft H type white, the AST Track 2 ft H type white or the AST Track 6 ft H type black. Plan your run, add your heads, and take control of your light.

Sold separately
To complete the installation, add:
Connector: AST-TRK-H-LEC-WH
End cap: AST-TRK-H-EC-WH

135.97$

Supplier availability: In stock (+50)

Learn more
Documentation

Built for long, clean runs
The ASTELLA track rail is an extruded channel with a plain underside that faces the ceiling or wall and an open, elongated face that accepts lampholders and connectors. The white finish keeps a 12-foot line discreet against a painted ceiling or drywall bulkhead, while the continuous slot lets you position heads anywhere along the length instead of being locked to fixed boxes. Because this is a single 12 ft section, a large room can often be covered with one piece: fewer joints to align, fewer connectors to buy, a straighter visual line overhead.

Technical specifications
SKU: AST-TRK-H-12-WH
Brand: TUROLIGHT
System: ASTELLA Track System
Type: H-type, single circuit
Configuration: 1 way (P + N + PE)
Voltage: 120V, 60Hz
Current rating: 20A
Class: Class I
Ingress protection: IP20
Length: 12 ft
Finish: White

Electrical and installation details
Always switch off power at the main panel before installing the track or any accessory. Place the rail over the outlet box and mark the mounting hole positions on the ceiling or wall. In drywall or plaster, drill 5/8 holes and secure the track with the toggle bolts supplied; on wood surfaces, use standard #10 wood screws (not supplied). Strip the box wires 3/8" and land them on the screw terminals inside the connector or live end feed — there is no need to wrap the wire around the screw. Loosen the set screws on every connector before sliding it into the open end of the rail, and select the correct grounding tab so circuit polarity is maintained: the ground tabs must be prepared before sliding onto the NON-GROUND conductor-side tab of the section you are joining. If the wrong tab has been removed, do not use that connector, because grounding will not be maintained. To reduce the risk of fire, once all rails and connectors are installed, make sure a dead-end cap is slid into every open end and the set screws are tightened before energizing. Local installation requirements must always be respected.

Fitting the heads
To mount a lampholder, align the polarity line on the track with the polarity line on the head, push the top of the mounting adapter (the side with the contact tabs) into the track slot and turn it 90°. If the adapter does not turn easily, do not force it — turn the other way. To remove a head, press the release lever with your index finger and turn 90°. Only fixture assemblies marked for use with TUROLIGHT track should be installed. The ASTELLA family also includes the matching connector and feed components listed in the installation sheet — AST-TRK-H-LEC, AST-TRK-H-EC, AST-TRK-H-XC, AST-TRK-H-LC, AST-TRK-H-MJ, AST-TRK-H-TC, AST-TRK-H-SC and AST-TRK-H-FC — so straight joins, L, T, X and flexible layouts can all be built from the same system.

Applications, matching lengths and documentation
Twelve feet is the length you reach for in a retail aisle, a showroom, a long gallery corridor, a restaurant dining row, a loft living space or a workshop bench wall where you want even, aimable light end to end. Because the run is IP20 and Class I, it belongs in dry indoor spaces — living rooms, kitchens, offices, boutiques and clinics — rather than outdoors or in wet areas. Mix lengths to match your layout with the AST Track 8 ft H type white, the AST Track 6 ft H type white or the AST Track 4 ft H type white, or switch to the AST Track 8 ft H type black for a darker ceiling. The full installation instructions and product data are in the technical PDF (AST-TRK-H-12-WH Spec Sheet) in the Documentation tab — worth printing before you head up the ladder.
