Dual outputs in a single driver

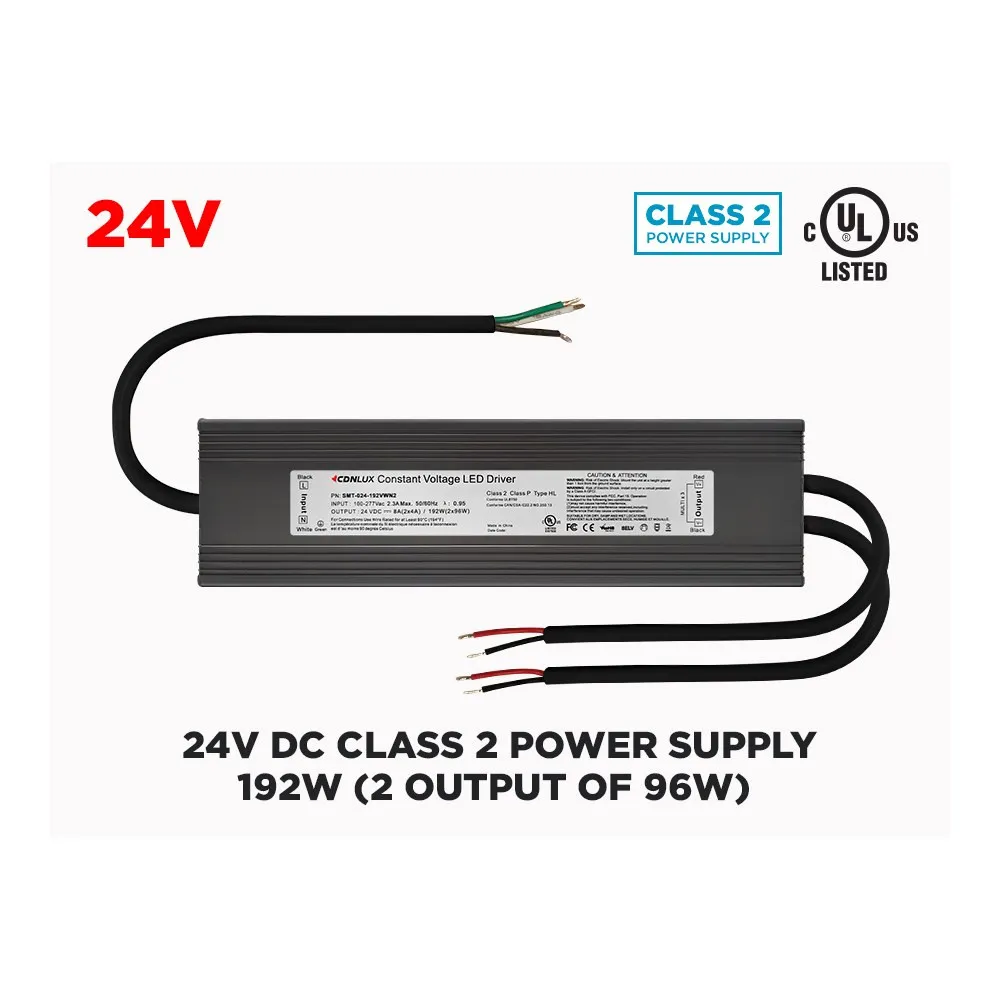

The 2X96W is a 24V DC LED driver with dual 96W outputs (2 x 4A), totalling 192W. Instead of mounting a pair of separate 96W power supplies, you install a single unit and connect a strip run to each output, an easy way to split a large project into balanced circuits. That means fewer boxes on the wall, less wiring to hide and a cleaner installation, whether it goes in a mechanical room, behind a valance or on an exterior wall.
Built for Canadian outdoor projects
With its IP67 rating, this driver is made for indoor and outdoor use, ready to power LED strips on a patio, a gazebo, a deck or a cottage porch. Installation brackets on each side allow secure wall mounting, and the integrated protection against short circuits helps safeguard your LED strip lighting and the driver itself. Outdoors, protect your connections and plug the 3-prong cord into a GFCI-protected outlet, as your local electrical code requires.
Electrical details and safety
The driver accepts a wide 100 to 277V AC input at 50/60 Hz, with a maximum input current of 3.4A, and delivers 24V DC on each of its outputs. Both outputs are Class 2, which simplifies low-voltage wiring, and the unit is cULus listed, compliant with safety standards for lighting in Canada and the US. It is non-dimmable: use it with on/off switching, not with a dimmer. The AC cord is 1 m long with a standard 3-prong wall plug, and the DC wires measure approx. 30 cm.
Applications and documentation
Use this LED strip power supply for deck and railing lighting, soffit and gazebo accents, backyard bars, cottage porches, long cabinet and cove runs, retail displays and signage that use 24V LED strips. Always check that the total wattage of the strips on each output stays at or below 96W, and for long runs, feed the strip from both ends or from the middle to keep the brightness even. The technical spec sheet (PDF) is available in the Documentation tab.
Technical specifications
Model: 2X96W
Input: 100 to 277V AC, 50/60 Hz, 3.4A max.
Output: 24V DC, 2 x 96W (2 x 4A), Class 2
Total power: 192W
Dimming: non-dimmable
Protection rating: IP67
Certification: cULus, Class 2
Dimensions: 27.6 cm x 7.8 cm x 4.7 cm
Weight: 1.9 kg
AC wires: 1 m with standard 3-prong wall plug
DC wires: approx. 30 cm
