Built to live outdoors

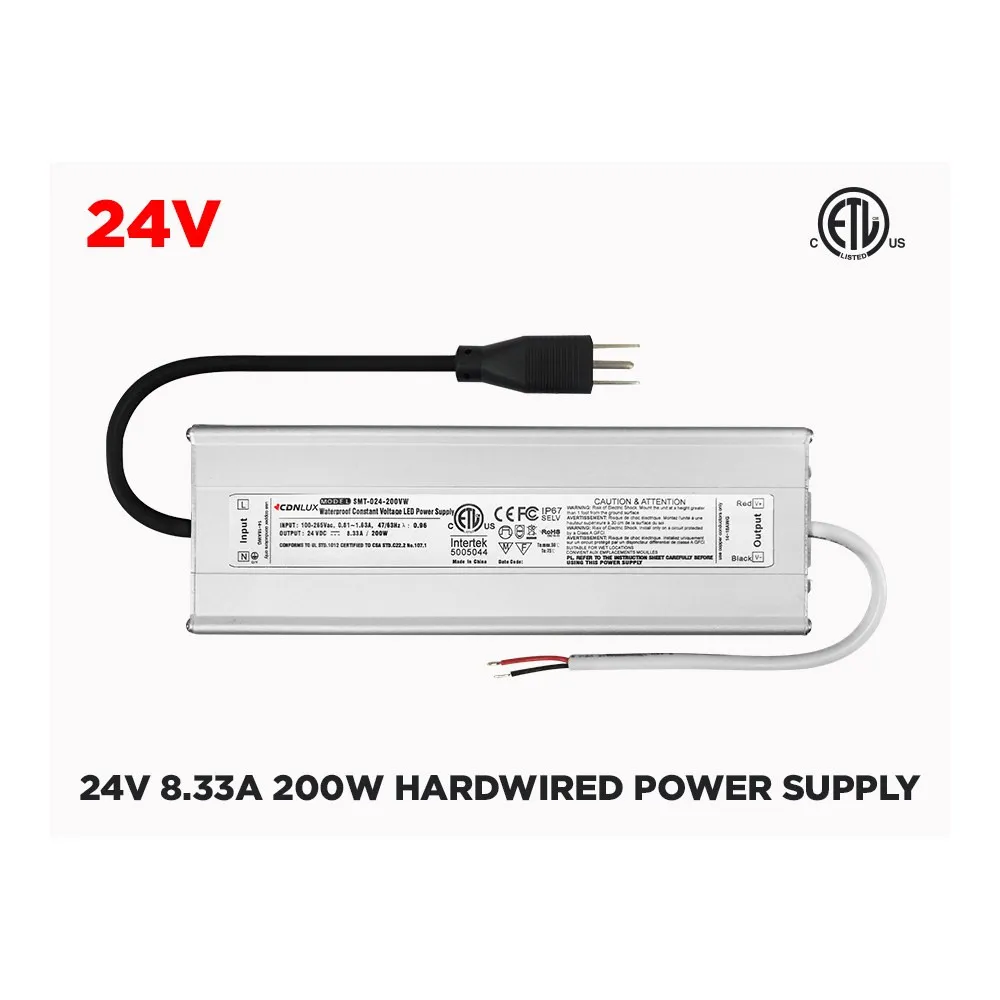

The body of this outdoor LED driver is a fully sealed, potted enclosure rated IP67, which means dust-tight construction and protection against temporary immersion in water. That is the level of sealing you want when a power supply is mounted under a deck, behind a sign cabinet, inside a soffit, or strapped to a structure where melting snow, sprinklers and driving rain are part of everyday life. Integrated mounting brackets extend the overall footprint to 24.2 cm and give you solid, screw-down anchoring on wood, metal or masonry without clamping the housing itself. At 6.9 cm wide and 4.2 cm thick, it slips into tight cavities where a bulky metal transformer box simply will not go.
Clean, constant 24V power
Output is 24V DC at 8.33A, for 200W of usable capacity — enough headroom to feed long architectural runs, multiple fixture groups or a large signage build from a single point. Input is 100 - 120V AC, the standard line voltage found in Canadian homes and light commercial buildings. This unit is not dimmable, so plan on full-output operation: it is ideal for systems switched by relay, contactor, photocell or timer rather than by a wall dimmer. Because it is a Class 1 power supply, the secondary side is not inherently limited the way a Class 2 driver is, which is exactly why it belongs in engineered installations.
Technical specifications
SKU: 24V8AETLPSU
Input: 100 - 120V AC
Output: 24V 8.33A 200W
Class: Class 1
Protection rating: IP67, indoor / outdoor
Dimmable: No
Dimensions: 22 cm (24.2 cm including brackets) x 6.9 cm x 4.2 cm
Certification: cETLus for Canada and USA
Installation, compliance and compatibility
Read this part carefully, because it decides whether this is the right driver for you. A Class 1 transformer of this capacity is not intended for ordinary low-voltage LED strip installations. Powerful Class 1 supplies are reserved for professional LED applications where the load is divided through recognized fuses and the whole installation is inspected and recertified by an accredited body such as UL, Intertek or QPS. Your electrician does not have the authority to complete that inspection. For a standard LED strip light project, choose a Class 2 driver instead — a maximum of 96W at 24V or 60W at 12V — or a 24V driver with several 96W outputs that divides the load into compliant circuits, so no special inspection is required. On the wiring side, keep line-voltage input and 24V output conductors properly separated and protected, use outdoor-rated cable and connectors, respect polarity on the DC side, and size your wire gauge for the run length so you avoid voltage drop at the far end.
Where it shines, and the paperwork
