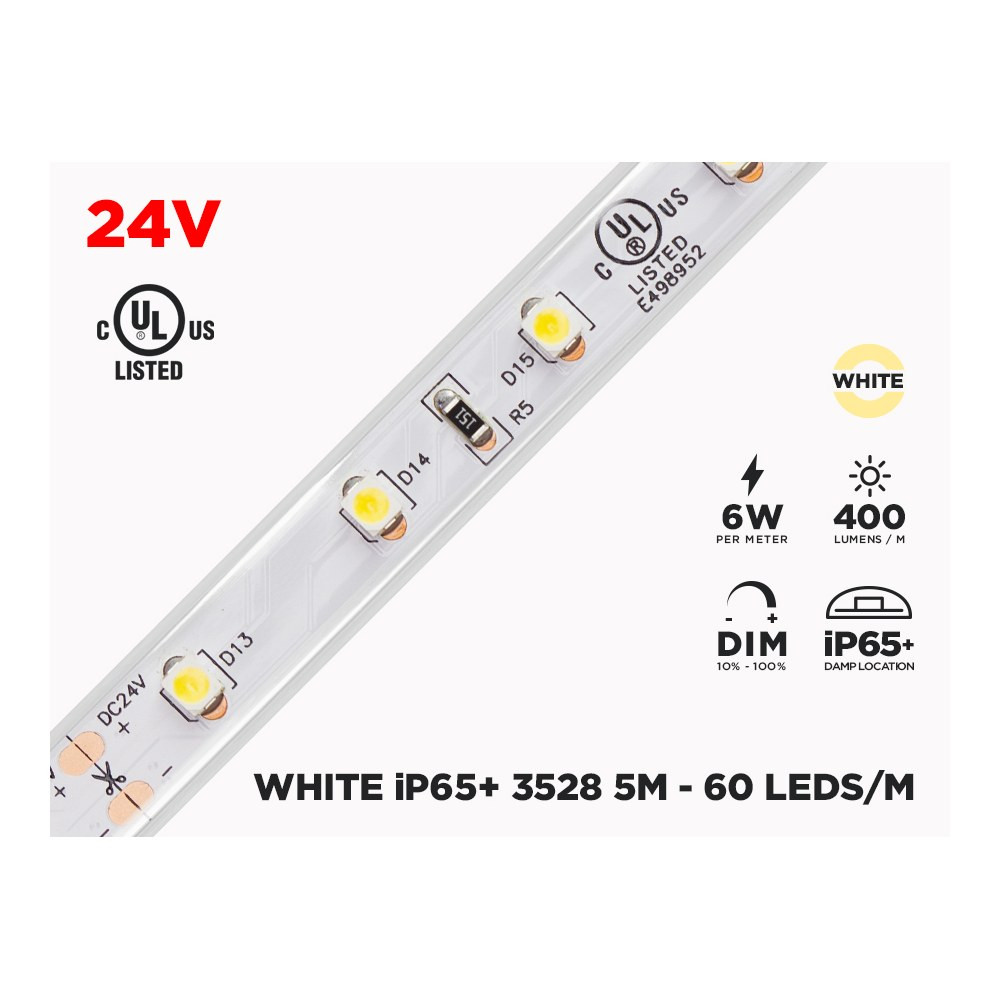

24V 5M IP65+ 3528 WHITE LED STRIP - 60 LEDS/M (STRIP ONLY)

Name: 24V 5M IP65+ 3528 WHITE LED STRIP - 60 LEDS/M (STRIP ONLY)
Brand: LED MONTREAL
SKU: 35286024-3000
Price: 47.97 CAD
Availability: InStock

SKU: 35286024-3000

Brand: LED MONTREAL

Soft, continuous light exactly where you want it — that's what a good LED strip gives you, and this one from LED MONTREAL makes it easy. Known as LED strip lights, LED light strips, LED tape or ribbon lighting, this 5-metre roll of 3528 white strip is the classic choice for under-cabinet lighting, cove and ceiling lighting, toe-kick accents, shelving, display counters, bars, headboards and any spot where a fixture simply won't fit. It is sold as strip only, so you choose the power supply, connectors and controls that match your project. The flexible circuit board bends around corners and follows curves, and the self-adhesive backing sticks straight onto clean cabinet frames, aluminum channels, coves and millwork.

Under the hood, this is a serious little strip. It carries 60 Epistar 3528 SMD chips per metre — 300 LEDs across its 5-metre length — on a 2-ounce copper circuit board, drawing 4.8W per metre for a typical output of 400 lumens per metre. The colour temperature is a cozy 3000K warm white with a CRI of 80+, so wood, paint and countertops keep their true tone. It runs on 24V DC (plan a 6W/m power supply), spreads a wide 120° beam, measures 10mm wide by 4.25mm high, and can be cut every 6 LEDs (100mm) to fit your run exactly. It is dimmable with a low-voltage dimmer/remote combo or with a dimmable power supply paired with a 120V AC dimmer, it is rated iP20 for dry and humid environments — indoor and protected outdoor use — and it's cULus certified for Canada and the USA (E498952) with a 50,000+ hour lifespan.

Kitchens, basements, home offices, staircases, retail displays, restaurant bars, reception desks and salon mirrors all come alive with this strip, and Canadian homeowners love it for brightening dim winter evenings without a renovation. It works in an unheated but protected garage or porch too, with an operating range of 40C to -10C. Each roll ships with a female DC plug (17cm) on one end and two wires (17cm) on the other, so hooking it to a 24V driver is quick. Order SKU 35286024-3000, grab a matching 24V supply, and light up your project this weekend.

Sold separately
To complete the installation, add:
Power supply: 24V10AETLPSU, 24V1AETLPSU, 24V2AETLPSU, 24V3AETLPSU, 24V4AETLPSU, 24V6AETLPSU, 24V8AETLPSU, 3X96W

Built to last, built to bend
This white LED strip uses Epistar 3528 SMD chips mounted on a flexible printed circuit with a 2-ounce copper base — the heavier copper helps carry current cleanly along the full 5-metre roll. At 10mm wide and only 4.25mm high, it slips into narrow cabinet lips, cove details, aluminum extrusions and millwork reveals where a bigger fixture has no chance. The 3M self-adhesive backing holds well on clean, smooth, dry surfaces; wipe the surface with alcohol first and press firmly along the whole run for the best bond. The strip is rated iP20 and is suitable for dry and humid environments, indoor and protected outdoor use, with an operating temperature range of 40C to -10C.

Light quality that flatters a room
You get 60 LEDs per metre — 300 LEDs over the 5-metre length — which keeps the dots close together for a smooth line of light, especially behind a diffuser. The typical output is 400 lumens per metre at 3000K warm white, a temperature that feels relaxed and inviting in living spaces and makes wood tones and warm paint look their best. With a CRI of 80+, colours stay honest on countertops, merchandise and finishes. The 120° beam angle spreads light widely instead of punching a narrow stripe, which is exactly what you want for under cabinet lighting, cove lighting and shelf accents.

Technical specifications
SKU: 35286024-3000
Brand: LED MONTREAL
Chip: Epistar 3528 SMD
Chip density: 60 LEDs per meter
Length: 5 meters
Width: 10mm
Height: 4.25mm
Voltage: 24V DC
Power consumption: 4.8W/m
Recommended power supply: 6W/m
Typical luminous flux: 400 Lumens/m
Colour temperature: 3000K Warm White
CRI: 80+
Beam angle: 120°
Cut points: every 6 LEDs (100mm)
Circuit board: 2 Ounces
iP rating: iP20
Lifespan: 50 000+ hours
Certification: cULus for Canada and USA E498952

Wiring, dimming and installation
The roll arrives ready to connect, with a female DC plug (17cm) at one end and two wires (17cm) at the other, so you can plug into a 24V DC driver or hard-wire it, depending on your setup. Size the power supply using the recommended 6W/m figure and the actual length you install. Cut only on the marked cut points, every 6 LEDs (100mm), and solder or use a suitable connector at the cut end. Dimming is supported: use a low-voltage dimmer/remote combo on the DC side, or a dimmable power supply controlled by a 120V AC dimmer on the line side. Heat dissipation is not necessary for typical residential use; in a commercial environment, mount the strip in an aluminum channel to keep the chips cool and the output steady over the long haul.

Where it shines, and what to read
Think kitchen counters and pantry shelves, a warm glow above crown moulding in the living room, stair nosings and hallway coves, basement bars, home theatre risers, bathroom vanity mirrors, retail display cases, jewellery counters, restaurant banquettes, reception desks and office millwork. Because it is strip only, it drops neatly into an existing 24V system or a brand-new one you build around it. The technical PDF for this product is in the Documentation tab — it lists the full specification set, connection details and cut points, and it's worth printing for the installer or the electrician on site.
