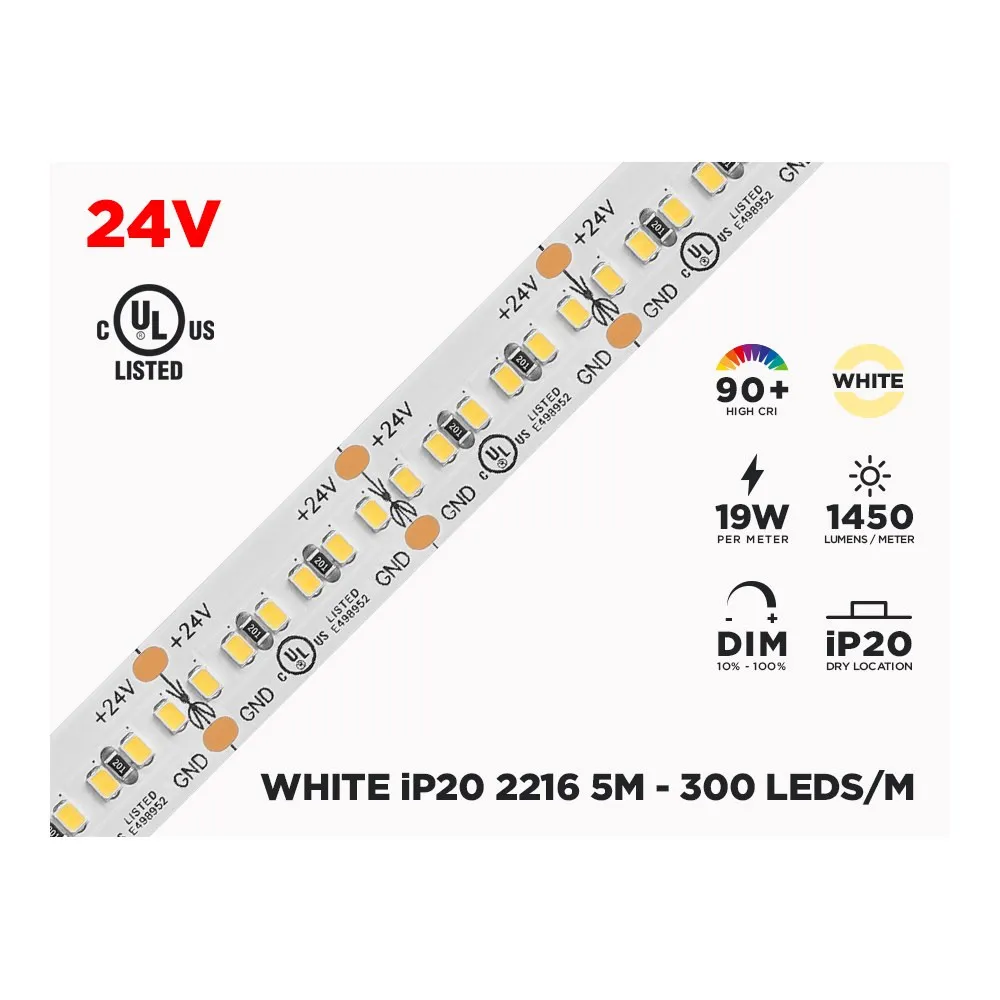

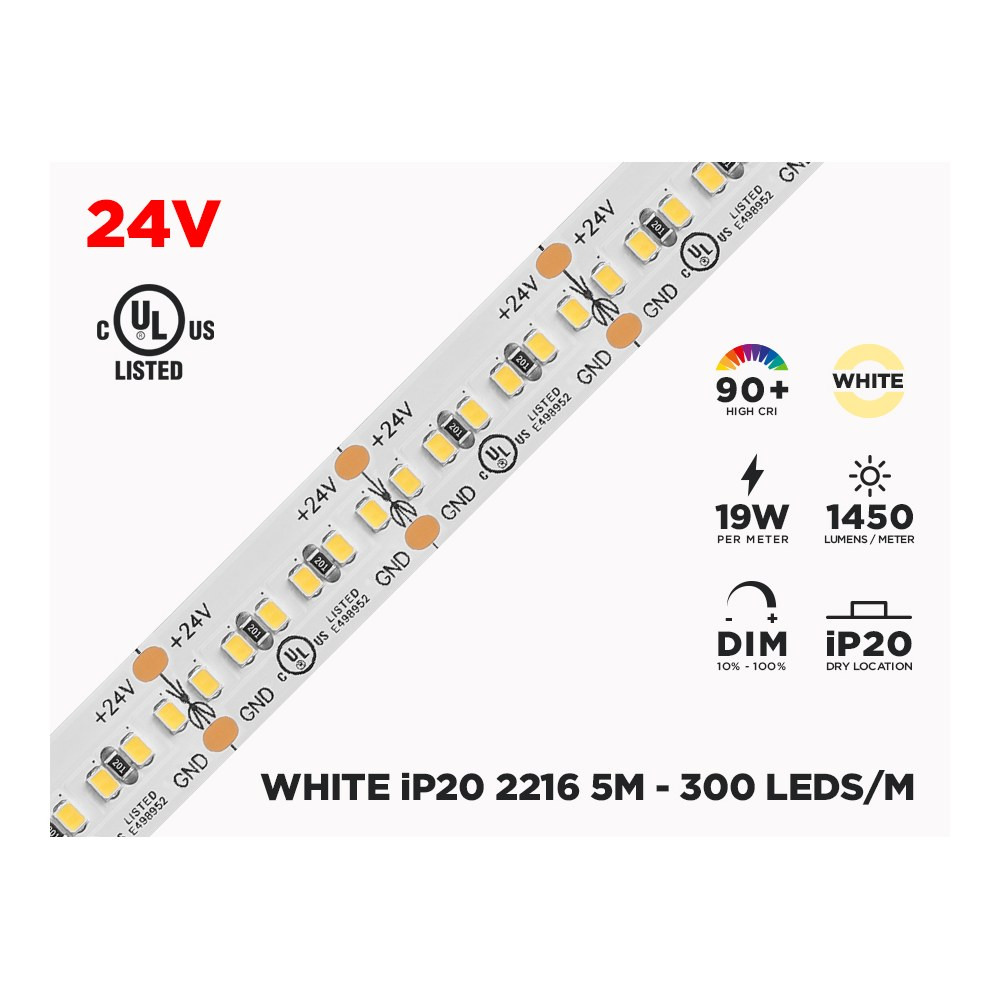

24V 5M IP20 2216 SINGLE COLOR LED STRIP - 300 LEDS/M (STRIP ONLY)

Name: 24V 5M IP20 2216 SINGLE COLOR LED STRIP - 300 LEDS/M (STRIP ONLY)
Brand: LED MONTREAL
SKU: 24V2216-3500
Price: 89.97 CAD
Availability: InStock

SKU: 24V2216-3500

Brand: LED MONTREAL

Some rooms just need that soft, continuous glow that makes everything look better — and that is exactly what this 24V 5M IP20 2216 Single Color LED Strip was built to deliver. Known by many names — LED strip lights, LED light strips, LED tape, LED lighting strips or simply ruban LED — this CDNLUX 5-metre roll is one of the easiest ways to add polished, custom indoor LED lighting to a home or a business. Tuck it under kitchen cabinets, inside a cove or a ceiling tray, behind a floating shelf, along a staircase, in a closet or above a bar counter, and you get smooth accent light with no visible fixture. This listing is the strip only, so you can pair it with the power supply, connectors and aluminum channel that suit your own project.

With 300 Epistar 2216 SMD chips per meter, the light reads as an even line instead of a row of dots, and the 90+ CRI keeps woods, paint colours, food and skin tones looking true. It runs on 24V DC, draws 17W per meter, and puts out a generous 1450 lumens per meter at 3500K Soft White — that friendly middle ground between warm and neutral. The 120° beam spreads light nicely, the strip measures 10mm wide by only 1.2mm high on a 2-ounce circuit board, and it can be cut every 6 LEDs (20mm) for a precise fit. It is IP20 for indoor use, rated 50 000+ hours, cULus listed for Canada and the USA (E498952), backed with 3M self-adhesive tape, and dimmable with a low voltage dimmer/remote combo or a dimmable power supply used with a 120V AC dimmer.

From condo kitchens in Montréal to basement renovations, retail display cases, salon mirrors, office reception walls and restaurant soffits, this strip does the quiet work that makes a space feel finished. Each roll ships with a female DC plug (17cm) on one end and 2 wires (17cm) on the other, so hooking it to a 24V driver is straightforward. Remember to mount it on a heat dissipating surface or in an aluminum channel, size your supply at 19.2W per meter, and you are set. Order SKU 24V2216-3500 and start planning your light lines.

Sold separately
To complete the installation, add:
Power supply: 24V10AETLPSU, 24V1AETLPSU, 24V2AETLPSU, 24V3AETLPSU, 24V4AETLPSU, 24V6AETLPSU, 24V8AETLPSU, 3X96W

Built for a clean, continuous line of light
This 5-meter LED strip packs 300 Epistar 2216 SMD LEDs per meter onto a 10mm wide, 1.2mm high flexible board. The tight chip spacing is what separates it from budget tape: instead of a dotted line, you get a soft, close-to-continuous glow, especially once it sits behind a diffuser. The circuit board uses 2 ounces of copper, which helps carry current and move heat away from the chips over long runs. A 3M self-adhesive backing is pre-applied so you can position the strip quickly, and the cut marks every 6 LEDs (20mm) let you trim runs to the exact length of a cabinet, a shelf or a cove.

Light quality you can trust
At 3500K Soft White, this roll sits right between cozy warm white and crisp neutral white — a favourite for kitchens, bathrooms and modern millwork because it flatters wood tones without feeling yellow. The 90+ CRI rating means colours are rendered accurately, which matters when you are lighting merchandise, artwork, makeup mirrors or a countertop where you prep food. Typical output is 1450 lumens per meter (values vary slightly with the Kelvin chosen) and the 120° beam angle spreads that light evenly across the surface in front of it.

Technical specifications
SKU: 24V2216-3500
Brand: CDNLUX
Model: MTL-FP10AIIDJ-300AXX
Certification: cULus for Canada and USA E498952
Chip: Epistar 2216 SMD
Circuit board: 2 Ounces
Chip density: 300 LEDs per meter
Cut every: 6 LEDs (20mm)
Length: 5 meters
Width: 10mm
Height: 1.2mm
Voltage: 24V DC
Power consumption: 17W/m
Recommended power supply: 19.2W/m
Luminous flux: 1450 Lumens/m
Colour temperature: 3500K Soft White
CRI: 90+
Beam angle: 120°
Lifespan: 50 000+ hours
IP rating: iP20, indoor use only
Operating temperature: 40C to -10C

Wiring, dimming and installation
The roll arrives ready to connect: a female DC plug (17cm) on one end and 2 wires (17cm) on the other. Feed it from a 24V DC power supply sized at 19.2W per meter — so plan your driver around the total length you actually install, not the full roll if you cut it down. Dimming works two ways: a low voltage dimmer/remote combo on the 24V side, or a dimmable power supply paired with a 120V AC dimmer. Heat management is not optional on a strip of this density — it must be installed on a heat dissipating surface or inside an appropriate aluminum channel, which also protects the tape and diffuses the LEDs into a smooth bar of light. Because it is rated iP20, keep it indoors and out of direct contact with water.

Where it works and what is on the page
Contractors use this tape for under-cabinet lighting, toe-kick accents, cove and ceiling tray lighting, stair nosing, closet and pantry lighting, headboards, display cases and shelving in boutiques, bar fronts in restaurants, and reception desks in offices. Homeowners love it for basement renovations and kitchen refreshes where a hidden light line replaces bulky fixtures. Please note that the 2216 300 LED/m strip has been discontinued and replaced by the new SOB 2216 320 LED/m model, which offers shorter cut lines and a seamless, dot-free output; some colours are now only offered in the new version. The full technical spec sheet for this SKU is available in the Documentation tab of this page — check it before ordering your power supply, connectors and channel.
