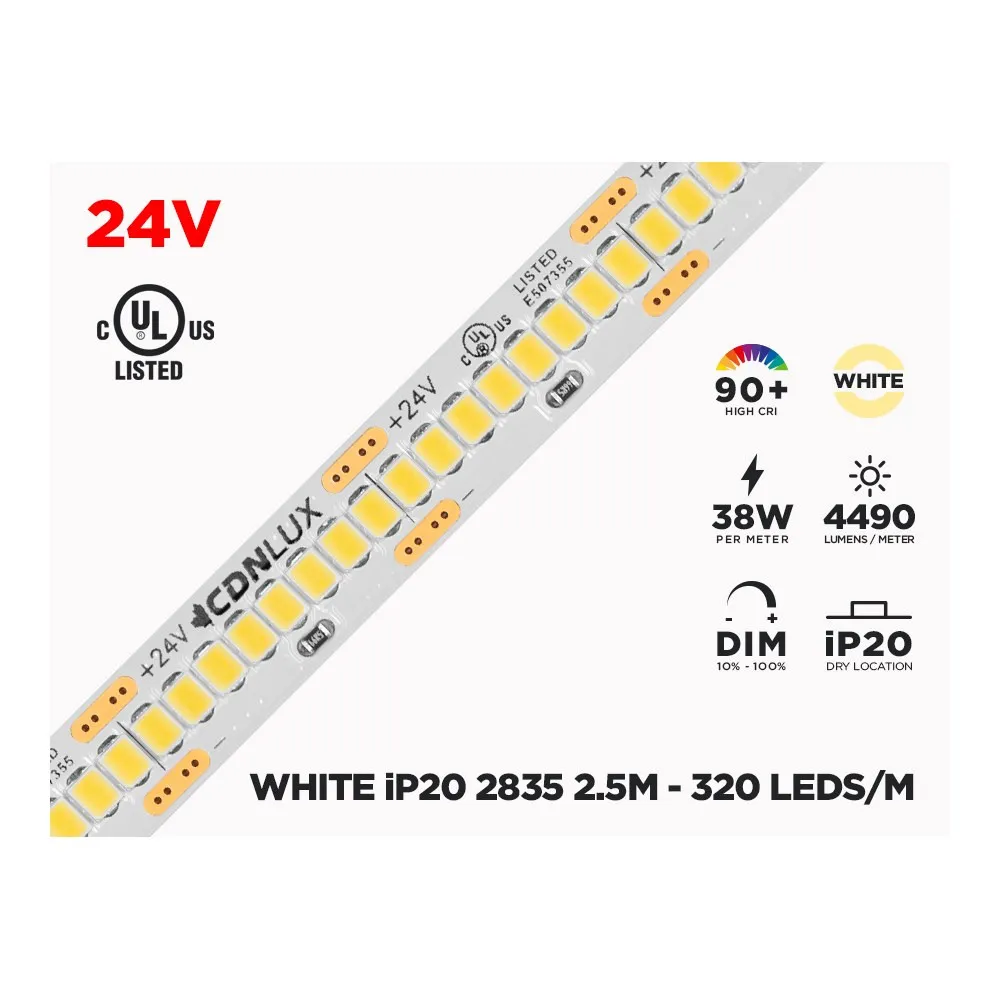

24V 2.5M IP20 2835 WHITE HIGH OUTPUT LED STRIP - 320 LEDS/M (STRIP ONLY)

Name: 24V 2.5M IP20 2835 WHITE HIGH OUTPUT LED STRIP - 320 LEDS/M (STRIP ONLY)
Brand: LED MONTREAL
SKU: 2835320-3000
Price: 62.97 CAD
Availability: InStock

SKU: 2835320-3000

Brand: LED MONTREAL

Some projects need more than a soft glow — they need a solid, unbroken line of light. That's exactly what this 24V high output LED strip delivers. Known by shoppers as LED strip lights, LED light strips, LED tape or ruban LED, this CDNLUX strip packs an impressive 320 LEDs per meter on a 2.5 meter roll, so the light reads as one continuous band instead of a row of dots. It's the strip people reach for when building cove lighting, suspended and linear fixtures, under-cabinet lighting, toe-kick and stair accents, display cases, closets, backlit panels and signage. Sold as strip only (SKU 2835320-3000), it's the raw material you shape around your own design.

The numbers back up the look. Each meter draws 31W/m and produces a typical 4490 lumens per meter, so this is genuinely a high output LED strip, not a decorative accent tape. Epistar 2835 High Output SMD chips deliver 3000K warm white with a 90+ CRI, meaning wood grain, paint, skin tones and merchandise all keep their true character. The 3-ounce copper circuit board spreads current evenly for consistent brightness down the run, the 120° beam angle fills the space smoothly, and the strip measures 10mm wide by 2mm high — slim enough to hide in most channels. It runs on 24V DC, carries an IP20 rating for indoor use, is cULus certified for Canada and the USA, and is rated for 50 000+ hours. It cuts every 8 LEDs (25mm), comes with a 3M self-adhesive back, and includes two wires (1 meter) on one end and two more on the other end for easy feeds from both directions.

From a Montréal condo kitchen to a boutique display wall, a dental clinic reception or a basement renovation in the suburbs, this strip earns its place wherever clean, powerful indoor light matters. Contractors love that both ends are pre-wired, and that it's dimmable with a low voltage dimmer/remote combo or with a dimmable power supply paired with a 120V AC dimmer. Plan a driver sized to 38W/m as recommended, mount the strip on a heat dissipating surface or inside a proper aluminum channel, and you'll have a fixture-grade result. Add it to your project and light the whole line.

Sold separately
To complete the installation, add:
Power supply: 24V10AETLPSU, 24V1AETLPSU, 24V2AETLPSU, 24V3AETLPSU, 24V4AETLPSU, 24V6AETLPSU, 24V8AETLPSU, 3X96W

Built for continuous, fixture-grade light
This CDNLUX LED strip (model MTL-FP10AEIDJ-320AXX) uses Epistar 2835 High Output SMD chips at a density of 320 LEDs per meter. That density is the whole point: the closer the emitters, the less you see individual hot spots, which is why this tape is a favourite for suspended linear fixtures, cove details and any application where the light source is visible or reflected off a nearby surface. The circuit board is a 3-ounce copper build, a heavier board that carries current more evenly and helps keep brightness consistent from the feed point to the far end of the run.

Light quality you can trust
At 3000K warm white with a CRI of 90+, colours stay honest. Warm white sits in that comfortable, welcoming zone that flatters wood, brass, stone and textiles, while the 90+ colour rendering keeps merchandise, artwork and finishes looking the way the designer intended. The 120° lighting angle spreads the output widely, so when the strip is tucked into a cove or a channel with a diffuser, you get a smooth wash rather than a striped ceiling. Typical output is 4490 lumens per meter, which is enough to use this tape as a real light source, not just an accent.

Technical specifications
SKU: 2835320-3000
Brand: CDNLUX
Model: MTL-FP10AEIDJ-320AXX
Certification: cULus for Canada and USA
Chip: Epistar 2835 High Output SMD
Chip density: 320 LEDs per meter
Circuit board: 3 ounces
Length: 2.5 meters
Width: 10mm
Height: 2mm
Voltage: 24V DC
Power consumption: 31W/m
Recommended power supply: 38W/m
Typical luminous flux: 4490 Lumens/m
Colour temperature: 3000K Warm White
CRI: 90+
Lighting angle: 120°
Can be cut: all 8 LEDs (25mm)
IP rating: IP20, indoor use only
Operating temperature: 40C to -10C
Lifespan: 50 000+ hours
Self-adhesive: 3M
Connections included: 2 wires (1 meter) on one end and 2 wires (1 meter) on the other end

Electrical and installation details
Power the strip with a 24V DC supply sized using the 38W/m recommendation rather than the 31W/m draw — that headroom keeps the driver cool and the light stable. With 1 meter leads on both ends, you can feed from either side, run two segments from a single driver, or cut the 2.5 meter roll into two pieces and wire each one where you need it. Cuts must land on the marked lines every 8 LEDs (25mm). Dimming is supported two ways: a low voltage dimmer/remote combo on the DC side, or a dimmable power supply controlled by a 120V AC dimmer. Because this is a high output tape, heat management is not optional — the strip must be installed on a heat dissipating surface or inside an appropriate aluminum channel, which also protects the tape and gives the finished job a clean, built-in look.

Where it works, and what's documented
Think kitchen under-cabinet and toe-kick lighting, bathroom mirror surrounds, closet and pantry shelving, stair nosings, headboard coves, retail display cases, bar backs, office reception walls and custom suspended fixtures in clinics or salons. The IP20 rating means dry indoor locations only, so keep it out of exterior soffits, unprotected showers and anywhere it could see water. For specifications, cut points and wiring details, the technical PDF spec sheet for this LED tape is available in the Documentation tab of this page — handy when you're submitting a project or sizing drivers and channels before the install.
