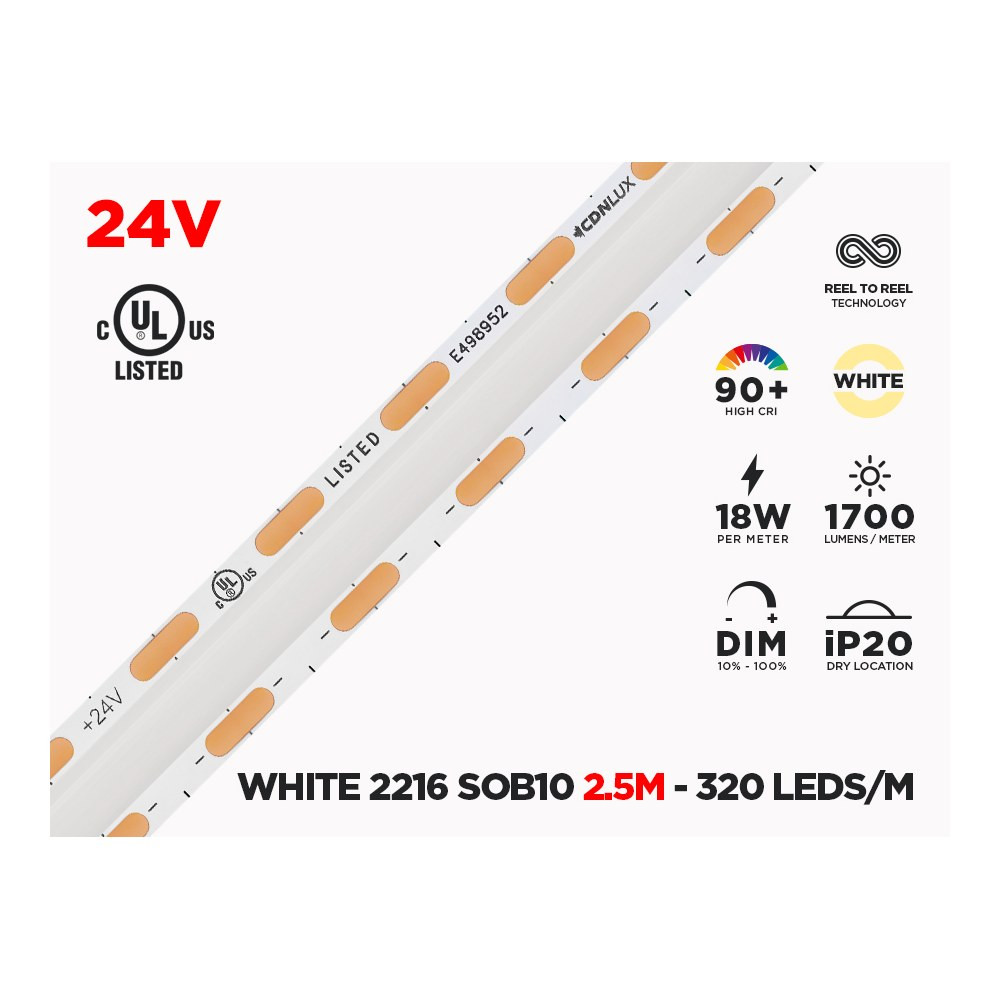

SOB10 - 24V 2.5M IP20 2216-SOB SINGLE COLOR LED STRIP - 320 LEDS/M (STRIP ONLY)

Name: SOB10 - 24V 2.5M IP20 2216-SOB SINGLE COLOR LED STRIP - 320 LEDS/M (STRIP ONLY)
Brand: LED MONTREAL
SKU: SOB10A-2700
Price: 62.97 CAD
Availability: InStock

SKU: SOB10A-2700

Brand: LED MONTREAL

Say goodbye to the dotted, uneven glow of old-school tape light. The SOB10 - 24V 2.5M IP20 2216-SOB Single Color LED Strip - 320 LEDs/m (Strip Only) is the new generation of LED strip lighting — what people also call LED strip lights, LED light strips, LED tape or simply ruban LED. Built with SOB (solder-on-board) technology and an ultra-dense chip layout, it throws a smooth, continuous line of warm light instead of a row of visible dots. It's the strip you reach for when the light itself is part of the design: under kitchen cabinets, inside coves and ceiling recesses, along shelving, stair nosings, closets, reception desks and retail displays. SKU: SOB10A-2700.

Every detail is made for a clean install. The strip runs on 24V DC, draws 15W per meter and delivers a generous 1700 lumens per meter in a soft 2700K warm white, with a CRI 90+ that makes wood, paint, food and skin tones look true. Chip density is 320 LEDs per meter (Epistar 2216 SOB) over a 3-ounce circuit board, with a wide 180° beam angle and a rated life of 50 000+ hours. It measures 10 mm wide and only 2.5 mm high, and — this is the game changer — it can be cut every 6.25 mm, so your run ends exactly where your profile ends, with no dark tail. It's dimmable with a low-voltage dimmer/remote combo or with a dimmable power supply paired with a 120V AC dimmer, carries a 3M self-adhesive backing and is cULus certified for Canada and the USA (E498952).

Rated IP20, this one is made for indoor LED lighting: condos and renovations in Montréal, Québec City or Toronto, basements, home theatres, hallways, bars, cafés, boutiques, salons and offices. Contractors love it for millwork and coves where a visible dot pattern would give the job away. For the best result and proper heat dissipation, mount it in an aluminum channel such as the 8 feet aluminum U shape profile for LED strip (LUX740), then add a 24V DC power supply sized at 18W per meter. Ready to trade dots for a perfect line of light? Add the SOB10 to your project.

Sold separately
To complete the installation, add:
Power supply: PWR24V05A, PWR24V1A, PWR24V36W, PWR24V2A, PWR24V3A, PWR24V4A, PWR24V5A

Reel-to-reel construction you can feel
The 2216-SOB is built on a continuous reel-to-reel manufacturing process, which means far fewer solder joints along the run. Fewer joints translate into better long-term reliability, more uniform conductivity, less risk of a connection failing mid-run and a more consistent light output from one end of the strip to the other — plus a cleaner, more professional finish once it's in the channel. The 3-ounce circuit board carries current with less voltage drop stress, and the Epistar 2216 SOB chips sit under a continuous coating that diffuses the light instead of letting it escape as individual points.

Light quality: warm, dotless and honest
With 320 LEDs per meter and a 180° lighting angle, the SOB10 produces the seamless line designers ask for. The 2700K warm white colour temperature is the cozy, incandescent-style tone people want in living rooms, bedrooms, restaurants and hospitality spaces, while the CRI 90+ rendering keeps whites clean and woods, fabrics and food looking natural — a real difference in kitchens, boutiques and display cases. Output reaches 1700 lumens per meter (typical flux varies slightly with the Kelvin degrees chosen).

Technical specifications
SKU: SOB10A-2700
Brand: CDNLUX
Model: ML-2216WW32024V1020
Certification: cULus for Canada and USA E498952
Chip: Epistar 2216 SOB
Circuit board: 3 Ounces
Chip density: 320 LEDs per meter
Can be cut: every 6.25 mm
Length: 5 meters
Width: 10 mm
Height: 2.5 mm
Voltage: 24V DC
Power consumption: 15W/m
Recommended power supply: 18W/m
Typical luminous flux: 1700 lumens/m
Colour temperature: 2700K warm white
CRI: 90+
Lighting angle: 180°
Lifespan: 50 000+ hours
Self-adhesive: 3M
IP rating: IP20, indoor use only
Operating temperature: 40C to -10C
Connections included: 2 wires (1 meter) on one end and 2 wires (1 meter) on the other end
Dimmable: yes

Wiring, dimming and installation
The strip arrives with 2 wires (1 meter) on one end and 2 wires (1 meter) on the other end, so you can feed it from either side or run power through to a second section without fighting with tiny connectors. Feed it from a 24V DC power supply sized at 18W per meter of strip to leave healthy headroom. For dimming, you have two clean paths: a low-voltage dimmer/remote combo installed after the driver, or a dimmable power supply controlled by a 120V AC wall dimmer. Heat management is not optional — the strip must be installed on a heat-dissipating surface or inside an appropriate aluminum channel, which also protects it and improves the visual finish. Cut only on the marked points, every 6.25 mm, and always cut with power disconnected.

Where it shines and what it pairs with
Think under-cabinet task lighting in a kitchen, a warm halo in a bedroom cove, backlit bathroom mirrors, stair and hallway guidance, bar fronts, retail shelving, reception desks and office millwork. Because the cut interval is so short, you can match the strip precisely to an aluminum profile length — pair it with the 8 feet aluminum U shape profile for LED strip (LUX740) for a recessed or surface-mounted finished line of light. Remember it is IP20 and rated for indoor use only, with an operating range of 40C to -10C. Full details, dimensions and ratings are in the technical PDF available in the Documentation tab of this page.
