A small driver made for small runs

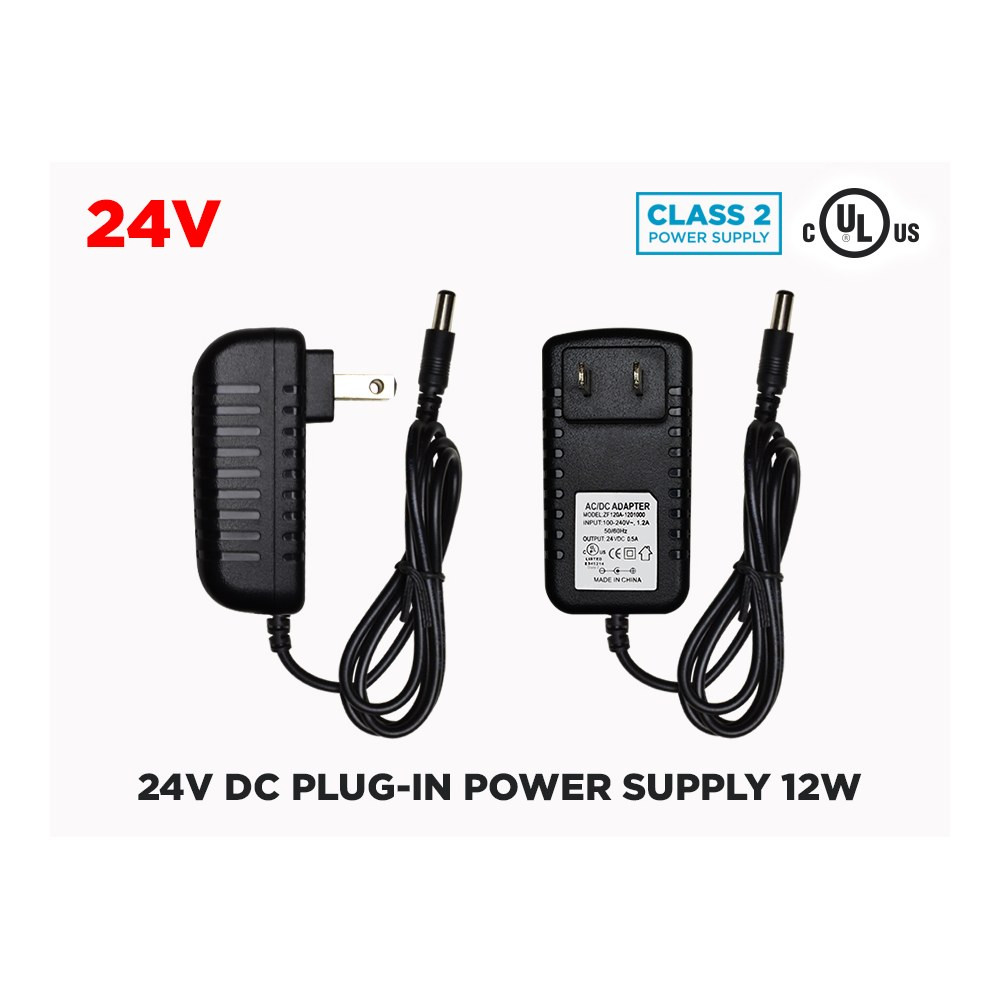

Not every LED strip project needs a big metal driver mounted in a junction box. Plenty of them are short: a single shelf, a display niche, a headboard detail, a sign behind a counter. That is exactly the job this 24V plug-in LED power supply was designed for. It converts household power into the low-voltage DC that LED tape runs on, in a housing small enough to disappear behind cabinetry. Because it terminates in a standard plug, you avoid opening walls, adding a junction box or calling in extra trades for a two-foot accent run.
Technical specifications
SKU: PWR24V05A
Brand: LED MONTREAL
Input: 120V AC power cable
Output: 24V 0.5A 12W
Dimmable: No
Certification: cULus for Canada and USA
Transformer box length: 7 cm
Transformer box width: 2.7 cm
Transformer box height: 4 cm
Electrical planning and load
The single most important step happens before installation: do the math. Every LED strip lists a consumption per metre, and your total draw has to stay within the 0.5A / 12W output of this supply. Add up the metres you plan to run, multiply by the strip's rating, and leave yourself a margin. Pushing more load than the supply can deliver will shorten its life or damage it outright, and no warranty covers an overloaded driver. If your run turns out longer than this unit can handle, step up to a higher-amperage 24V LED driver rather than chaining two short pieces onto one small supply. Also confirm your tape is genuinely 24V — feeding 24V into a 12V strip is an instant failure.
Installation and control
Installation is about as simple as it gets: connect the output leads to the input end of your 24V strip, respecting polarity, then plug the unit into a standard 120V outlet. Keep the supply in a dry, ventilated spot where a little air can move around it, and avoid burying it under insulation or sealing it inside an airtight cavity. Since the unit itself is not dimmable, any dimming, colour change or effect has to come from a compatible LED controller installed between this power supply and the tape: an inline dimmer for single-colour strips, or an RGB / RGBW controller with a remote or wall panel for colour-changing tape. That keeps the electrical side simple and puts all the control where it belongs.
Where it earns its keep, and the paperwork
Homeowners use it for under-cabinet and above-cabinet accents, closet and pantry lighting, stair nook glow, aquarium and hobby displays, and backlighting behind a TV console. Contractors keep a few on the truck for punch-list details and small millwork additions. Retailers and café owners like it for lighting a single shelf, a pastry case surround or a small sign without running new circuits. The cULus certification for Canada and the USA means it is recognized for work on this side of the border, which matters when an inspector walks through. The full technical sheet for PWR24V05A is available as a PDF in the Documentation tab — worth a quick read before you wire anything up.
