Slim, discreet and versatileThe 84 series is built for situations where space is limited, and it is the thinnest profile of the range. Its
compact form factor permits a wide range of uses, from the underside of a wall cabinet to the lip of a floating shelf or the inside of a glass display case. Made of
6063-T5 aluminum, these LED extrusions can be installed both indoors and outdoors, which opens the door to projects well beyond the kitchen.
White finish, soft lightThe
white aluminum body blends into white cabinetry, painted trim and light ceilings, so the eye notices the light rather than the fixture. The
opaque lens covers the strip and diffuses the LEDs into a smooth line, a real asset over glossy countertops and shelves where bare LED dots would reflect. Prefer another colour? The aluminum can be painted to match your decor. Inside, the profile accommodates and protects a variety of white and coloured LED strips, including
RGB and RGBW tapes for colour-changing effects.
Installation and orderingThis SKU is the
8 ft standard length; the series also comes in 16 ft lengths, and custom fabrication up to 192 inches is possible when a run must be made to measure. The ordering guide lists a standard mounting and
end caps without a hole, with a hole, or one of each. Good practice: dry-fit the profile, mark the wire exit, clean the channel before sticking the strip, and keep the power supply accessible for future maintenance. For any line-voltage work, call a licensed electrician and follow the Canadian Electrical Code.
Where the white profile shinesThink of a white shaker kitchen with a thin line of
under-cabinet lighting, a white bookcase with lit shelves, a bathroom vanity with a soft glow underneath, a walk-in closet, or a white retail wall display that needs even light. In offices and clinics, it adds discreet
accent lighting to reception desks and shelving. For other areas of the project, the range also offers the
LED aluminum profile #145.
Technical specificationsSKU: LCPROF-84-8FT-WH-LENS-OPAQ
Series: 84 series LED aluminum profile
Material: 6063-T5 aluminum
Finish: white
Lens: opaque
Length: 8 ft (also offered in 16 ft; custom fabrication up to 192 inches)

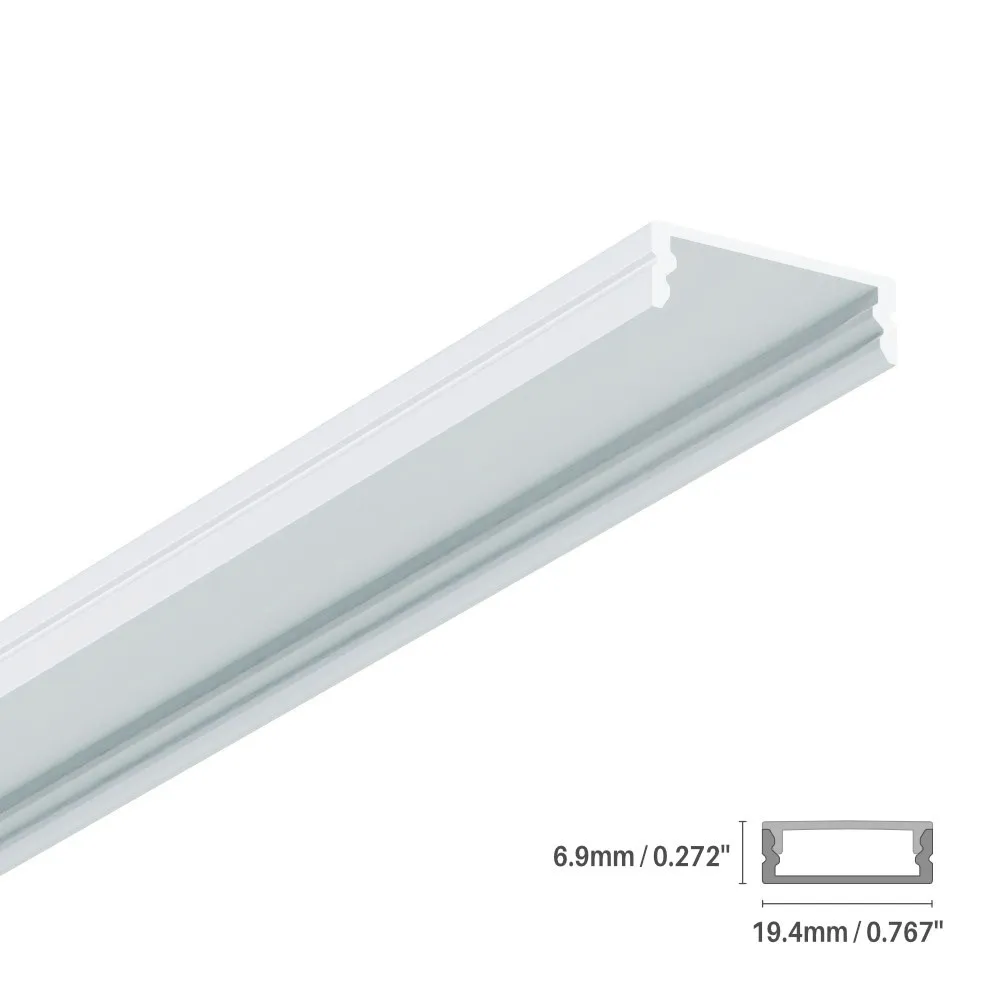

Technical drawing dimensions: 19.4 mm (0.767 in), 16.5 mm (0.649 in), 6.9 mm (0.272 in)
Compatible strips: white and coloured LED strips (RGB, RGBW)
Installation: indoor and outdoor
Certification: certified for the Canadian market
Documentation: find the spec sheet, with its technical drawing and ordering guide, in the Documentation tab.
