The largest profile of the 100 series
When a project calls for more than a slim channel, the #145 steps in. It is the biggest profile of the 100 series line, specially designed for outdoor use and able to house all the IP68 LED engines of the line, so you can pick the lumen package your project needs without changing profile. With its new sliding lens design and its support rail, it offers a wide variety of installation, from fixed to suspended mounting, and turns a simple LED strip into a professional linear LED fixture.
Light quality and heat management
With a prime lens, the #145 is designed to give a uniform light without hot spots, for a smooth and continuous line of light. The ordering guide of the series lists prime, opal, black, focus and square 3D prime lenses, plus a high efficiency reflector option. The 6063-T5 aluminum alloy increases heat dissipation, and its use increases the lifetime of your LED engine, a real advantage when the lighting runs every evening.
Installation and accessories
The ordering guide lists a swivel bracket 180° and a heavy duty swivel bracket, a phantom bracket, a magnetic kit, surface 1-side, 2-side, 90° and 45° brackets, and a suspension kit with canopy options (remote driver canopy plate, integrated driver in canopy, or integrated driver and suspension kit) in aluminum, black or white; canopies are only available with the suspension bracket. A gypsum groove accessory (1/2 in, 4 ft) allows a recessed LED profile installation in drywall, and 90° corners (6 x 6 in, aluminum or black) and a straight joiner help you turn corners; joiners are ordered separately. Have any line-voltage connection made by a licensed electrician.
Technical specifications
SKU: LCPROF-145-16FT
Series: 145, aluminum finish
Length: 16 ft

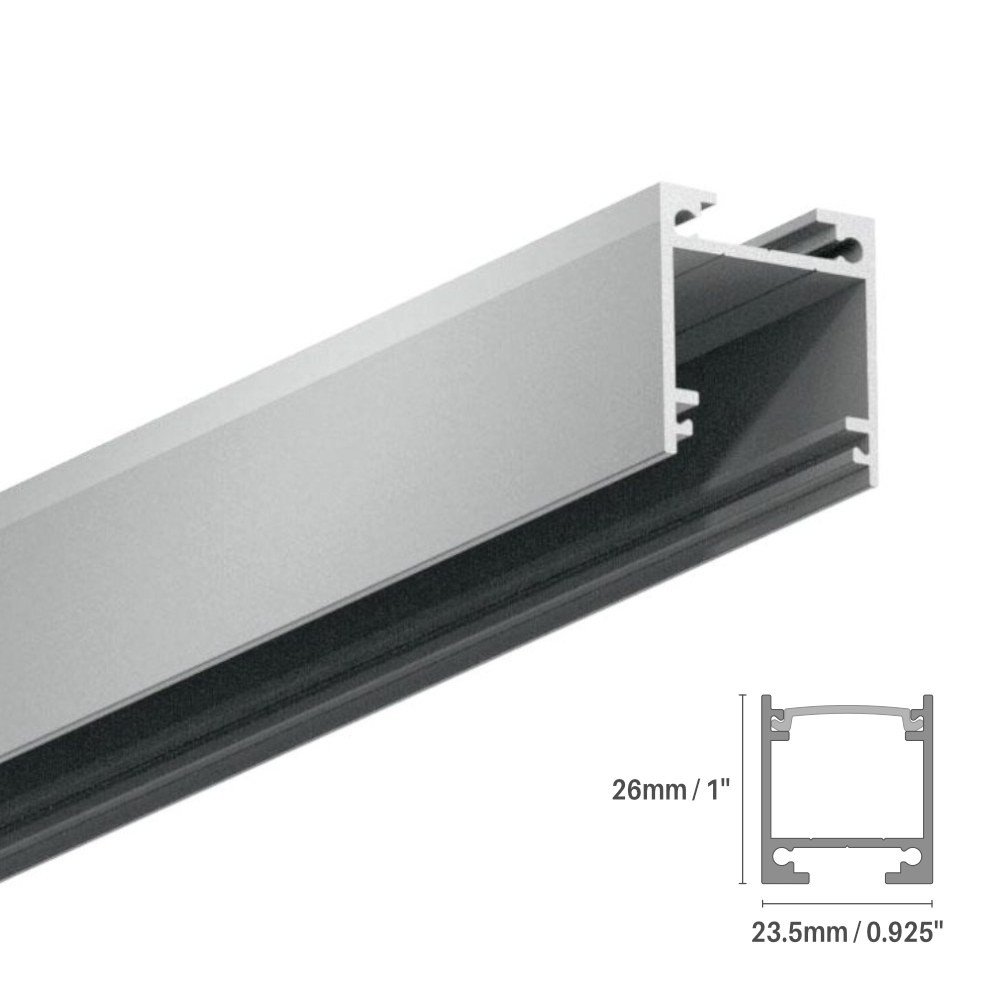

Dimensions (technical drawing): 26.0 mm (1.024 in), 23.5 mm (0.925 in)
Material: 6063-T5 aluminum alloy
Use: indoor or outdoor
Custom lengths (series): sections of 2 to 240 inches (6 m)
Warranty: 3 years
Applications and documentation
From a covered terrace in Calgary to a shop window in Montréal or a suspended line over an office table in Ottawa, the #145 delivers aluminum profile lighting that holds its own. The complete spec sheet, with the technical drawing and the ordering guide, is available as a PDF in the Documentation tab, ready to share with your contractor or electrician.
