White on white, for a seamless look
In a white kitchen or a bright commercial interior, a silver or black channel can stand out as a line of hardware. The white #14 blends into white cabinets, lacquered panels, painted ceilings and white walls, so what you notice is the light, not the LED profile. It keeps all the strengths of the 14 series, a small profile that holds its own among the big ones: even lighting, beam adjustment and a considerably larger choice of installation options, from fixed to suspended mounting.
Light quality and heat management
Designed to give a uniform light without hot spots with an opal or prime lens, the white #14 turns an LED strip into a soft, continuous glow, ideal over countertops, vanities and work surfaces. The ordering guide of the series lists clear, prime, black, focus and square 3D opal lenses; with the white profile, an opal lens gives a particularly discreet appearance. The profile is made of 6063-T5 aluminum alloy, which increases heat dissipation, and its use increases the lifetime of your LED strip.
Installation and accessories
Thanks to a support rail that offers the largest range of installation and assembly, and compatibility with multiple installation accessories (over 40 options), the #14 adapts to almost any mounting. The ordering guide lists a flat bracket, a 45° corner bracket and a swivel bracket 180° to aim the light where it is needed. The profile is intended for LED strips 10 mm (3/8-inch) wide or less and designed to meet North American woodworking standards. Follow the instructions of your LED strip and its driver, and have any line-voltage connection made by a licensed electrician.
Technical specifications
SKU: LCPROF-14-8FT-WH
Series: 14, white finish (14WH)
Length: 8 ft

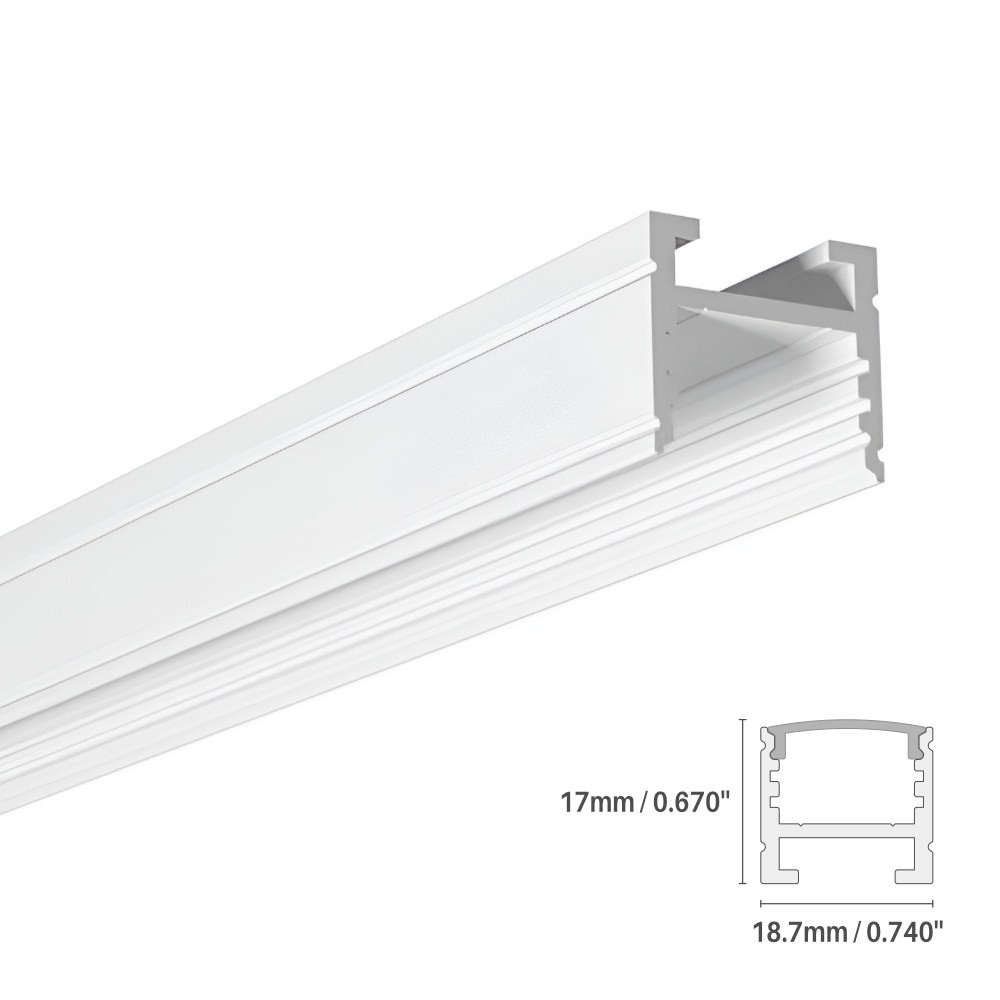

Dimensions (technical drawing): 17.0 mm (0.670 in), 18.7 mm (0.740 in)
LED strip: 10 mm (3/8-inch) or less
Material: 6063-T5 aluminum alloy
Mounting: fixed to suspended, over 40 accessory options
Custom lengths (series): sections of 2 to 240 inches (6 m)
Warranty: 3 years
Applications and documentation
At home: white kitchens and islands, bathroom vanities and mirrors, laundry rooms, pantries, closets, bookcases and home offices. In business: clinics, dental offices, beauty salons, pharmacies, boutiques and offices where a clean, bright look matters. In every case, the white #14 delivers under-cabinet lighting and linear LED lighting that feel built in. The complete spec sheet, with the technical drawing and the ordering guide, is available as a PDF in the Documentation tab.
