ENDCAP (1X) #84 FINISHING (STANDARD) – (WITH HOLE)

Name: ENDCAP (1X) #84 FINISHING (STANDARD) – (WITH HOLE)
Brand: LEDCO
SKU: LCENDCAP-STAND-84-H
Price: 3.97 CAD
Availability: InStock

SKU: LCENDCAP-STAND-84-H

Brand: LEDCO

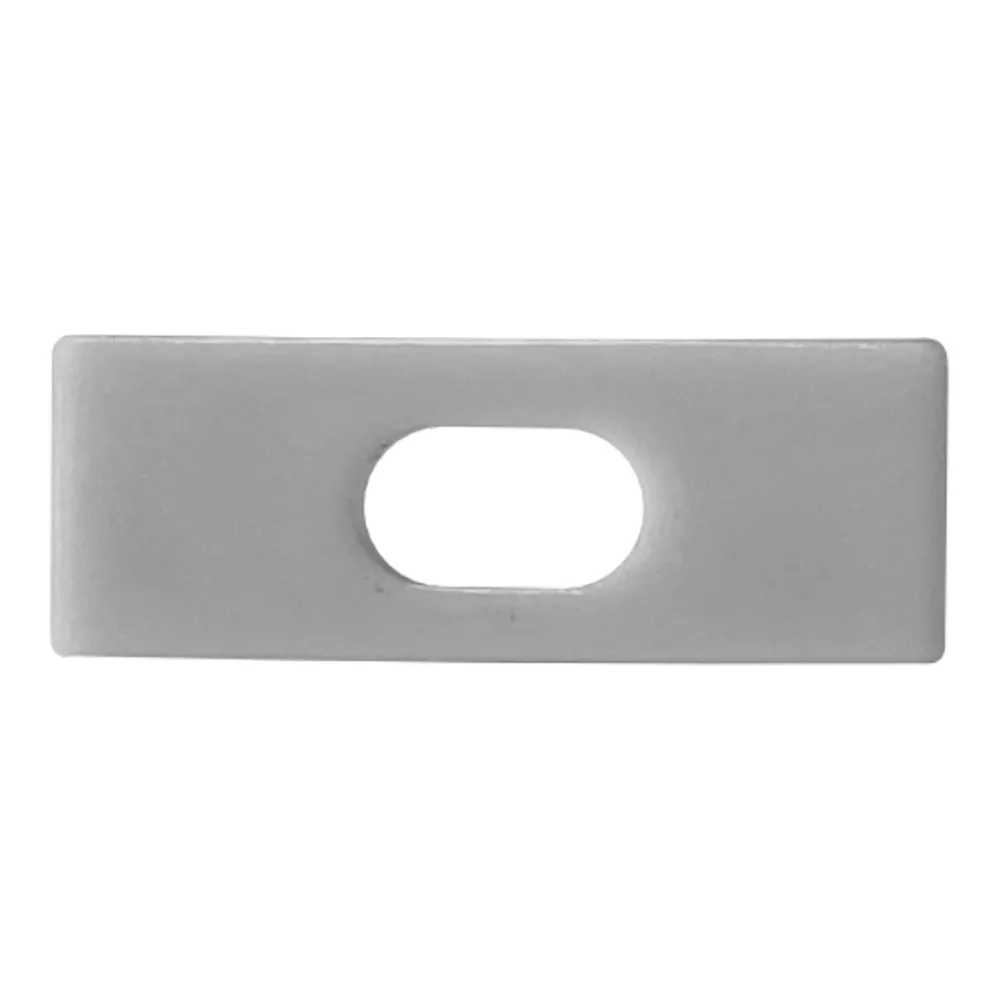

Every clean LED channel run ends with a detail people notice: the cap. This finishing end cap #84 (with hole) — SKU LCENDCAP-STAND-84-H — is the small part that turns a raw extrusion into a finished light line. Sold as a single piece, it closes off the end of a compatible aluminum LED channel and, thanks to its pre-made opening, lets the low-voltage wire exit cleanly at the feed end of the run. If you have been searching for LED channel end caps or LED strip light end caps for an under-cabinet job, a cove detail or a display case, this is the piece that keeps dust out, keeps the diffuser seated and keeps the tape protected.

What matters most with an end cap is the fit, and this one is profile-specific: it is moulded to follow the contour of the #84 extrusion so it sits flush, with no gap and no lip catching the light. The version with a hole is intended for the powered end, where the wire passes through the opening before the LED tape and the diffuser are seated; a matching solid cap is typically installed on the opposite end for a fully enclosed, symmetrical result. Because it ships as one single unit, you order exactly what your project needs — one per run end, plus a couple of spares in the toolbox for future service. Standard aluminum channel systems like this one are intended for indoor dry-location use.

You will reach for this cap on kitchen under-cabinet lighting, ceiling coves and crown details, stair nosings, reception desks, retail display cases, signage and architectural accents — the everyday Canadian renovation and commercial fit-out work where a tidy end matters. It pairs with the matching hole-free cap for the far end, and if your project also uses other profiles, the same accessory family covers them: see the Finishing end cap #11 (with hole), the Finishing end cap #11 (no hole), or the flexible neon versions such as the Flex neon endcap 6X6 (with hole). Match the cap to your exact channel series, add it to your order, and finish the run right.

Compatible with
Works with:
Channel / profile: LCPROF-84-16FT, LCPROF-84-16FT-LENS-OPAQ, LCPROF-84-8FT, LCPROF-84-8FT-LENS-OPAQ

Built to match the profile, not just to plug a hole
An end cap only looks good when it was made for the exact extrusion it closes. This finishing cap is moulded to the #84 profile contour, so the outline of the cap follows the outline of the channel — flush faces, clean corners, no oversized shoulder standing proud of the aluminum. That is why caps in this accessory range are sold by profile number rather than as a universal part: a cap borrowed from another series will either rattle loose or refuse to seat, and both show up in the finished work. The "with hole" version carries a factory opening sized for the low-voltage lead, so you are not drilling or filing an extrusion end on site.

Where the hole goes and why it matters
In a typical run, one end of the aluminum LED channel is powered and the other is dead. The capped-with-hole end goes at the feed side, letting the wire from the LED tape exit straight out of the profile and travel to the driver, connector or junction box without being pinched between the extrusion and the diffuser. The opposite end gets a solid cap for a fully closed, symmetrical result. Done this way, the LED strip and its solder joints stay inside the channel, dust and vacuum-cleaner brushes stay out, and the diffuser keeps its grip at both ends instead of sliding over time.

Installation: dry-fit first
Dry-fit the cap before you mount the channel permanently — it is much easier to adjust a run on the bench than overhead. Pass the wire through the opening before you seat the LED tape and slide the diffuser in, otherwise you will be pulling the strip back out to thread it. On ceiling runs, vertical surfaces or anywhere the profile is handled often, a small dab of adhesive on the inner face of the cap adds holding power while still letting you pry it off carefully later if the tape or the connector ever needs service. Keep a spare cap or two with the project documents: when a store fixture is moved or a kitchen gets refaced years later, that tiny part is what saves the whole run.

Technical specifications
SKU: LCENDCAP-STAND-84-H
Type: finishing end cap, standard profile #84
Version: with hole (wire exit)
Quantity: 1 unit
Compatibility: profile-specific — matches the corresponding aluminum LED channel series
Use location: indoor dry location, typical of standard aluminum channel systems

Applications and related accessories
This cap belongs on residential and commercial work alike: under-cabinet lighting in a kitchen or bar, cove and ceiling details in a living room, jewellery and bakery display cases, reception desks, stair nosings, backlit signage and architectural accents in a clinic or boutique. The same accessory family covers other profiles and formats, so one order can finish several different runs: the Finishing end cap #11 (with hole) and the Finishing end cap #11 (no hole) for the #11 profile, and for flexible neon projects the Flex neon endcap 3X6 (with hole) or the Flex neon endcap 6X6 (without hole). No spec sheet or IES file is published for this accessory; when in doubt, confirm the profile number stamped on your channel before ordering.
