A white profile that blends in
The 85 series is a versatile LED aluminum profile, easy to install and ideal for residential or commercial projects. It is made of 6063-T5 aluminum and can be installed both indoors and outdoors. In white, reference LCPROF-85-8FT-WH-LENS-OPAQ is the natural match for white cabinets, white melamine shelving, white walls and ceilings, where a plain aluminum or black line would draw the eye. And if the decor changes, the profile can be painted to match.
Opaque lens and strip choice
The ordering guide of the series offers an opaque lens or a black lens; this model pairs the white profile with the opaque lens, which closes the channel and gives a neat, finished appearance from below or from the side. Inside, the profile accommodates and protects the majority of LED strips of the range: a white LED strip in the colour temperature of your choice for kitchens, offices and clinics, or an RGBW strip when you want both white light and colour for a lounge or a boutique window.
Mounting and installation
Mount the #85 on a surface, suspend it or glue it: the three options listed for the series cover most installations, from the underside of a cabinet to a suspended line over a reception desk. The ordering guide also lists standard or swivel mounting and end caps with or without a hole; a cap with a hole lets the power wire exit cleanly. Plan where the LED driver will be hidden, cut the strip only at its marked cut points, and have any line-voltage connection made by a licensed electrician. Longer runs? The series comes in 16 ft, and custom fabrication is available up to 192 inches.
Technical specifications
SKU: LCPROF-85-8FT-WH-LENS-OPAQ
Series: 85
Length: 8 ft (series also in 16 ft, custom up to 192 in)
Colour: white aluminum
Lens: opaque
Material: 6063-T5 aluminum

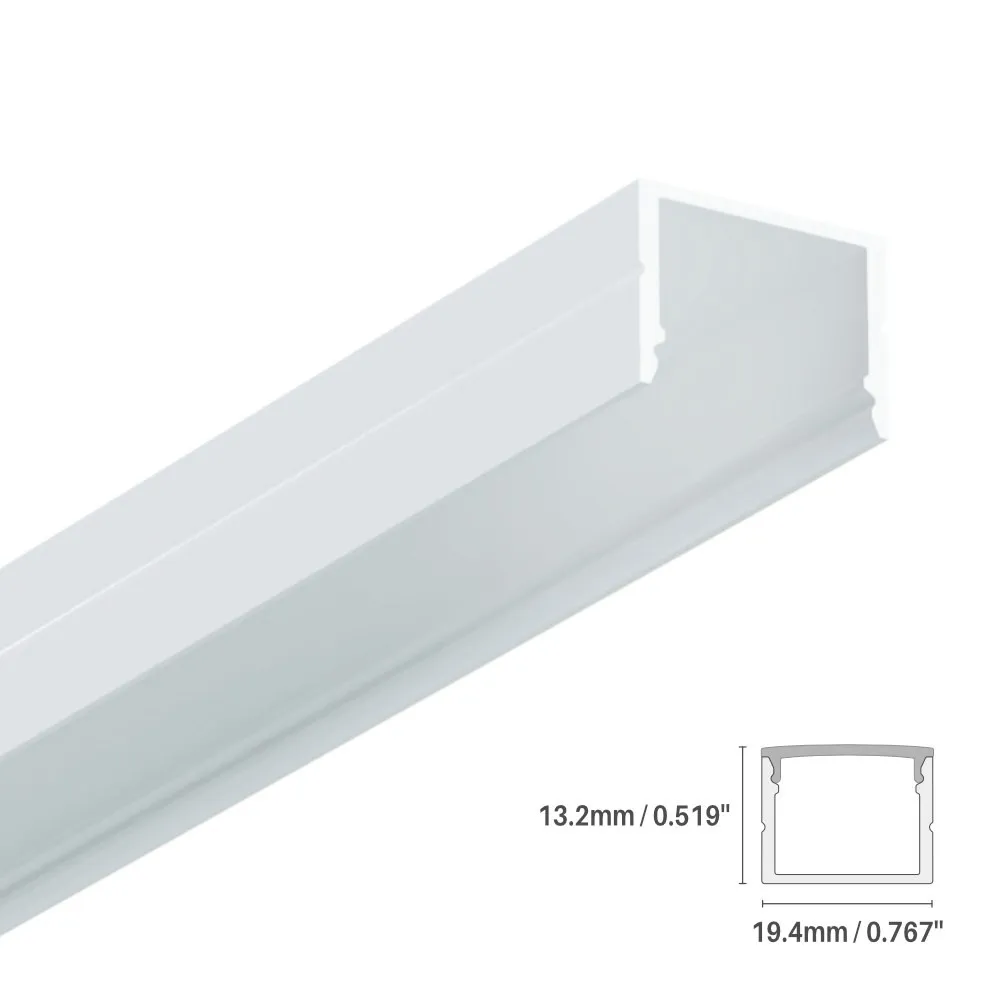

Dimensions (technical drawing): 13.2 mm (0.519 in), 16.4 mm (0.646 in), 19.4 mm (0.767 in)
Mounting (series): surface, suspended or glued
Use: indoor and outdoor
Certification: certified for the Canadian market
Warranty: 3 years
Applications and documentation
Kitchens and bathrooms with white cabinetry, bright retail shelving, display case lighting in a jewellery shop, reception desks, offices and clinics: wherever white dominates, the white #85 keeps the light line discreet. The complete spec sheet, with the technical drawing and the ordering guide, is available as a PDF in the Documentation tab so your designer, contractor or electrician can plan the installation.
