AST TRACK LIGHT HEAD - 35W - J TYPE - 5CCT - MF36 - 120~277V - CRI90+ - TRAIC - WHITE - DLC

Name: AST TRACK LIGHT HEAD - 35W - J TYPE - 5CCT - MF36 - 120~277V - CRI90+ - TRAIC - WHITE - DLC
Brand: TUROLIGHT
SKU: AST-TRH-J-35W-MK5-120-D-MF-WH
Price: 155.97 CAD
Availability: InStock

SKU: AST-TRH-J-35W-MK5-120-D-MF-WH

Brand: TUROLIGHT

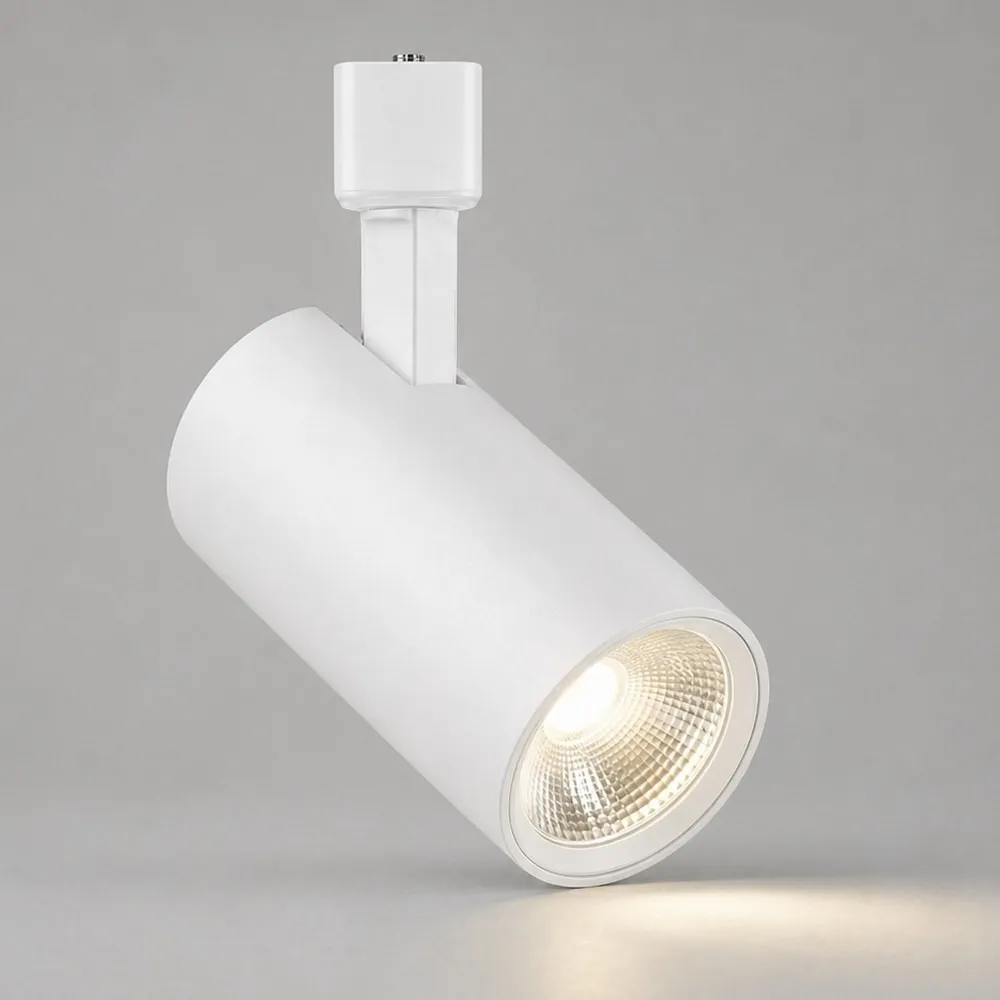

Give your track a real workhorse: the AST TRACK LIGHT HEAD 35W in white is the big brother of the ASTELLA series, the track light head people look for when a 10W or 20W spot simply does not throw enough light. Call it a track head, a track lighting head, a track spot or a "spot sur rail" — it is the adjustable cylinder that clips into a single-circuit track and aims light exactly where you want it: over merchandise, artwork, a kitchen island, a reception desk or a feature wall. This one is the J-Type version, so it snaps into J-type (single-circuit) track channels, and the head pivots and rotates so you can re-aim the beam any time your displays or furniture move.

Under the hood, it is a 35W LED head running on 120~277V with CRI90+ light quality, which means colours, skin tones, wood grain and fabrics look true instead of washed out. It is a 5CCT selectable fixture: five colour temperatures chosen with a small switch on the back of the head, so one product covers warm and cool rooms without re-ordering. It is TRIAC dimmable for smooth mood control on a compatible wall dimmer, carries an MF36 beam and a DLC listing for energy-efficiency programs. The white finish keeps it discreet on white ceilings and white track. Model AST-TRH-J-35W-MK5-120-D-MF-WH measures 3.54 × 8.51 inches (ordering code 5220009), with an overall body reaching 216 mm / 8.5 in — the largest head in the family.

It shines in boutiques, galleries, showrooms, cafés, clinics, salons and open-concept Canadian homes with high or vaulted ceilings, where a small spot gets lost. It is designed for ceiling-mounted track only, and must not go in damp or wet locations, so keep it indoors. Pair it with the matching AST Track 4 ft white or AST Track 8 ft white rails, mix in the smaller 20W AST track head in white for accent layers, or go contrast with the 35W AST track head in black. Build your run and light your space right.

155.97$

Supplier availability: In stock (+50)

Learn more
Documentation

Built for serious accent lighting
The ASTELLA Series J-Type track head from TUROLIGHT is the 35W member of a three-size family (10W, 20W, 35W). Its cylinder body measures 3.54 × 8.51 inches, the biggest of the range, giving the LED module and heat sink the room they need to run cool and stay bright. The head sits on a yoke and adapter that let you swing and rotate the fixture after installation, so a store can re-merchandise a wall and simply re-aim the beams instead of moving fixtures. The white finish blends into white ceilings and white track runs, while the matching black version is available when you want the hardware to disappear against a dark ceiling.

Light quality and colour selection
With CRI90+, this head renders reds, wood tones, packaging graphics and skin tones far more faithfully than a basic spot — critical in clothing stores, galleries, bakeries, salons and dining rooms. The 5CCT selectable feature means five colour temperatures are available from a single fixture: a colour select switch on the back side of the track head lets you pick the ambience on site, and change it later if the room's finishes or use change. Contractors love it because one SKU covers a warm residential job and a crisp retail job, cutting the guesswork out of ordering. The MF36 optic delivers a controlled accent beam for display and feature lighting.

Technical specifications
Model: AST-TRH-J-35W-MK5-120-D-MF-WH
Ordering code: 5220009
Series: ASTELLA Track Head, J-Type, single circuit
Wattage: 35W
Input voltage: 120~277V
CCT: 5CCT selectable (switch on the back of the head)
CRI: 90+
Optic: MF36
Dimming: TRIAC
Dimension: 3.54 × 8.51 inch
Finish: white
Certification: DLC

Installation and safety
Installation follows the standard single-circuit routine: shut off the breaker (a wall switch is not enough), attach the mount plate to the J-box and connect black to hot, white to neutral and green to ground, tuck the wires back into the box, then mark and drill for the toggle bolts and secure the track channel to the mounting plate. Fit the connection terminal in the proper double-pin and single-pin direction, slide the canopy cover over the J-box, then hold the adapter with your thumb on the spring-loaded locking tab, keep that tab directly opposite the polarity line, push the adapter into the track and rotate it a quarter turn (90°) counter-clockwise. A few site rules from the instructions: ceiling-mounted track only, never in damp or wet locations, never less than 5 feet above the floor, never closer than 6 inches to curtains or other combustible material, and never connect anything but track luminaires to the rail. The head runs hot — wait at least 5 minutes after power off before touching it.

Compatibility, applications and documentation
This head is made for J-type single-circuit track. Plan your layout with the ASTELLA rails: 2 ft white track, 6 ft white track or 12 ft white track for long retail aisles. Mix wattages on the same run — the 10W AST track head in white for close-range accents and this 35W head for high ceilings, stairwells over two storeys, gallery walls or a long kitchen island. Typical projects: boutique and showroom displays, restaurant and café interiors, dental and medical waiting rooms, offices, condo lofts and basement renovations. The technical PDF (AST-TRH-J-35W-MK5-120-D-MF-WH Spec Sheet) with the full installation diagram is in the Documentation tab — hand it to your electrician before the rough-in.
