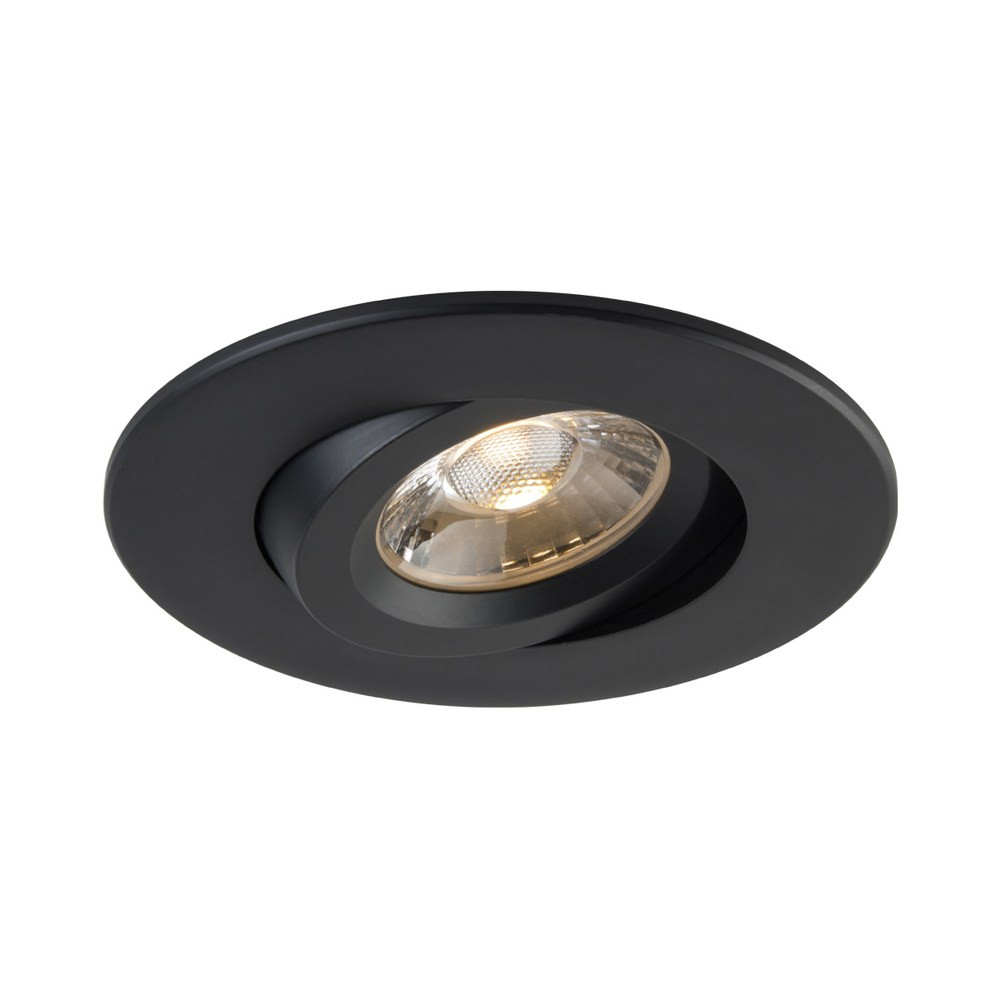

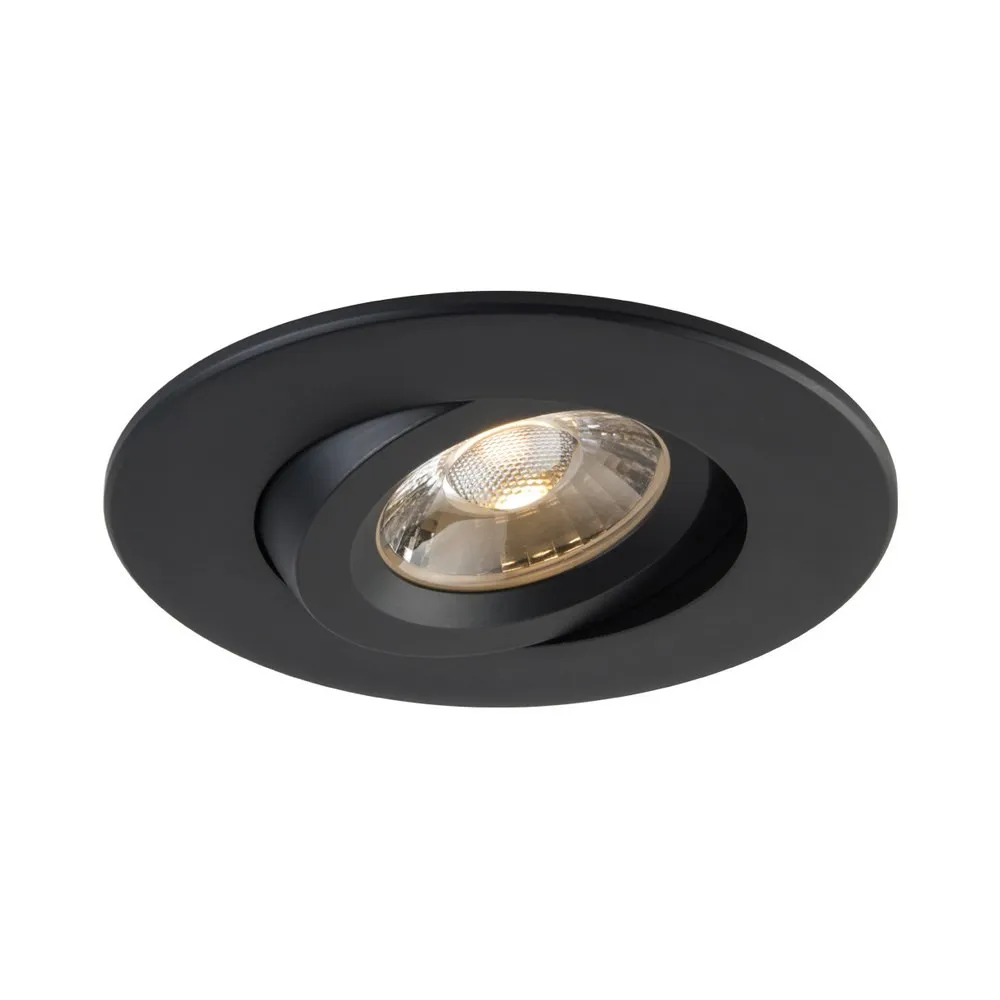

4" LUNA LED ROUND GIMBAL RECESSED FIXTURE - RA4-12G-30K-90BK

Name: 4" LUNA LED ROUND GIMBAL RECESSED FIXTURE - RA4-12G-30K-90BK
Brand: LITELINE
SKU: RA4-12G-30K-90BK
Price: 73.97 CAD
Availability: InStock

SKU: RA4-12G-30K-90BK

Brand: LITELINE

Some rooms need light that goes exactly where you point it — over the island, on the artwork, down the hallway wall — and that is precisely what the 4" LUNA LED round gimbal recessed fixture from LITELINE was built to do. Known on job sites as a 4 inch pot light, a round LED recessed downlight or simply an adjustable LED gimbal, this LUNA Series luminaire combines regressed, low-glare optics with a tilting gimbal so you can aim the beam instead of settling for whatever the ceiling gives you. It is a true all-rounder for kitchens, hallways, bedrooms, basements, retail floors and offices, and it replaces bulky old recessed cans with a slim, airtight housing and an integrated driver box.

This model delivers up to 1111 lumens at up to 91 lumens per watt, with an on-fixture colour selectable switch offering five colour temperatures: 2700 K, 3000 K, 3500 K, 4000 K and 5000 K. Wattage is 9W or 12W depending on the driver used, and in 12W the output runs 995 lumens at 2700 K, 1040 at 3000 K, 1090 at 3500 K, 1110 at 4000 K and 1085 at 5000 K. A typical CRI of 96 keeps skin tones, wood grain and paint colours looking honest, while the 40° beam spread gives clean, directional pools of light. Input is 100-135V AC, 60Hz, with 100%-10% dimming on standard forward-phase / reverse-phase and TRIAC/ELV dimmers. The durable airtight aluminum body carries an anodized blue heat sink, the finish is black (BK), and the fixture is cETLus certified, Energy Star, Class II, rated for wet locations and approved for direct contact with insulation — with a projected life of 70% at 50,000 hours and a lifetime warranty.

From a Montréal condo reno to a bathroom ceiling, a covered porch or a boutique display wall, this fixture handles Canadian realities: airtight construction, insulated ceilings tested with insulation up to R60, and an operating range of -20°C~40°C. The cut-out is Ø 4 1/4" (108mm) and it mounts with two spring-loaded clips into any ceiling material. Prefer a fixed, deeper regressed look or another finish? Compare it with the 4" LUNA LED round regressed gimbal recessed fixture in black or the same LUNA gimbal in white. Order RA4-12G-30K-90BK and aim your light exactly where it belongs.

Built to last, built to disappear
The LUNA Series was evolved to be a flexible, low-glare and aesthetically pleasing luminaire, and you feel it the moment you handle one. The body is durable airtight aluminum with an adjustable gimbal, and it includes an anodized blue heat sink that maximizes airflow around the LED light source — the kind of thermal management that keeps output and colour stable year after year. The regressed optics tuck the light source up into the housing so you see the effect and not the source, and the black (BK) trim finish quietly blends into dark ceilings or makes a deliberate contrast against white drywall. The gimbal tilts 20° to either side, so you can graze a stone wall, wash a bookcase or simply correct the aim on a sloped ceiling.

Light quality you can trust
This general application fixture uses an LED module that maintains uniform intensity, producing up to 1111 lumens with a typical CRI of 96 — high enough for kitchens, makeup mirrors, retail displays and anywhere colour accuracy matters. The on-fixture colour selectable switch lets you choose between five CCTs (2700 K, 3000 K, 3500 K, 4000 K and 5000 K) right at installation, so one box of fixtures can serve a warm living room and a crisp garage on the same job. The lens produces a 40° beam spread for controlled, directional light. In 12W, measured output is 995 lumens at 2700 K, 1040 lumens at 3000 K, 1090 lumens at 3500 K, 1110 lumens at 4000 K and 1085 lumens at 5000 K, up to 91 lumens per watt with a 0.9 power factor.

Technical specifications
SKU: RA4-12G-30K-90BK
Application: Ceiling Recess Mount
Approved location: Wet / Insulated Ceilings
Wattage: 9W / 12W
Lumens: Up to 1111
Lumens per watt: Up to 91
CCT (colour selectable): 2700 K / 3000 K / 3500 K / 4000 K / 5000 K
CRI: 96
Beam angle: 40°
Input: 100-135V AC, 60Hz
Dimming: Yes — forward/reverse-phase, TRIAC/ELV, 100%-10%
Power factor: 0.9
Hole cut: Ø 4 1/4" (108mm)
Operating temperature: -20°C~40°C (-4°F~104°F)
Projected life: 70% @ 50,000 hrs
Certification: cETLus, Energy Star, Class II
Colour: BK
Warranty: Lifetime

Wiring and installation
The extruded aluminum hardwire box holds a dimmable Class II electronic LED driver — 12 watt (300mA) or 9 watt (210mA) — with 100-135V AC input, and it connects to the fixture through an 18" (457mm) FT6 rated cable with a DC 2.1 connector approved for use in plenums and suspended ceilings. Three "Quick connect" push-in terminals make the wiring fast, which matters when you are doing thirty holes in an afternoon. Two spring-loaded clips grip any ceiling material, the cut-out is Ø 4 1/4" (108mm), and the airtight, insulation-contact construction means you can install it under insulation tested up to R60. A vapour barrier extender is recommended in spray foam and loose fill applications, and accessories such as pre-mounting plates, new construction plates and reducer rings are available separately.

Where it works and what to read
Use it for kitchen and hallway recessed downlighting, bathrooms and covered entries thanks to the wet location rating, basement renos, condo ceilings, offices, clinics, restaurants and retail where aimable accent light sells the merchandise. Need a different finish or a deeper regressed aperture on the same project? Look at the 4" LUNA regressed gimbal in white, the brushed nickel version, or the tunable LUNA DTW gimbal in black. The full technical spec sheet is in the Documentation tab of this page for cut-out dimensions, lumen tables and driver options.
