3" LUNA LED SQUARE GIMBAL RECESSED FIXTURE - RA3S-7G-DTW-90BK

Name: 3" LUNA LED SQUARE GIMBAL RECESSED FIXTURE - RA3S-7G-DTW-90BK
Brand: LITELINE
SKU: RA3S-7G-DTW-90BK
Price: 73.97 CAD
Availability: InStock

SKU: RA3S-7G-DTW-90BK

Brand: LITELINE

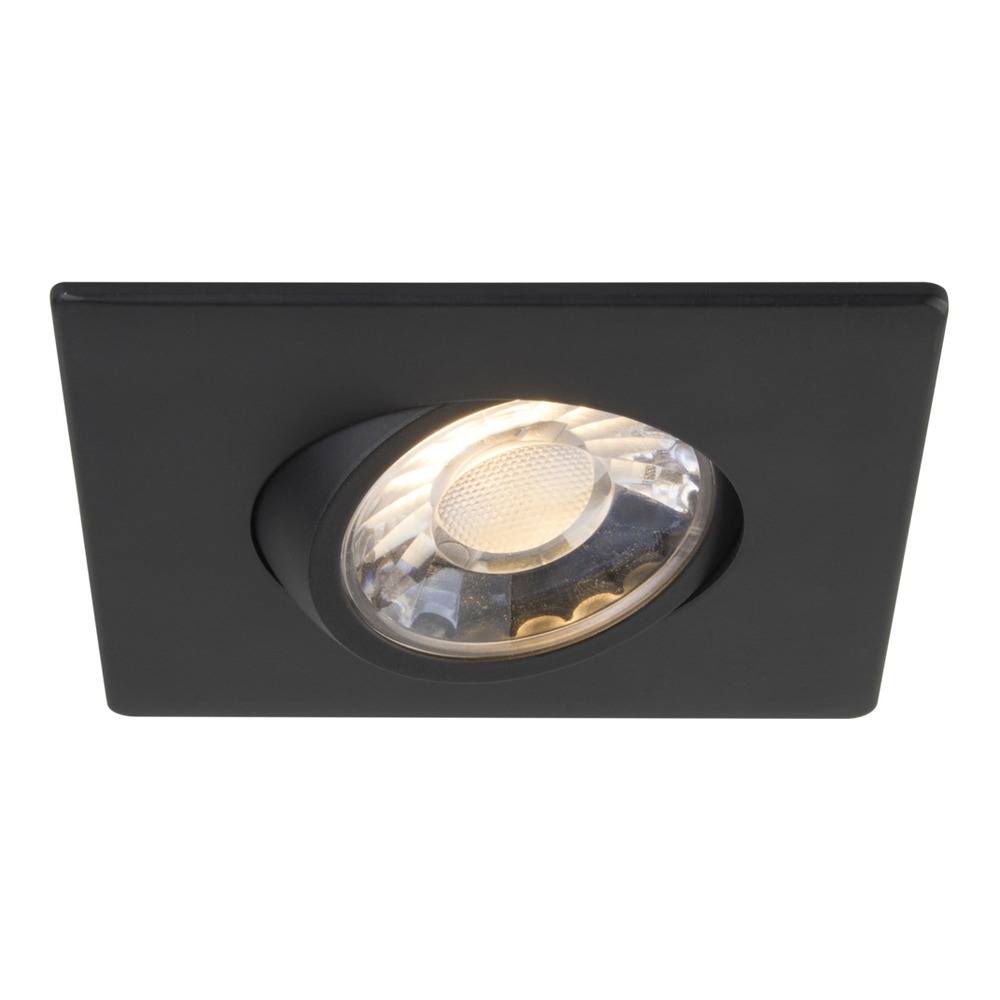

Dim the lights and watch the colour melt into a warm candle glow — that's what the 3" LUNA LED SQUARE GIMBAL RECESSED FIXTURE (SKU RA3S-7G-DTW-90BK) from LITELINE brings to a room. This is a compact square recessed downlight — what most people call a square pot light, spot encastré or square downlight — built with an adjustable gimbal so you can tilt the beam where the light actually needs to go: onto a stone feature wall, a piece of art, a kitchen island or a shower niche. The black trim keeps it discreet against dark ceilings and gives a crisp, architectural look in modern interiors, while the small 3" format lets you line up a clean grid of lights without the bulk of older 4" and 6" cans.

Under the hood, a 7 watt LED module delivers up to 745 lumens at 96 lumens per watt, with a typical CRI of 90 so wood, paint, skin tones and fabrics look true. The dim-to-warm technology shifts the colour temperature from 3000 K down to 1800 K as you dim, and it works with industry standard TRIAC/ELV dimmers on a 100-135V AC, 50/60 Hz input with a 0.95 power factor. The lens produces a 45° beam spread, the gimbal tilts up to 30°, and the durable airtight aluminum body with anodized blue heat sink keeps the LED cool for a projected life of 70% at 33,000 hrs. It fits a Ø 2¾" (70 mm) hole cut, measures 4 5/8" (117 mm) overall, is cETLus certified, Class II, suitable for wet locations, approved for direct contact with insulation, and carries a Lifetime warranty.

It's a natural fit for kitchens, hallways, basements, bedrooms, bathrooms and covered porches, and just as at home in boutiques, restaurants, clinics and offices where accent light has to look intentional. Because it's rated for wet and insulated ceilings, it handles Canadian realities — showers, exterior soffits, cold attics — without drama. Need the same fixture in a lighter trim? See the 3" Luna LED square gimbal recessed fixture in white, or choose a fixed colour temperature with the 2700 K black version or the 3000 K black version. Add it to your cart and give your ceiling the glow it deserves.

Built to last, built to install fast
The LUNA RA3S-7G-DTW-90BK is made around a durable airtight aluminum body with an adjustable gimbal, plus an anodized blue heat sink that maximizes airflow around the LED light source — the single biggest factor in how long a recessed fixture really lasts. Two spring loaded clips hold it in any ceiling material, and the square black trim sits flush for a clean, architectural finish. The 3" format only needs a Ø 2¾" (70 mm) hole cut, so it slips between joists and into tight bulkheads where a bigger can simply won't go.

Light quality you can see
The 7 watt LED module produces up to 745 lumens of uniform intensity at 96 lumens per watt, with a typical CRI of 90 for rich, accurate colour. What sets this SKU apart is dim-to-warm: as you lower the dimmer, the colour temperature travels from 3000 K down to 1800 K, mimicking the cozy amber of an incandescent or candle flame. The lens delivers a 45° beam spread and the gimbal tilts up to 30°, so you can wall-wash, graze a texture or highlight a countertop instead of just flooding the floor. The fixture is LM79 and LM80 tested, with a projected life of 70% @ 33,000 hrs.

Electrical and installation details
Power comes from an extruded aluminum hardwire box with a 170 mA dimmable Class II electronic LED driver, 100-135V AC input and a 0.95 power factor. An 18" (457 mm) FT6 rated cable with a DC 2.1 connector links driver to fixture and is approved for use in plenums and suspended ceilings. Three "Quick connect" push-in terminals make wiring fast — a real time-saver when you're installing a dozen downlights in one afternoon. The fixture is dimmable with industry standard TRIAC/ELV dimmers, and Liteline publishes a compatible dimmer list at liteline.com/lunadimmers. Operating temperature range is -40°C to +40°C (-40°F to +104°F).

Technical specifications
SKU: RA3S-7G-DTW-90BK
Brand: LITELINE
Wattage: 7W
Lumens: 745
Lumens per watt: 96
CCT: 3000 K~1800 K (dim-to-warm)
CRI: 90
Beam angle: 45°
Input: 100-135V AC, 50/60 Hz
Dimming: Yes — TRIAC/ELV
Power factor: 0.95
Hole cut: Ø 2¾" (70 mm)
Dimensions: 4 5/8" (117 mm) x 3 11/32" (85 mm) x 2 5/16" (59 mm) x 1 13/16" (46 mm) x 1½" (38 mm)
Application: Ceiling recess mount
Approved location: Wet / insulated ceilings
Certification: cETLus, Class II
Projected life: 70% @ 33,000 hrs
Colour: Black (BK)
Warranty: Lifetime

Applications, accessories and documentation
Think kitchen perimeters and islands, hallway runs, stair landings, basement renovations, walk-in showers and covered entries at the cottage; in commercial work, it suits boutique retail, café and restaurant seating areas, salons, clinics and small offices where a square surface-look downlight needs to stay subtle. Because it is approved for direct contact with insulation and for wet locations, it is a safe choice for insulated ceilings and damp rooms across Canada. Accessories are sold separately and include the P-2810 2¾" round pre-mounting plate with driver attachment clip for 3" LUNA LED fixtures, the P-NCMK-1 new construction mounting kit with hanger bars, brackets and screws, the SLM-60-FC 60" flexible connector, and the VBE-1 to VBE-4 vapour barrier extenders for new construction and remodel work. Matching finishes and fixed colour temperatures are available in the same family, such as the 3500 K black gimbal and the 3000 K white gimbal. The full technical spec sheet for RA3S-7G-DTW-90BK is in the Documentation tab — download it before you cut your ceiling.
