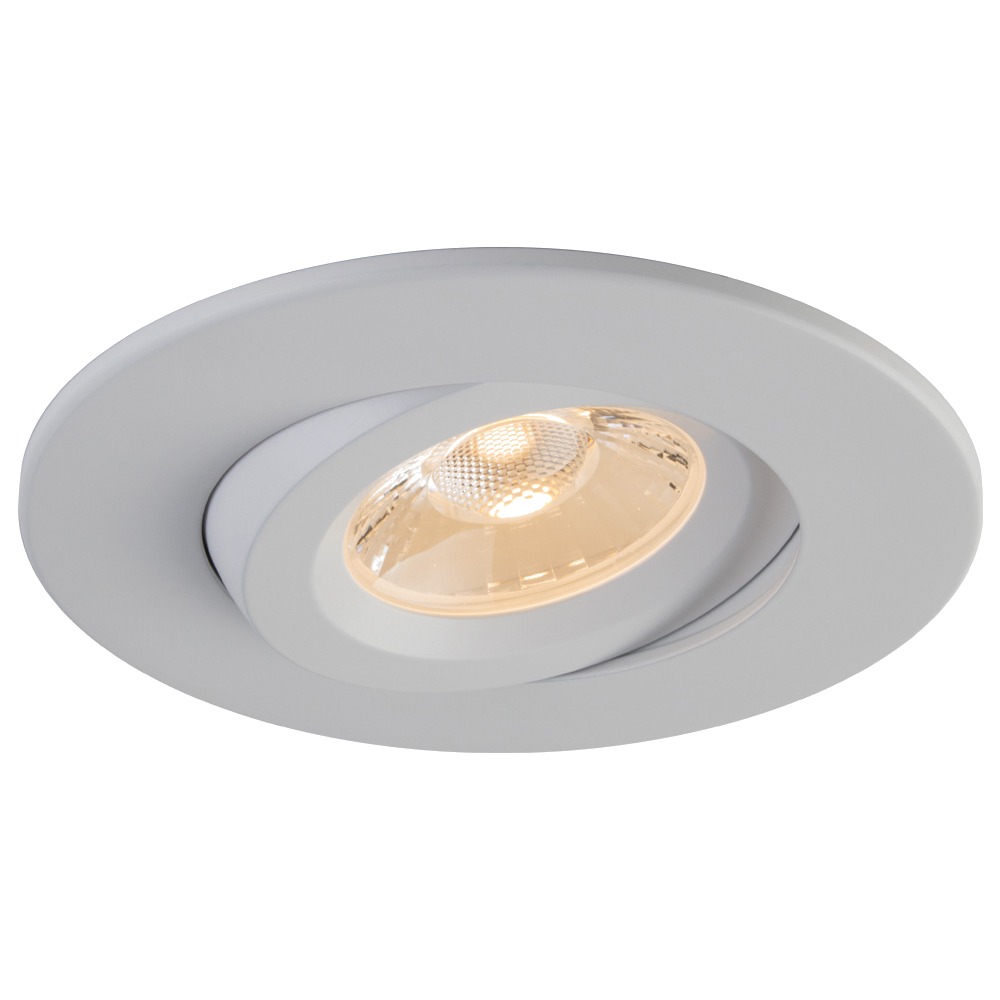

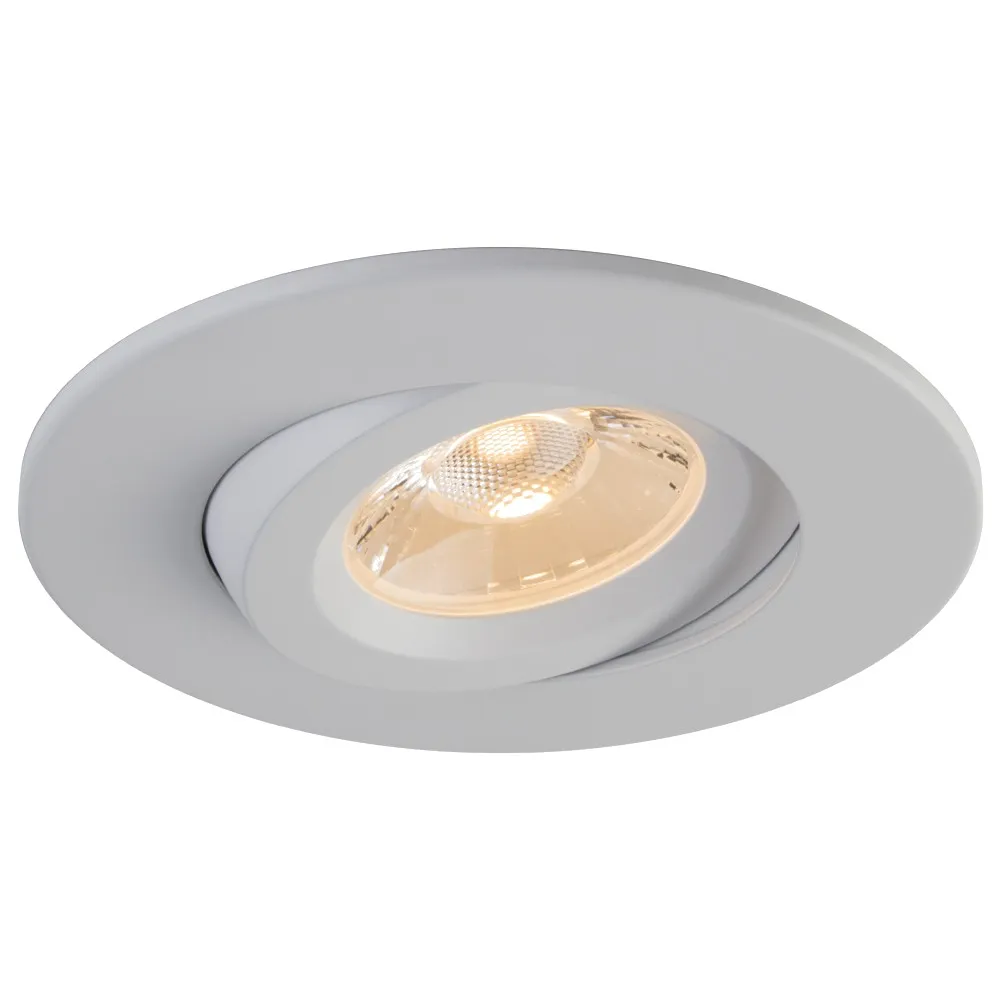

4" LUNA LED ROUND GIMBAL RECESSED FIXTURE - RA4-12G-90WH

Name: 4" LUNA LED ROUND GIMBAL RECESSED FIXTURE - RA4-12G-90WH
Brand: LITELINE
SKU: RA4-12G-90WH
Price: 81.97 CAD
Availability: InStock

SKU: RA4-12G-90WH

Brand: LITELINE

Some ceilings need light that goes exactly where you point it — and that's precisely what the 4" LUNA LED ROUND GIMBAL RECESSED FIXTURE (model RA4-12G-90WH) was built to do. Call it a gimbal pot light, an adjustable recessed downlight, a 4-inch round LED light or simply a directional slim downlight — it's the fixture contractors, builders, homeowners and designers reach for when they want low-glare, aimable light in a clean white trim. The tilting gimbal lets you wash an accent wall, graze a stone fireplace, highlight artwork or angle light away from a sloped ceiling, while the regressed optic keeps the source out of your eyes. From a full living-room layout to a single dramatic accent, it handles both residential and commercial spaces with the same easy install.

The LED module delivers up to 1111 lumens from 9W / 12W, for up to 91 lumens per watt, and a typical CRI of 96 that makes wood tones, paint colours, skin tones and merchandise look true. An on-fixture colour selectable switch gives you five colour temperatures — 2700 K, 3000 K, 3500 K, 4000 K and 5000 K — so you can match warm cozy rooms or crisp task areas without restocking. The 40° beam spread keeps the light controlled and directional. It runs on 100-135V AC, 60Hz, dims smoothly from 100% down to 10% with standard forward-phase / reverse-phase and TRIAC/ELV dimmers, carries a 0.9 power factor, is Energy Star listed and cETLus certified, suitable for wet locations, airtight, approved for direct contact with insulation, and rated 70% @ 50,000 hrs with a lifetime warranty.

It's a natural in kitchens, hallways, bedrooms, basements, covered porches and bathrooms, and just as at home in boutiques, clinics, offices and restaurants. Built for Canadian realities, it's tested with insulation up to R60 and operates from -20°C to 40°C, with a Ø 4 1/4" (108mm) hole cut and two spring-loaded clips that grip any ceiling material. Matching the look across a project is easy: pair it with the 4" Luna LED round regressed gimbal recessed fixture RA4-12RG-90WH, go dark with the 4" Luna LED round gimbal recessed fixture RA4-12G-30K-90BK, or add smart colour with the Luna 4" OnCloud RGBTW RA4-12RG-RGBTW-90WH. Aim it, dim it, love it.

Built to last, built to aim
The RA4-12G-90WH starts with a durable airtight aluminum body and an adjustable gimbal that lets you tilt the optic where the design needs it — 20° of tilt is shown on the dimensional drawing. Inside, an anodized blue heat sink maximizes airflow around the LED light source, which is exactly what keeps output and colour stable over the long haul. The white trim finish (WH) blends into painted ceilings, and the whole fixture is compact: 5 1/16" (128mm) overall with a 4 3/16" (106mm) trim face, 3 3/8" (85mm) deep, and it drops into a Ø 4 1/4" (108mm) hole cut. Two spring-loaded clips attach it to virtually any ceiling material.

Light quality you can see
This is a general application LED downlight with a module that maintains uniform intensity — no hot spots, no patchy colour across a row of pot lights. Up to 1111 lumens with a typical CRI of 96 means whites stay white and reds stay rich, a real advantage over cabinetry, art, food and retail displays. The lens produces a tight, controlled 40° beam spread for directional accenting. The on-fixture colour selectable switch offers five colour temperatures, and at 12W the measured output is 995 lumens at 2700 K, 1040 at 3000 K, 1090 at 3500 K, 1110 at 4000 K and 1085 at 5000 K.

Technical specifications
SKU: RA4-12G-90WH
Application: Ceiling Recess Mount
Approved location: Wet / Insulated Ceilings
Wattage: 9W / 12W
Lumens: Up to 1111
Lumens per watt: Up to 91
CCT (colour selectable): 2700 K / 3000 K / 3500 K / 4000 K / 5000 K
CRI: 96
Beam angle: 40°
Input: 100-135V AC, 60Hz
Power factor: 0.9
Dimming: Yes — Forward/reverse-phase, TRIAC/ELV
Hole cut: Ø 4 1/4" (108mm)
Operating temperature: -20°C~40°C (-4°F~104°F)
Certification: cETLus, Energy Star, Class II
Projected life: 70% @ 50,000 hrs
Warranty: Lifetime

Wiring and installation
An extruded aluminum hardwire box houses a dimmable Class II electronic LED driver — 12 watt (300mA) or 9 watt (210mA) — with 100-135V AC input, and it connects to the fixture through an 18" (457mm) FT6 rated cable with a DC 2.1 connector approved for use in plenums and suspended ceilings. Three Quick Connect push-in terminals make wiring fast on a long ceiling run. Dimming goes from 100% down to 10% on industry standard forward-phase / reverse-phase and TRIAC/ELV dimmers. The fixture is airtight, approved for direct contact with insulation, tested with insulation up to R60, and a vapour barrier extender is recommended in spray foam and loose fill applications — something worth planning in any Canadian new build or attic retrofit.

Where it works, and what pairs with it
Think kitchen perimeters and island accents, hallway rhythm lighting, basement renovations, covered entries and porches (it's rated for wet locations), bathrooms, retail shelving, clinic corridors and café seating. Because the LUNA family shares the same 4" footprint and finishes, you can mix fixed and gimbal versions in one ceiling: see the 4" Luna LED round regressed gimbal recessed fixture RA4-12RG-90BK, the brushed nickel 4" Luna LED round regressed gimbal recessed fixture RA4-12RG-90BN, or the fixed-CCT 4" Luna LED round gimbal recessed fixture RA4-12G-30K-90WH. Accessories such as pre-mounting plates, new construction mounting kits, reducer rings and vapour barrier extenders are sold separately. The full technical spec sheet is available in the Documentation tab for cut dimensions, lumen tables and wiring details.
