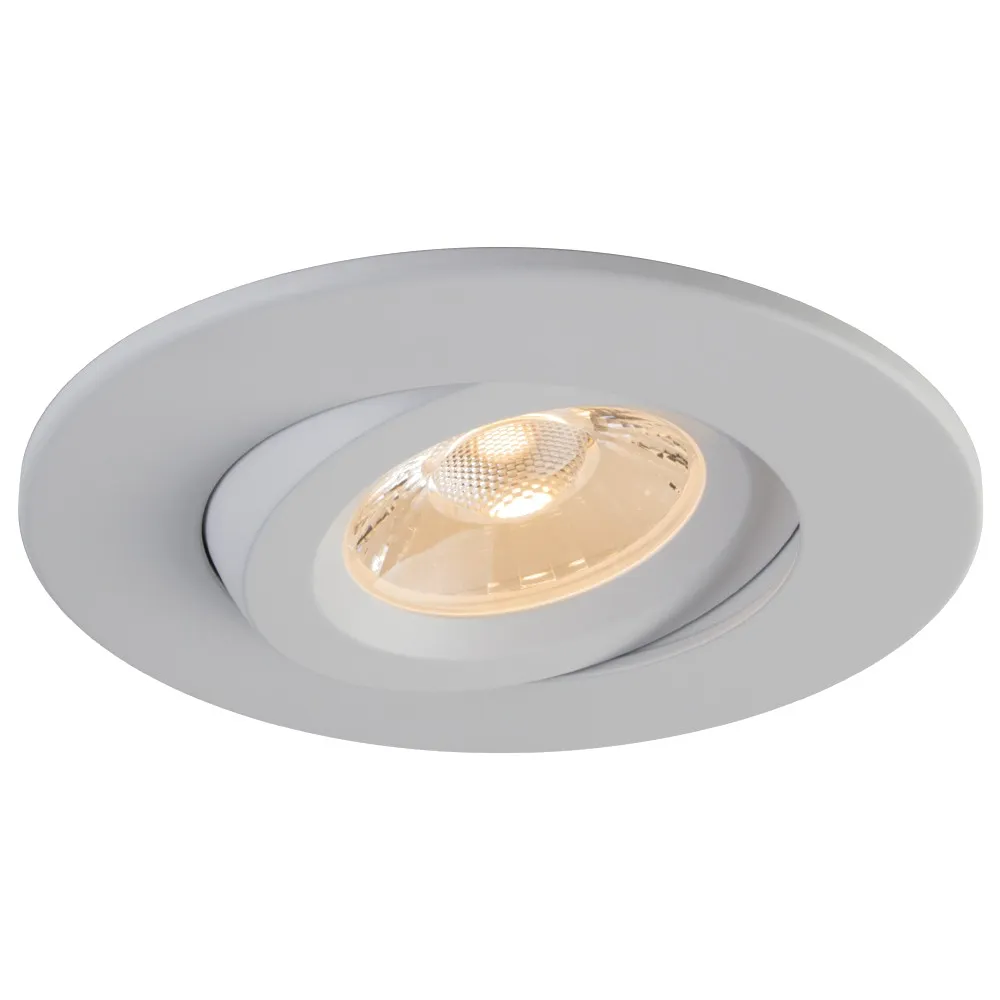

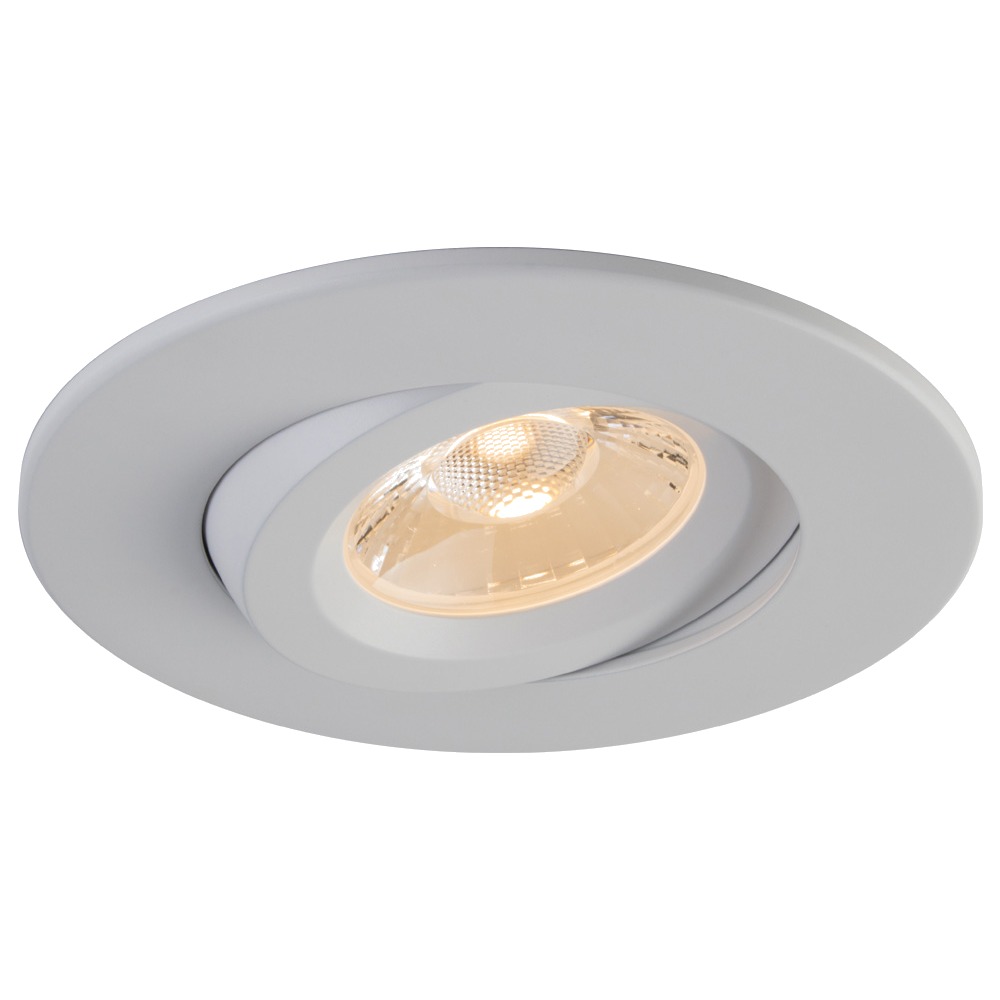

4" LUNA LED ROUND GIMBAL RECESSED FIXTURE - RA4-12G-30K-90WH

Name: 4" LUNA LED ROUND GIMBAL RECESSED FIXTURE - RA4-12G-30K-90WH
Brand: LITELINE
SKU: RA4-12G-30K-90WH
Price: 73.97 CAD
Availability: InStock

SKU: RA4-12G-30K-90WH

Brand: LITELINE

Say goodbye to flat, boring ceilings. The 4" LUNA LED Round Gimbal Recessed Fixture from LITELINE (SKU RA4-12G-30K-90WH) is the little pot light that does the heavy lifting — a 4-inch recessed downlight with a tilting gimbal that lets you aim the beam exactly where you want it. Whether you call it a recessed light, a round LED light, a gimbal downlight or simply an encastré, this is the fixture contractors reach for when a room needs clean, directional light without a big, glare-heavy trim staring back at you. Use it to wash a stone fireplace, highlight art and millwork, light a kitchen island, or lay down an even grid of general lighting through a hallway, basement or open-concept living area.

Under the white trim you get real performance: up to 1111 lumens from a 12 watt (300 mA) driver, up to 91 lumens per watt, and a typical CRI of 96 so skin tones, wood grain, paint colours and fabrics look the way they should. The on-fixture colour selectable switch gives you five colour temperatures — 2700 K, 3000 K, 3500 K, 4000 K and 5000 K — so one box covers every room in the house. The 40° beam spread keeps light focused, and smooth 100%–10% dimming works with industry-standard forward-phase / reverse-phase and TRIAC/ELV dimmers. Built on a durable airtight aluminum body with an anodized blue heat sink, it runs on 100-135V AC, 60 Hz, carries a 0.9 power factor, is cETLus certified and Energy Star rated, is suitable for wet locations and approved for direct contact with insulation, with a projected life of 70% at 50,000 hours and a lifetime warranty.

It shines in kitchens, bathrooms and covered porches (wet location rated), in bedrooms, condos and finished basements, and just as well in offices, boutiques, clinics and restaurants across Canada — where airtight, insulation-contact fixtures make sealing and energy codes a lot less painful. Cut a Ø 4 1/4" (108 mm) hole, squeeze the two spring-loaded clips, and you're done. Want the same fixture in black? See the 4" LUNA LED round gimbal recessed fixture RA4-12G-30K-90BK, or step up to the deeper, low-glare optic of the 4" LUNA LED round regressed gimbal recessed fixture RA4-12RG-90WH. Order your LUNA gimbals today and light your project the way you pictured it.

Built to last, built to aim
The LUNA 4" gimbal starts with a durable airtight aluminum body and an adjustable gimbal that tilts 20° in either direction, so you can point light at a backsplash, a bookcase or a feature wall instead of settling for whatever falls straight down. An anodized blue heat sink sits behind the LED module to maximize airflow and keep the light source cool, which is exactly what protects long-term output. Two spring-loaded clips hold the fixture in any ceiling material, and the compact housing measures 5 1/16" (128 mm) across the trim, 4 3/16" (106 mm) at the body, with a 3 3/8" (85 mm) depth and a 2" (51 mm) profile — easy to fit in tight joist spaces where a traditional recessed can light simply will not go.

Light quality and colour selection
The LED module maintains uniform intensity and delivers up to 1111 lumens with a typical CRI of 96 — high-fidelity colour rendering that flatters finishes, food and faces. The on-fixture colour selectable switch lets you pick 2700 K, 3000 K, 3500 K, 4000 K or 5000 K before install: 2700 K delivers 995 lumens, 3000 K 1040 lumens, 3500 K 1090 lumens, 4000 K 1110 lumens and 5000 K 1085 lumens. The lens produces a controlled 40° beam spread, and the regressed optics keep glare low so the ceiling reads as light, not as a row of bright dots.

Electrical, driver and installation
Power comes from an extruded aluminum hardwire box housing a 12 watt (300 mA) dimmable Class II electronic LED driver with 100-135V AC input. An 18" (457 mm) FT6 rated cable with a DC 2.1 connector links driver and fixture and is approved for use in plenums and suspended ceilings. Three "Quick Connect" push-in terminals make wiring fast on a jobsite. Dimming runs 100%–10% with industry standard forward-phase / reverse-phase and TRIAC/ELV dimmers (contact factory for the compatible dimmer list). The fixture is airtight, suitable for wet locations, approved for direct contact with insulation and for insulated ceiling applications, tested with insulation up to R60, and rated for operating temperatures from -20°C to 40°C (-4°F to 104°F). A VBE vapour barrier extender is recommended in spray foam and loose fill applications.

Technical specifications
Model: RA4-12G-30K-90WH
Application: Ceiling Recess Mount
Approved location: Wet / Insulated Ceilings
Wattage: 12W
Lumens: Up to 1111
Lumens per watt: Up to 91
CCT (colour selectable): 2700 K / 3000 K / 3500 K / 4000 K / 5000 K
CRI: 96
Beam angle: 40°
Input: 100-135V AC, 60Hz
Power factor: 0.9
Dimming tech: Forward/reverse-phase, TRIAC/ELV
Hole cut: Ø 4 1/4" (108 mm)
Finish: White
Certification: cETLus, Energy Star, Class II
Projected life: 70% @ 50,000 hrs
Warranty: Lifetime

Applications, accessories and documentation
Think kitchen perimeters and islands, bathroom and shower zones, covered entries and soffits, stairwells, home theatres, retail displays, dental and medical clinics, cafés and offices — anywhere a 4" gimbal downlight can point light with intention. Accessories are sold separately and include pre-mounting and new construction plates for 4" LUNA fixtures (P-4020, P-4020NC, P-4024), the P-NCMK-1 new construction mounting kit with hanger bars and brackets, VBE vapour barrier extenders for new construction and remodel work, and RA4-XLRING reducer rings for 4" LUNA fixtures in black, brushed nickel or white. Mixing finishes or optics in the same project is easy: pair it with the 4" LUNA LED round gimbal recessed fixture RA4-12G-90WH, the black 4" LUNA LED round regressed gimbal recessed fixture RA4-12RG-90BK, or add colour-changing accents with the LUNA 4" OnCloud RGBTW RA4-12RG-RGBTW-90WH. The full technical spec sheet is available in the Documentation tab for dimensions, lumen tables and the complete ordering guide.

Technical Files
