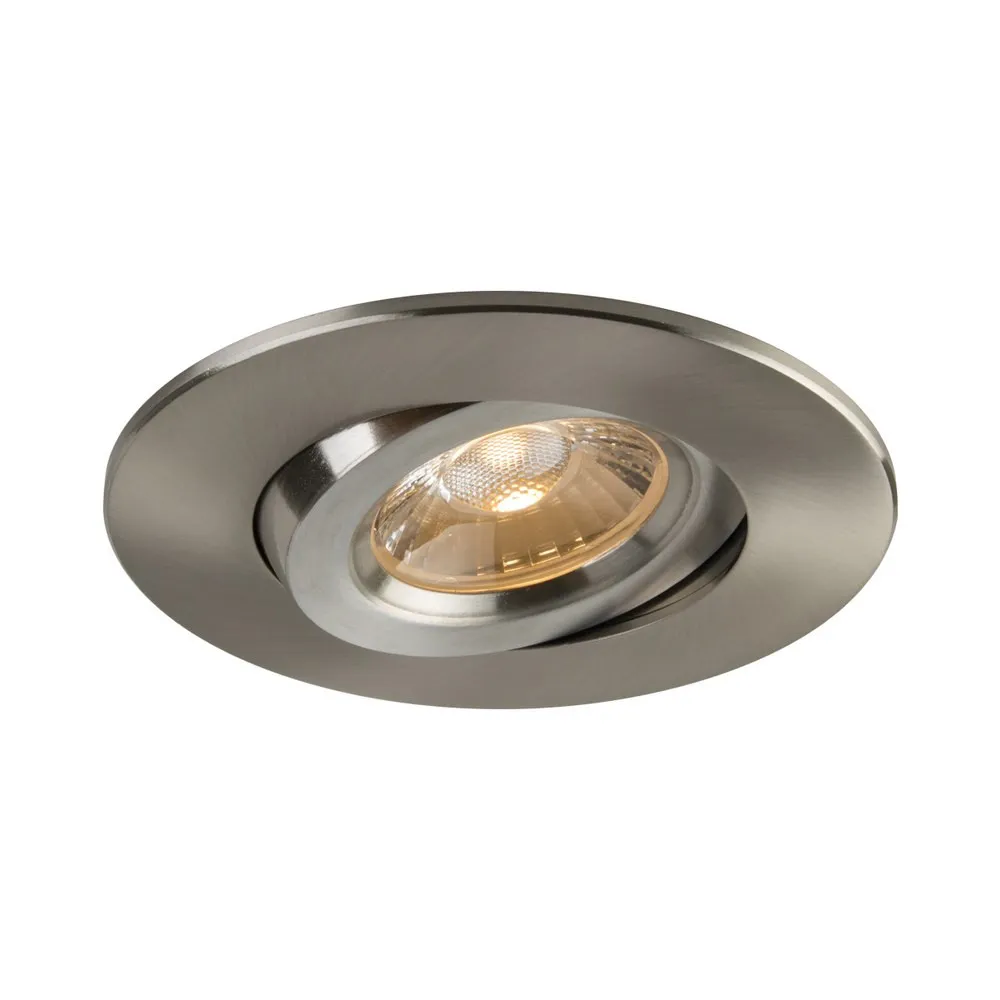

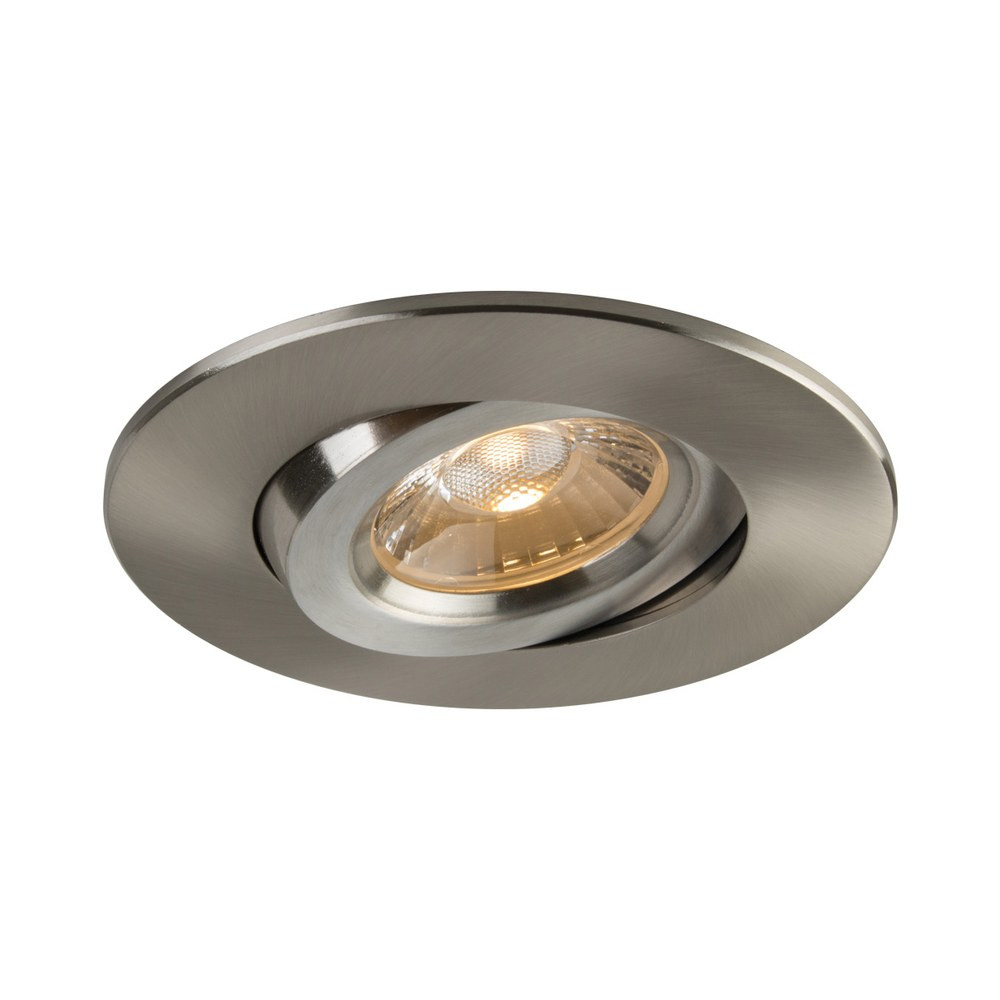

4" LUNA LED ROUND GIMBAL RECESSED FIXTURE - RA4-12G-DTW-90BN

Name: 4" LUNA LED ROUND GIMBAL RECESSED FIXTURE - RA4-12G-DTW-90BN
Brand: LITELINE
SKU: RA4-12G-DTW-90BN
Price: 81.97 CAD
Availability: InStock

SKU: RA4-12G-DTW-90BN

Brand: LITELINE

Say goodbye to flat, boring ceilings: the 4" LUNA LED round gimbal recessed fixture from LITELINE (SKU RA4-12G-DTW-90BN) is the adjustable pot light renovators, contractors and homeowners keep coming back to. Call it a gimbal downlight, a directional recessed light, a 4-inch round LED pot light or simply a recessed LED fixture — this is the one you aim at a stone fireplace, a gallery wall, a kitchen island or a shower niche and instantly make the room look designed instead of just lit. The tilting gimbal lets you point the beam exactly where it matters, while the brushed nickel trim keeps the ceiling clean and modern. It is built for retrofit work as much as for new construction, in homes, condos, boutiques, offices and small businesses.

Under the trim, a 12 watt LED module delivers up to 1035 lumens at 92 lumens per watt, with a typical CRI of 90 so wood, paint, skin tones and merchandise look true. The lens shapes a 40° beam spread — tight enough to accent, wide enough to light a room — in a 3000 K colour temperature. It runs on 100-135V AC, 60Hz with a 300mA dimmable class II electronic driver, dims smoothly from 100% down to 10% on industry-standard TRIAC/ELV dimmers, and carries a power factor of 0.95. The durable airtight aluminum body with anodized blue heat sink is rated for wet locations, approved for direct contact with insulation, cETLus certified, Energy Star qualified, LM79 and LM80 tested, with projected life of 70% @ 50,000 hrs and a lifetime warranty. Hole cut is Ø 4 3⁄16" (106mm).

This little fixture shines over kitchen counters and bathroom vanities, in basements, hallways, sloped ceilings, covered porches and showers thanks to its wet location rating — a real advantage in Canadian homes where humidity and insulated ceilings are the norm. Retailers and cafés use it to graze walls and highlight displays. Two spring-loaded clips grip any ceiling material, three quick connect push-in terminals make wiring fast, and it is tested with insulation up to R60. Prefer the same fixture in another finish? See the 4" LUNA LED round gimbal recessed fixture RA4-12G-DTW-90WH or the RA4-12G-DTW-90BK in black. Order yours and light your project the way you imagined it.

Built to last, built to disappear into the ceiling
The LUNA RA4-12G is a 4" round gimbal recessed light with a durable airtight aluminum body and an adjustable gimbal that tilts to aim light where you want it. An anodized blue heat sink sits behind the LED module to maximize airflow and keep the light source cool, which is exactly what protects colour and output over the years. The compact housing measures 5 1⁄16" (128mm) across the trim and 1 7⁄8" (46mm) high, with a 3 3⁄8" (85mm) body and a 15⁄16" (34mm) gimbal depth, so it fits tight ceiling cavities where a traditional can would never go. This SKU comes in a brushed nickel trim finish that blends beautifully with stainless appliances and modern hardware.

Light quality you can see
A typical CRI of 90 means whites stay crisp and colours stay honest — a detail you notice immediately on kitchen backsplashes, hardwood floors, artwork and retail merchandise. The fixture puts out up to 1035 lumens from 12 watts (92 lumens per watt) in a warm 3000 K colour temperature, and the lens delivers a controlled 40° beam spread that works for both general ambient lighting and accent work. Because output holds uniform intensity across the lens, rows of fixtures read evenly instead of showing hot spots.

Electrical, dimming and installation
Power comes from an extruded aluminum hardwire box housing a 300mA dimmable class II electronic LED driver with 100-135V AC input. An 18" FT6 rated cable with a DC 2.1 connector links the driver to the fixture and is approved for use in plenums and suspended ceilings. Three quick connect push-in terminals make wiring fast on site, and two spring loaded clips hold the fixture in any ceiling material. Cut a Ø 4 3⁄16" (106mm) hole, connect, push up — done. Dimming runs from 100% to 10% with industry standard TRIAC/ELV dimmers, and operating temperature is rated -20°C~40°C (-4°F~104°F). The fixture is suitable for insulated ceiling applications, approved for direct contact with insulation and tested with insulation up to R60; a vapour barrier extender is recommended in spray foam and loose fill applications.

Technical specifications
Model: RA4-12G-DTW-90BN
Application: Ceiling Recess Mount
Approved location: Wet / Insulated Ceilings
Wattage: 12W
Lumens: 1035
Lumens per watt: 92
CCT: 3000 K
CRI: 90
Beam angle: 40°
Input: 100-135V AC, 60Hz
Dimming: Yes, TRIAC/ELV, 100%-10%
Power factor: 0.95
Hole cut: Ø 4 3⁄16" (106mm)
Class II: Yes
Certification: cETLus, Energy Star, LM79, LM80
Projected life: 70% @ 50,000 hrs
Warranty: Lifetime

Applications, compatible products and documentation
Think kitchens and islands, bathrooms and showers (wet location rated), basements, stairwells, hallways, covered entries and porches, plus offices, clinics, boutiques and restaurants where commercial recessed LED lighting needs to look sharp and stay maintenance-free. Accessories designed for 4" LUNA LED fixtures include the P-4020 pre-mounting plate and P-4020NC new construction plate with driver attachment clip, the P-4024 24" pre-mounting plate, the P-NCMK-1 new construction mounting kit with hanger bars, and VBE-1 to VBE-4 vapour barrier extenders for new construction and remodel work, along with RA4-XLRING reducer rings for 4" LUNA fixtures (accessories sold separately). Matching the rest of the ceiling is easy with the 4" LUNA gimbal fixture RA4-12G-90BN, the RA4-12G-30K-90WH in white or the deeper-set 4" LUNA regressed gimbal fixture RA4-12RG-90BK. The full technical PDF spec sheet is available in the Documentation tab for your electrician, inspector or lighting layout.
