3" LUNA LED SQUARE GIMBAL RECESSED FIXTURE - RA3S-7G-50K-90WH

Name: 3" LUNA LED SQUARE GIMBAL RECESSED FIXTURE - RA3S-7G-50K-90WH
Brand: LITELINE
SKU: RA3S-7G-50K-90WH
Price: 70.97 CAD
Availability: InStock

SKU: RA3S-7G-50K-90WH

Brand: LITELINE

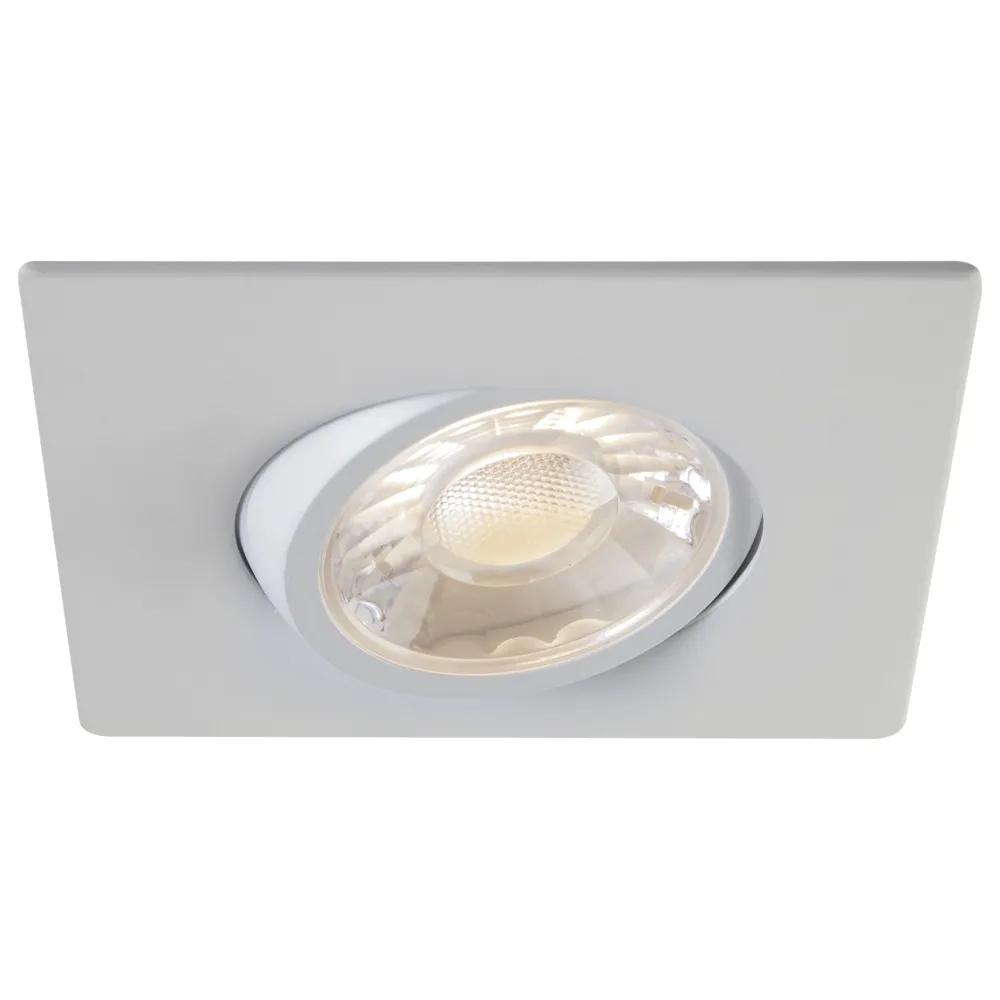

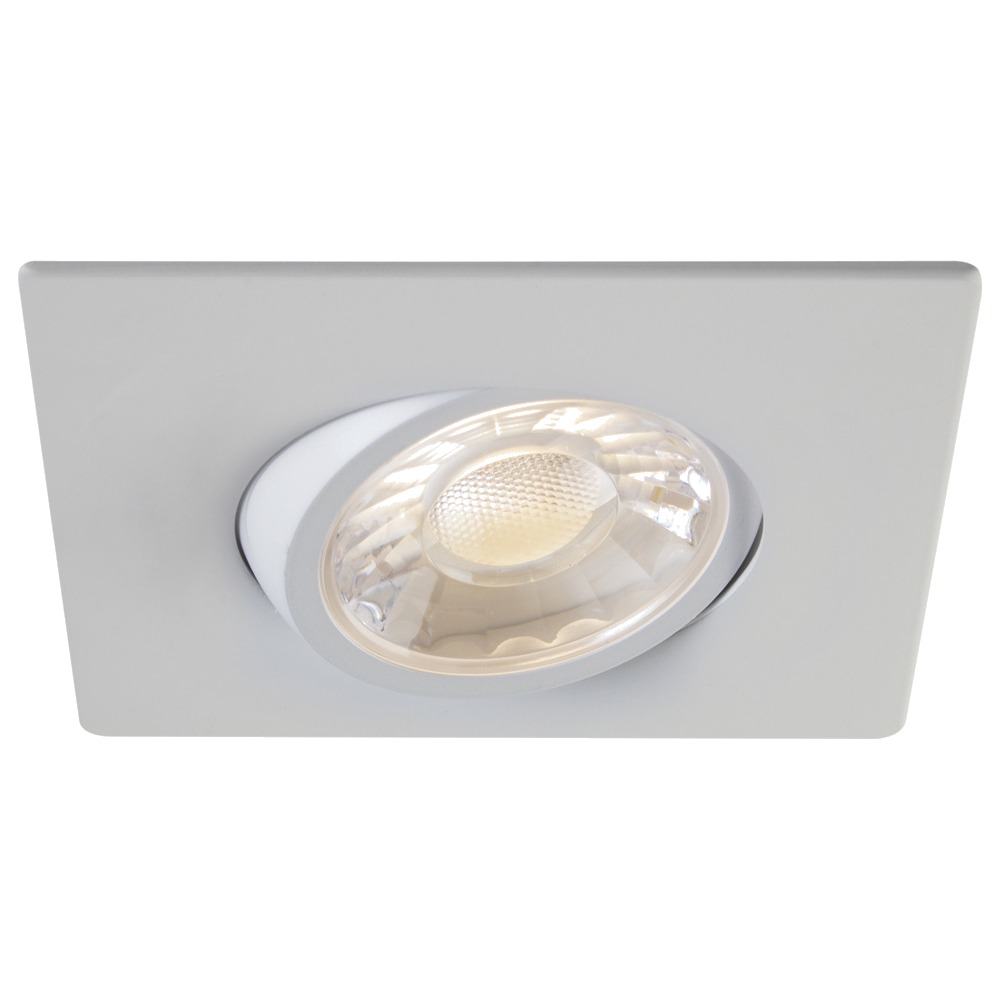

Small aperture, big personality: the 3" LUNA LED square gimbal recessed fixture (SKU RA3S-7G-50K-90WH) is the little square pot light that lets you aim your light exactly where you want it. Shoppers looking for square downlights, adjustable recessed lights, directional LED recessed fixtures or a tidy 3-inch downlight for low-profile ceilings land here for a reason: the gimbal tilts so you can wash a stone fireplace, graze a brick wall, light artwork, or simply drop clean pools of light over a kitchen island. It installs in a small round ceiling cut-out, so you get a modern square trim without the bulky housing of older cans — perfect for renovations, new builds, condos, offices and boutiques alike.

This is a 7 watt LED downlight delivering up to 745 lumens at 96 lumens per watt, with a typical CRI of 90 so skin tones, wood grain, paint colours and merchandise all look true. The lens creates a 45° beam spread, and the fixture is fully dimmable with industry-standard TRIAC/ELV dimmers thanks to its 170mA class II electronic driver running on 100-135V AC, 50/60Hz. The durable airtight aluminum body carries an anodized blue heat sink for maximum airflow around the LED, the power factor is 0.95, and projected life is 70% at 33,000 hrs. It is cETLus certified, rated for wet locations and approved for direct contact with insulation, with a lifetime warranty and a white trim finish.

Put it over a shower or a covered porch, in a bathroom, hallway, walk-in closet, basement, retail display or restaurant dining room — the wet-location rating and -40°C to +40°C operating range suit Canadian homes and businesses from coast to coast. The hole cut is Ø 2 3/4" (70mm), two spring-loaded clips hold it in any ceiling material, and three quick-connect push-in terminals make wiring fast. Prefer a warmer glow that dims like a filament bulb? Look at the 3" Luna LED square gimbal recessed fixture RA3S-7G-DTW-90WH or the black RA3S-7G-DTW-90BK. Order yours and start aiming light where it matters.

Built to last, built to aim
The Luna 3" square gimbal is built around a durable airtight aluminum body with an adjustable gimbal, so the light head tilts inside the trim to point exactly where you need it. An anodized blue heat sink sits behind the LED module to provide maximum airflow and keep the light source cool, which is what protects lumen output and colour over the long run. The recessed mount sits nearly flush in the ceiling, and the square trim gives a crisp architectural look that plays well with modern millwork, flat ceilings and tight bulkheads where a full-size can simply will not fit.

Light quality you can see
This general application fixture uses a 7 watt LED module that maintains uniform intensity and produces up to 745 lumens, a solid 96 lumens per watt. The typical CRI of 90 renders colours honestly — a real advantage over kitchen counters, in bathrooms with a mirror, and in retail spaces where fabric and packaging colours have to look right. The lens shapes a 45° beam spread, wide enough for general recessed downlighting and tight enough for accenting when you tilt the gimbal toward a wall or a display.

Technical specifications
SKU: RA3S-7G-50K-90WH
Brand: LITELINE
Wattage: 7W
Lumens: 745
Lumens per watt: 96
CRI: 90
Beam angle: 45°
Input: 100-135V AC, 50/60Hz
Dimming: Yes, TRIAC/ELV
Power factor: 0.95
Hole cut: Ø 2 3/4" (70mm)
Application: Ceiling recess mount
Approved location: Wet / insulated ceilings
Operating temperature: -40°C+40°C (-40°F+104°F)
Projected life: 70% @ 33,000 hrs
Certification: cETLus, Class II, LM79, LM80
Colour: White trim
Warranty: Lifetime

Wiring and installation
Power comes from an extruded aluminum hardwire box housing a 170mA dimmable class II electronic driver. Three "quick connect" push-in terminals make line, neutral and ground connections fast, and an 18" FT6 rated cable with a DC 2.1 connector links the driver to the fixture — a cable approved for use in plenums and suspended ceilings. Two spring-loaded clips let the trim attach to any ceiling material, and because the fixture is approved for direct contact with insulation and for wet locations, it can go straight into an insulated attic ceiling, a shower ceiling or a soffit. Pair it with industry-standard TRIAC/ELV dimmers; accessories such as vapour barrier extenders and mounting kits are sold separately.

Where to use it, and documentation
Think a row over a kitchen peninsula, tilted downlights along a hallway gallery wall, bathroom and ensuite ceilings, basement renovations with limited plenum depth, covered patios and porches, plus offices, clinics, cafés and small retail stores that need clean, uniform square downlights. Matching the rest of the room is easy within the same family: see the RA3S-7G-30K-90WH and RA3S-7G-27K-90WH in white, or the black RA3S-7G-35K-90BK for a contrast trim. The full technical PDF spec sheet is available in the Documentation tab for cut-out dimensions, driver details and approvals before you order.
