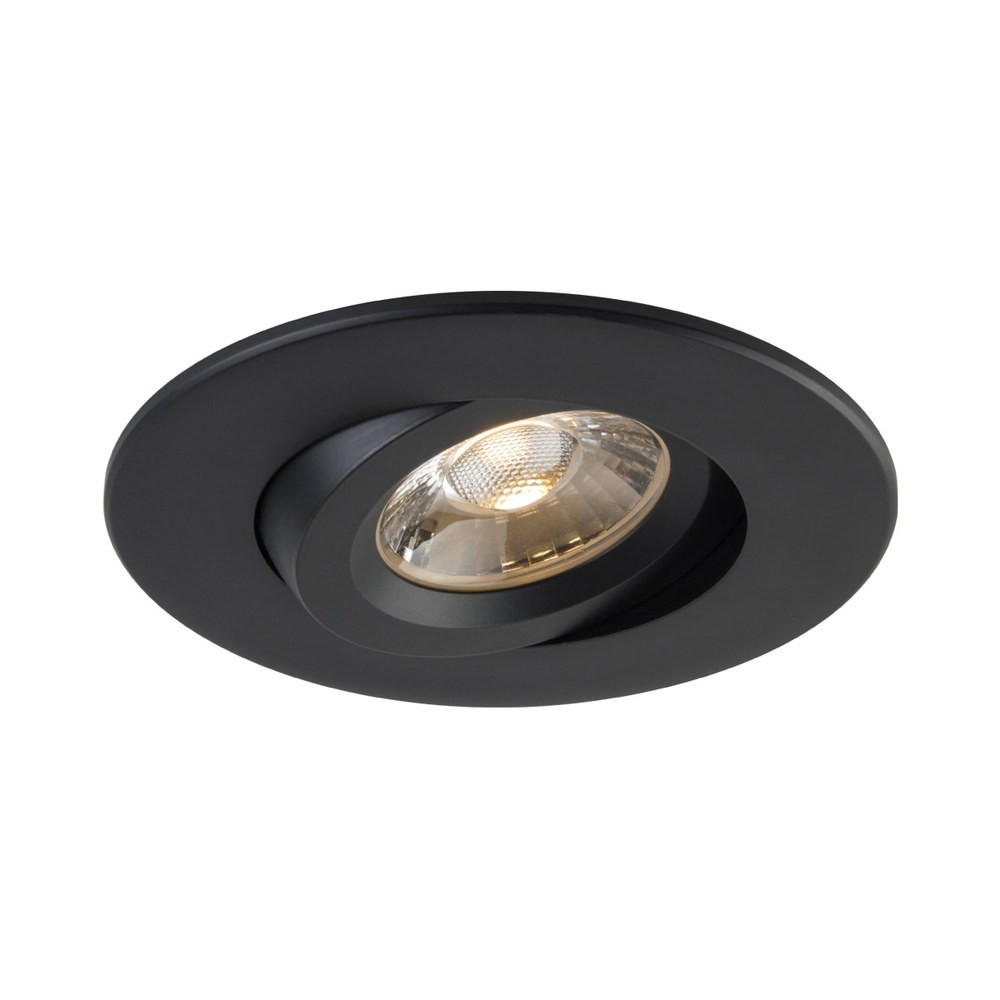

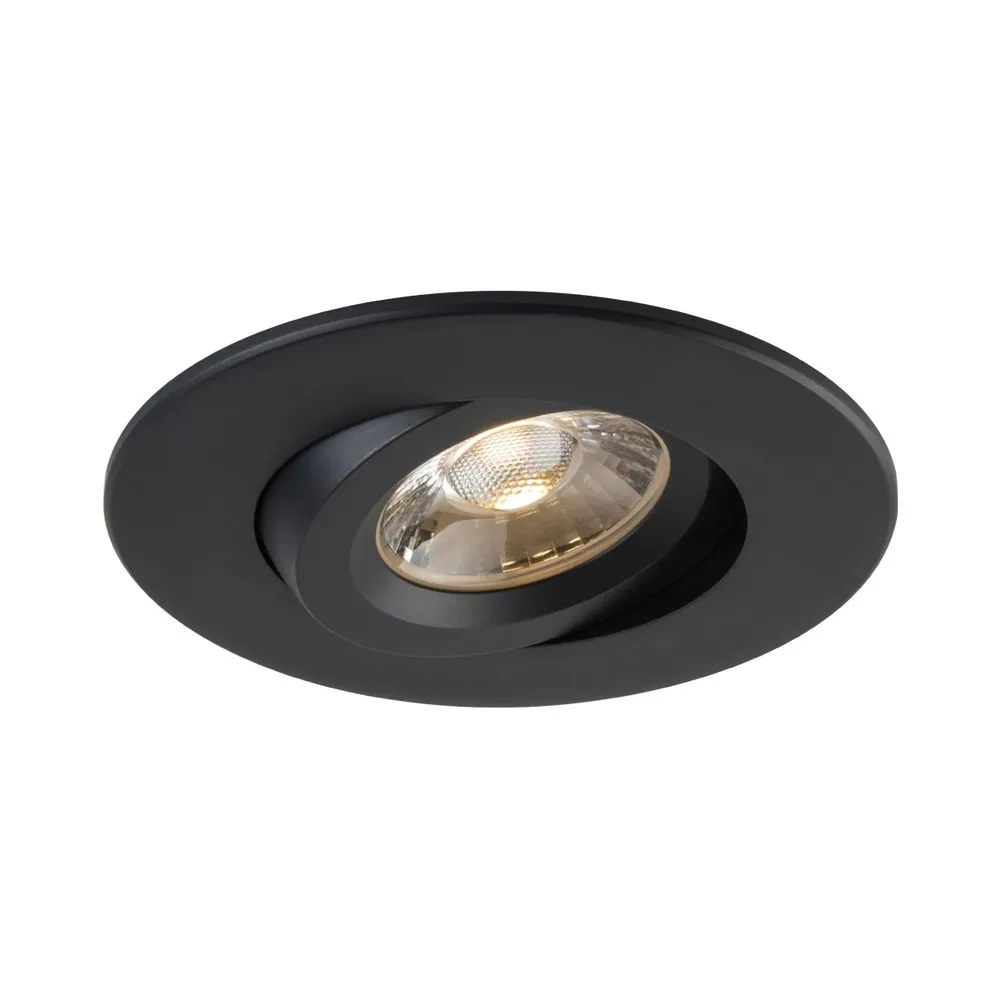

4" LUNA LED ROUND GIMBAL RECESSED FIXTURE - RA4-12G-90BK

Name: 4" LUNA LED ROUND GIMBAL RECESSED FIXTURE - RA4-12G-90BK
Brand: LITELINE
SKU: RA4-12G-90BK
Price: 81.97 CAD
Availability: InStock

SKU: RA4-12G-90BK

Brand: LITELINE

Aim your light exactly where you want it. The 4" LUNA LED round gimbal recessed fixture (SKU RA4-12G-90BK) is a tilting recessed downlight — what most people call a 4 inch pot light, gimbal LED, or directional recessed light — finished in a sharp black trim that disappears into dark ceilings and frames beautifully on white ones. Because the gimbal pivots, one fixture can wash a stone fireplace, graze a feature wall, highlight artwork, or simply drop clean general light over a kitchen island. It installs as an easy retrofit or in new construction, and it's built for both residential renovations and commercial fit-outs.

Under the hood, a 12 watt LED module delivers up to 1035 lumens at 92 lumens per watt, with a warm, inviting 3000 K colour temperature and a typical CRI of 90 so wood tones, paint colours, skin and food all look true. The 40° beam spread gives you a controlled, punchy pool of light rather than a fuzzy glow. The durable airtight aluminum body carries an adjustable gimbal and an anodized blue heat sink for maximum airflow, while the extruded aluminum hardwire box holds a 300 mA dimmable Class II electronic driver with 100-135 V AC, 60 Hz input. Dimming runs smoothly from 100% to 10% on industry-standard TRIAC/ELV dimmers, power factor is 0.95, and the fixture is cETLus certified, ENERGY STAR qualified, LM79 and LM80 tested, rated for wet locations and direct contact with insulation, with a projected life of 70% at 50,000 hours and a lifetime warranty.

Put it in kitchens, hallways, bathrooms and covered porches, in a basement reno, a condo, a boutique, a café, a clinic waiting room or an office corridor — anywhere Canadian ceilings need tidy, aimable light that handles insulated assemblies and damp air. The hole cut is Ø 4 3⁄16" (106 mm) and two spring-loaded clips grab any ceiling material. Prefer a deeper, glare-reduced look? Compare it with the 4" Luna LED round regressed gimbal recessed fixture RA4-12RG-90BK, or match the same fixture in white or brushed nickel. Order your Luna gimbals and light every corner the way you planned it.

Built to last, built to aim
The LUNA RA4-12G starts with a durable airtight aluminum body wrapped around an adjustable gimbal, so the optic tilts to place light exactly where the design calls for it. An anodized blue heat sink sits behind the LED source to provide maximum airflow and keep operating temperatures in check — the reason a 4" gimbal recessed light like this can be approved for direct contact with insulation and tested with insulation up to R60. The black trim finish (BK) is the quiet choice for dark-painted ceilings, media rooms and modern interiors where you want the light, not the fixture.

Light quality you can see
The 12 watt LED module maintains uniform intensity and produces up to 1035 lumens at a warm 3000 K, the temperature most Canadian homeowners pick for living spaces. A typical CRI of 90 renders whites crisp and colours honestly, which matters over a kitchen counter, in a retail display or in a bathroom mirror zone. The lens delivers a 40° beam spread — tight enough to accent, wide enough to lay out on a grid for general recessed downlighting. At 92 lumens per watt with a 0.95 power factor, it earns its ENERGY STAR qualification and cuts energy dramatically compared with old halogen pot lights.

Electrical, dimming and installation
Power comes from an extruded aluminum hardwire box housing a 300 mA dimmable Class II electronic LED driver with 100-135 V AC, 60 Hz input. An 18" FT6-rated cable with a DC 2.1 connector links driver to fixture and is approved for use in plenums and suspended ceilings, and three "Quick connect" push-in terminals make wiring fast on site. Dimming is 100%-10% with industry standard TRIAC/ELV dimmers. Cut a Ø 4 3⁄16" (106 mm) hole, feed the fixture through and let the two spring-loaded clips lock it into drywall, plaster or panel. Operating temperature range is -20°C~40°C (-4°F~104°F), and the fixture is suitable for wet locations and insulated ceiling applications.

Technical specifications
Model: RA4-12G-90BK
Application: Ceiling Recess Mount
Approved location: Wet / Insulated Ceilings
Wattage: 12W
Lumens: 1035
Lumens per watt: 92
CCT: 3000 K
CRI: 90
Beam angle: 40°
Input: 100-135V AC, 60Hz
Dimming: Yes, TRIAC/ELV, 100%-10%
Power factor: 0.95
Hole cut: Ø 4 3⁄16" (106mm)
Dimensions: 5 1⁄16" (128mm) x 1 7⁄8" (46mm)
Colour: BK (Black)
Certification: cETLus, Energy Star, LM79, LM80
Class II: Yes
Operating temperature: -20°C~40°C (-4°F~104°F)
Projected life: 70% @ 50,000 hrs
Warranty: Lifetime

Applications, accessories and documentation
Think kitchen and island lighting, hallways, staircases, walk-in closets, bathrooms and covered entries at home; boutiques, cafés, dental and medical clinics, salons, showrooms and offices on the commercial side — anywhere an aimable 4 inch pot light beats a fixed downlight. Liteline offers accessories sold separately, including the P-4020 pre-mounting plate and P-4020NC new construction plate for 4" LUNA fixtures, the P-4024 pre-mounting plate, the P-NCMK-1 new construction mounting kit, VBE vapour barrier extenders (VBE-1 for new construction, VBE-2, VBE-3 and VBE-4 for remodel — recommended in spray foam and loose fill applications) and RA4-XLRING reducer rings for 4" LUNA fixtures. Within the family, the RA4-12G-DTW-90BK dim-to-warm version and the RA4-12RG-90BK regressed gimbal share the same 4" platform for mixed layouts. The full technical PDF (RA4-12G-90BK Spec Sheet) is in the Documentation tab for dimensions, ordering guide and approvals.
