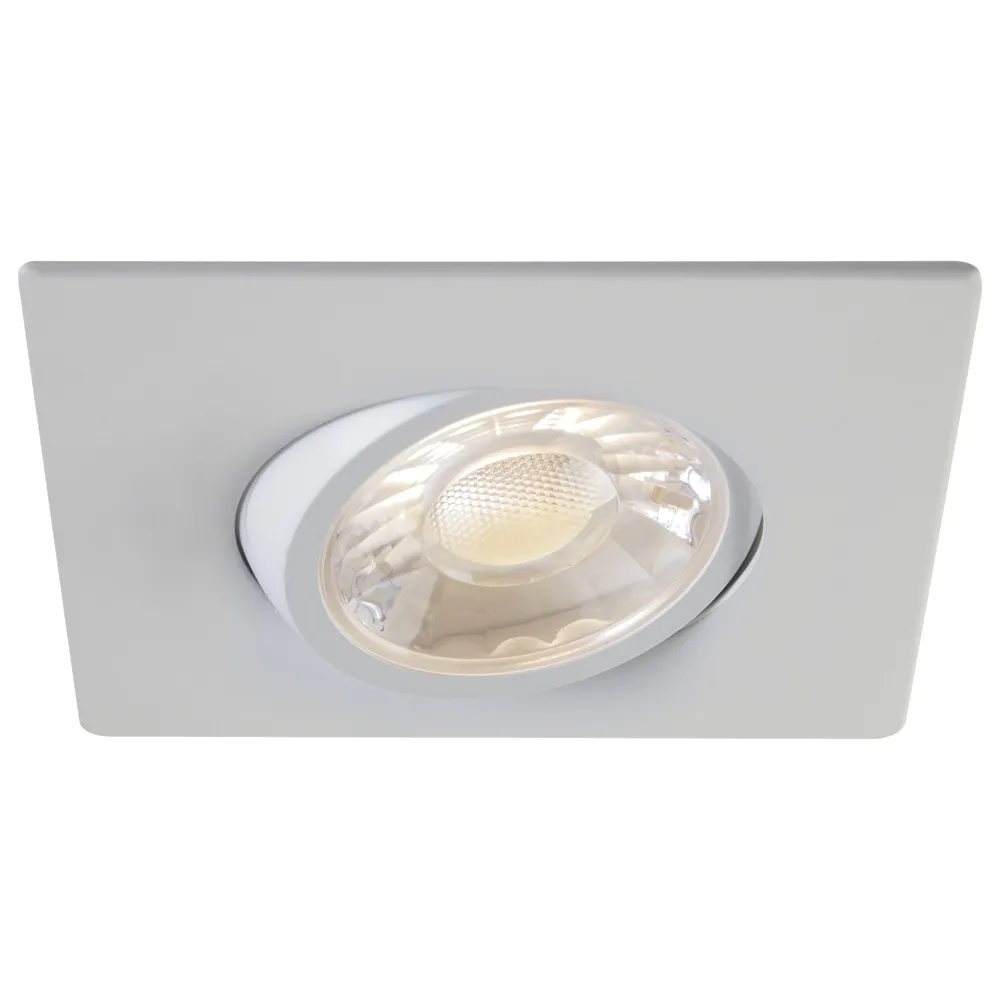

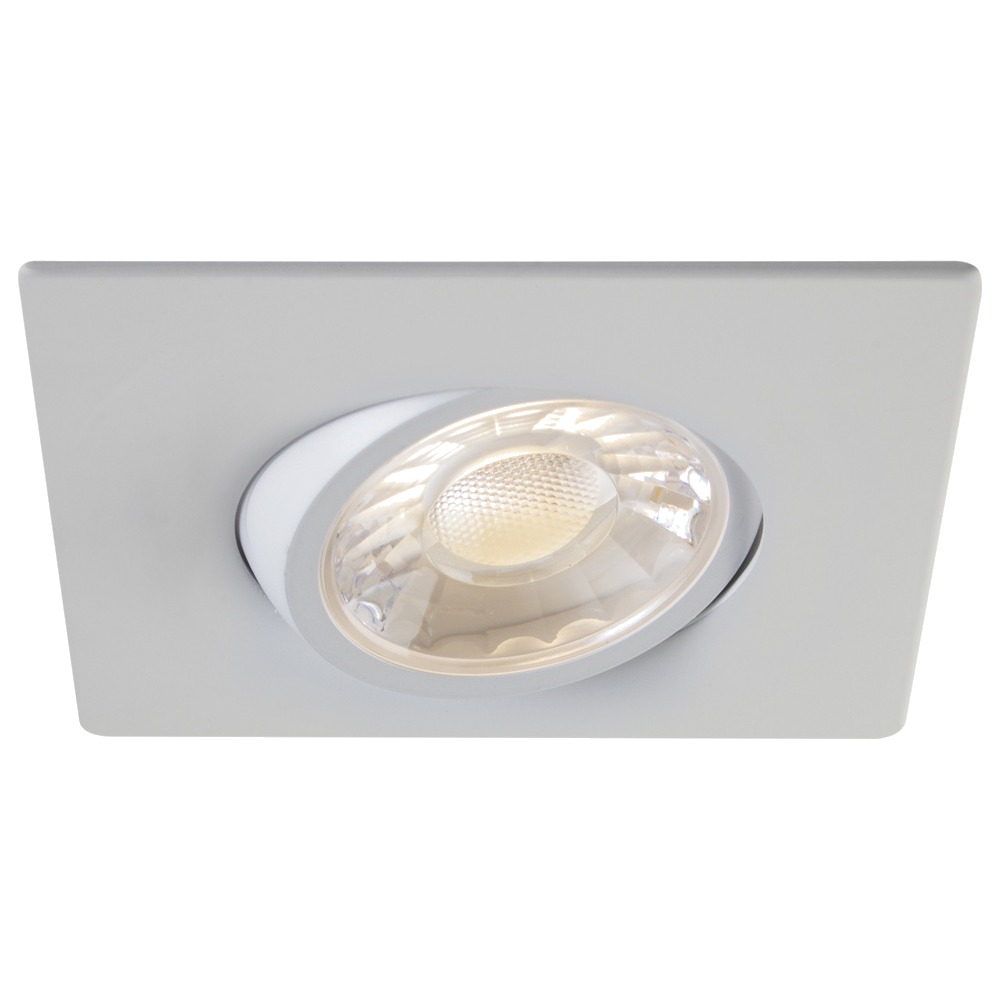

3" LUNA LED SQUARE GIMBAL RECESSED FIXTURE - RA3S-7G-DTW-90WH

Name: 3" LUNA LED SQUARE GIMBAL RECESSED FIXTURE - RA3S-7G-DTW-90WH
Brand: LITELINE
SKU: RA3S-7G-DTW-90WH
Price: 73.97 CAD
Availability: InStock

SKU: RA3S-7G-DTW-90WH

Brand: LITELINE

Warm, cozy light that dims like a candle — that's the promise of the 3" LUNA LED Square Gimbal Recessed Fixture RA3S-7G-DTW-90WH by LITELINE. Call it a square downlight, a pot light, a 3-inch recessed gimbal or simply a tiltable LED insert: this is the small-aperture fixture people reach for when they want precise, adjustable light without a bulky housing. The adjustable gimbal lets you aim the beam exactly where it matters — a stone backsplash, a fireplace wall, artwork, a staircase — while the square trim in a clean white finish keeps ceilings crisp and modern. It's a retrofit-friendly recessed downlight built for both homes and commercial rooms, and its dim-to-warm behaviour makes it a favourite for living spaces where ambiance matters as much as brightness.

Under the trim, a 7 watt LED module delivers up to 745 lumens at an efficient 96 lumens per watt, with a typical CRI of 90 so wood tones, paint colours and skin tones all look true. The dim-to-warm engine shifts from 3000 K down to 1800 K as you lower the level, recreating that candle-glow effect of classic incandescent lighting. Dimming is handled by standard TRIAC/ELV dimmers through a 170 mA dimmable Class II electronic driver with 100-135V AC, 50/60Hz input and a 0.95 power factor. The lens gives a 45° beam spread, the airtight aluminum body carries an anodized blue heat sink for cooling, and the fixture is cETLus certified, LM79 and LM80 tested, suitable for wet locations, approved for direct contact with insulation, rated for -40°C to +40°C operation, with projected life of 70% at 33,000 hrs and a lifetime warranty. Hole cut is Ø 2 3/4" (70mm).

Use it over kitchen islands and hallways, in bathrooms and covered porches thanks to the wet location rating, in insulated ceilings of Canadian homes, or across boutiques, restaurants and hotel lobbies where warm dimming sets the mood. Two spring-loaded clips and three Quick Connect push-in terminals make installation fast, and an 18" FT6 rated cable with DC 2.1 connector links driver to fixture for plenum and suspended ceiling use. Prefer a darker trim? See the matching 3" Luna LED square gimbal recessed fixture RA3S-7G-DTW-90BK, or choose a single fixed colour temperature with the 3" Luna LED square gimbal recessed fixture RA3S-7G-30K-90WH. Order your LUNA gimbals today and light your project the way you imagined it.

Built to last, built to breathe
The RA3S-7G-DTW-90WH is built around a durable airtight aluminum body with an adjustable gimbal, so you get a solid 3" recessed downlight that also aims. An anodized blue heat sink inside provides maximum airflow to the LED light source, which is exactly what keeps output and colour stable year after year in a small aperture. The white square trim suits modern ceilings, and because the fixture is approved for direct contact with insulation and suitable for wet locations, it works in the tight, insulated, sometimes humid ceilings we deal with across Canada — from a Montréal condo bathroom to a covered deck in the Maritimes.

Dim-to-warm light quality
This general application fixture features a 7 watt LED module that maintains uniform intensity producing up to 745 lumens, with a typical CRI of 90. What sets the DTW version apart is colour temperature dimming from 3000 K to 1800 K: turn the dimmer down and the light deepens into a warm, candle-like glow instead of staying flat and clinical. Pair that with the 45° beam spread from the lens and you get controlled, glare-conscious square downlights that highlight surfaces rather than wash everything out.

Technical specifications
Model: RA3S-7G-DTW-90WH
Wattage: 7W
Lumens: 745
Lumens per watt: 96
CCT: 3000 K~1800 K
CRI: 90
Beam angle: 45°
Input: 100-135V AC, 50/60Hz
Dimming: Yes — TRIAC/ELV
Power factor: 0.95
Hole cut: Ø 2 3/4" (70mm)
Application: Ceiling recess mount
Approved location: Wet / insulated ceilings
Operating temperature: -40°C+40°C (-40°F+104°F)
Class II: Yes
Certification: cETLus
LM79 / LM80: Yes
Projected life: 70% @ 33,000 hrs
Warranty: Lifetime
Colour: WH

Wiring and installation
Power comes from an extruded aluminum hardwire box housing a 170mA dimmable Class II electronic driver with 100-135V AC input. An 18" (457mm) FT6 rated cable with a DC 2.1 connector joins the driver to the fixture and is approved for use in plenums and suspended ceilings. Three Quick Connect push-in terminals mean no wire nuts and far less time on the ladder, and two spring-loaded clips let the fixture attach to any ceiling material through the Ø 2 3/4" (70mm) hole. For dimming, use industry standard TRIAC/ELV dimmers. Accessories such as vapour barrier extenders, a new construction mounting kit, a pre-mounting plate and a flexible connector are sold separately — a real help when a recessed lighting vapor barrier detail is required by your inspector.

Applications, family and documentation
Think kitchen perimeters and islands, hallways, walk-in closets, bathrooms and covered entries at home; and boutiques, cafés, clinic waiting rooms, hotel corridors and restaurant dining rooms on the commercial side, where warm dimming at night is a signature. The same square gimbal is available in other finishes and fixed colour temperatures, including 3" Luna LED square gimbal recessed fixture RA3S-7G-DTW-90BK, 3" Luna LED square gimbal recessed fixture RA3S-7G-27K-90WH and 3" Luna LED square gimbal recessed fixture RA3S-7G-35K-90BN, so you can mix trims in one job. The full technical spec sheet for this SKU is available in the Documentation tab for your submittals, dimensions and electrical details.
