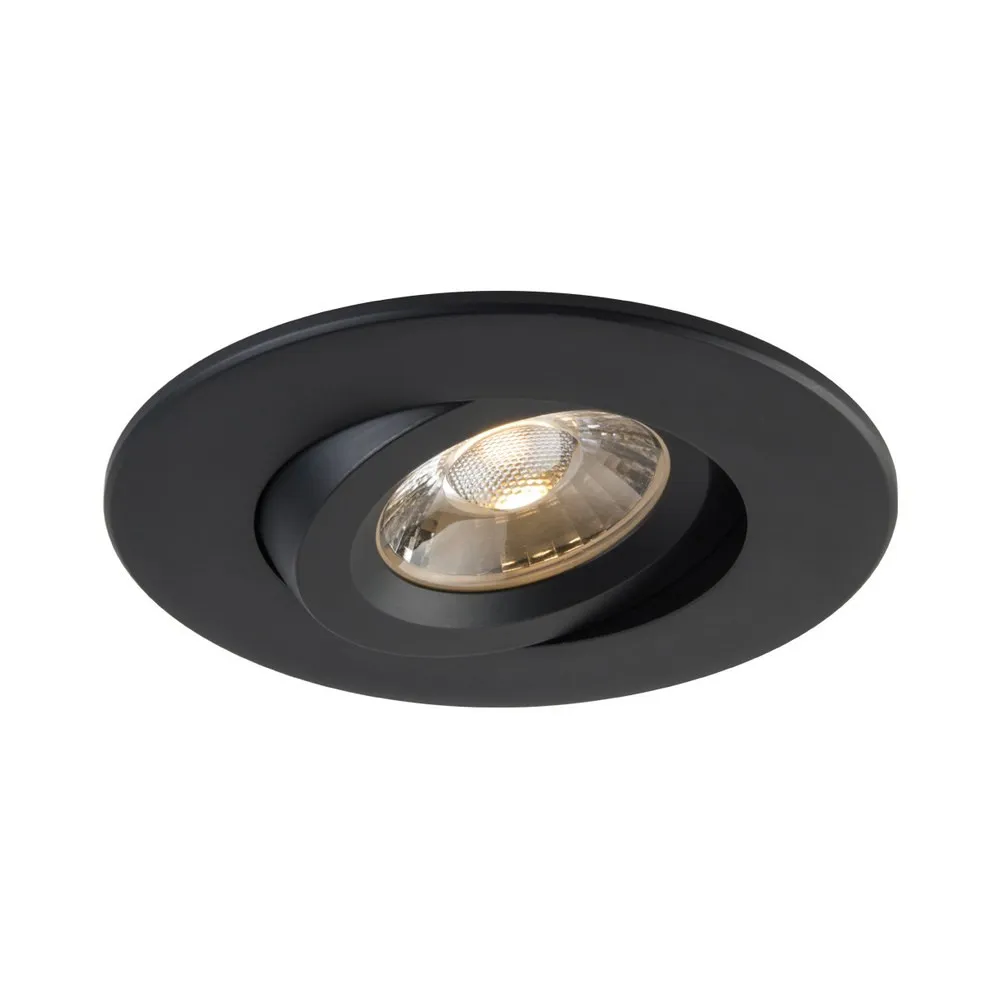

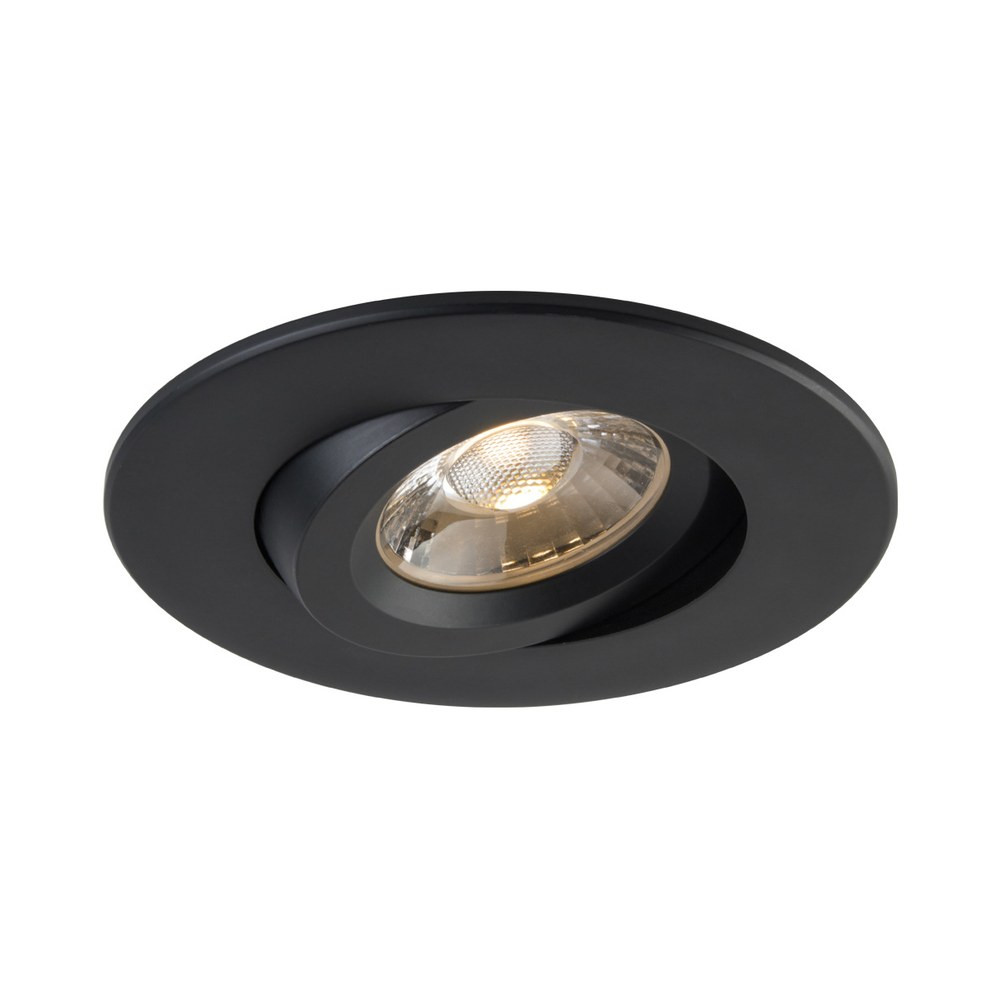

4" LUNA LED ROUND GIMBAL RECESSED FIXTURE - RA4-12G-DTW-90BK

Name: 4" LUNA LED ROUND GIMBAL RECESSED FIXTURE - RA4-12G-DTW-90BK
Brand: LITELINE
SKU: RA4-12G-DTW-90BK
Price: 81.97 CAD
Availability: InStock

SKU: RA4-12G-DTW-90BK

Brand: LITELINE

Say goodbye to harsh, one-size-fits-all ceiling light: the 4" LUNA LED round gimbal recessed fixture (SKU RA4-12G-DTW-90BK) from LITELINE is the little black pot light that finally lets you aim your light exactly where you want it. Known to contractors and homeowners alike as a 4-inch recessed downlight, gimbal pot light, adjustable round LED light or directional downlight, it combines a tilting gimbal with regressed optics for a low-glare beam you can point at artwork, a backsplash, a fireplace or a feature wall. The black trim finish disappears into the ceiling by day and frames the light beautifully at night — ideal for new construction, renovations, retail fit-ups and any project where you want a clean ceiling and flexible, directional lighting.

Built around a durable airtight aluminum body with an anodized blue heat sink for maximum airflow, this LUNA delivers up to 1111 lumens at 12W (up to 91 lumens per watt) with a typical CRI of 96, so skin tones, wood grain and paint colours look exactly as they should. An on-fixture color selectable switch gives you five colour temperatures — 2700 K, 3000 K, 3500 K, 4000 K and 5000 K — chosen right at installation. Input is 100-135V AC, 60Hz, the beam spread is 40°, and dimming runs from 100% down to 10% with standard forward-phase / reverse-phase and TRIAC/ELV dimmers. It is cETLus certified, Energy Star, Class II, power factor 0.9, rated for wet locations and direct contact with insulation, airtight, projected at 70% output @ 50,000 hrs and backed by a lifetime warranty.

Drop these into kitchens, hallways, bathrooms and covered porches at home, or into boutiques, cafés, clinics and offices where accent lighting sells the space. The Ø 4 1/4" (108mm) hole cut, two spring-loaded clips and three Quick Connect push-in terminals make retrofits and new builds fast, and the -20°C~40°C operating range plus insulated-ceiling approval suit Canadian homes from basement to soffit. Prefer a fixed colour or a different finish? See the 4" LUNA LED round gimbal recessed fixture RA4-12G-30K-90BK, the white 4" LUNA LED round gimbal recessed fixture RA4-12G-90WH, or the deeper 4" LUNA LED round regressed gimbal recessed fixture RA4-12RG-90BK. Light your project your way — add the LUNA gimbal to your order today.

Built to last, built to aim
The LUNA gimbal starts with a durable airtight aluminum body and an adjustable gimbal that tilts 20° to either side, so a single 4" recessed pot light can wash a wall, graze a stone fireplace or highlight shelving without adding a separate accent fixture. An anodized blue heat sink sits behind the LED module to provide maximum airflow to the light source, which is exactly what keeps output and colour stable over the long haul. The fixture measures 5 1/16" (128mm) across the trim with a 4 3/16" (106mm) face, 3 3/8" (85mm) deep plus a 15/16" (34mm) and 2" (51mm) profile, and it installs in a Ø 4 1/4" (108mm) hole cut. The black trim keeps the ceiling visually quiet in dark-painted rooms and modern interiors.

Light quality and colour selection
The LED module maintains uniform intensity and produces up to 1111 lumens with a typical CRI of 96 — high-fidelity colour rendering that flatters kitchens, retail displays and bathroom mirrors alike. The on-fixture color selectable switch offers five colour temperatures: 995 lumens at 2700 K, 1040 lumens at 3000 K, 1090 lumens at 3500 K, 1110 lumens at 4000 K and 1085 lumens at 5000 K on the 12W setting. That means one box on the truck can serve a warm living room and a crisp garage on the same job. The lens delivers a controlled 40° beam spread, and regressed optics keep glare out of sightlines.

Technical specifications
SKU: RA4-12G-DTW-90BK
Application: Ceiling Recess Mount
Approved location: Wet / Insulated Ceilings
Wattage: 9W / 12W
Lumens: Up to 1111
Lumens per watt: Up to 91
CCT (color selectable): 2700 K / 3000 K / 3500 K / 4000 K / 5000 K
CRI: 96
Beam angle: 40°
Input: 100-135V AC, 60Hz
Dimming: Yes, 100%-10%, forward/reverse-phase, TRIAC/ELV
Power factor: 0.9
Hole cut: Ø 4 1/4" (108mm)
Operating temperature: -20°C~40°C (-4°F~104°F)
Certification: cETLus, Energy Star, Class II
Projected life: 70% @ 50,000 hrs
Warranty: Lifetime
Finish: Black (BK)

Electrical and installation
An extruded aluminum hardwire box houses a dimmable Class II electronic LED driver — 12 watt (300mA) or 9 watt (210mA) — with 100-135V AC input, and an 18" (457mm) FT6 rated cable with a DC 2.1 connector links driver to fixture, approved for use in plenums and suspended ceilings. Three Quick Connect push-in terminals speed up wiring, and two spring-loaded clips let the fixture mount to virtually any ceiling material. It is airtight, suitable for wet locations, approved for direct contact with insulation and tested with insulation up to R60; a VBE vapour barrier extender is recommended in spray foam and loose fill applications, a detail that matters in Canadian builds where recessed lighting vapour barrier compliance is checked. For new construction, mounting plates, new construction plates and hanger-bar kits are available as accessories, sold separately.

Applications, family and documentation
Use rows of these gimbal downlights to graze a kitchen backsplash, angle them over a retail display wall, tuck them into a covered porch ceiling, or mix straight-down and tilted units in a hallway gallery. Because the LUNA line shares the same 4" platform, you can match finishes and apertures across a whole project: the fixed-CCT 4" LUNA LED round gimbal recessed fixture RA4-12G-30K-90WH, the regressed 4" LUNA LED round regressed gimbal recessed fixture RA4-12RG-90WH and the smart LUNA 4" OnCloud RGBTW RA4-12RG-RGBTW-90BK all live in the same family. The full technical PDF (RA4-12G-DTW-90BK Spec Sheet) with dimensions, lumen table, ordering guide and accessory list is in the Documentation tab.
