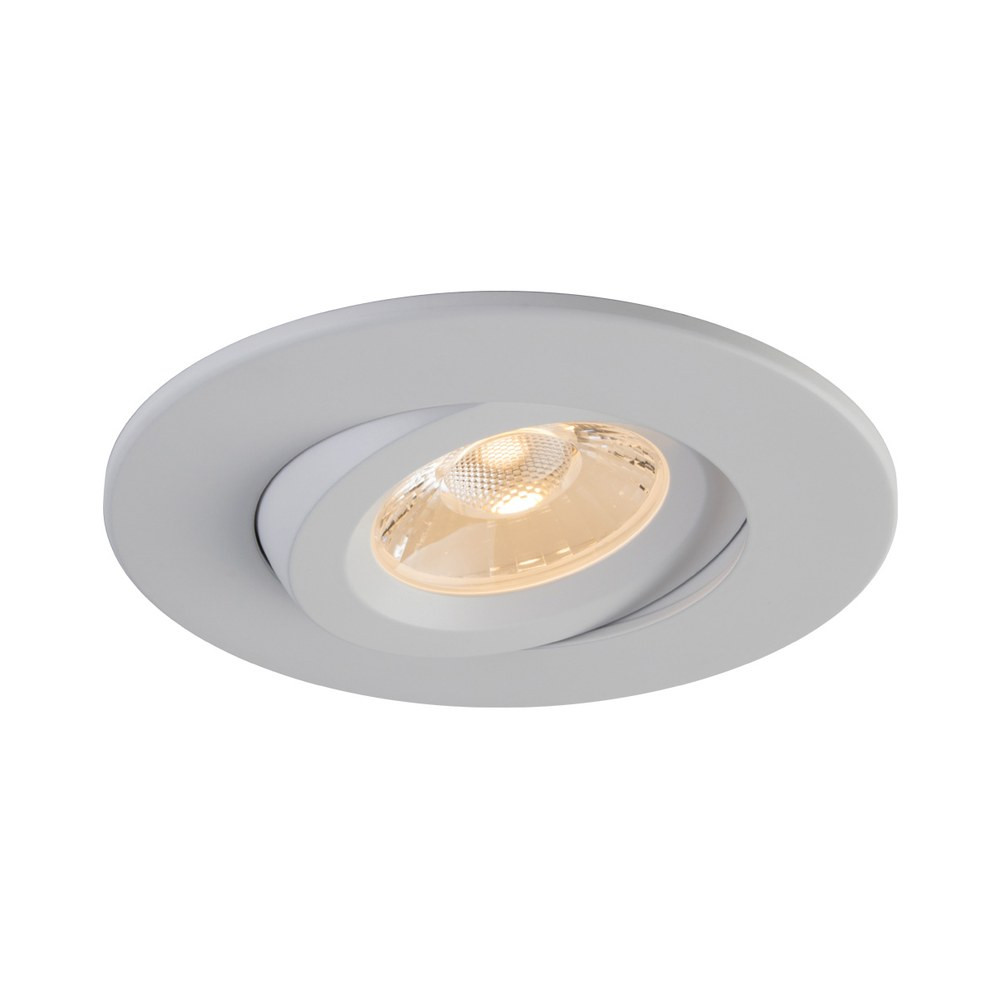

4" LUNA LED ROUND GIMBAL RECESSED FIXTURE - RA4-12G-DTW-90WH

Name: 4" LUNA LED ROUND GIMBAL RECESSED FIXTURE - RA4-12G-DTW-90WH
Brand: LITELINE
SKU: RA4-12G-DTW-90WH
Price: 81.97 CAD
Availability: InStock

SKU: RA4-12G-DTW-90WH

Brand: LITELINE

Turn a flat ceiling into a room that actually feels designed. The 4" LUNA LED round gimbal recessed fixture (SKU RA4-12G-DTW-90WH) by LITELINE is the little workhorse people look for when they search for pot lights, round LED lights, recessed downlights or a surface mount downlight alternative that can be aimed exactly where the light is needed. Its adjustable gimbal tilts so you can wash a stone fireplace, graze a feature wall, pick out artwork, or simply push light onto a kitchen counter instead of the middle of the floor. With its clean white trim, it disappears into the ceiling and lets the light — not the fixture — do the talking, in both homes and commercial spaces.

Under that streamlined trim is a 12 watt LED module delivering up to 1035 lumens at 92 lumens per watt, with a typical CRI of 90 so wood grain, paint colours, skin tones and merchandise all look true. The lens creates a 40° beam spread, wide enough for general lighting and tight enough to feel intentional. It runs on 100-135V AC, 60Hz through a 300mA dimmable Class II electronic driver, with 100%-10% dimming on industry-standard TRIAC/ELV dimmers and a 0.95 power factor. The airtight aluminum body with anodized blue heat sink is built for a projected life of 70% at 50,000 hours, backed by a lifetime warranty. It is cETLus certified, Energy Star, LM79 and LM80 tested, approved for wet locations and for direct contact with insulation, with a Ø 4 3⁄16" (106mm) hole cut, operating from -20°C to 40°C.

Because it is rated for wet locations and insulated ceilings, this 4" gimbal recessed light is at home over a shower, in a covered porch or soffit, in a basement reno, a hallway, a retail display or a café — exactly the Canadian mix of humidity, spray foam and R-value ceilings we all deal with. It mounts with two spring-loaded clips into any ceiling material, and three quick-connect push-in terminals make wiring fast. Want the same fixture in another look or a fixed 3000 K version? See the 4" Luna LED round gimbal recessed fixture RA4-12G-DTW-90BK, the brushed nickel RA4-12G-DTW-90BN or the 3000 K RA4-12G-30K-90WH. Plan your layout and order your Luna gimbals today.

Built to last, built to install fast
The LUNA RA4-12G starts with a durable airtight aluminum body and an adjustable gimbal that lets you aim the light after the ceiling is closed. An anodized blue heat sink keeps airflow around the LED source, which is what protects light output and colour over the long haul. Two spring-loaded clips grip any ceiling material, so a 4" recessed downlight goes in quickly whether you are retrofitting drywall, plaster or a T-bar ceiling. The fixture measures 5 1⁄16" (128mm) across with a 1 7⁄8" (46mm) profile and requires a Ø 4 3⁄16" (106mm) hole cut, and the gimbal tilts 20° on each side for precise aiming.

Light quality you can see
This general application fixture uses a 12 watt LED module that maintains uniform intensity and produces up to 1035 lumens, with a typical CRI of 90. High CRI matters in kitchens, bathrooms, closets and retail, where a 90 CRI source keeps whites clean and reds honest instead of flat and grey. The lens delivers a 40° beam spread for even coverage on counters, floors and walls, and efficiency lands at 92 lumens per watt. Projected life is 70% at 50,000 hours, and the fixture is LM79 and LM80 tested, Energy Star listed and covered by a lifetime warranty.

Electrical and installation
Power comes from an extruded aluminum hardwire box housing a 300mA dimmable Class II electronic driver with 100-135V AC input at 60Hz. An 18" FT6 rated cable with a DC 2.1 connector links the driver to the fixture and is approved for use in plenums and suspended ceilings. Three quick connect push-in terminals make wiring straightforward for electricians and contractors. Dimming runs from 100% to 10% with industry standard TRIAC/ELV dimmers; Liteline publishes a compatible dimmer list at www.liteline.com/lunadimmers. The fixture is suitable for insulated ceiling applications, approved for direct contact with insulation, tested with insulation up to R60, and a VBE vapour barrier extender is recommended in spray foam and loose fill applications. Operating temperature range is -20°C to 40°C.

Technical specifications
SKU: RA4-12G-DTW-90WH
Brand: LITELINE
Application: Ceiling Recess Mount
Approved location: Wet / Insulated Ceilings
Wattage: 12W
Lumens: 1035
Lumens per watt: 92
CRI: 90
Beam angle: 40°
Input: 100-135V AC, 60Hz
Dimming: Yes, TRIAC/ELV, 100%-10%
Power factor: 0.95
Hole cut: Ø 4 3⁄16" (106mm)
Dimensions: 5 1⁄16" (128mm) x 1 7⁄8" (46mm)
Certification: cETLus, Energy Star, LM79, LM80, Class II
Projected life: 70% @ 50,000 hrs
Warranty: Lifetime

Where it works and what goes with it
Use these 4" gimbal pot lights in a row over a kitchen island, aimed at a backsplash; in a bathroom or over a shower thanks to the wet location rating; in a finished basement with insulated joist bays; in a covered entry or soffit; or in a boutique, clinic or café where you want to highlight shelving and displays. Accessories are sold separately and include the P-4020 pre-mounting plate, the P-4020NC new construction plate, the P-4024 24" pre-mounting plate, the P-NCMK-1 new construction mounting kit with hanger bars, VBE-1 through VBE-4 vapour barrier extenders and the RA4-XLRING reducer rings for 4" LUNA fixtures. Matching finishes and versions are available: the Luna RA4-12G-90WH, the black 3000 K RA4-12G-30K-90BK and the deeper-set Luna regressed gimbal RA4-12RG-90BK. The full technical PDF spec sheet is in the Documentation tab for your layouts, permits and submittals.
