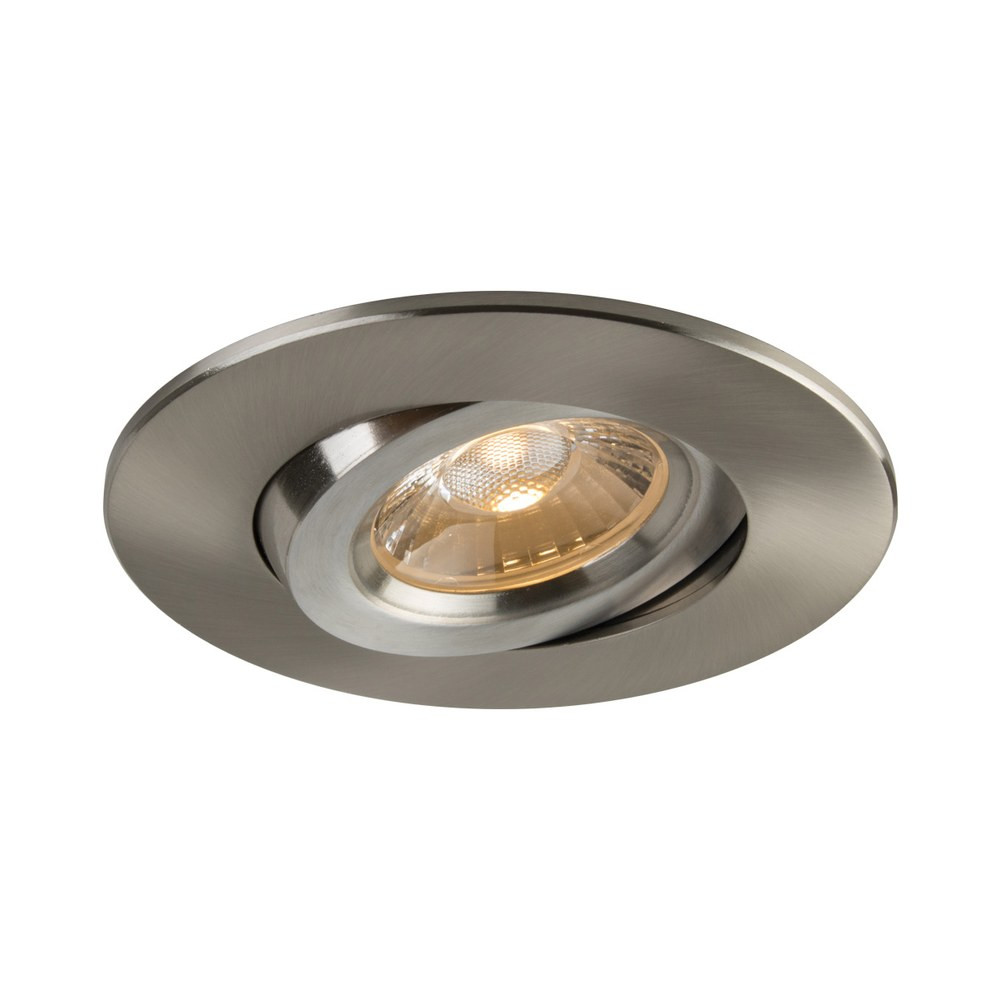

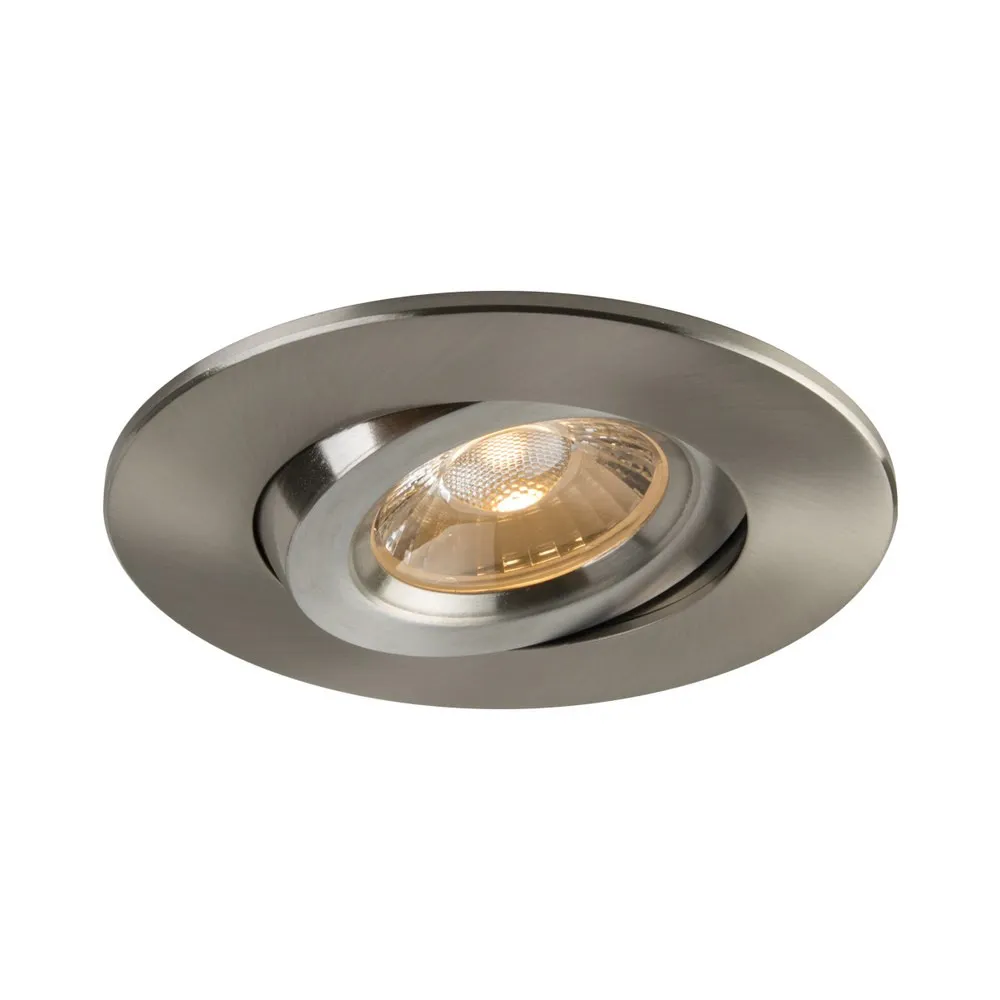

4" LUNA LED ROUND GIMBAL RECESSED FIXTURE - RA4-12G-90BN

Name: 4" LUNA LED ROUND GIMBAL RECESSED FIXTURE - RA4-12G-90BN
Brand: LITELINE
SKU: RA4-12G-90BN
Price: 86.97 CAD
Availability: InStock

SKU: RA4-12G-90BN

Brand: LITELINE

Some ceilings need light that goes exactly where you point it — and that's precisely what the 4" LUNA LED round gimbal recessed fixture from LITELINE does. Known on job sites as a 4 inch pot light, a gimbal downlight, an adjustable recessed LED light or simply a round LED light, this all-in-one unit combines a slim aluminum housing, an integrated LED module and a tilting gimbal that lets you aim the beam at artwork, a backsplash, a shower wall, a fireplace or a sloped ceiling. It's the fixture homeowners reach for during a renovation and the one contractors specify when they want a clean, uniform ceiling with real aiming flexibility. This SKU is RA4-12G-90BN, finished in brushed nickel.

Under the trim, a 12 watt LED module delivers up to 1035 lumens at 92 lumens per watt, with a typical CRI of 90 so wood grain, paint colours and skin tones look true. The warm 3000 K colour temperature keeps rooms inviting, while the lens shapes a controlled 40° beam spread that the gimbal tilts up to 20°. Dimming runs from 100% down to 10% on industry-standard TRIAC/ELV dimmers, powered by a 300 mA dimmable Class II electronic driver with 100-135V AC input, a 0.95 power factor and an 18" FT6 rated cable with DC 2.1 connector approved for plenums and suspended ceilings. The airtight aluminum body carries an anodized blue heat sink, is rated for wet locations, is approved for direct contact with insulation, is cETLus certified and Energy Star qualified, and is backed by a projected life of 70% at 50,000 hours plus a lifetime warranty.

Hallways, kitchens, living rooms, bedrooms, basements, showers, covered porches, retail floors, clinics and offices all benefit from this recessed downlight. Its Ø 4 3⁄16" (106 mm) hole cut and two spring-loaded clips make retrofit work fast, and with insulated ceiling approval tested up to R60 it suits Canadian homes where attic insulation is deep. Prefer the same fixture in another finish? See the 4" LUNA LED round gimbal recessed fixture RA4-12G-90WH or the 4" LUNA LED round gimbal recessed fixture RA4-12G-90BK. Order your LUNA gimbals today and light your project exactly the way you pictured it.

Built to disappear into the ceiling
The LUNA RA4-12G is built around a durable airtight aluminum body with an adjustable gimbal, so the trim sits flush while the optic tilts to aim light where the room needs it. An anodized blue heat sink inside the housing keeps airflow moving around the LED light source, which is how an integrated 4" recessed LED fixture holds its output year after year. The brushed nickel trim of the RA4-12G-90BN blends with stainless appliances, nickel faucets and modern hardware, and because the unit is approved for wet locations and for direct contact with insulation, the same fixture can run from a dry hallway straight into a shower ceiling or a covered entry.

Light quality you can see
The 12 watt module produces up to 1035 lumens of uniform intensity at 92 lumens per watt, with a typical CRI of 90 — the level that makes cabinetry, tile, textiles and food look the way they should. The 3000 K warm white colour temperature is the go-to for living spaces and hospitality settings, and the lens delivers a 40° beam spread that keeps scallops tidy on walls and pools of light even on floors. Tilting the gimbal up to 20° turns any of these downlights into a discreet accent light for art, shelving or a feature wall.

Technical specifications
Application: Ceiling Recess Mount
Approved location: Wet / Insulated Ceilings
Wattage: 12W
Lumens: 1035
Lumens per watt: 92
CCT: 3000 K
CRI: 90
Beam angle: 40°
Input: 100-135V AC, 60Hz
Dimming: Yes, 100%-10%, TRIAC/ELV
Power factor: 0.95
Class II: Yes
Hole cut: Ø 4 3⁄16" (106mm)
Dimensions: 5 1⁄16" (128mm) diameter, 1 7⁄8" (46mm) height
Operating temperature: -20°C~40°C (-4°F~104°F)
Certification: cETLus, Energy Star, LM79, LM80
Projected life: 70% @ 50,000 hrs
Warranty: Lifetime
Finish: Brushed Nickel (BN)

Wiring and installation
The extruded aluminum hardwire box houses a 300 mA dimmable Class II electronic LED driver and offers three "Quick connect" push-in terminals for fast, tool-friendly wiring. An 18" FT6 rated cable with a DC 2.1 connector links the driver to the fixture and is approved for use in plenums and suspended ceilings. Cut a Ø 4 3⁄16" (106 mm) hole, push the two spring-loaded clips through, and the fixture grips any ceiling material — drywall, plaster or panel. The assembly is suitable for insulated ceiling applications and has been tested with insulation up to R60; in spray foam and loose fill applications, a vapour barrier extender (VBE) is recommended. Pair it with standard TRIAC/ELV dimmers for smooth 100%-10% control.

Where it fits and what's next to it
Think open-concept kitchens and island runs, hallways, walk-in closets, basement renovations, bathroom and shower ceilings, covered porches, condo lobbies, boutiques, salons, dental clinics and small offices — anywhere a discreet gimbal recessed light beats a bulky surface fixture. Accessories such as pre-mounting plates, new construction plates and mounting kits, reducer rings and vapour barrier extenders are sold separately. Matching options in the same family include the 4" LUNA LED round gimbal recessed fixture RA4-12G-90WH, the 4" LUNA LED round gimbal recessed fixture RA4-12G-90BK, the tunable 4" LUNA LED round gimbal recessed fixture RA4-12G-DTW-90BN and the deeper-set 4" LUNA LED round regressed gimbal recessed fixture RA4-12RG-90BK. The full technical PDF (RA4-12G-90BN Spec Sheet) is available in the Documentation tab for your dimmer list, dimensions and certifications.
