24V 5M IP20 3014 WHITE LED STRIP - 120 LEDS/M (STRIP ONLY)

Name: 24V 5M IP20 3014 WHITE LED STRIP - 120 LEDS/M (STRIP ONLY)
Brand: LED MONTREAL
SKU: 301424-2700
Price: 52.97 CAD
Availability: InStock

SKU: 301424-2700

Brand: LED MONTREAL

Soft, continuous light exactly where you need it — that's the magic of a good LED strip, and this 24V 3014 white ribbon from LED MONTREAL delivers it beautifully. Known by plenty of names — LED strip lights, LED light strips, LED tape, LED strip lighting or simply ruban — this 5-metre roll (SKU 301424-2700) packs 120 LEDs per meter for a smooth, even line of light with no harsh dots. Tuck it under kitchen cabinets, inside a cove or bulkhead, along a staircase, behind a bathroom mirror, under a floating vanity, inside display cases and shelving, or use it as discreet indoor LED lighting in a basement renovation. It ships as strip only, so you build the system exactly the way your project needs it.

Under the silicone-free surface sit Epistar 3014 SMD chips on a 2-ounce copper circuit board — the kind of build that keeps light output steady over the long run, with a rated lifespan of 50 000+ hours. Expect a typical luminous flux of 1000 lumens per meter at 2700K Warm White, a CRI of 80+ so wood, paint and skin tones look right, and a 120° beam that washes surfaces evenly. It runs on 24V DC, draws 12W/m (plan a power supply at 14.4W/m), and measures 10mm wide by only 2mm high over a 5-metre length — slim enough to disappear into almost any reveal. The strip is cuttable every 6 LEDs (50mm), backed with 3M self-adhesive, rated iP20 for indoor use, and is dimmable with a low voltage dimmer/remote combo or a dimmable power supply paired with a 120V AC dimmer. It carries cULus certification for Canada and the USA (E498952).

This is the strip for condo kitchens in Montréal, basement family rooms, home offices, retail displays, restaurant bars, hotel corridors and office reception desks — anywhere a warm 2700K glow should feel built-in rather than added on. Operating range is 40C to -10C, and since it's iP20 it belongs indoors, away from moisture. One important detail: mount it on a heat-dissipating surface or in an appropriate aluminum channel so it runs cool and lasts. Connections are already there — a female DC plug (17cm) on one end and 2 wires (17cm) on the other — so all that's left is your 24V power supply, dimmer and profile. Start your lighting project with a strip that's certified, bright and made to fit.

Sold separately
To complete the installation, add:
Power supply: 24V10AETLPSU, 24V1AETLPSU, 24V2AETLPSU, 24V3AETLPSU, 24V4AETLPSU, 24V6AETLPSU, 24V8AETLPSU, 3X96W

Built for a clean, even line of light

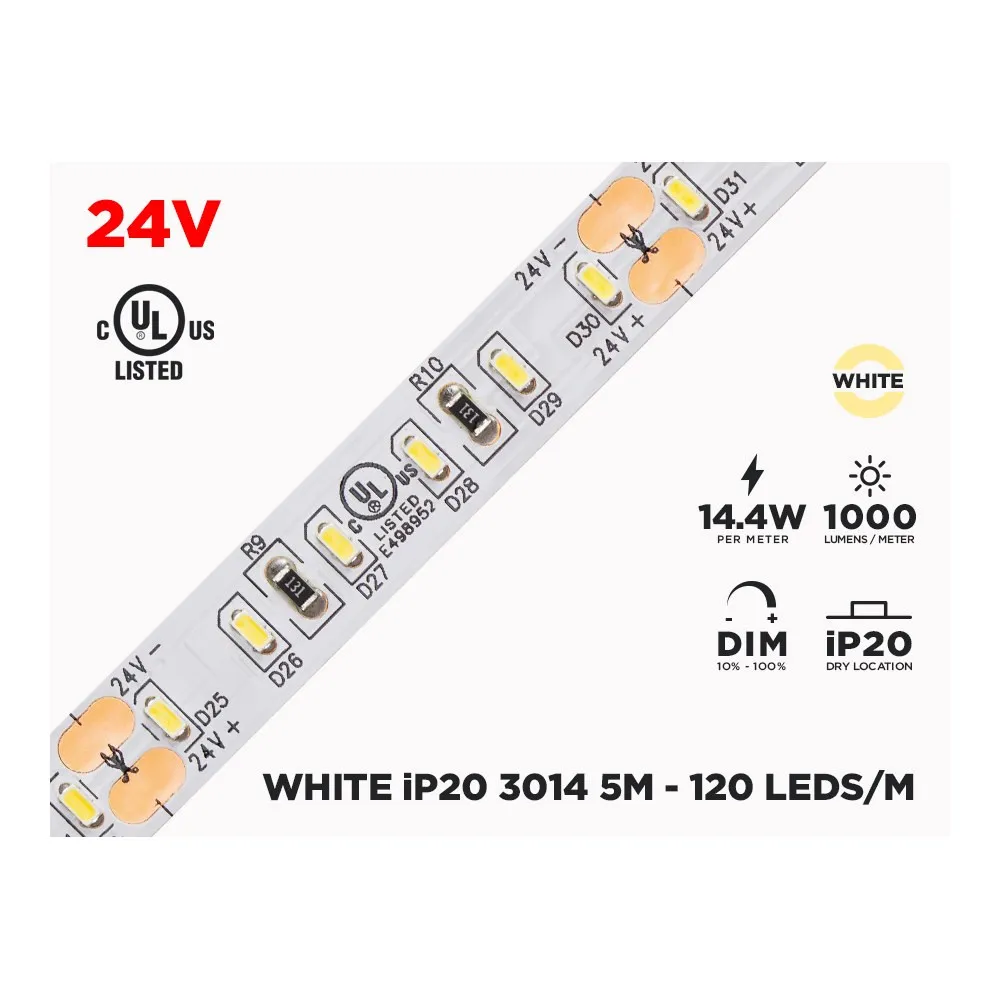

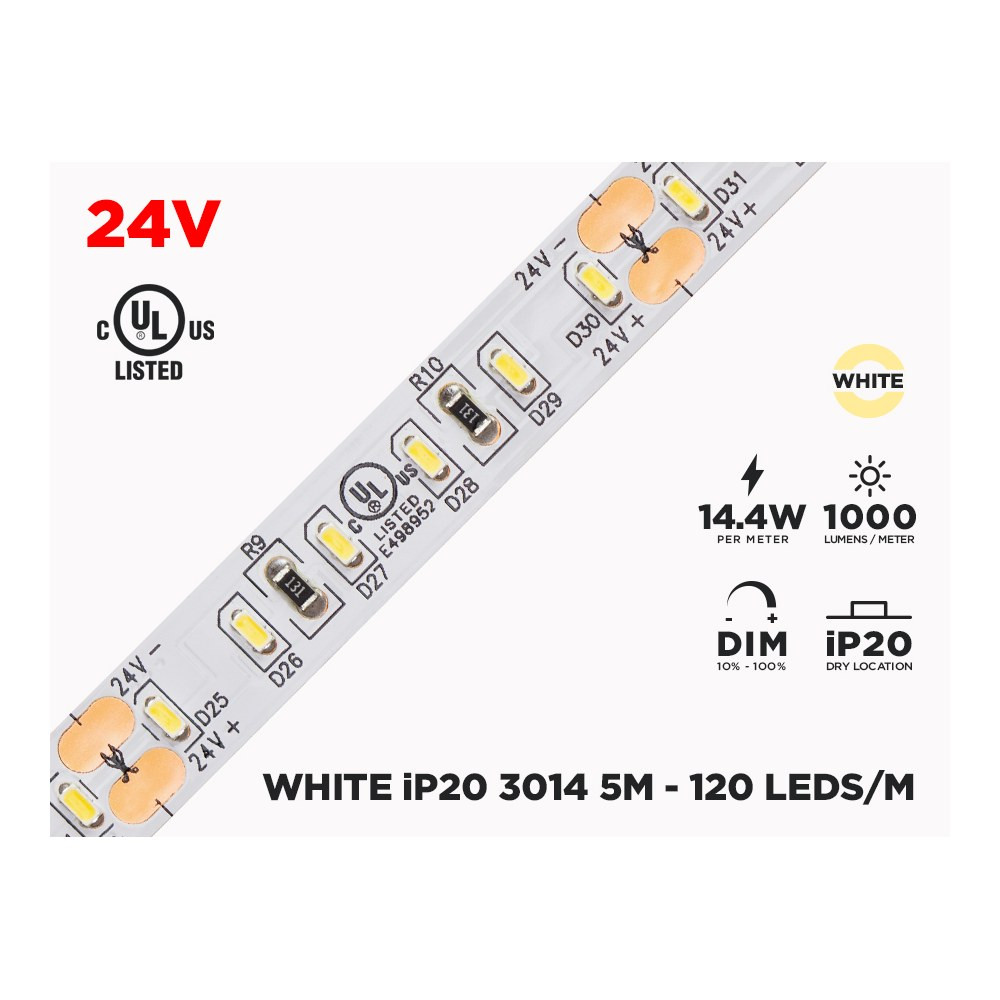

The 24V 5M IP20 3014 WHITE LED STRIP uses Epistar 3014 SMD chips at a density of 120 LEDs per meter — 600 LEDs over the full 5-metre roll. That tight spacing is what softens the "dotting" effect you get from cheaper, sparse tapes, especially when the strip sits close to a surface or behind a diffuser. Underneath, a 2-ounce copper circuit board carries current with less resistance and helps pull heat away from the diodes, which supports the rated 50 000+ hours of service. The ribbon measures 10mm wide and just 2mm high, so it slips into narrow coves, cabinet reveals and slim extrusions without telegraphing its presence.

Light quality you can live with
This version is 2700K Warm White — the cosy, incandescent-style tone people want above kitchen counters, in living rooms and in hospitality spaces. Typical output is 1000 lumens per meter, spread over a 120° lighting angle for a broad, even wash rather than a narrow beam. With a CRI of 80+, woodgrain, backsplash tile, paint and merchandise keep their true character instead of looking washed out. Note that typical luminous flux varies slightly depending on the Kelvin degrees chosen across the family; the value above applies to this warm white version.

Technical specifications
SKU: 301424-2700
Brand: CDNLUX
Model: MTL-FP10AFIDJ-120AXX
Certification: cULus for Canada and USA E498952
Chip: Epistar 3014 SMD
Circuit board: 2 Ounces
Chip density: 120 LEDs per meter
Can be cut: All 6 LEDs (50mm)
Length: 5 meters
Width: 10mm
Height: 2mm
Voltage: 24V DC
Power consumption: 12W/m
Recommended power supply: 14.4W/m
Typical luminous flux: 1000 Lumens/m
Colour temperature: 2700K Warm White
CRI: 80+
Lighting angle: 120°
Lifespan: 50 000+ Hours
Self-adhesive: 3M
iP rating: iP20 (indoor use only)
Operating temperature: 40C to -10C

Wiring, dimming and installation
Running on 24V DC means longer runs with less voltage drop than a 12V tape, a real advantage on long counters, coves and corridors. Each roll arrives with a female DC plug (17cm) on one end and 2 wires (17cm) on the other, so you can plug into a matching driver or hard-wire into a junction. Size your driver from the 14.4W/m recommendation, not the 12W/m draw, to leave headroom. The strip is dimmable two ways: a low voltage dimmer/remote combo on the DC side, or a dimmable power supply controlled by a 120V AC dimmer on the wall. Cut only on the marked points — every 6 LEDs (50mm) — and always install on a heat-dissipating surface or inside an appropriate aluminum channel; adhering tape to wood, drywall or plastic alone traps heat and shortens life. The 3M backing holds well on clean, dry, dust-free surfaces.

Where it works, and the paperwork
Because it is rated iP20, this strip is for dry indoor locations only: under-cabinet task lighting, toe-kick and stair accents, cove and tray ceilings, closet and pantry shelving, bar fronts, retail vitrines, display cases, office reception desks and signage backlighting. Contractors appreciate that it is cULus certified for Canada and the USA under file E498952, which keeps inspectors comfortable on both sides of the border — handy for projects specified out of a Canadian office but installed stateside. The full technical spec sheet for this strip is available in the Documentation tab of this page; download it for wiring details, dimensions and certification information before you order your driver and profiles.
